The tank body is designed without skirts, the left and right side rails are made of aluminum alloy, and the vehicle is lightweight.
It has independent high and low pressure waterway systems, adopts top-mounted motors to drive high-pressure water pumps, and chassis motors drive self-priming two-stage centrifugal pumps. The two waterway systems can be used alone or in combination to clean differently polluted roads. .

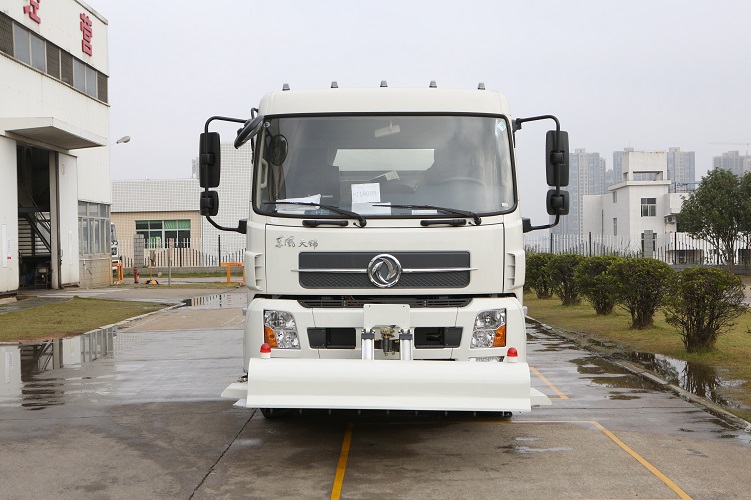

The front high-pressure cleaning device consists of three sections of cleaning racks. The high-pressure water curtain is a complete straight line during cleaning. The outreaching cleaning arm has self-obstacle avoidance function.
With multi-angle single-point dredging, it is used to clear local dead corners of roads and wash off road fences.
It has the functions of front sprinkling, side flushing and rear sprinkling, and adopts nozzles with different characteristics before and after. The side flushing pressure is large; after sprinkling water is suitable for cooling and dust.
Equipped with left-side columnar side impact and right-side column side impact device, the nozzle can be adjusted 360 ° left and right, up and down 360 °.
The whole vehicle is controlled by a pneumatic system. All air valves are installed inside the air control box, which can effectively isolate water and dust and extend the service life of the air valve. The control switch is located inside the cab, and all road work functions can be operated in the cab.
The rear worktable is equipped with a high water spray gun with auxiliary fire protection function. The high water spray gun can be adjusted into a column or a mist
The switch control valves and sprinkler system pipes are made of corrosion-resistant materials. The tank body is made of Q235B steel plate, and the inside is treated by a special process to prevent corrosion.
The water tank is equipped with a low water level sensor alarm system, which can automatically alarm when the water level is low to prevent the water pump from being damaged due to lack of water .
Equipped with a pneumatic net antifreeze device to prevent damage to the sprinkler system components caused by residual water and icing in the water pipe in winter.
Optional equipment: 1. Upper spray after optional equipment; 2. Lower spray after optional equipment; 3. Optional sewer dredging device; 4. Left and right side watering tube; 5. Optional rear operation indicator light; 6. Optional additional Wide platform; 7. Single-point dredging device is optional; 8. Automatic water cannon on the left side before optional; 9. Automatic water cannon on the right side before optional. Enrich the function of cleaning the car and realize one car for multiple purposes.
