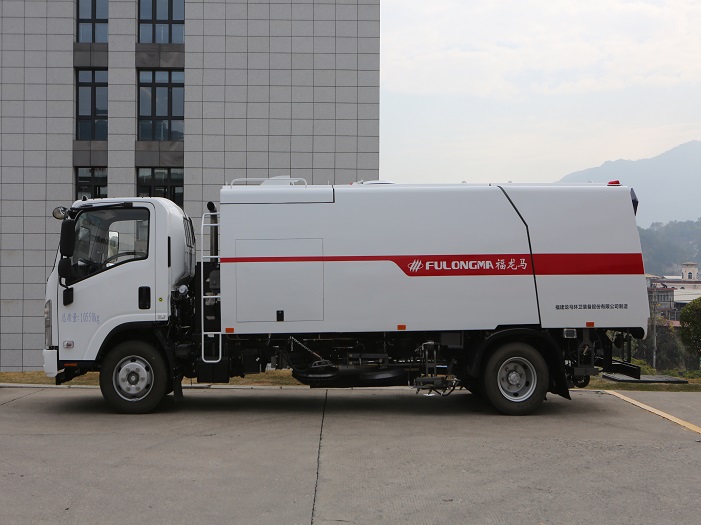

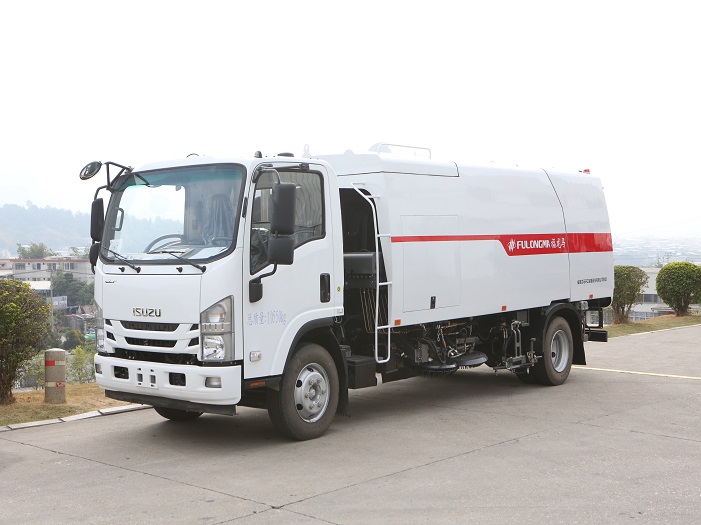

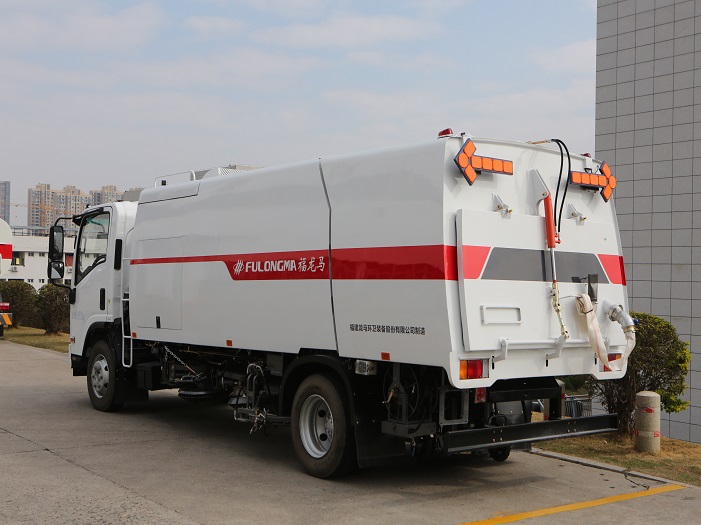

This innovative Cleaning Sweeper Truck is developed by our company which adopts our original V-shaped spray pipe washing technology, it gathers the functions of road sweeping and high-pressure washing in one. It not only can do the road sweeping or road washing independently but also can do the road scrubbing. This truck is especially suitable for cleaning and washing the road in the urban areas.
|
Auxiliary Engine Model |
ISUZU 4JB1-TCH |
|
Sweeping Width (m) approx. |
3.2 |
|
Dustbin Volume (m³) |
3 |
|
Water Box Volume (m³) |
6 |
|
High Pressure Water Pump Pressure(Mpa) |
12 |
Type of cleaning device：central four-disk sweep ＆ central V-shaped high-pressure nozzle ＆ rear single-suction nozzle structure configuration. The standard configuration of the vehicle has three cleaning modes: full cleaning, full cleaning, and full scanning Operating mode.
The high-pressure cleaning system uses the “V-shaped nozzle and semi-circular suction nozzle gapless high-pressure nozzle device” arrangement.

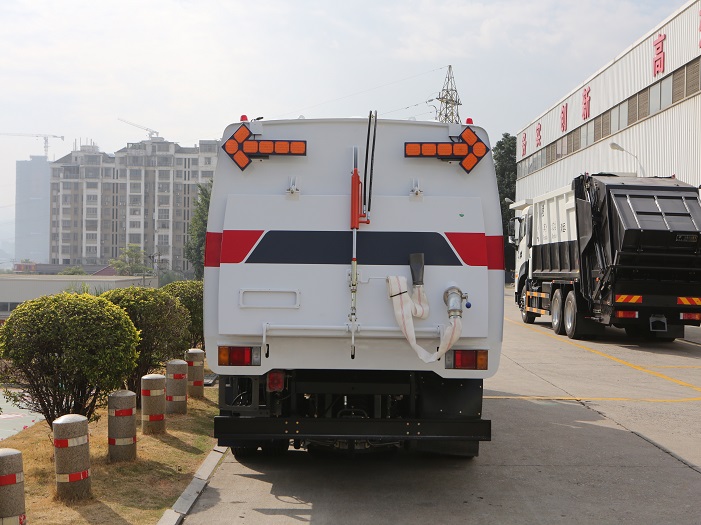

The rear door butterfly valve discharge sewage device can effectively separate the sewage and sludge and discharge the sewage separately according to the sewage in the garbage bin at any time, effectively extending the continuous operation time of the cleaning sweeper, and greatly improving the operation efficiency.
The brush and spray bar device has an automatic obstacle avoidance protection function. Even if the vehicle brushes or the obstacle is encountered in front of the spray bar, the spray bar can also avoid obstacles and completely protect the components from damage.
With hydraulic buffer type sweeping ground distance automatic adjustment technology, the contact force between the sweeping brush and the ground is maintained at a fixed value, the contact surface between the sweeping brush and the ground remains unchanged, and the sweeping brush can be automatically compensated when worn.
The high-pressure water pump has a small flow rate, high pressure, and strong cleaning ability; high-pressure centrifugal fan is used, which has strong suction capacity and good cleaning effect. A variety of job functions.
A variety of safety alarm devices: low water level of clean water tank, high water level of sewage and trash bin, operation prompt, water temperature of auxiliary engine, oil pressure, reversing prompt, etc., optional hydraulic oil leakage, dump tank tipping, resetting, rear door opening and closing Security alarm device.
The garbage dustbin has an automatic tipping and unloading function. A high-pressure self-cleaning device is built in to quickly rinse the garbage bin; equipped with a high-pressure cleaning gun, it can self-clean the entire vehicle, and can also be used for pedestrians and small street advertisements. “Clean and remove.
Using CAN bus control and intelligent control system, all actions can be implemented in the cab.
