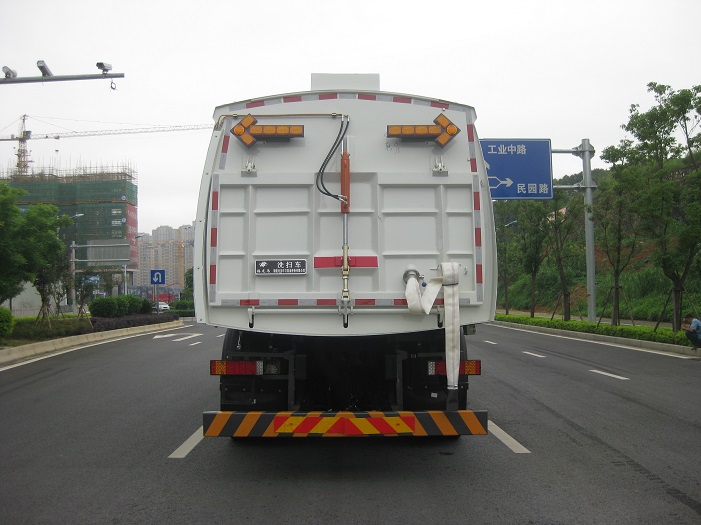

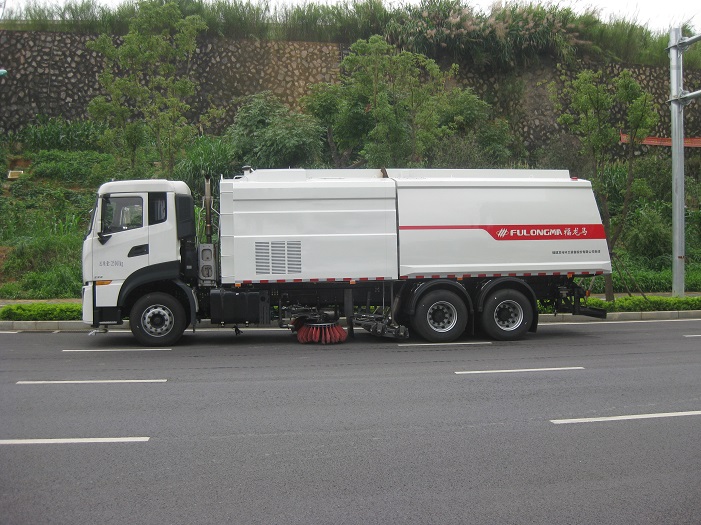

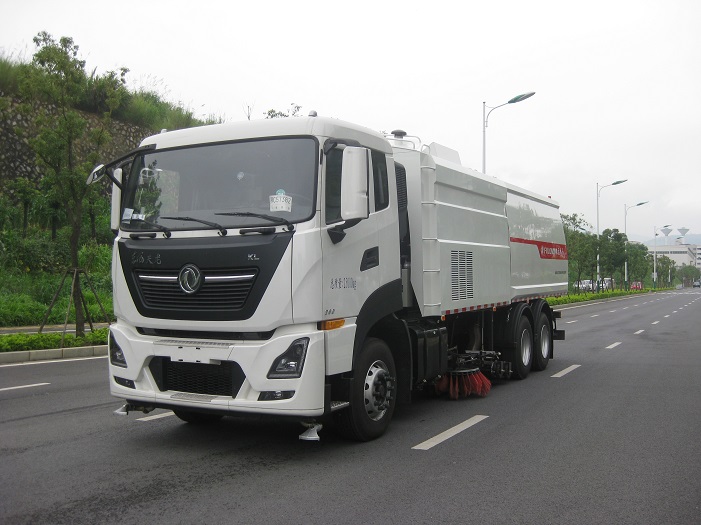

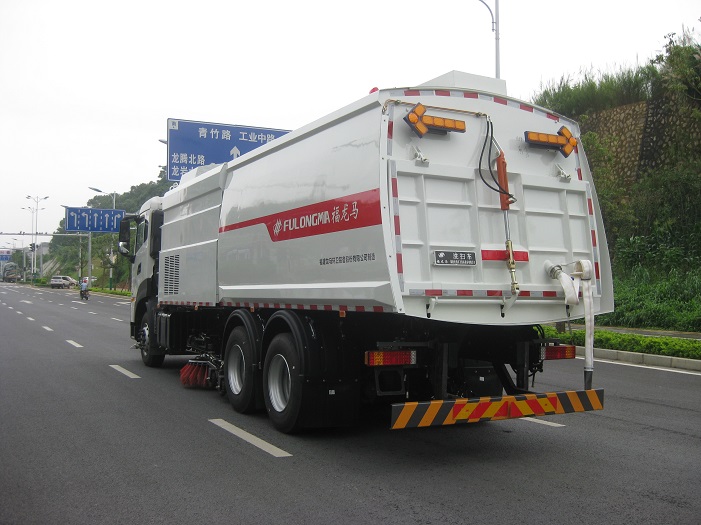

This innovative Cleaning Sweeper Truck is developed by our company which adopts our original V-shaped spray pipe washing technology, it gathers the functions of road sweeping and high-pressure washing in one. It not only can do the road sweeping or road washing independently but also can do the road scrubbing. This truck is especially suitable for cleaning and washing the road in the urban areas.
|
Auxiliary Engine Model |
Cummins QSB5.9-C160-30 |
|
Sweeping Width (m) approx. |
3.5 |
|
Dustbin Volume (m³) |
9.5 |
|
Water Box Volume (m³) |
13 |
|
High Pressure Water Pump Pressure(Mpa) |
10 |
The shape of the box of the whole vehicle adopts the shape of a large curved side, and the arc transition, the box is evenly stressed, the structural performance is strong, and the appearance is beautiful.
The working device adopts the “central two-disc scanning + central wide suction nozzle + built-in high-pressure main spray bar + left and right high-pressure side spray bar” layout. It has a variety of operating modes to achieve road cleaning, cleaning and washing.
The original V-shaped nozzle and semi-circular suction nozzle without gap high-pressure nozzle layout effectively collect the cleaned sewage and garbage to the suction nozzle, and absorb it in the sewage garbage bin, so that the road surface will not leave dust and water , The pavement cleaning, brush sweeping and sewage recycling effect is good.
When using bus control, the cab display screen operation, one-key control, color video operation monitoring. Voice alarm, self-diagnosis, early warning processing, emergency protection, fault analysis, operation record. The secondary engine speed is also automatically controlled by the system.
The left and right spray bars have a two-way collision avoidance function, which improves the safety of vehicle operation.
The suction nozzle and sweeping plate adopt hydraulic floating technology to reduce the loss of brushing and suction nozzle rubber wheel.
Equipped with a low-pressure water system, the front nozzle has a high flushing pressure and can flush six lanes at a time; the left columnar side impact and the right columnar side impact device, the nozzle can be adjusted 360 ° left and right, 360 ° up and down.
Various safety alarm devices: low water level of clean water tank, high water level of sewage and trash bin, operation reminder, water temperature and oil pressure of auxiliary engine, reverse prompt, hydraulic oil leakage, dumping and resetting of garbage bin, safety alarm device for opening and closing rear door, etc. .
