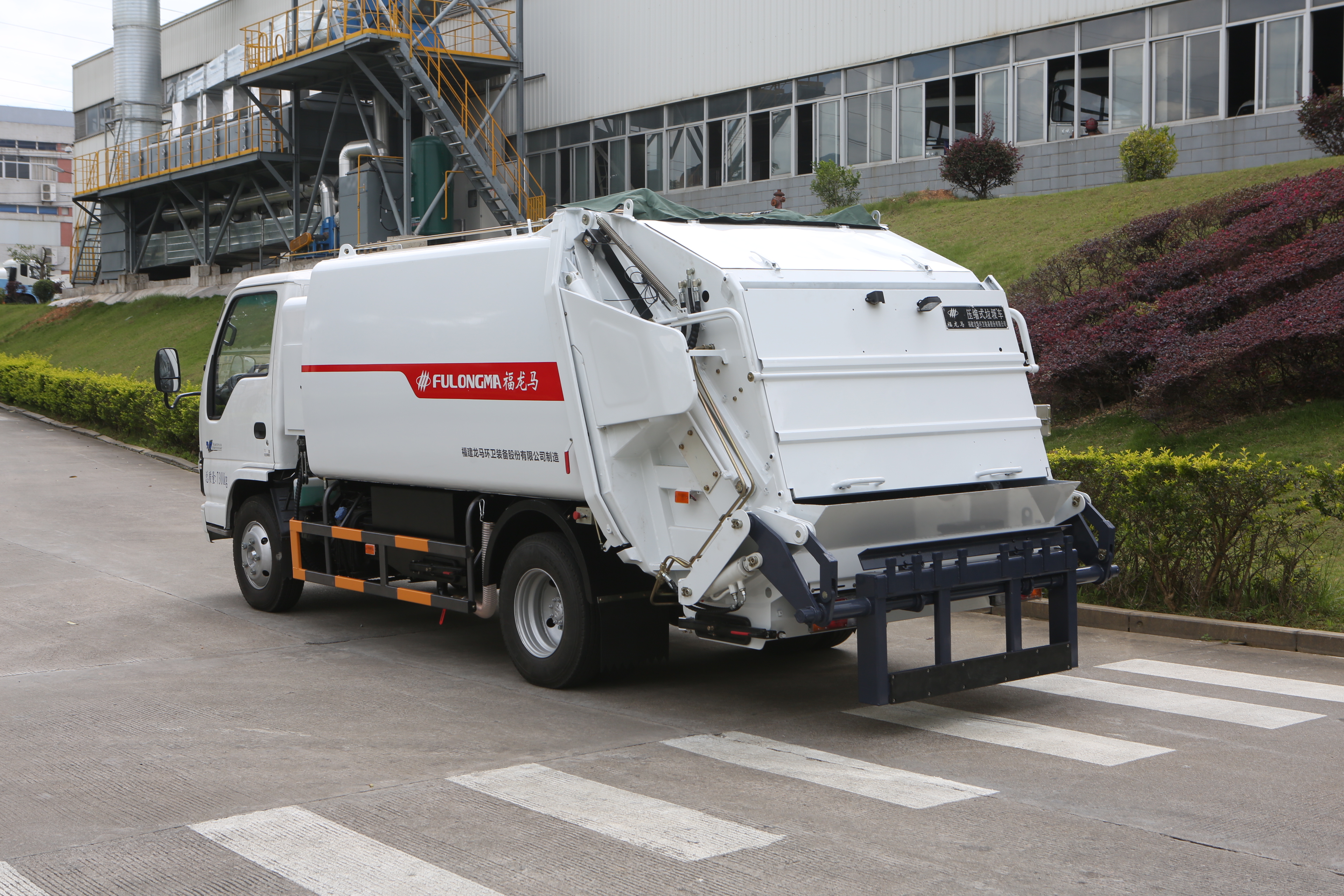

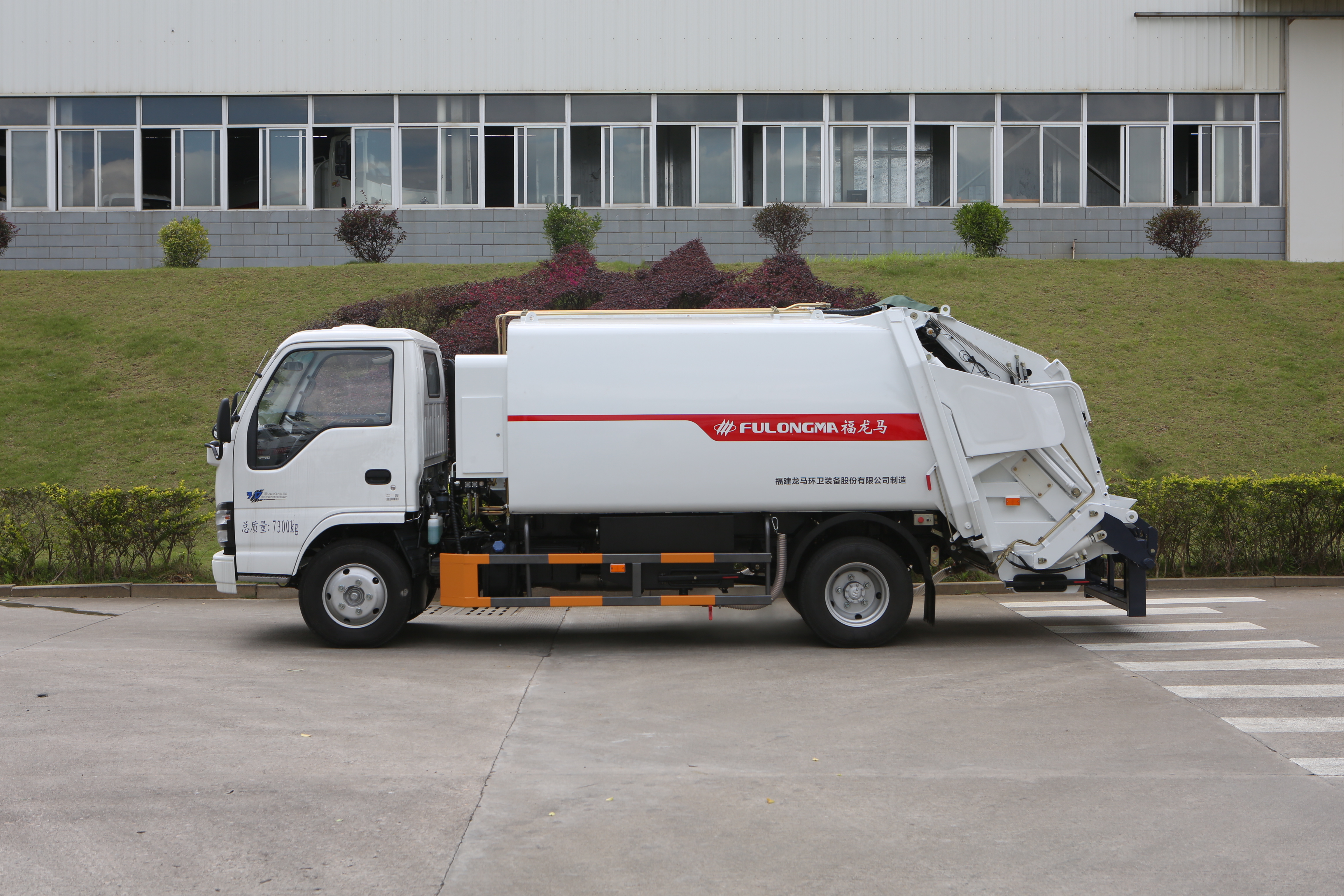

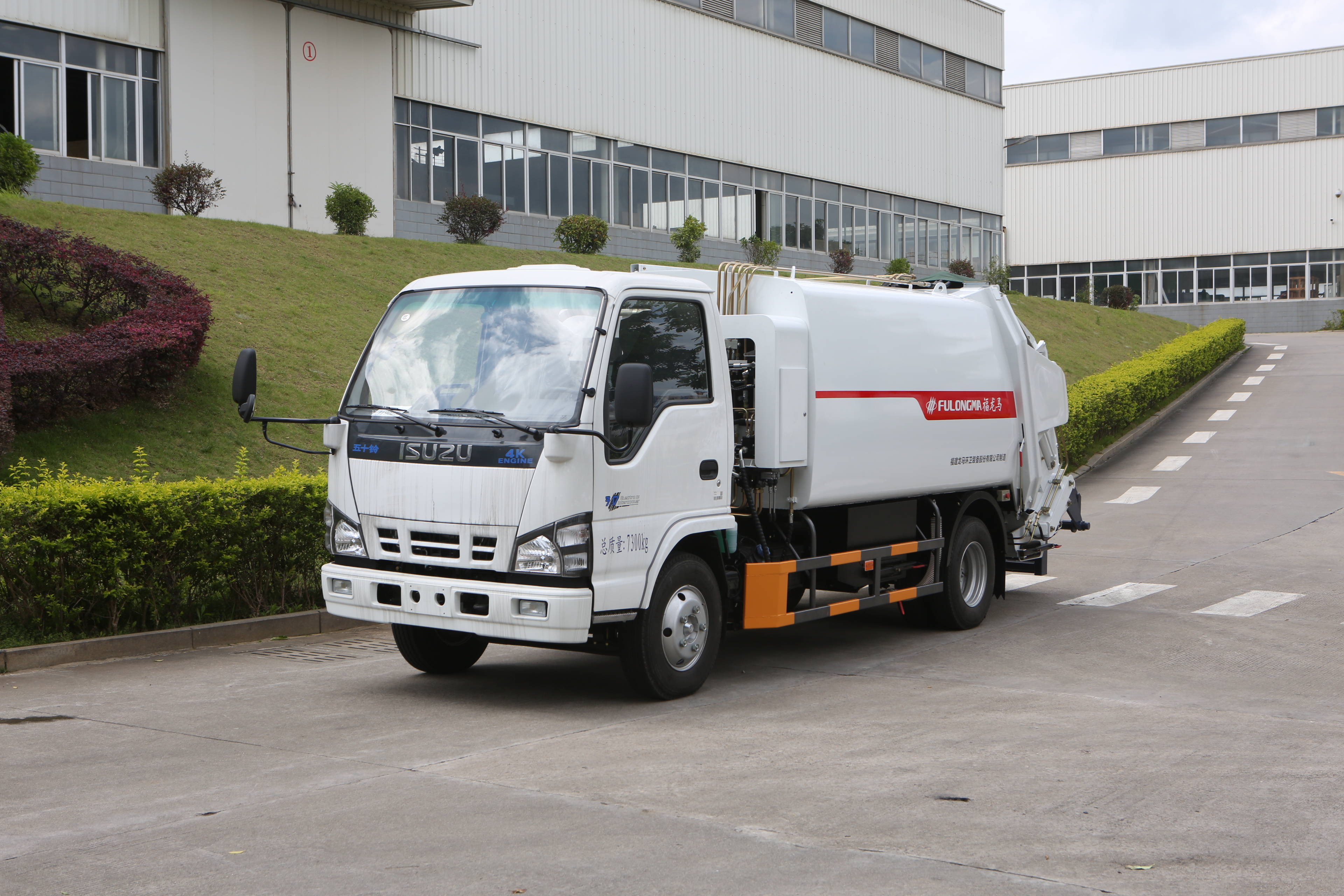

The truck is a special vehicle for garbage collection and transfer developed by FULONGMA with the introduction of international advanced technology. It has the obvious advantages of large garbage loading, no secondary pollution, reliability and durability.
|
Model |
Specification |
|
Chassis Model |
Qingling QL1070BUHACY |
|
Emission Standard |
China Ⅵ |
|
Engine Model |
4KH1CN6LB |
|
Maximum Power/Rotate Speed （kw/（r/min）） |
87/2900 |
|
Rated Power/Rotate Speed (kw/（r/min）） |
88/2900 |
| Garbage Tank Volume (m³) |
6.5 |
| Sewage Tank Volume (L) |
450 |
The U-shaped integrally formed truss slot with Japanese technology is adopted as the movable guide rail of the garbage pushing plate, which has strong pressure resistance and good deformation resistance.
The truck is equipped with two different material side guardrails, which users can choose according to their needs.
The main components such as the garbage container are made of high-strength weather-resistant steel plates with arc-shaped design, which has beautiful
appearance, large effective volume, outstanding overall structural performance, and strong impact resistance.
A sealing cover plate is set at the opening of the filler, which can effectively prevent the secondary pollution of garbage and odor.
Equipped with a large-capacity sewage tank, combined with a diversion sewage collection device, the sewage that leaks between the filler and the garbage container due to the failure of the sealing strip can be drained into the special sewage collection tank, effectively preventing the leakage of sewage secondary pollution.
The joint between the filler and the box adopts adjustable hydraulic locking and full sealing technology, which has a good sealing performance.
The sliding block of the push plate is made of high wear resistance alloy material with long service life.
There are multiple safety protection measures such as the sliding board up and the scraper up button, the emergency stop button, the interlock switch to prevent the
filler from falling, the safety brace, and the self-locking function of the filler lifting cylinder to ensure the safety of personnel.
Equipped with two-way compression function, high compression efficiency, and large garbage loading capacity. When unloading, after the filler is lifted in place, the scraper and slide plate automatically realize a cycle to remove the garbage remaining in the filler.
Various types of garbage lifting devices can be equipped according to user needs.
Add filler lifting and scraper slide hydraulic buffer device to slow down hydraulic and mechanism impact, reduce operating noise, and ensure the service life of key components.
