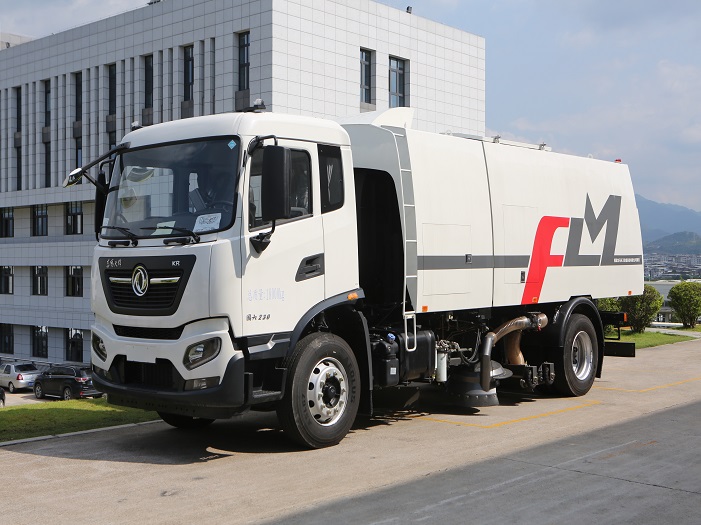

This Dirty-suction Vehicle is the new type of road cleaning truck of Fulongma. It utilizes the principle of pure negative pressure absorption, the dust is inhaled effectively and never leak out. Realize dust-free operation and 0 emissions of PM2.5. it can work in dry or wet modes, this enables the vacuum sweeper to fit the all-season operation.
|
Auxiliary Engine Model |
Cummins QSB5.9-C160-30 |
|
Sweeping Width (m) approx. |
3.4 |
|
Dustbin Volume (m³) |
8.5 |
|
Number of Filter Cartridges(PCS) |
16 |
Operation device: sweeping vacuum cover and cylinder slider adjustment combined mechanism + central wide suction nozzle arrangement is adopted to solve the dust raising problem of the sweeping operation and sweep away the rubbish along the road.
Equipped with dry and wet switching control mechanism and suction switch adjustment mechanism of left and right cleaning devices, which realizes diversification of operation modes. According to different operation requirements, dry operation mode and wet operation mode can be used respectively Adjust the opening of the left and right suction switch separately, with wide application range.
The dustbin box of pure suction vacuum truck is made of SUS304 stainless steel as a whole, which will never rust.
The unique box structure is adopted, and the maintenance and disassembly of the filter cartridge are simple and convenient. The inclined box structure of the garbage box is convenient for unloading without manual intervention.
The whole vehicle adopts 16 cone-shaped membrane filter cartridges, with a filtration area of ≥160 square meters, a large filtration area, and a better suction effect; and a gas pulse filter cartridge cleaning device, which greatly improves the cleaning effect of the filter cartridge Reduces the clogging of the filter cartridge by dust and improves the working effect.
The electrical system is controlled by an integrated modular CAN bus. The panel has video functions such as fault diagnosis, digital testing, real-time display and monitoring of auxiliary engine speed, water temperature, operating conditions, etc. The operation status is clear and maintenance is easy.
Optional hydraulic oil heating device to ensure the normal operation of the hydraulic system in severe cold winter.
Optional crushing device can crush the fallen leaves on the road surface during the leaf-falling season to improve the vehicle cleaning effect.
Optional clean water tank, equipped with unloading spray dust reduction device, can effectively reduce the secondary dust caused by unloading.
