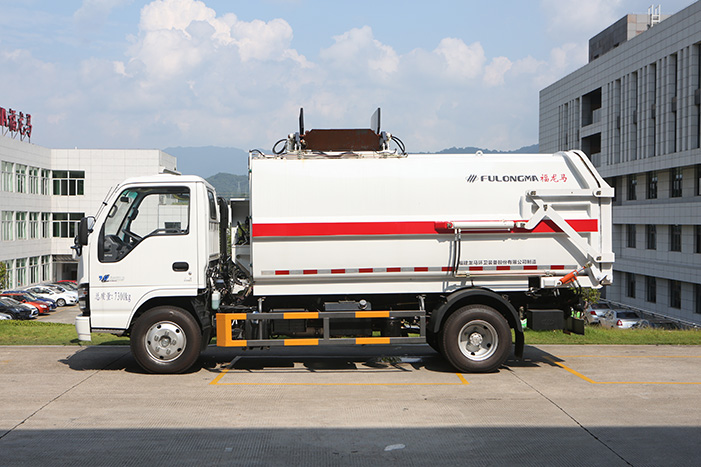

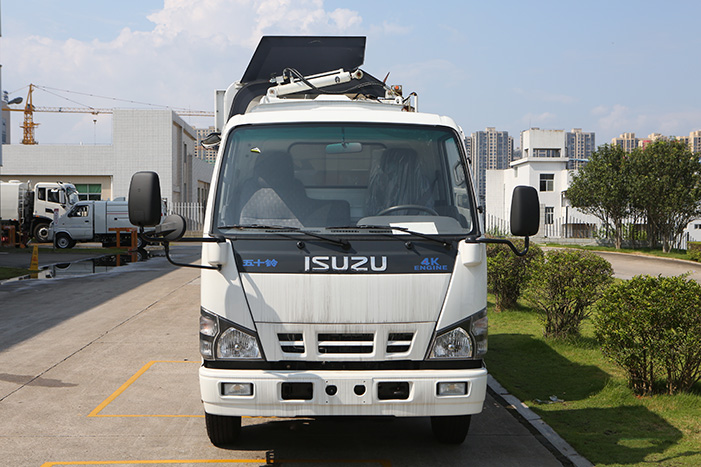

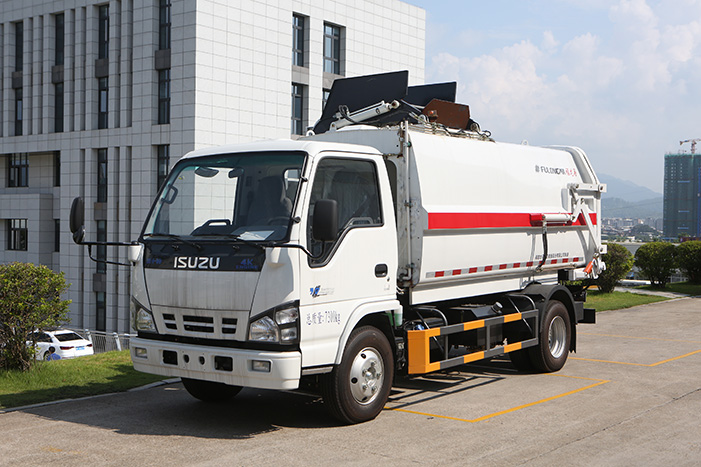

As the new generation of waste collection vehicles, this truck has a breakthrough in its operation method. Its tank adopts high-strength weather-resistant board roll forming, high strength, light weight and strong load capacity. This model is suitable for docking with vertical or buried garbage stations to transfer compressed household garbage.
|
Parameters |
FLM5070ZDJQL6 |
|
Chassis Model |
QL1070BUHACY |
|
Emission Standard |
China VI |
|
Engine Model/Power (kW) |
4KH1CN6LB/88 |
|
GVW(kg) |
7300 |
|
Garbage Tank Volume (m3) |
≥7 |
|
Sewage Tank Volume (m3) |
0.8 |
|
Lifter Cycle Time (s) |
≤25 |
|
Ejector Cycle Time (s) |
≤50 |
|
Tailgate Working Cycle Time (s) |
≤25 |
|
Tank Lifting Cycle Time (s) |
≤20 |
|
Dimension (Lx Wx H) (mm) |
5920x1960x2950 |
The right side of the container is equipped with the dustbin hanging, fixing, and supporting structure, as well as the main rail and a second rail of the lifting frame, which can lift standard dustbins of 120 and 240 liters. The ascent process has low friction, smooth movement, and is safe and reliable. The lifting mechanism and the upper cover form a linkage mechanism through a connecting rod and a swing arm, which not only saves costs but also improves work efficiency.
The tilting angle of the dustbin and the height of the tooth plate from the ground can be adjusted by the angle adjustment mechanism at the upper end of the lifting rail—adjustable connecting rod, avoiding instances where the dustbin is not clean after being dumped due to an insufficient tilting angle.
The use of a dedicated lifting mechanism anti-drip device can effectively avoid the problem of sewage dripping during the lifting process, reduce secondary pollution, and is environmentally friendly and safe.
The truck adopts a push-plate dump method, which not only saves costs but also improves work efficiency.

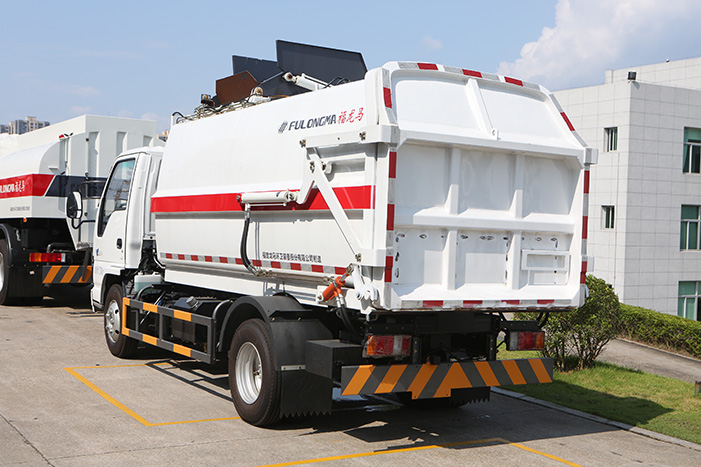

The container at the rear of the truck is configured with a combined compression mechanism of scraper and sliding plate, which can effectively compress the garbage and greatly increase the garbage loading capacity of the truck.

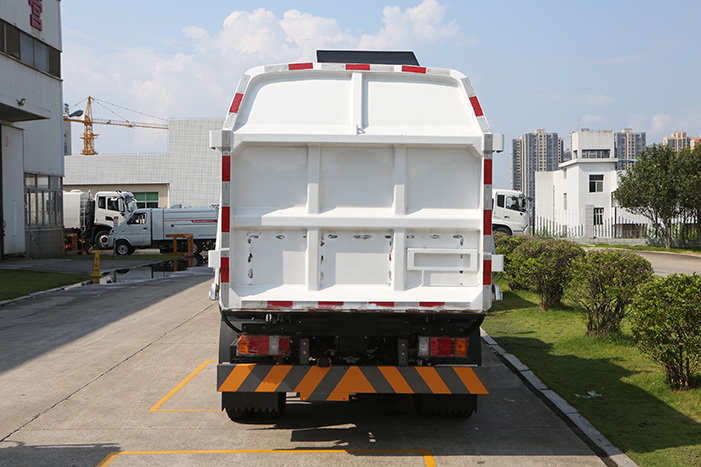

The opening and closing mechanism of the tailgate adopts an innovative four-bar linkage mechanism.
