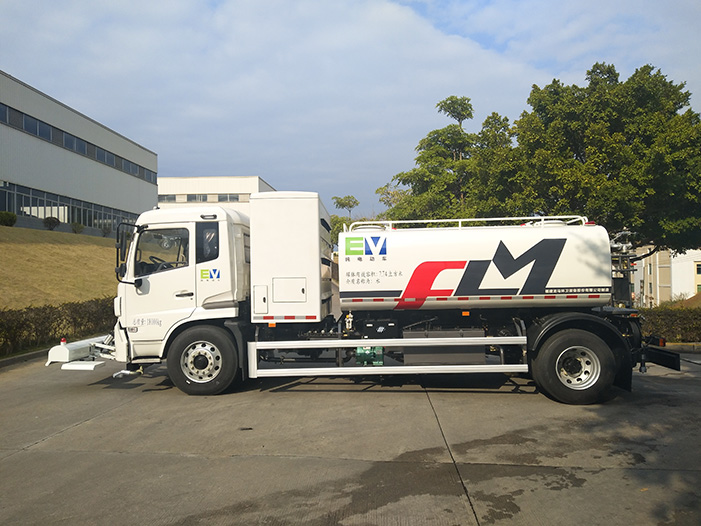

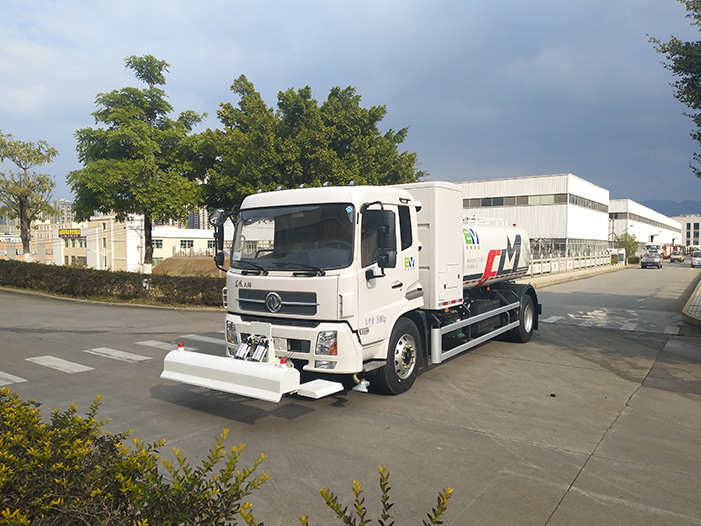

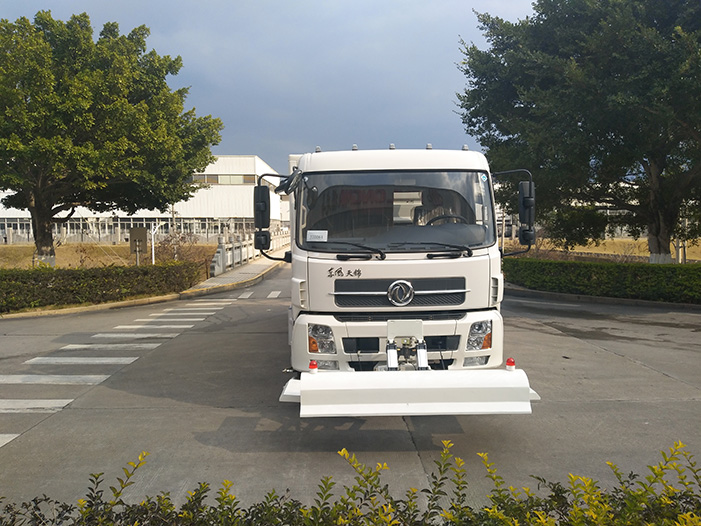

This truck is equipped with front flushing, front sprinkling, rear sprinkling, left flushing, and right flushing nozzles, which can spray water to cool or clean the road. It is suitable for sprinkling and cleaning operations on urban roads, highways, squares, ports, and docks.
|
Main Parameters |
FLM5182GQXDFBEV |
|
Chassis Model |
EQ1180GEVJ1 |
|
Chassis Battery Type |
Lithium Iron Phosphate Battery |
|
Chassis Battery Model |
MFH3L8 |
|
Chassis Battery Capacity (kWh) |
314.14 |
|
Chassis Motor Model / Rated Power (kW) |
TZ370XS-LKM1303/80 |
|
Top Speed (km/h) |
100,89 |
|
Cleaning Width (m) |
≥3 |
|
High-pressure Water Pump Model |
RTX150.100N |
|
Flushing Width (m) |
≥24 |
|
Sprinkling Width (m) |
≥16 |
|
Rear Water Gun Range (m) |
≥50 |
|
Sprinkler Pump Head (m) |
110 |
|
Sprinkler Pump Flow (m3/h) |
50 |
|
Water Tank Volume (m3) |
7.74 |
|
External Size (L*W*H) (mm) |
9035x2520x2950 |
The truck is equipped with a self-priming two-stage centrifugal pump and is driven by its superstructre motor. It adopts the first low-level flushing mode in China.

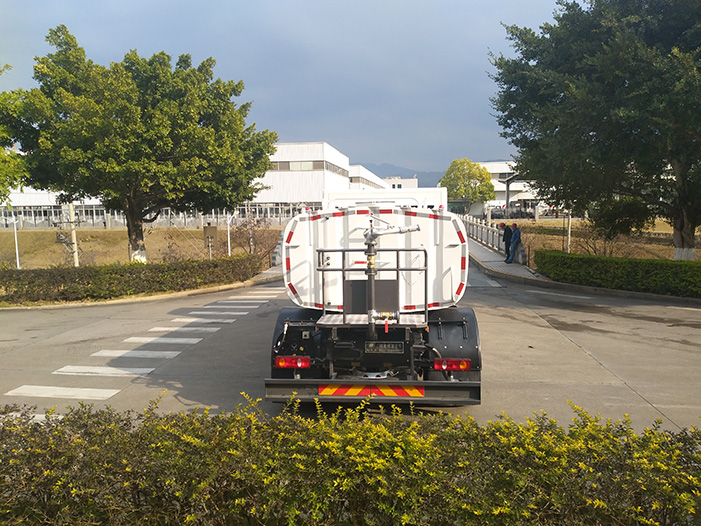

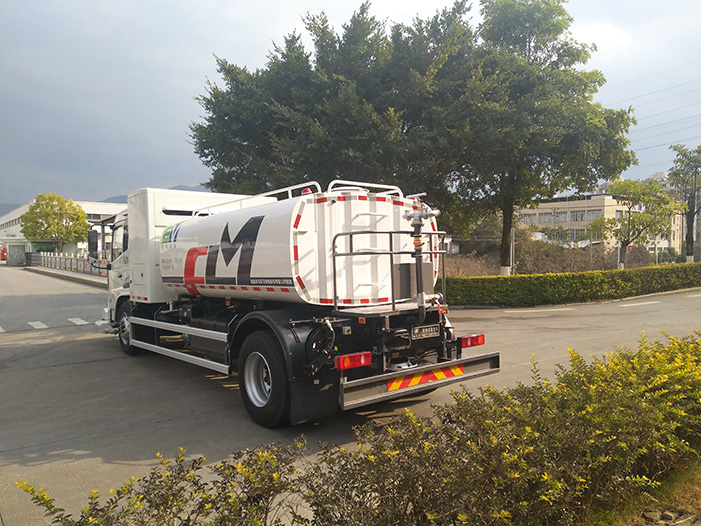

The high-pressure water gun located at the rear of the truck is flexible to operate and has a wide range of working angles. It can be used to spray objects of various heights, and it can also remove some dirty spots that are not easy to clean. It also has an auxiliary fire-fighting function. The spray gun can adjust the shape of sprayed water into a column or mist.
Equipped with cylindrical side flushing nozzles in the left-center and the right rear. The nozzles can be adjusted 360° both left and right and up and down.
There are two sprinklers at the rear of the vehicle, which can be used for daily sprinkling applications to increase humidity and reduce dust on roads.
The structure of the truck is compact and reasonable so that the water tank has a larger volume and prolongs the working time.
The water tank is equipped with a low water level sensor alarm system, which can automatically sound when the water level is low.
Optional rear up and down sprayers, left and right side watering nozzles, sewer dredging devices, etc., allow for multi-functionality.
Its high-pressure water pump is from Italy.
