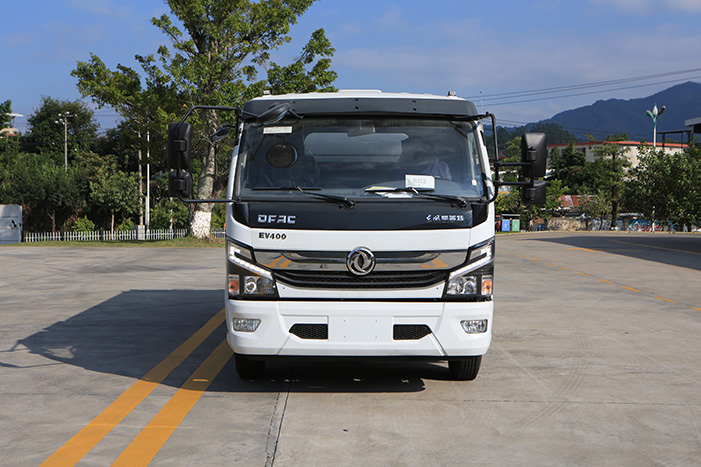

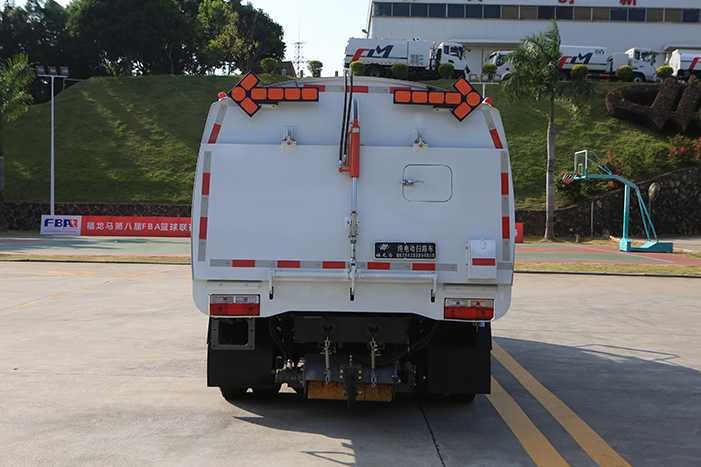

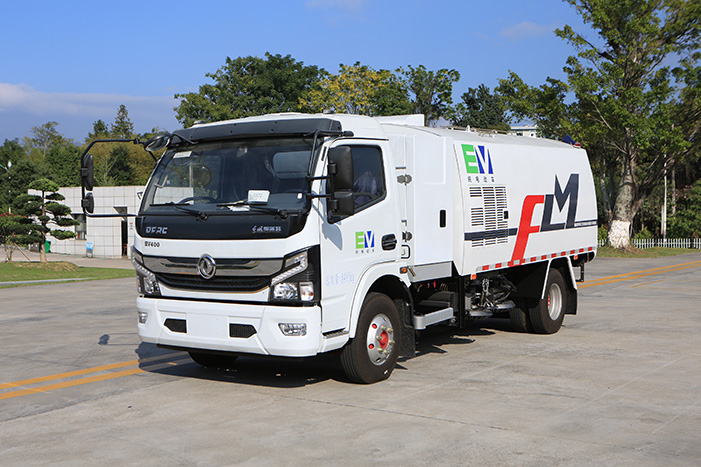

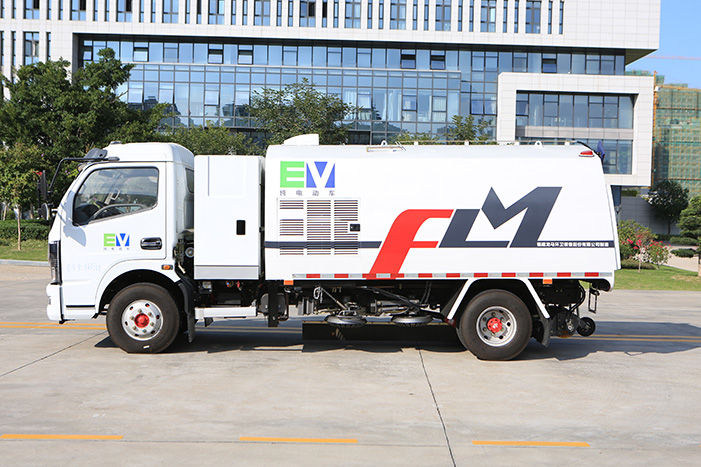

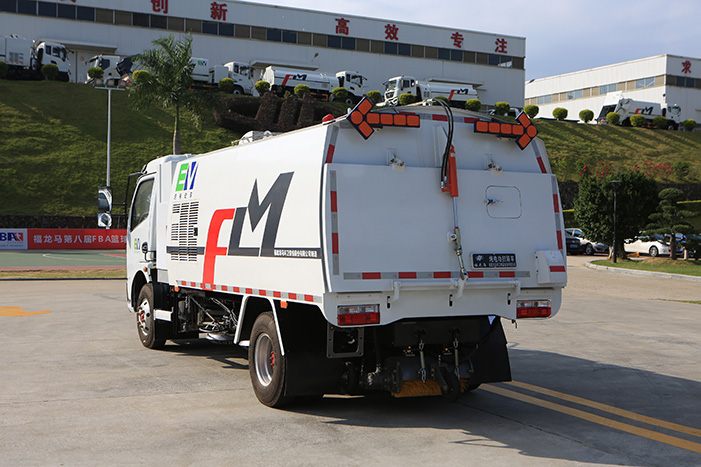

This truck is driven by electricity, has zero emissions, and has an extended cruising range. It is suitable for mechanized cleaning and cleaning of cement and asphalt concrete pavements such as highways, urban roads, viaducts, squares, airports, docks, residential roads, squares, sidewalks, etc.
|
Main Parameters |
FLM5120TSLDTBEV |
|
Chassis Model |
EQ1120TTEVJ |
|
Chassis Motor Model/Power (kw) |
TZ380XSTY842/80 |
|
Chassis Battery Capacity (kWh) |
218.54 |
|
Chassis Battery Type/Manufacturer |
Lithium Iron Phosphate Battery/CATL |
|
Superstructure Motor Model/Manufacturer/Power (kW) |
WR510-01025/Wanrun New Energy/30 |
|
Fast Charging Time (h) |
≤3 |
|
Travel Range (km) |
390 |
|
Top Speed (km/h) |
90 |
|
Garbage Tank Volume (m3) |
5.5 |
|
Clean Water Tank Volume (m3) |
2.5 |
|
Maximum Sweeping Width (m) |
3.2 |
|
Sweeping Speed (km/h) |
3〜20 |
|
Sweeping Rate (%) |
≥96 |
|
Working Time after Charging (h) |
8 |
|
External Size (L*W*H)(mm) |
7025x2235x2590 |
The various working equipment of this truck is designed with the one-key control function. During the cleaning operation, if you need to stop for traffic lights, you can reduce the motor speed of the working equipment with one button. After driving resumes, it can also be returned to the previous working state with one button. You can also select “cleaning mode” or “enhanced mode” with one button according to the degree of pollution on the road.
The truck’s intelligent and accurate water volume statistics function can accurately read the percentage of clean water capacity through the display screen, allowing the driver to plan the work schedule more accurately.
According to the power of the working equipment, the truck is equipped with a matching high-quality motor. A centrifugal automatic clutch is used to ensure that the motor can automatically disconnect from the fan when it starts or stops without load.
According to the parameters and structure of the chassis, a working device of “two-disk sweep + wide nozzle” is designed and arranged. Its sweeping disc can automatically avoid obstacles, and the sweeping surface and suction nozzle can seamlessly overlap, ensuring an excellent sweeping effect. The suction nozzle also has a leaf sweeping mode.
The use of CAN bus intelligent control system enables centralized control of electro-hydraulics and simplifies the circuit components and improves the reliability of the circuit. The control box is placed on the right side of the instrument panel in the cab, with a humanized layout and easy operation. The driver can complete various actions from the cab. Through the CAN bus system, the working status of the motor and the motor controller can also be shown in real-time, so the driver can monitor the working status of the vehicle from the cab.
The truck has a variety of safety alarm devices. These include alarms for motor temperature, motor failure, controller temperature, controller failure, the water level of the clean water tank, reversing reminder, hydraulic oil level, dumper tipping and resetting, tailgate opening and closing safety alarm, and other devices.
