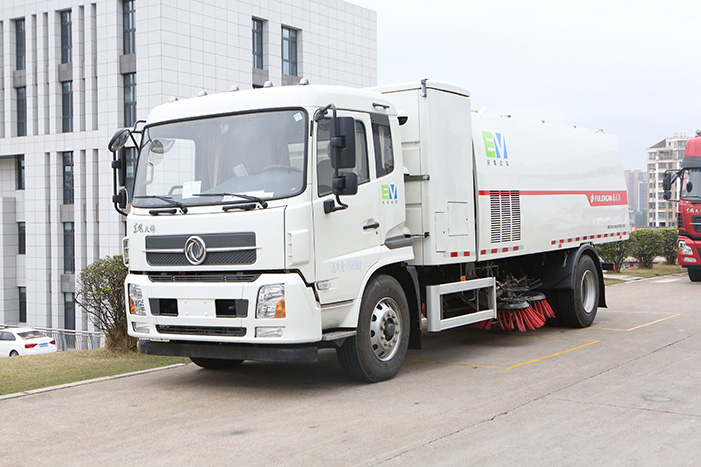

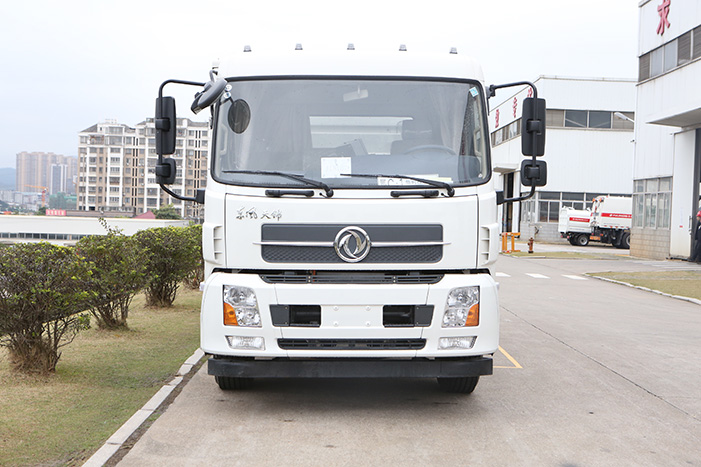

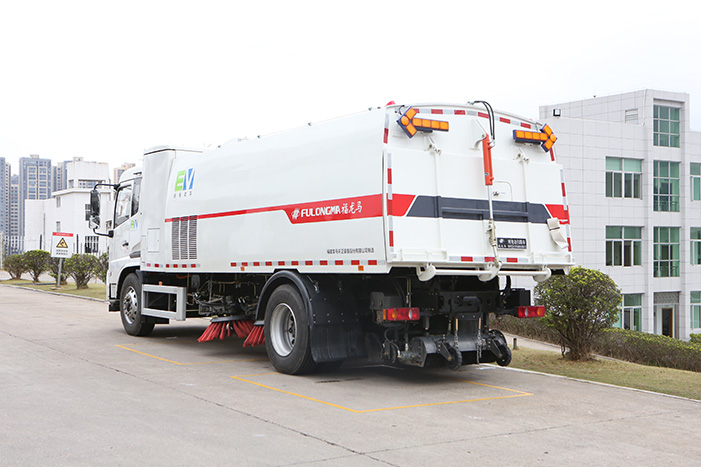

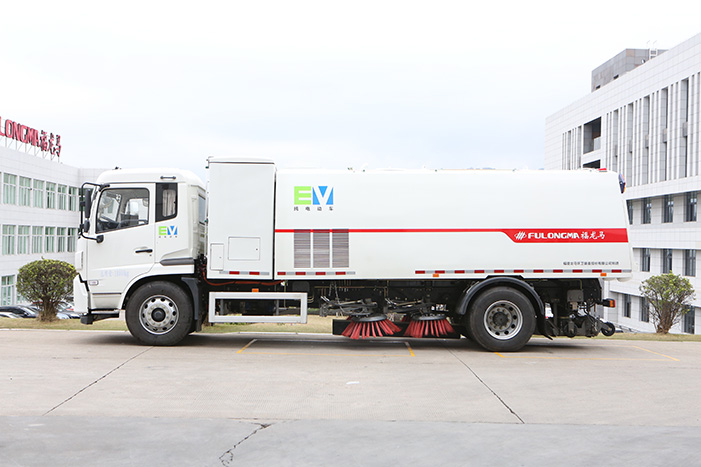

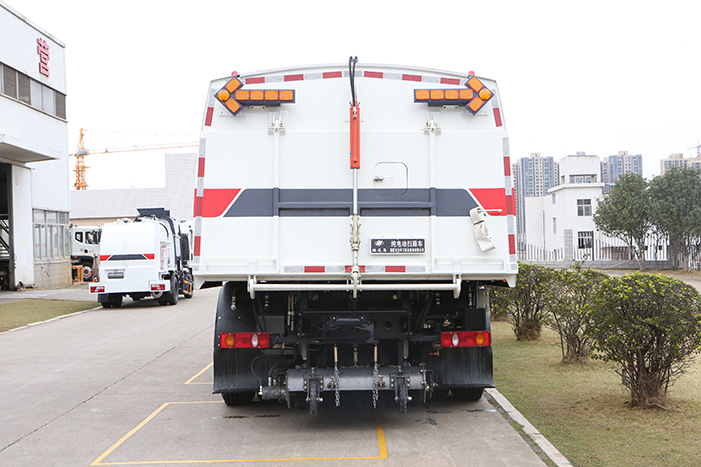

This truck is driven by electricity, has zero emissions, and has an extended cruising range. It is suitable for mechanized cleaning and cleaning of cement and asphalt concrete pavements such as highways, urban roads, viaducts, squares, airports, docks, residential roads, squares, sidewalks, etc.
|
Main Parameters |
FLM5180TSLDFBEV |
|
Chassis Model |
EQ1180GEVJ1 |
|
Chassis Motor Model/Power (kW) |
TZ370XS-LKM1101/80 |
|
Superstructure Motor Model/Manufacturer/Power (kW) |
WR51 0-01039/Wanrun New Energy/60 |
|
Chassis Battery Capacity (kWh) |
314.14 |
|
Chassis Battery Type/Manufacturer |
Lithium Iron Phosphate Battery/CATL |
|
Charging Time (h) |
≤2 (Fast Charging) |
|
Travel Range (km) |
370 |
|
Top Speed (km/h) |
100 |
|
Garbage Tank Volume (m5) |
9.5 |
|
Clean Water Tank Volume (m3) |
4.5 |
|
Maximum Sweeping Width (m) |
3.5 |
|
Sweeping Speed (km/h) |
5-25 |
|
Sweeping Rate (%) |
≥96 |
|
Working Time after Charging (h) |
6 |
|
External Size (LxWxH)(mm) |
8970x2500x3020 |
The various working equipment of the truck is designed with the one-key control function. During the cleaning operation, if you need to stop for traffic lights, you can reduce the motor speed of the working equipment with one button. After driving resumes, it can also be returned to the previous working state with one button. You can also select “cleaning mode” or “enhanced mode” with one button according to the degree of pollution on the road.
The truck’s intelligent and accurate water volume statistics function can accurately read the percentage of clean water capacity through the display screen, allowing the driver to schedule more accurately.
It adopts four central sweeps + rear automatic leaf suction nozzle arrangement. This arrangement has strong suction power, the cleaning surface and the suction nozzle can seamlessly overlap and has an excellent cleaning effect.
The sweeping plate can be adjusted in all directions, which is convenient and quick to use. The front sweeper adopts a single oil cylinder to control its ascent, descent, extension and recovery. It also has an anti-collision avoidance function to prevent the equipment from being damaged during operations.
The size of the suction nozzle opening is intelligently controlled by an integrated electro-hydraulic unit, which is convenient for feeding large-volume materials into the suction nozzle and has the advantages of being sensitive, intuitive, and fast.
The working equipment is designed to be light-weight, which makes the whole vehicle’s curb weight smaller and meets the requirements of loading quality. The vehicle is safe and reliable, with lower driving energy consumption.
The truck is equipped with a pneumatic pipe antifreeze device, which can effectively ensure that sprayers will not be structurally damaged due to icing.
All fasteners are galvanized, and structural parts such as sweeping discs and suction nozzles are treated by electrostatic spraying after pickling and phosphating. After this treatment, the coating has strong adhesion, corrosion resistance, and weather resistance.
