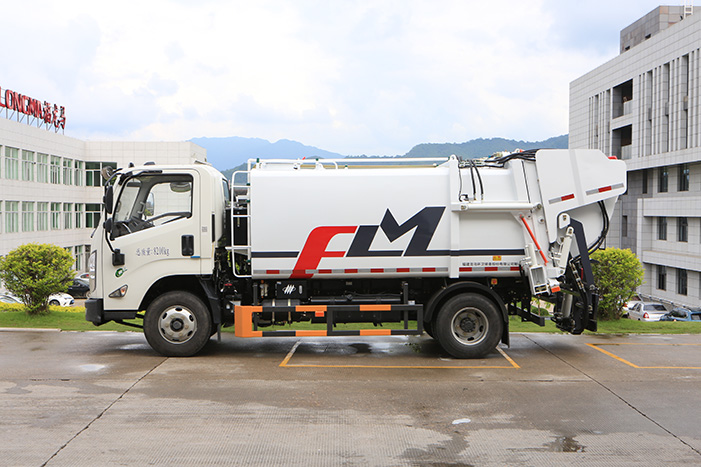

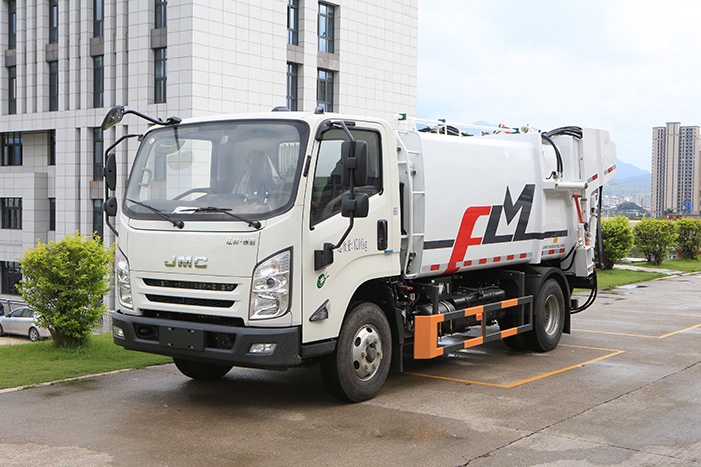

The FULONGMA food waste collection truck is a multi-functional product with advanced performance, is reliable, durable, and has beautiful appearance. It is widely used in the collection and transfer of wet waste (swill) in central urban areas, residential areas, hotels, canteens, hospitals, and other areas.
|
Parameters |
FLM5080ZYSJL6CY/FLM5080TCAJL6H |
|
Chassis Model |
JX1083TG26 |
|
Emission Standard |
China VI |
|
Engine Model/Power(kW) |
JX4D306H/112 |
|
GVW(kg) |
8200 |
|
Top Speed (km/h) |
100 |
|
Garbage Tank Volume (m3) |
≥6.5 |
|
Sewage Tank Volume (m3) |
0.25 |
|
Clean Water Tank Volume (m3) |
0.17 |
|
Compression Force (kN) |
96 |
|
Dimension (LxWxH) (mm) |
6430x2200x2530 |
The tank body is made of the high-strength manganese steel plate to ensure that it will not rust and has a long service life. It can be made of stainless steel as an option.

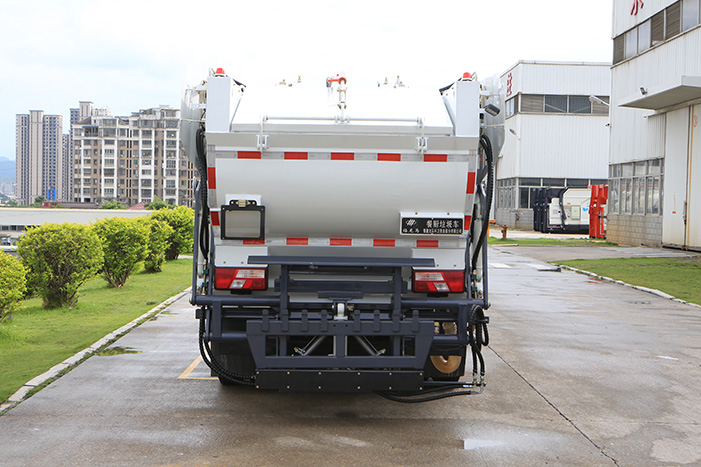

After the tailgate and the tank body, the feeding port cover and the tailgate feeding port are sealed by rubber strips, a fully enclosed cavity can be formed, which is suitable for the transportation of kitchen waste with high moisture content.

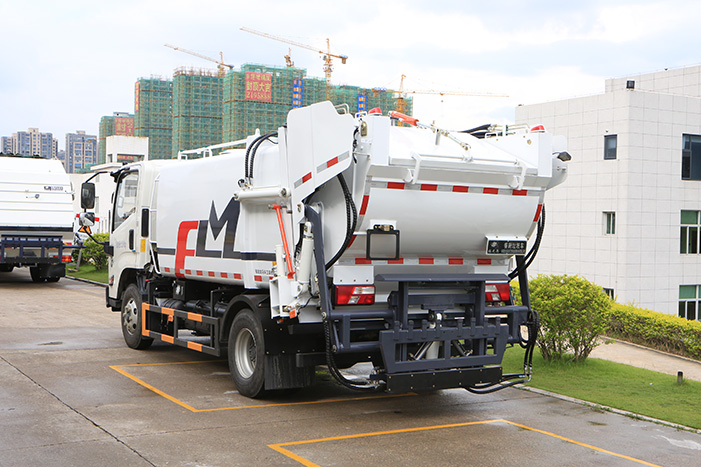

A pendulum-type compression mechanism is built in the tailgate to scrape the garbage, avoiding the accumulation of garbage at the feeding port. It can also be used as an external force source to press and fill the garbage in the tank, which facilitates the climbing and filling of the garbage and improves the loading rate.
Equipped with sewage collection, discharge, and flushing devices, which can initially realize solid-liquid separation, and collect and discharge excess sewage in a unified manner. An external fire hydrant pipe can also be used to flush the sewage tank, which is environmentally safe and improves the loading capacity and maintainability.
The new-style dustbin lifting mechanism can ensure that the lifting process is vertical and up and down, reducing the problem of garbage spilling. Two 120L or 240L dustbins can be lifted at the same time. Three standard dustbin lifting mechanisms with lifting volumes of 120L, 240L, and 660L are optional.
