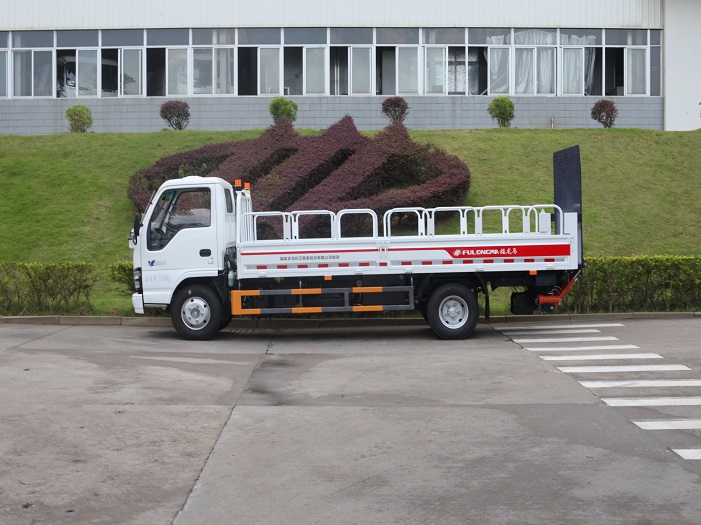

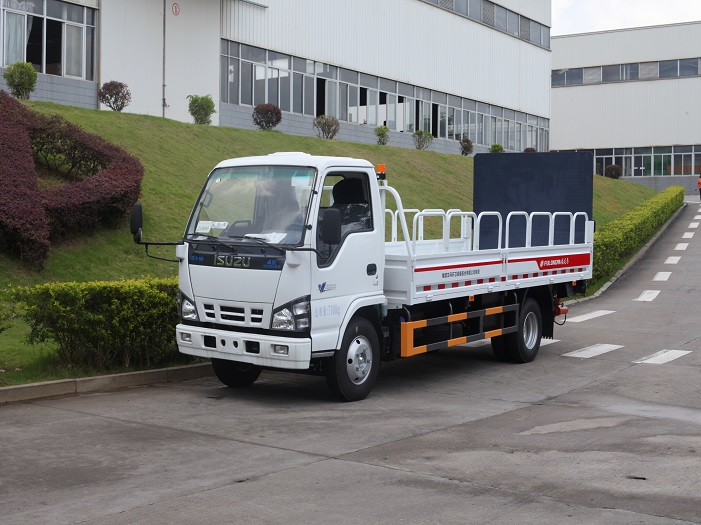

Garbage bin carrier equipped with lifting plate in the rear part, it is suitable for the garbage bins transportation in community streets, waste transfer station, and other places.
Garbage bin carrier equipped with lifting plate in the rear part, it is suitable for the garbage bins transportation in community streets, waste transfer station, and other places.
|
Maximum angle of rear tail plate (°) |
90 |
|
Loading and lifting operation cycle time (s) |
≤30 |
|
Maximum lifting force of tail plate (kg) |
≥1000 |
|
Maximum number of trash cans(PCS) |
21 MGB 240L standard barrels 7 MGB 660L standard barrels |

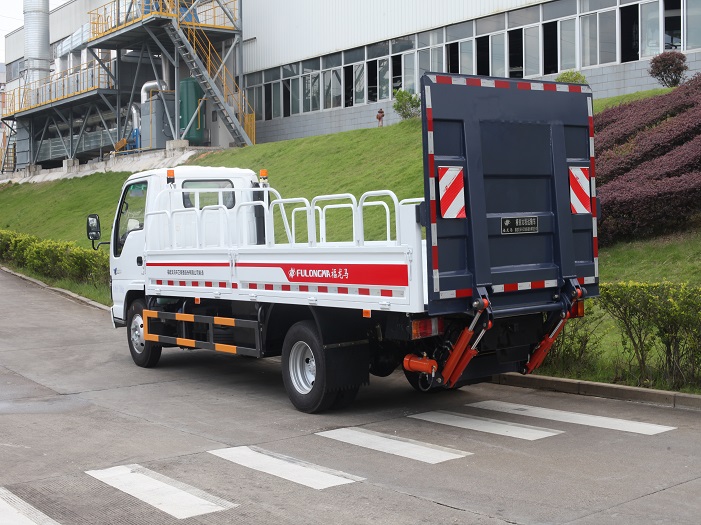

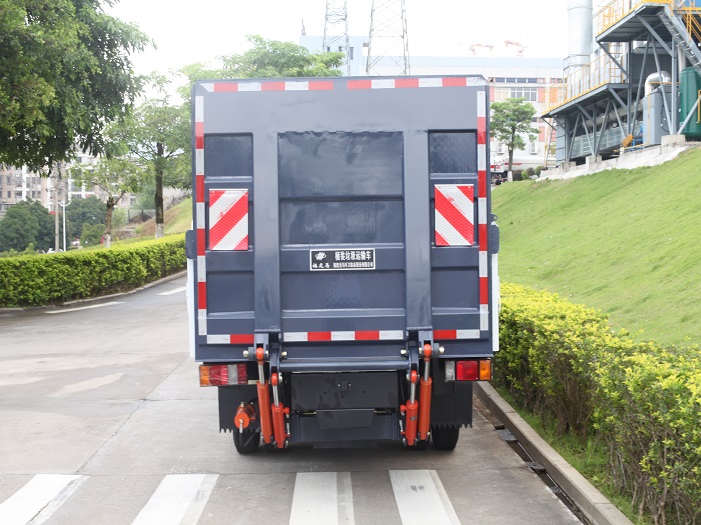

The self-developed electronically controlled hydraulic tail plate lifting device can load and unload multiple 240L garbage bins at a time, reducing manual labor intensity and working efficiency.
The shipping is flexible and the transportation range is large, which greatly expands the barreled garbage collection area, adopts the overall transfer of garbage bins, and does not produce sewage dripping and garbage spilling.
The operating system is optimized for design. It adopts hydraulic power unit and integrates electric control and hydraulic components. The system is highly integrated, durable and reliable. At the same time, it has two fixed and wired electric control operation modes, which are simple and convenient to operate.
Multiple measures for safety protection: independent power switch on the tailgate; safety warning flag, reflective warning board, and safety chain installed on the tailgate; the electronically controlled operation panel uses a self-rebound button to stop the operation immediately in case of emergency .
Optional cleaning system can be used to clean vehicles and trash cans.
The carriage adopts side-turning rails, which is convenient for empty barrel transportation and other transportation methods, and improves efficiency.
Optional garbage bin positioning rod can be installed to locate the garbage bin in the carriage to prevent the garbage bin from slipping by itself while the vehicle is driving.
Optional widened car body can be installed. The optional widened car body can load 22 MGB240 standard barrels or 9 MGB660 standard barrels through horizontal and vertical placement.
The tailboard can be optionally equipped with a lifting tailboard descending speed control system, which can flexibly adjust the tailboard descending speed and improve work efficiency.
Optional cadrolift brand tailgate.
