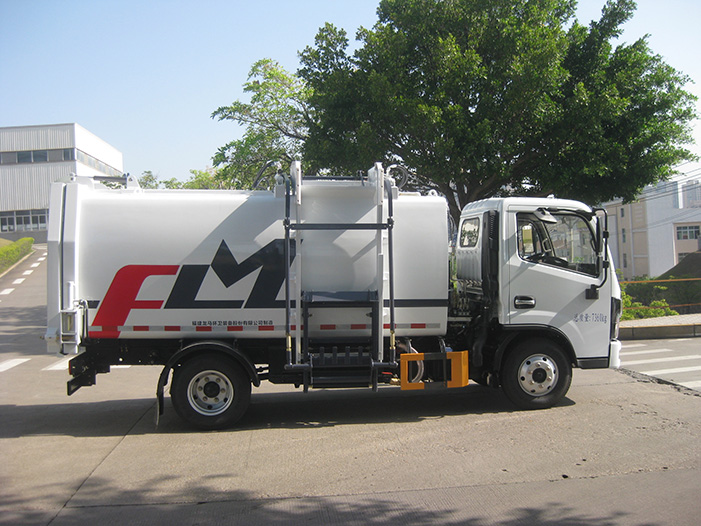

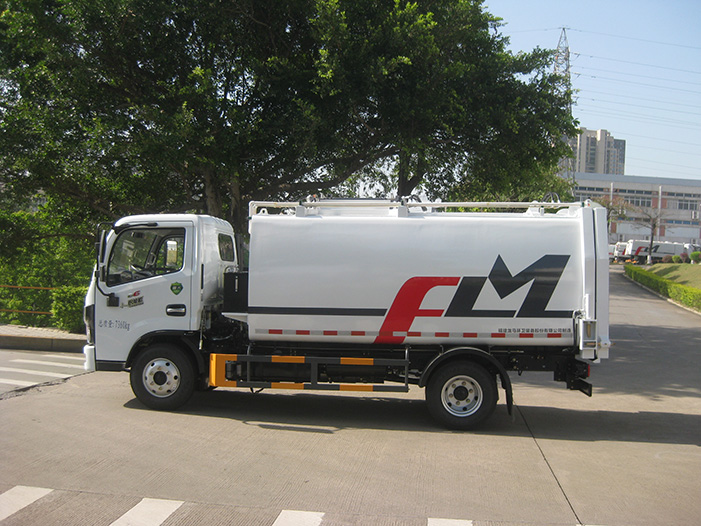

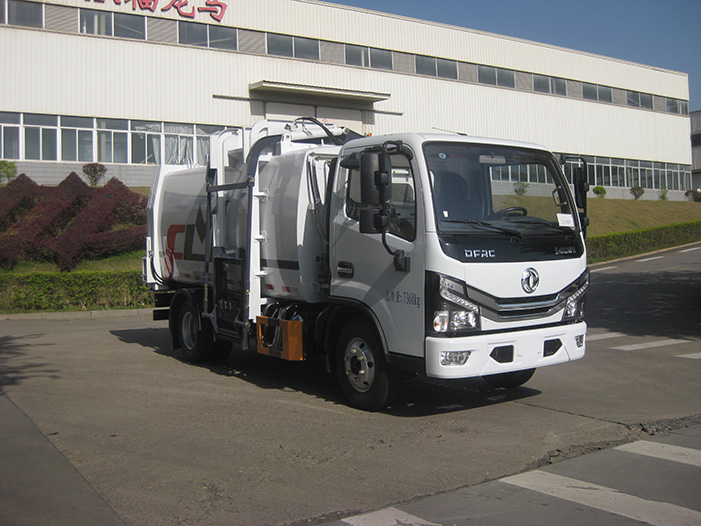

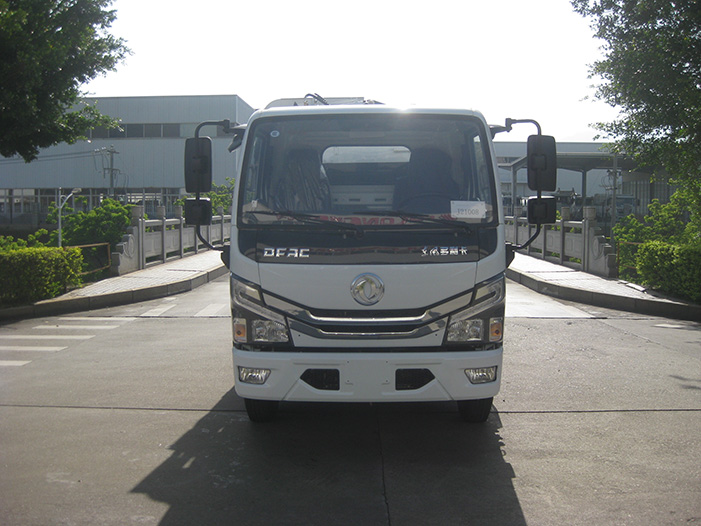

This model is a side-loading garbage truck developed for the collection and transportation of urban and rural domestic garbage. The loading capacity of the truck is large, the side lifting mechanism is suitable for dustbins, and the lifting operation is convenient, especially suitable for the collection and transportation of roadside trash cans in urban and rural areas.
|
Parameters |
FLM5070ZYSDG6C |
|
Chassis Model |
EQ1075SJ3CDF |
|
Emission Standard |
China VI |
|
Engine Model / Power (kW) |
Q28-130E60/96 |
|
GVW(kg) |
7360 |
|
Top Speed (km/h) |
110 |
|
Garbage Tank Volume (m3) |
7.5 |
|
Unloading Cycle Time (s) |
≤45 |
|
Lifter Cycle Time (s) |
≤15 |
|
Hydraulic Pressure (MPa) |
16 |
|
Dimension (Lx Wx H) (mm) |
5960x2095x2615 |
The product adopts ejecting compression method, which has strong compression capacity, large loading volume, and high loading capacity.
The tank body is made of a high-strength manganese steel plate to ensure that it will not rust and has a long service life. The frame structure guarantees the overall strength and beautiful appearance.
Various devices such as hydraulic locks, proximity switches, and safety struts are designed to ensure safe operation. Equipped with side protection and rear protection to ensure driving safety.

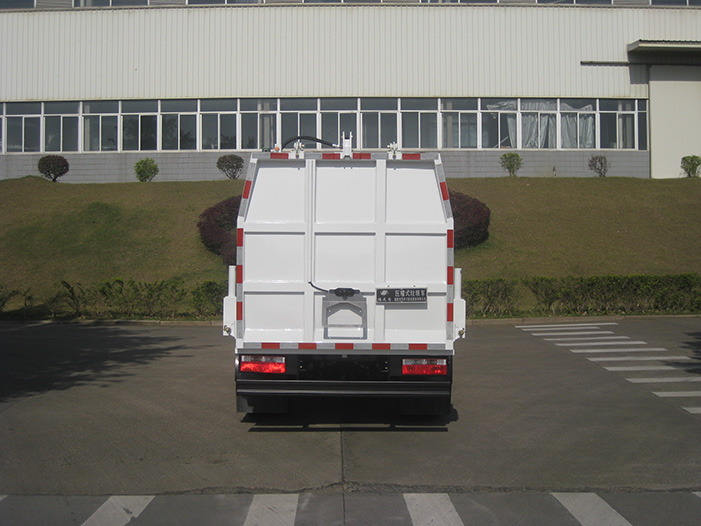

The tailgate cylinder seat is arranged vertically, which is convenient for installation and maintenance, and the sequence valve is adopted to realize the opening and closing sequence of the tailgate and the latch, and the action is reliable. The special tailgate rubber strip and rubber strip groove can prolong the service life of the rubber strip and improve the sealing performance. It adopts a special tailgate anti-drip device, simple structure, environmental protection, and safety. At the same time, a rear sewage tank can be installed, which has a strong sewage holding capacity.
The tank body is made of a high-strength manganese plate, which has strong resistance to deformation, long service life, beautiful appearance, and good strength. The opening design of the front panel of the tank facilitates the cleaning of the ejector and the maintenance of the cylinder. The tank has a large volume with an effective volume of 7.5m³ and a strong loading capacity.
