This truck is the High-pressure Sprinkler developed by Fulongma. It is mainly use high-pressure water flow to wash the dust on the road, and wash the dust down into the drain to make the road clean. This truck has multi-function operation modes, high-pressure cleaning, force decontamination, water saving. It is the upgraded products of sprinkler, it can be widely used in sanitation, municipal, landscaping work.
|
Auxiliary Engine Model |
ISUZU 4JB1-TCH |
|
Sweeping Width (m) approx. |
3 |
|
Water Tank Volume (m³) |
9.38 |
|
High Pressure Water Pump Pressure(Mpa) |
13~16 |
|
Sprinkler pump flow(m³/h) |
50 |
|
Sprinkling width(m) |
≥16 |
|
Flushing Width (m) |
≥24 |
|
Rear high injection range (m) |
≥50 |
With independent high and low pressure waterway systems, it has high-pressure cleaning and sprinkling flushing functions, which can clean roads with different pollution levels.

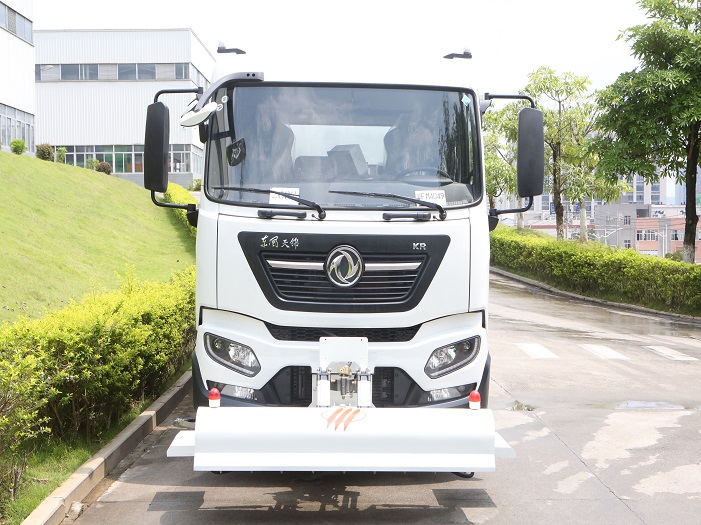

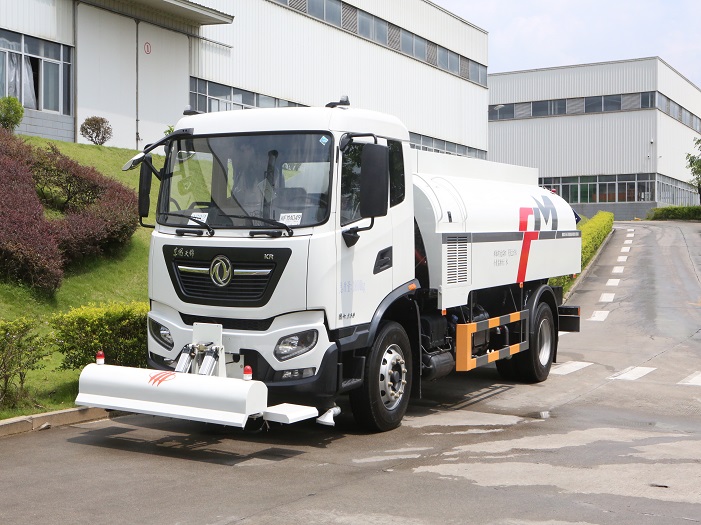

The front high-pressure cleaning device is composed of three sections of cleaning racks. During cleaning, the high-pressure water curtain is a complete straight line, and the extended cleaning arm has the function of self-obstacle avoidance.
With multi-angle single-point desilting function, it is used for clearing local dead ends of roads.
It has the functions of front rinsing and rear watering, and nozzles with different characteristics are used before and after. The front nozzle has high flushing pressure and can flush six lanes at a time; rear sprinkling is suitable for cooling and dust.
Equipped with left-side columnar side impact, right-side column side impact device, the nozzle can be adjusted.
The rear worktable is equipped with a high water spray gun with auxiliary fire protection function. The high water spray gun can be adjusted into a column or a mist.
The switch control valves and sprinkler system pipes are made of corrosion-resistant materials, and the tank body is treated with a special process of spraying alloy paint.
Optional SUS304 stainless steel tank.
Optional to cancel the top auxiliary engine.
