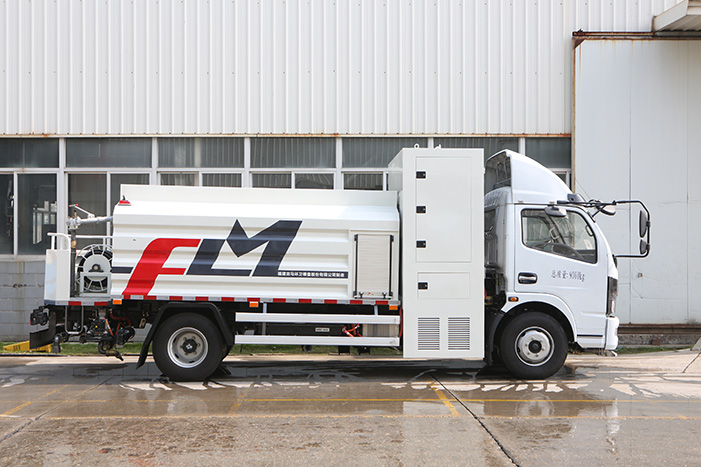

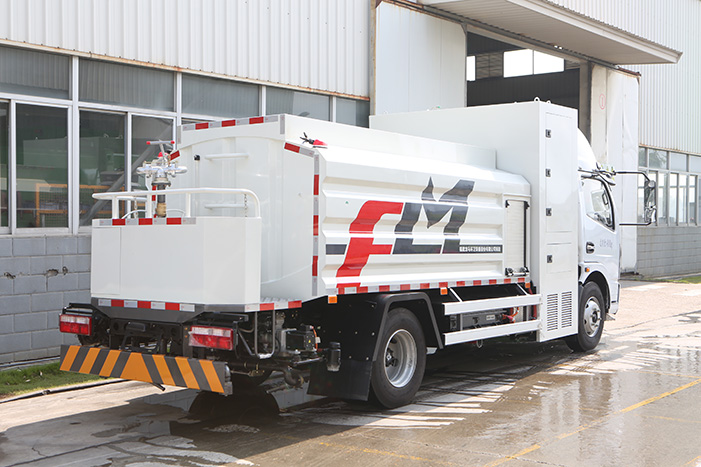

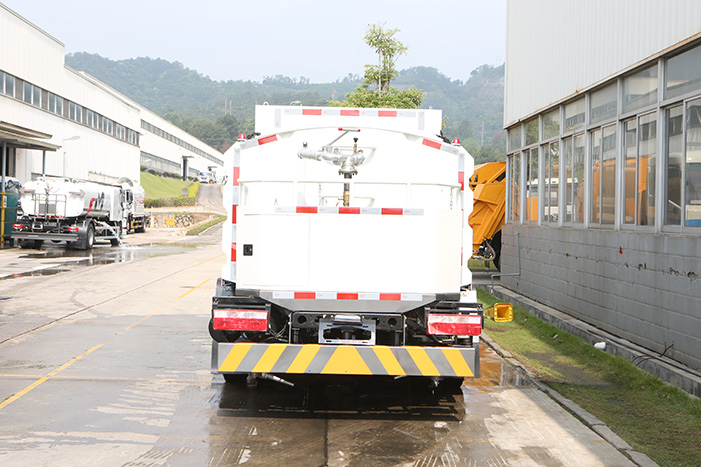

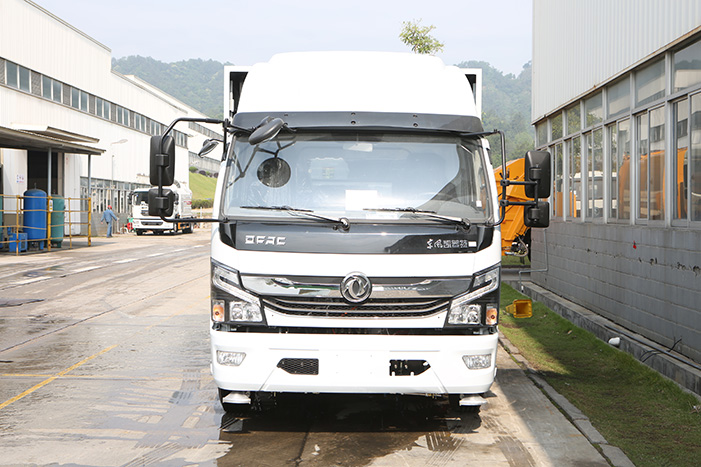

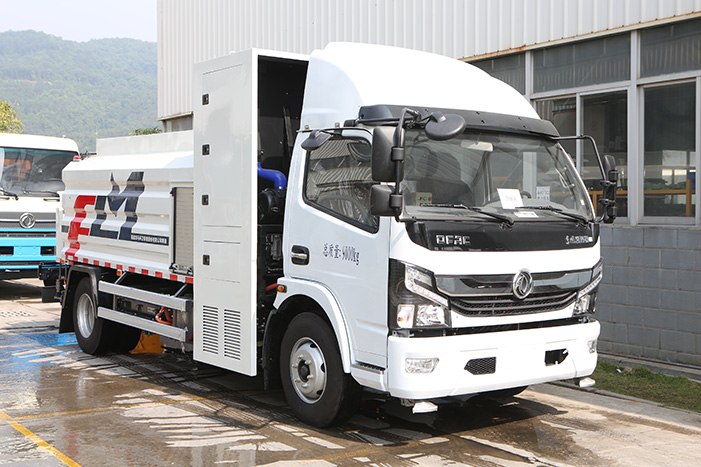

This model is compact, flexible, fully equipped, versatile, easy to operate, and reliable in operation. It is especially suitable for cleaning operations such as road cleaning, dirty spot removal, trash can cleaning, and small advertisement removal from urban sidewalks, pedestrian streets, and other areas.
|
Main Parameters |
FLM5090TYHDGFCEV |
|
Chassis Model |
EQ1090TACFCEVJ5 |
|
Chassis Motor Model |
TZ420XSTY646 |
|
Chassis Motor Rated Power/Speed/Torque (kW/r/min/N.m) |
60/1273/450 |
|
Chassis Motor Peak Power/Speed/Torque (kW/r/min/N.m) |
120/3000/750 |
|
Rated Power of Fuel Cell System (kW) |
48 |
|
Fuel Cell System Manufacturer |
Vision Technology |
|
Fuel Cell Type |
Hydrogen |
|
Nominal Water Volume of Fuel Cell Gas Cylinder (L) |
140 |
|
Energy Storage Device Type/Manufacturer |
Lithium Iron Phosphate Battery |
|
Energy Storage Device Capacity (kWh) |
47.69 |
|
Travel Range(km) |
101 (Hydrogen System Not Working)/480 (Hydrogen System Working) |
|
Top Speed (km/h) |
90 |
|
Cleaning Width (m) |
≥12 |
|
Sprinkling Speed (km/h) |
5-20 |
|
Rear High-pressure Water Gun Range (m) |
≥30 |
|
External Size (L*W*L)(mm) |
7105x2250x2840 |
The truck uses a new energy chassis driven by a hydrogen fuel cell generator, which has the advantages of low noise, zero emissions, and extremely high energy conversion efficiency.
The truck uses a self-priming centrifugal pump from Hangzhou Weilong, a well-known brand. Its water pump is driven by a motor through a coupling, with stable operation and high transmission efficiency. Adopts a domestic low-level flushing mode.
When the front cleaning device is working, the high-pressure water flow can form a complete cleaning curtain. It can be controlled by a hydraulic cylinder to rotate up and down by 12° and swing around 20°.
Good cleaning effect. The operation of the column-shaped single-point cleaning device is fully electrically controlled, and the driver can complete the operation from the cab. The device can swing up, down, left, and right in all directions, and is suitable for removing dirt on roads.
The truck is equipped with a manual high-pressure spray gun at the rear and operates with a 20-meter hose. To cope with various working conditions, it is equipped with 4 types of professional nozzles, which are ideal for cleaning small advertisements posted on the street.
The truck is also equipped with a lightweight, compact water broom with a splash-proof protective cover, which can clean and sweep areas such as roadside rest benches, narrow platforms, and walls. The front of the truck body is equipped with a downward-view camera, which can be used to observe the road condition and cleaning effect at any time through the color LCD screen in the cab.
According to actual operation needs, the truck can be equipped with a variety of practical devices, such as the rear upper spray device or rear lower spray device which can reduce temperature and dust, adjust air humidity, and has a side cleaning guardrail device with large water flow, high pressure, and anti-collision function.
The truck uses imported pumps with high pressure and small flow. Its jet stream is strong and continuous operation time is long.
