Compared with traditional fuel vehicles, this model has zero emissions. Compared with pure electric vehicles, in addition to the advantages of short refilling time and long cruising range, it also has the characteristics of high-end and convenience.
Compared with traditional fuel vehicles, this model has zero emissions. Compared with pure electric vehicles, in addition to the advantages of short refilling time and long cruising range, it also has the characteristics of high-end and convenience.
|
Main Parameters |
FLM5120TSLNJFCEV |
|
Chassis Model |
SH1127ZKFCEVWZ1 |
|
Chassis Manufacturer |
MAXMUS |
|
Motor Model |
TZ342XS-YBM211 |
|
Fuel Cell Battery Type |
Hydrogen |
|
Chassis Hydrogen Capacity (L) |
162×4 |
|
Fuel Cell System Rated Power (kW) |
83.5 |
|
Battery Capacity (kWh) |
34-92 |
|
Range (km) |
500 |
|
Top Speed (km/h) |
89 |
|
Sweeping Width (m) |
3.2 |
|
Sweeping Ability (m3/h) |
64000 |
|
Sweeping Speed (km/h) |
3-20 |
|
Sweeping Efficiency (%) |
96 |
|
Stain-less Steel Garbage Tank Volume (m3) |
5.6 |
|
Stain-less Steel Clean Water Tank Volume (m3) |
1.9 |
|
Dimension (L*W*H) (mm) |
7045x2390x2770 |

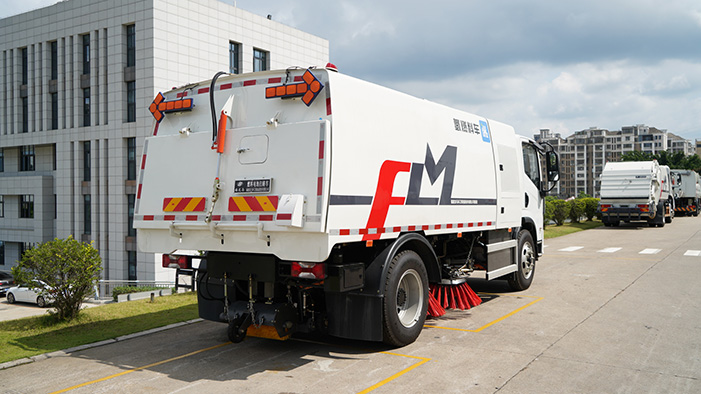

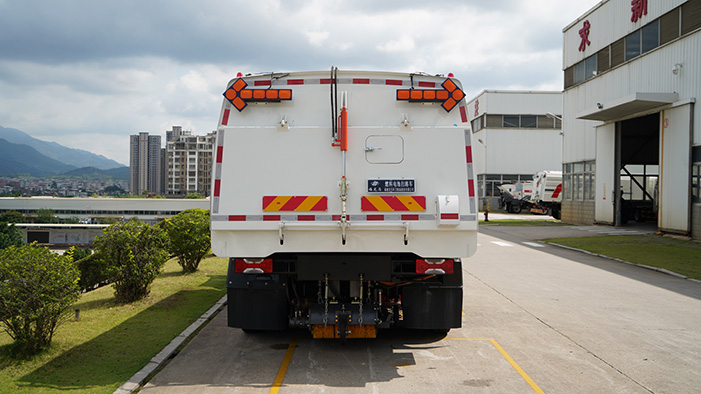

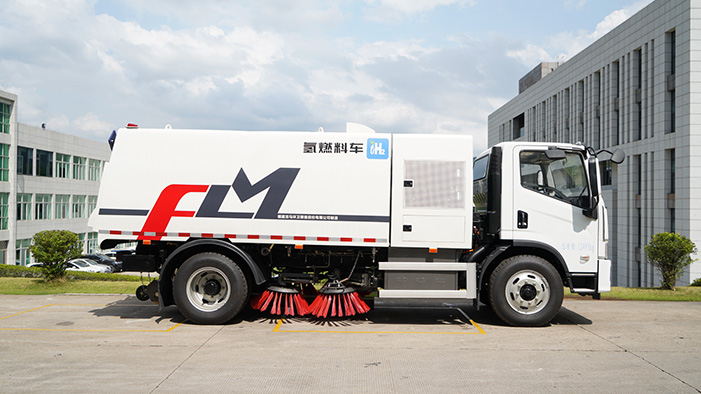

The truck adopts the arrangement of “four-plate brush + rear-mounted sweeping nozzle”, and has the operation mode of suction and sweeping, wet dust removal, electro-hydraulic control, and hydraulic tipping and unloading for cleaning.
The operation mode adopts the “full sweep” method, and the operation mode of left, right, and front sweep can also be separately controlled for powerful decontamination and rapid cleaning, which is faster and more efficient for conventional road cleaning operations. When selecting the “enhanced” mode, it has the decontamination function of highly polluted roads.
It adopts a hydrogen fuel cell chassis, an electric drive fan, and a hydraulic oil pump. It has the advantages of large loading capacity, low noise, and no emission pollution.
Adopt the most advanced electric power drive system and electrical control system. While meeting the energy requirements of road sweeper driving and operation, it can save energy consumption to the maximum, and at the same time, it has the function of balancing low grid load.
The transmission setting between the motor and the fan is equipped with an automatic clutch, which can ensure the automatic separation of the motor from the fan when the motor starts and stops without load. This feature simplifies the operation, reduces the impact on the motor, and improves the reliability and service life of the motor.
The sweeping broom has the function of automatic avoidance and automatic reset when encountering obstacles. It automatically retracts after encountering obstacles and automatically resets after crossing obstacles.
Adopt an intelligent control system, centralized electric and hydraulic control, simple operation. The driver can complete various actions in the cab.
