Compared with traditional fuel vehicles, this model has zero emissions. Compared with pure electric vehicles, in addition to the advantages of short refilling time and long cruising range, it also has the characteristics of high-end and convenience.
Compared with traditional fuel vehicles, this model has zero emissions. Compared with pure electric vehicles, in addition to the advantages of short refilling time and long cruising range, it also has the characteristics of high-end and convenience.
|
Main Parameters |
FLM5180TXSNJFCEV |
|
Chassis Model |
SH1187ZQFCEVWZ |
|
Chassis Manufacturer |
MAXMUS |
|
Motor Model |
TZ370XS-LKM1307 |
|
Fuel Cell Battery Type |
Hydrogen |
|
Chassis Hydrogen Capacity |
166×6 |
|
Fuel Cell System Rated Power (KW) |
83.5 |
|
Battery Capacity (kWh) |
9624 |
|
Range (km) |
500 |
|
Top Speed (km/h) |
89 |
|
High-pressure Water Pump Pressure (Mpa) |
10 |
|
Sweeping Width (m) |
3.5 |
|
Sweeping Speed (km/h) |
3-2。 |
|
Clean Water Tank Volume (m3) |
7 |
|
Garbage Tank VoLume (m3) |
7 |
|
Working Range (km) |
60 (at a working speed of 10km/h) |
|
Dimension (L*W*H) (mm) |
8550x2520x3030 |

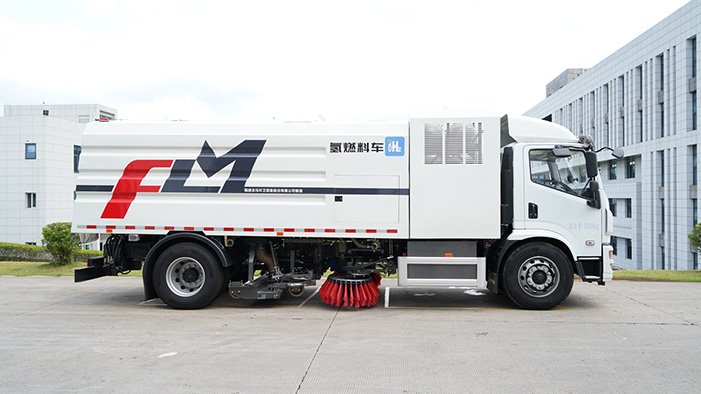

The working device adopts the layout form of the “center-mounted two-pan sweep + center-mounted V-shaped water sprinkler + center-mounted double-suction wide nozzle” structure. It has a variety of operation modes, which can realize road cleaning, flushing, sweeping, and vacuuming.
The special device has an automatic start-stop function. If you need to stop temporarily during the working process, the spray frame can be automatically retracted without manual operation. After resuming driving, it will automatically return to the original operating state.
The intelligent and accurate water volume statistics function can accurately read the percentage of the clear water volume through the display screen, allowing the driver to plan the work schedule more reasonably.
Based on being equipped with a large-capacity battery and a large-volume clean water tank, the vehicle has a small curb weight, a larger rated load mass, and lower driving energy consumption.
Using new materials and new processes, some parts are made of aluminum alloy and other materials to meet the strength requirements and be more beautiful.
The control interface is simple and intuitive, and the entire truck can be operated through the 7-inch LCD, which occupies a small space and is convenient to operate.
A variety of components can be optionally installed: such as rear arrow lights, rear upper spray, rear lower spray, to achieve multiple uses in one truck.
