A multifunctional dust suppression vehicle also called a spray dust suppression vehicle, is a special vehicle that uses a sprayer to atomize water and other liquids and then sprays them at high pressure to suppress dust pollution. Mainly serve railways, roads, coal mines, factories, construction sites, and other places with high dust emissions. The spray distance of the large-scale spray dust suppression vehicle can reach more than 120 meters, and it needs to be equipped with a high-power auxiliary engine, which can effectively suppress large-area dust pollution.

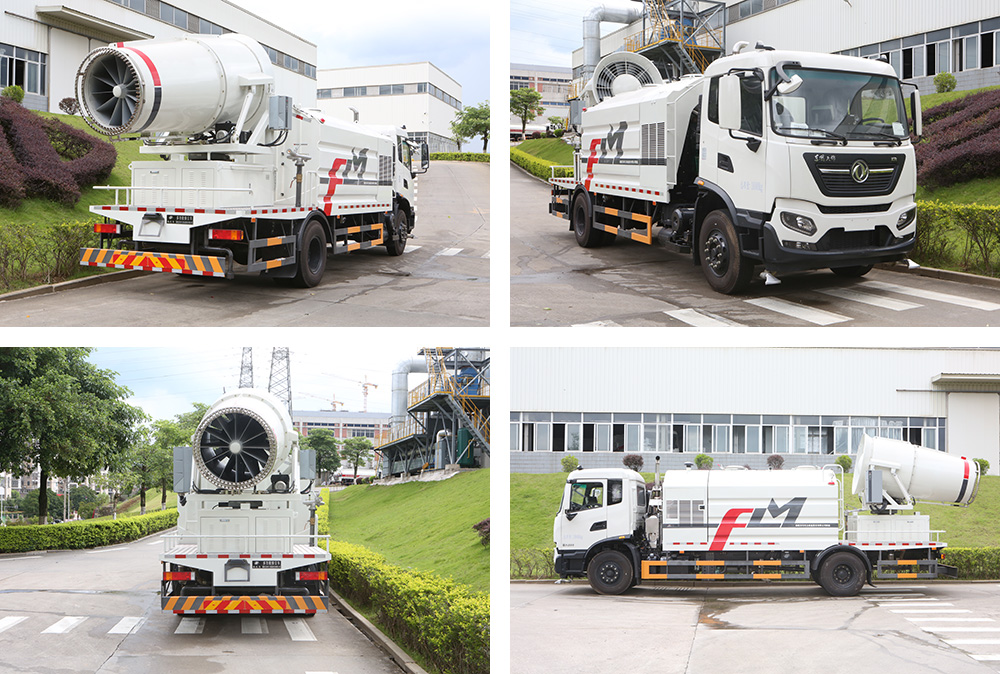

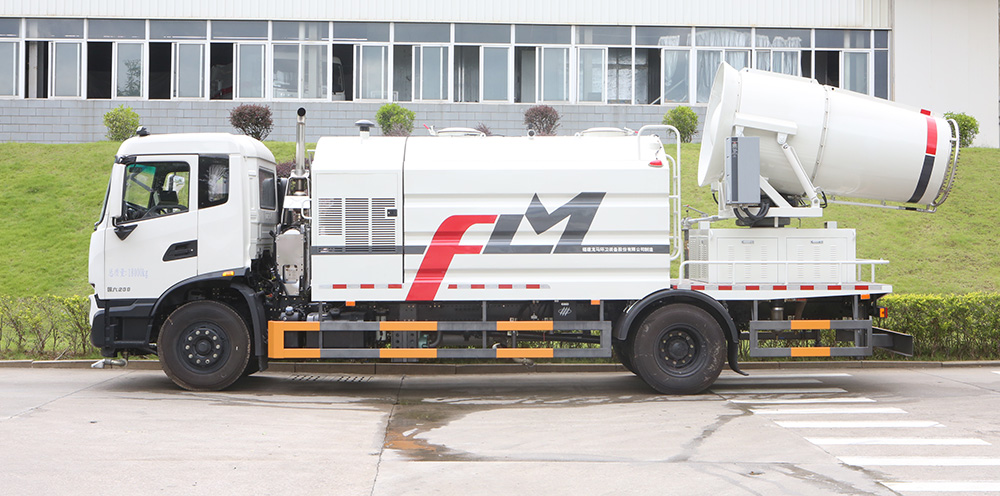

01. Picture of Multifunctional Dust Suppression Vehicle
02. Multifunctional dust suppression vehicle configuration
1. Top configuration: The tank has a volume of 12 cubic meters and is made of high-quality Q235 carbon steel. The tank body is treated with epoxy glass flake anti-corrosion treatment (warranty for two years), which can make the life of the tank longer and play the first place in vehicle fog cannons. Hierarchical protection.

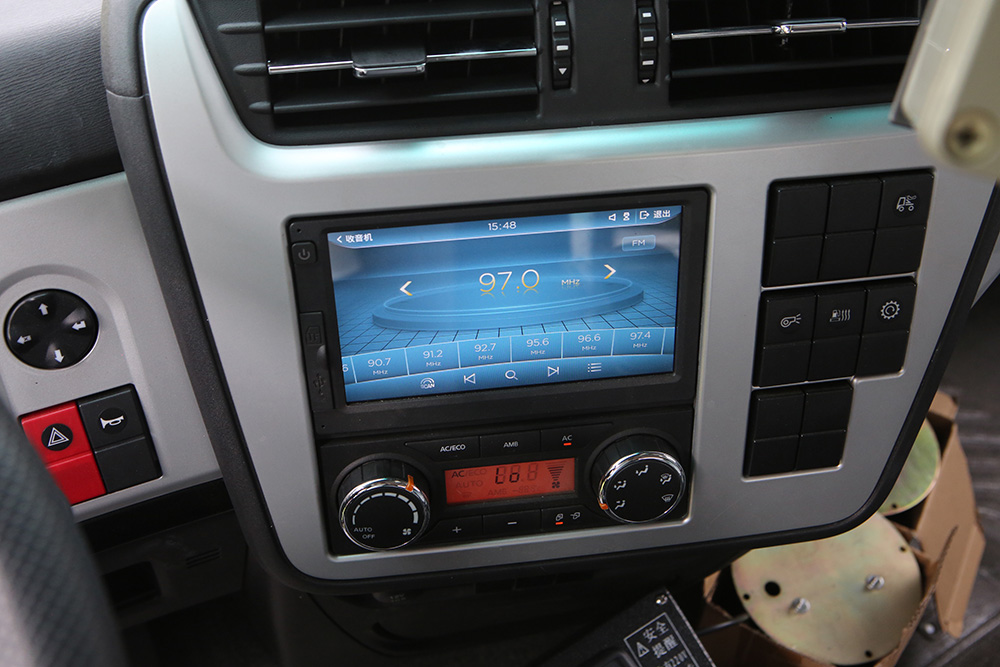

2. Chassis configuration: Dachai 220 horsepower engine, Shaanxi Gear 8-speed gearbox, 10.00R20 steel wire tire with spare tire, air conditioning, ABS.
3. Fog cannon unit: optional 30m-80m fog cannon diesel engine (the actual spray range will be affected by various weather factors such as humidity, temperature, wind speed, etc. In addition, in dry areas, part of the spray will be evaporated in the air).
4. With sprinkler function: equipped with front flush, rear sprinkler, side spray, working platform, and greening gun (optional cab air control operating system), equipped with special water pump, with self-priming and self-draining function, the rear working platform can be equipped with all options Automatic diesel fog cannon, automatic electric water cannon can be installed in the front of the cab.
03. Features of Multifunctional Dust Suppression Vehicle

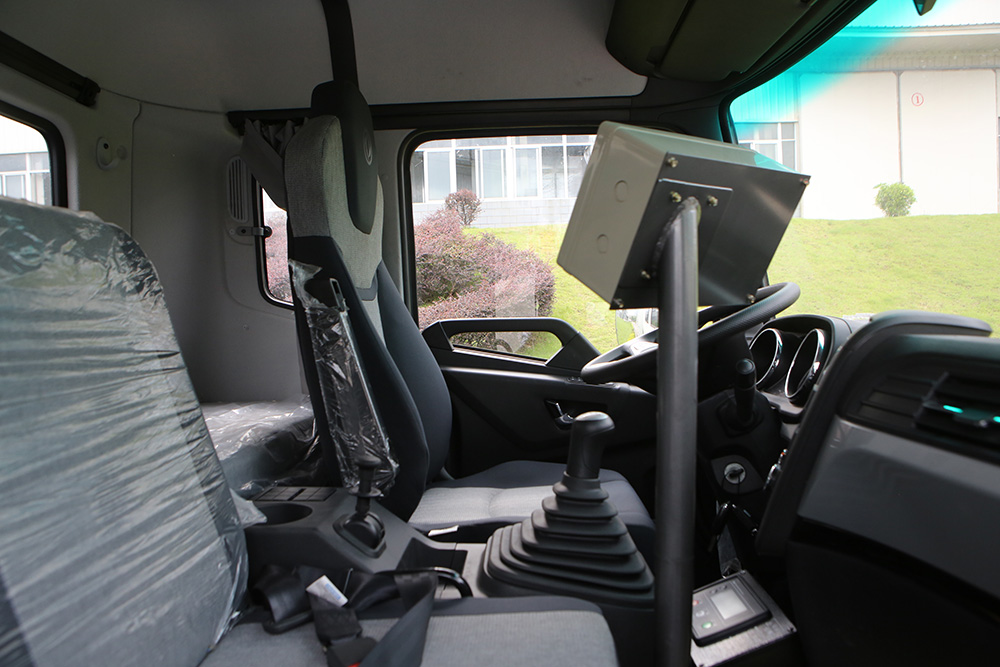

1. Adopt environmentally friendly dust-removing air blower sprayer, compact structure, long-range, small mist particles, large coverage area, and can be operated manually or remotely. All tasks can be carried out in the cab through the camera.
2. The sprayer can rotate 90o left and right with a micro-motor, and the pitch angle can be -10o～60o controlled by the hydraulic system. The angle change speed is fast and the work efficiency is high.
3. The sprayer is equipped with an emergency stop button, and the operation is safe and reliable.
4. The self-priming two-stage centrifugal pump is adopted, and the water pump is driven by the power of the chassis engine; it adopts the low-level flushing working mode.
5. It has a front sprinkler function, which can not only be used for daily sprinkling, humidification, and dust reduction operations but also can be equipped with a rear sprinkler function and a pre-wash function for road cleaning operations.
6. Equipped with left and right columnar side punches, and the nozzles can be adjusted.
7. The entire car’s waterway control adopts a highly reliable, non-polluting advanced pneumatic system, which is convenient and flexible to operate.
04. Multifunctional dust suppression vehicle video
