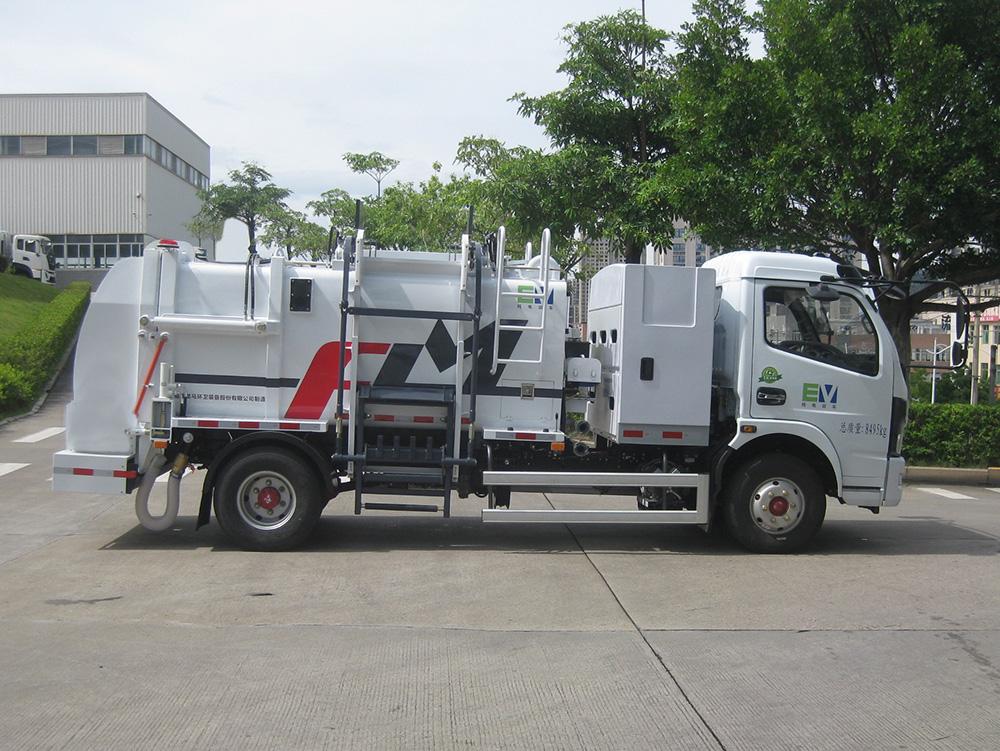

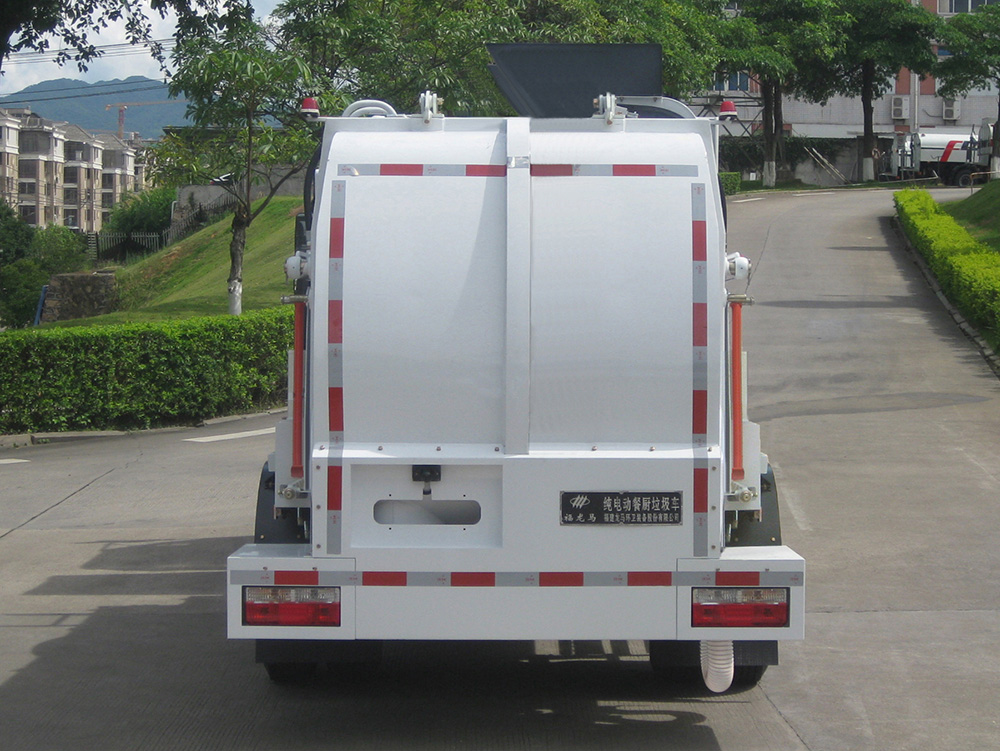

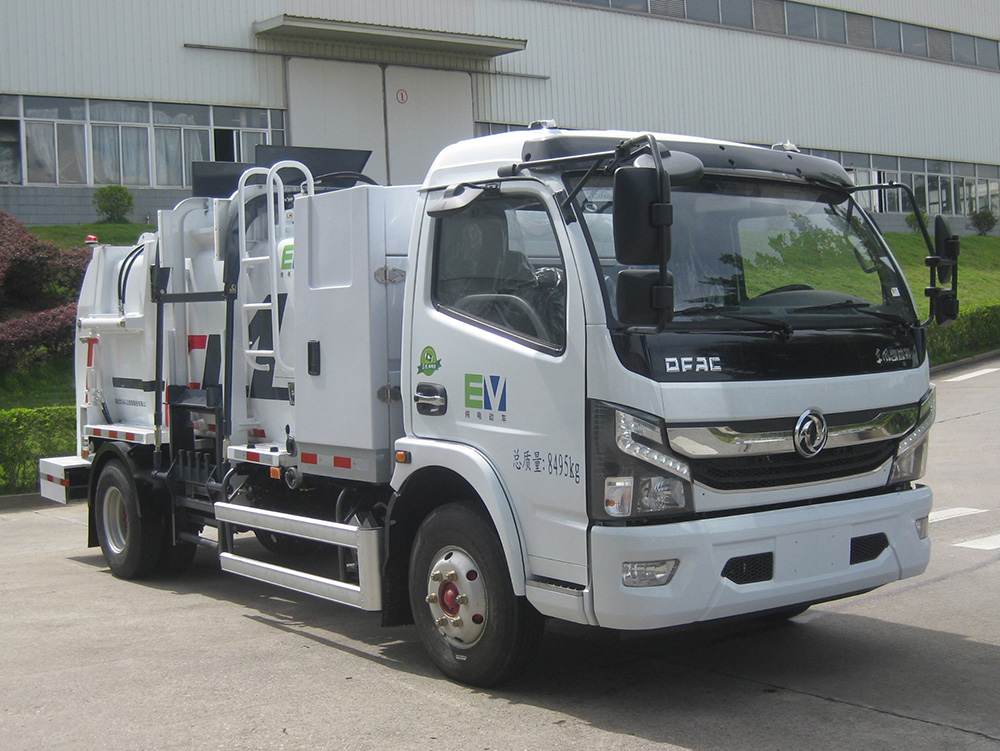

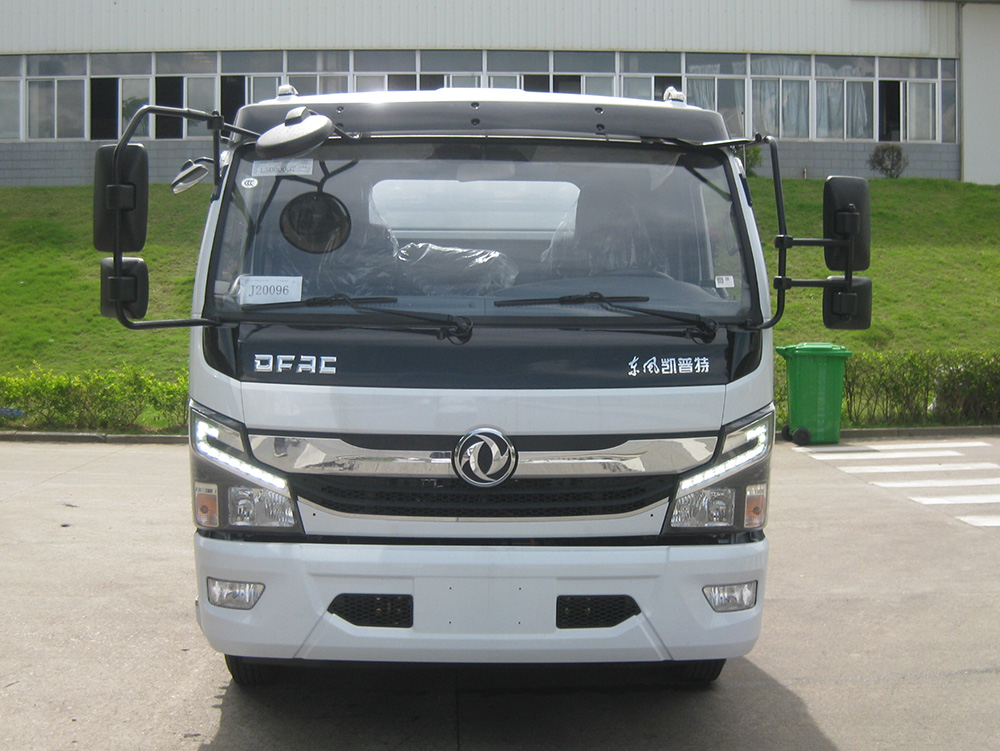

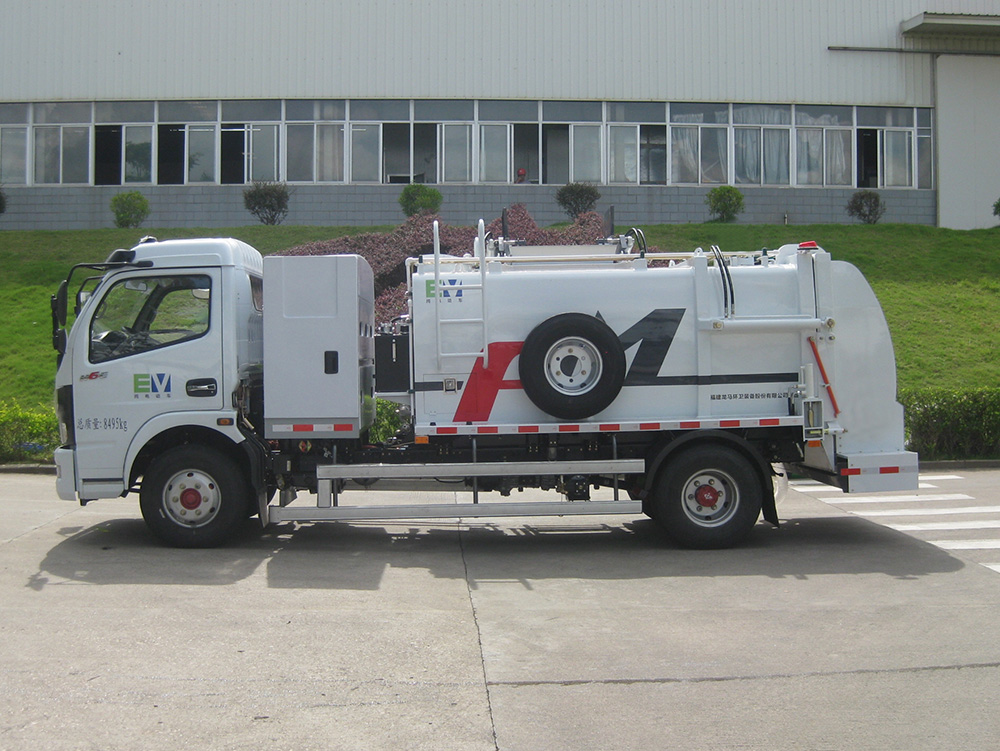

FULONGMA pure electric kitchen garbage truck is a special kitchen garbage truck that is equipped with a garbage bin, a garbage can hoist, a cleaning device, and a hydraulic system on the basis of the second-class chassis. Waste disposal and transfer vehicles.
01. Components of the latest 8-ton pure electric kitchen garbage truck

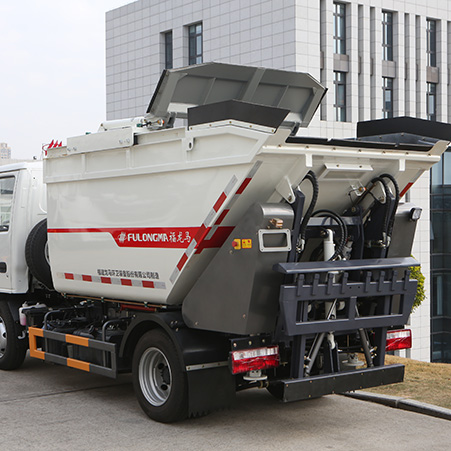

The garbage bin of the kitchen garbage truck adopts a strong frame structure welded by reinforcing beams and steel plates. A bottom surface is a concave plane, and the side and top surfaces are arc surfaces. It has a beautiful appearance, lightweight, good force, and no deformation; It is composed of a steel pipe frame and folded panel, which not only has a light structure, but also makes the garbage evenly distributed, and the discharge is clean and thorough; Plate or box-type structure, strong structure, and lightweight.
02. The working principle of the latest 8-ton pure electric kitchen garbage truck
The whole vehicle is a fully sealed type. All sewage in the process of self-compression, self-dumping, and compression enter the sewage tank, which completely solves the secondary pollution in the process of garbage transportation. It has the advantages of high pressure, good sealing, convenient operation, and safety.
03. Performance characteristics of the latest 8-ton pure electric kitchen garbage truck
1. The curved box greatly increases the volume of the box and increases the aesthetics of the vehicle.
2. The chassis motor directly takes power, and the special vehicle is specially equipped for perfect matching. There is no power take-off, which saves steps and has a lower failure rate than diesel vehicles.
3. The oil pump adopts the domestic brand Hypris liquid oil pump and is equipped with a compaction valve to increase the compression density and increase the loading capacity. The loading capacity is equivalent to two and a half times that of the same ton of uncompressed garbage.
4. The oil tank is enlarged and the volume is increased to prevent the high temperature of the hydraulic oil. All hydraulic oil must be added to the oil tank through the hydraulic oil filter, so as to filter the impurities in the hydraulic oil, reduce the failure rate, and effectively prevent the damage of accessories. The multi-way valve adopts Chinese and foreign Joint venture brands, Hypres multi-way valve and Hypres oil cylinder are used together, low failure rate CAN bus control mode; less wiring, low failure rate, automatic display of fault codes, convenient maintenance.
5. Operation automation: It adopts photoelectric switch plus time dual system control, with one-button unloading, with a wireless device, only one driver needs to operate in all filling and unloading operations, and two operating modes, automatic and semi-automatic, can be set, not only Reduce the labor intensity of sanitation workers, and greatly improve the working environment.
6. The operating system has dual functions of computer control and manual operation, which greatly guarantees and improves the utilization rate of the vehicle.
7. Turning mechanism: optional turning mechanism with garbage can (or bucket).
