Washing and sweeping trucks are loved by customers for their strong environmental adaptability, excellent performance, and complete functions. They are widely used in urban roads, highways, airports, docks, ports, and other areas. In order to further improve the practicability of washing and sweeping trucks, To meet the working needs of special areas such as highways, FULONGMA has specially launched the latest 18-ton large-scale sweeper.

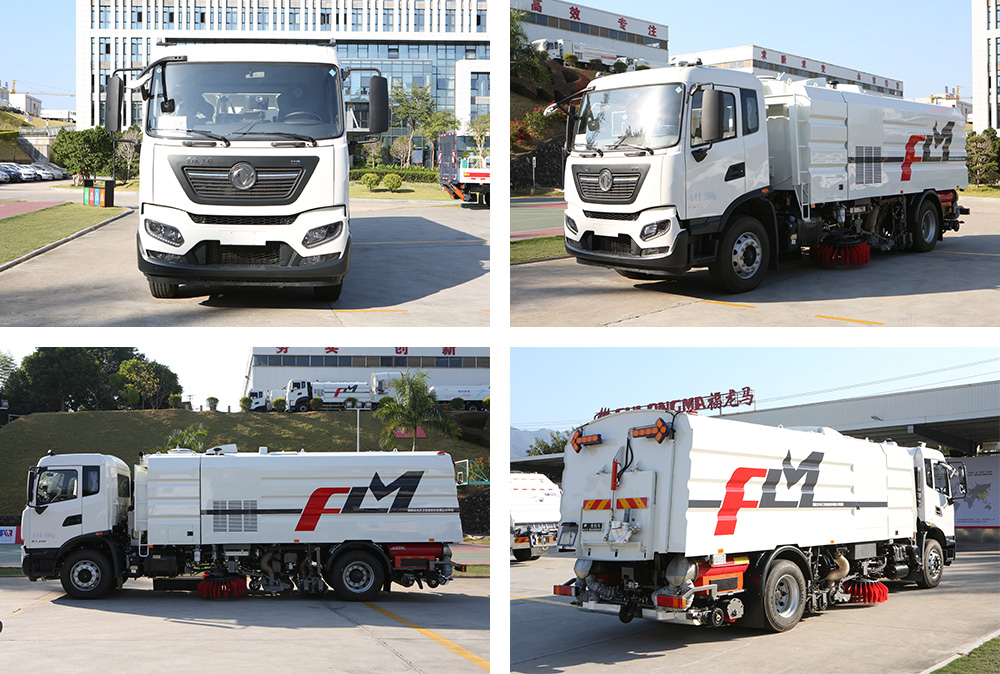

01. Multi-picture display of washing and sweeping truck
02. Washing and sweeping vehicle configuration

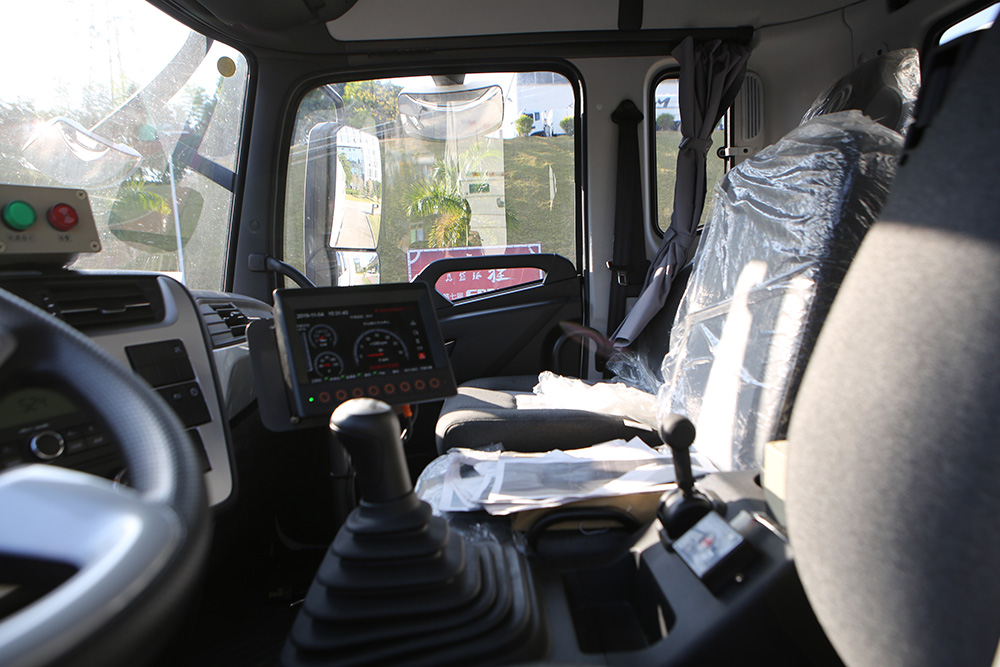

1. The use of shock-absorbing seats greatly improves the comfort of the driver. The cab is equipped with heating and cooling air-conditioning, directional power assistance, clutch power assistance, and good practicability.
2. It adopts a 10-ton rear double axle, a 5-ton front axle, and an 11.00 steel tire. The load-bearing capacity is excellent at the same level.
3. The auxiliary engine of the washing and sweeping vehicle also adopts the Cummins series diesel engine, which is the same brand as the chassis engine, which is more convenient for later maintenance and maintenance.

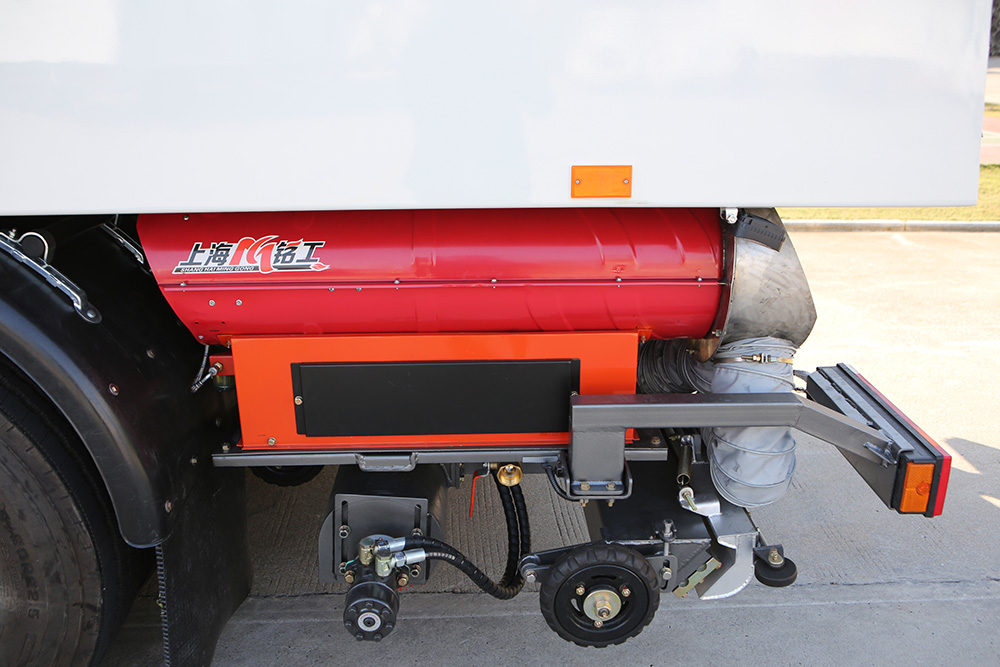

4. The width of the rear suction cup of the washing and the sweeping car reaches 3.5 meters, and with the high-power maintenance-free centrifugal fan, it can strongly suck up all the rubbish on the road, including stones, bricks, water stains, etc.

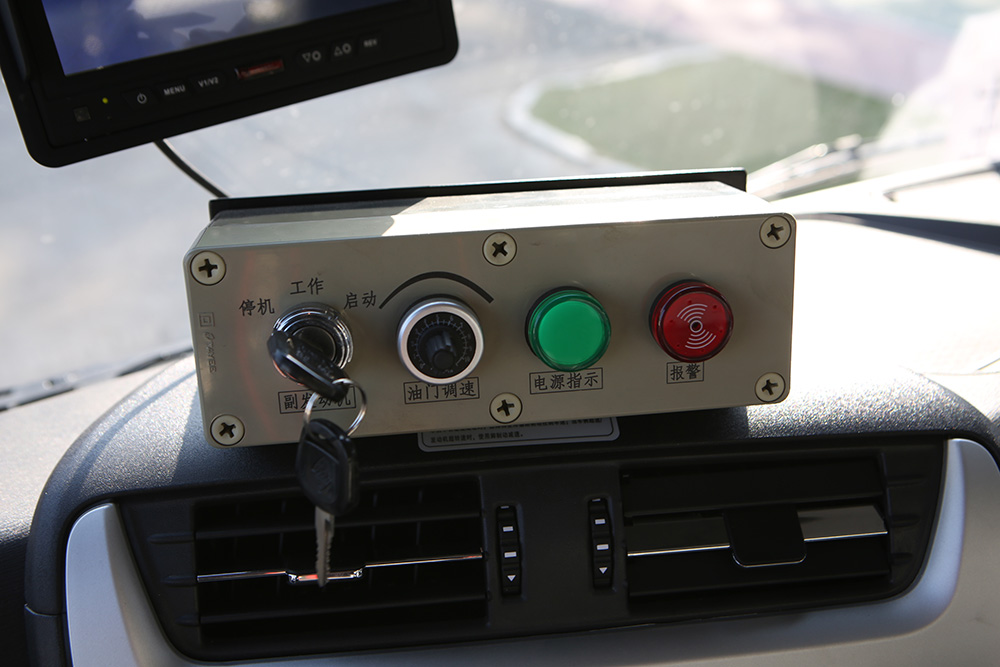

5. Using PLC intelligent control, all operations are completed in the cab, safe and efficient.

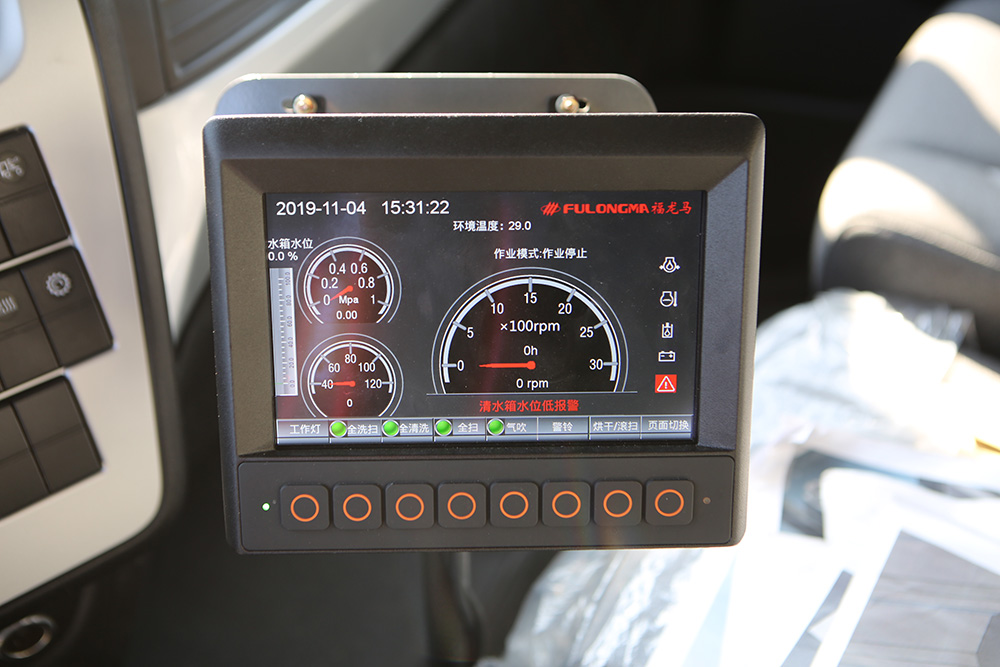

6. The washing and the sweeping car is equipped with an advanced voice alarm system, with up to 13 voice prompts allowing you to grasp the latest situation of the vehicle in real-time.

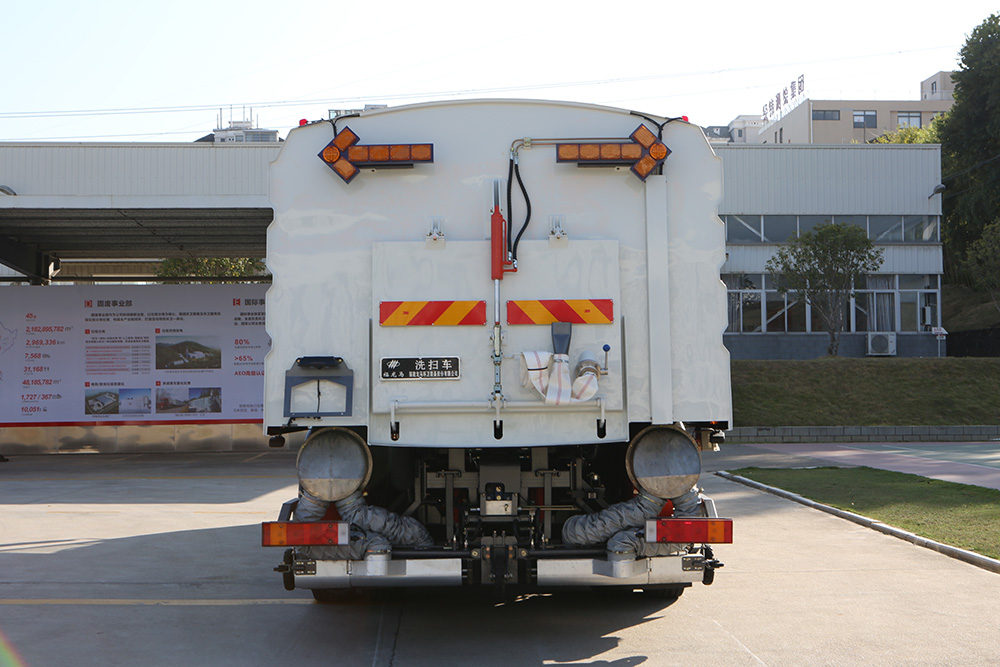

7. The opening and closing of the rear door of the washing and sweeping truck are controlled by hydraulic pressure. The garbage bin has a built-in self-cleaning function. When the garbage is dumped, the garbage bin can be quickly cleaned, reducing the workload of sanitation workers.
It can be seen from the above that this washing and sweeping truck is more suitable for long-distance operations. Although the mobility is not as flexible as the 3-ton washing and sweeping truck and the 5-ton washing and sweeping truck, the large-capacity water tank dustbin can provide it for long-distance operations. The strongest guarantee.
03. Evaluation of washing and sweeping vehicles
The sweeper adopts Cummins 245-horsepower high-performance diesel engine. Both its performance and reliability have been verified by the market. With a Fast gearbox, the power output is smooth, the speed increases, the driving experience is good, and the original air conditioner is standard. , Directional assist, clutch assist, ABS anti-lock brake system, shock-absorbing seat, driving comfort is very good, greatly enhancing the enthusiasm of sanitation workers.
This washing and sweeping truck has a clean water tank volume of 12m³ and a garbage bin volume of 10m³. It can work continuously for more than 8 hours, which can fully ensure the efficiency of cleaning work on the highway. The tank body is made of high-quality stainless steel material, which is anti-corrosion and anti-rust and has a longer service life. The clean water tank has a built-in low water level alarm, which automatically alarms when there is no water to prevent damage to the water pump. The trash bin has a built-in anti-overflow alarm device, which can prevent the sewage from overflowing from the suction pipe during sewage operations and causing secondary pollution.
The garbage bin adopts a large flat slope structure, and the maximum discharge angle can reach 50 degrees. The tailgate of the garbage bin adopts an ultra-wide design with a large opening, which makes it easier to dump the garbage. The trash can has a built-in high-pressure spray device, which can automatically clean the trash after the garbage dump is completed, which saves manpower and reduces the work intensity of the sanitation workers.
The washing and sweeping vehicle is equipped with two sets of water systems, high-pressure water system imported from Germany, the maximum water flow can reach 153L/min, it can wash all stubborn dirt on the road forcefully, first sweep, then flush, absorb again, road cleaning, Finished at once. The low-pressure waterway uses a Sino-Japanese joint venture Hangzhou Weilong low-pressure water pump, with high flushing pressure, double-width hedges that can reach more than 24 meters, all nozzles are pneumatically controlled, and all operations are completed in the cab without getting off the car, which is not only convenient but also improves environmental sanitation. The safety of workers at work.
A high-definition surveillance probe is installed on the right sweep pan and the rear of the trash bin, and a high-definition LCD display is installed in the cab. The screen can be switched to the right sweep pan position and the rear position of the trash bin. During operation, the sweeping pan can be operated. The working conditions and the quality of the whole vehicle operation are monitored. When reversing, it can also be used as a reversing image, which greatly improves the safety of reversing.
