The vacuum truck is a new product developed with patented technology. It has changed the traditional way of sweeping with the disc brush of the sweeper in the past, and all use the airflow to complete the work, and the dust and garbage are collected and stored by the airflow movement method, so the efficiency is very high. The vacuum vehicle can effectively reduce dust pollution, improve air quality, reduce the content of inhalable particulate matter in the air, and improve people’s living environment.

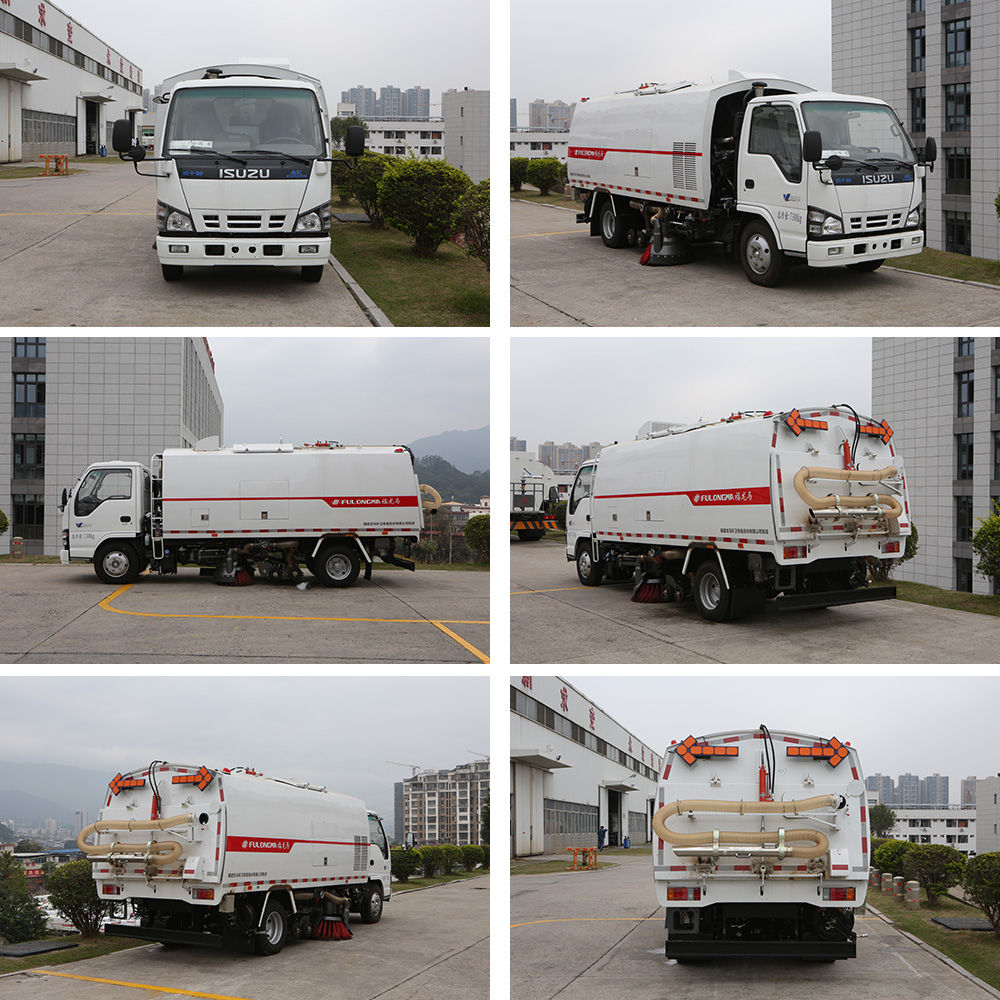

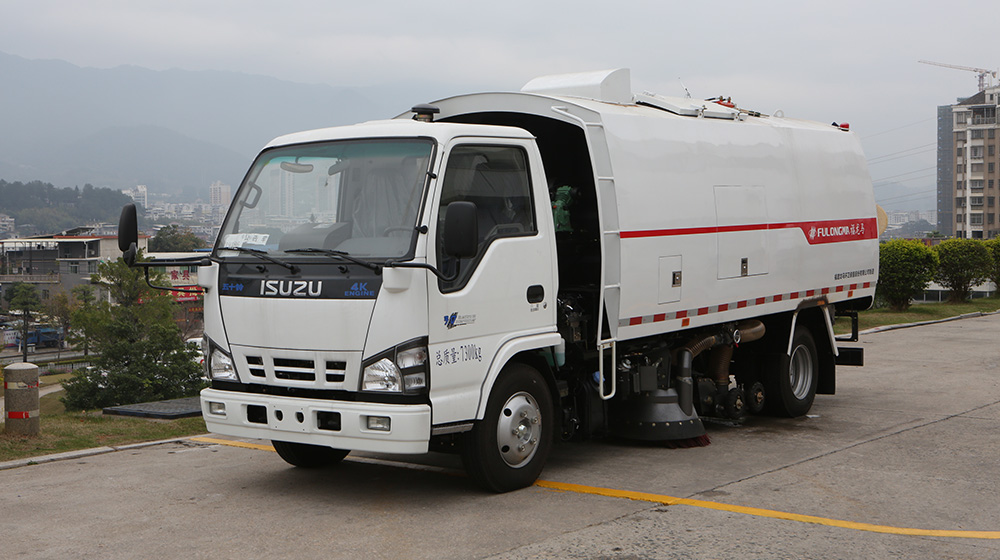

1. Multi-directional map of FULONGMA vacuum truck
2. FULONGMA vacuum truck product details

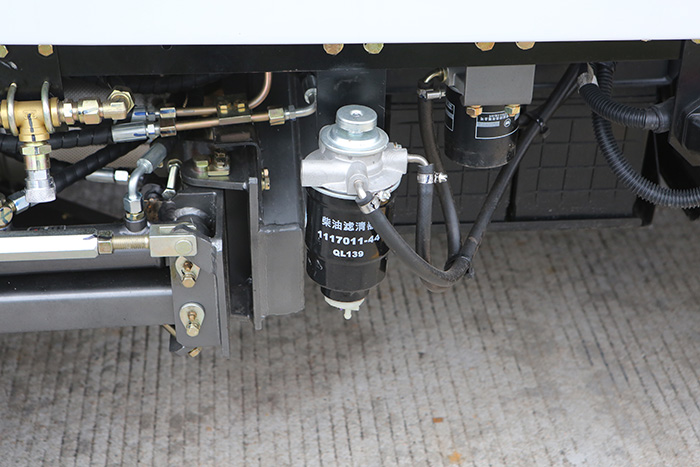

(1) Dedicated chassis
High load capacity, high reliability: riveted frame, high-strength bolts, closed beam, high-strength steel, 7.00-16 steel wire tires, all parts are modularized, and the 90L large mailbox allows customers to fill up a tank of fuel and travel longer.

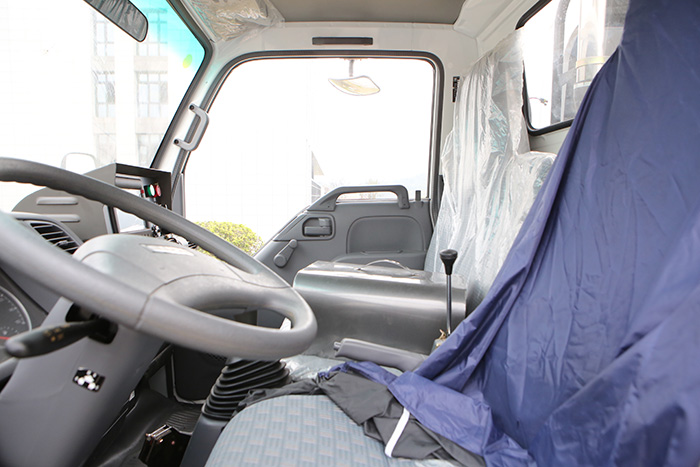

(2) Comfortable driving
New fashion cab: adopts low wind resistance new fashion belt flip body, low wind resistance brings low power consumption, more fuel-efficient, panoramic curved tempered glass, left and right viewing angles are 15 degrees wider than similar models.
(3) Strong power
Fuel type: diesel, emission standard: National VI, maximum power: 125kW (170hp), displacement: 2977ml.

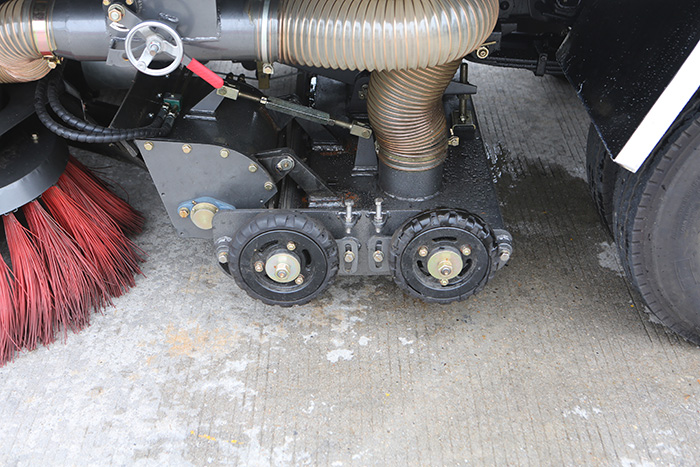

(4) Suction cup
The dust collector of a road sweeper is generally surrounded by metal plates on four flat sides and forms a cavity with a certain volume with the ground. The top opening is communicated with the box body through a rubber straw and forms a closed bin body with the box body. The front is the garbage suction port. The entire vacuum pan body is supported by rubber rollers on the left and right sides and at the rear. The roller mechanism is adjusted so that the clearance between the bottom edge of the vacuum pan and the ground is about 5-10 mm.
(5) Combination of cabinet
The box body combination is formed by rigidly connecting the box body and the power cover. The box body is a frameless thin plate welding structure, the bottom of the box body is a water storage tank, the middle is a garbage compartment, the upper part of the box body is an air duct with a ventilator, and the entire garbage compartment is made of stainless steel. There is a straw with a cover on each side of the front end of the cabin, which is a channel for garbage to enter the cabin. There is a water-filling port on the right side of the box. The nozzle can be quickly filled with water. Next to it is a water discharge pipe. After the water tank is filled with water, continue to add water, and the water will be discharged from there.

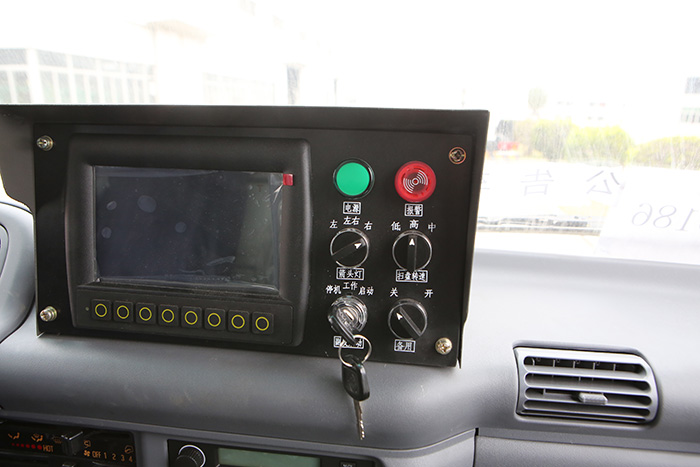

(6) Computer control panel
Computer control, using modern technology intelligent touch screen and programmable logic controller (PLC) composed of the operation control system, it is small, full-featured, stable and reliable performance, easy to operate, through the touch screen operation interface, you can easily operate the engine preview Heat, start, flameout; main suction cups lift; left and right small suction cups telescopic; rear door switch; big-box lift; spray dust and so on.
(7) Centrifugal fan
The high-speed rotating impeller accelerates the gas, then decelerates, changes the flow direction, and converts kinetic energy into potential energy (pressure).

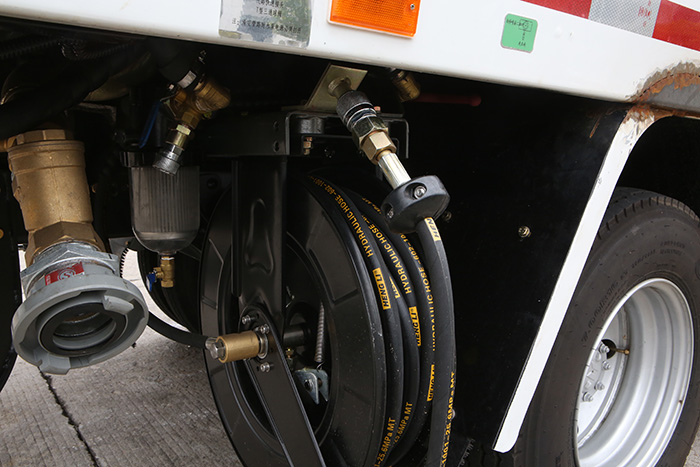

(8) Optional customization
The reel, sprinkler, sweeper, the electro-hydraulic boom has a simple structure, few wearing parts, convenient use and maintenance, simple operation, and low use and maintenance costs.
(9) Working status
Start the auxiliary engine → lower the suction nozzle to the ground → lift the trash can and support the safety brace → connects the quick connector at the lower end of the air storage tank to the outside air compressor, open the air valve, and supply air to 0.7MPa～0.8MPa (not allowed More than 0.8MPa, so as not to cause premature damage to the pulse solenoid valve) → put down the safety brace and trash can → turn the key start switch of the auxiliary engine to the “working position” (ie turn on the power) → turn the pulse dust removal knob to “on”, Pulse cleaning can take 20-30 minutes → the vacuum truck is restored to its original state and removed → clean the dust that has fallen to the ground.
