Garbage trucks are an indispensable part of urban life, silently protecting our urban environment every day. Although its appearance and functions are very direct, many people may not pay much attention to the detailed design of garbage trucks, especially the structure and function of the rear of garbage trucks. Today, let’s take a deep look at the design concept and innovation behind the rear of garbage trucks.

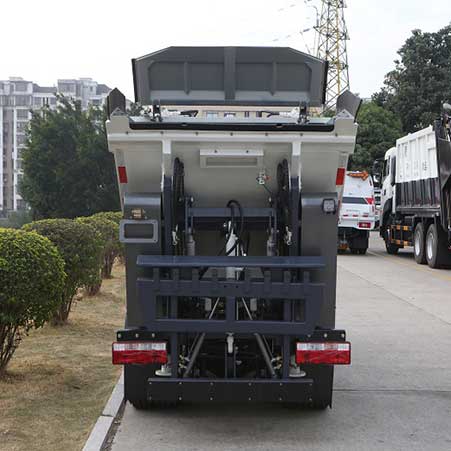

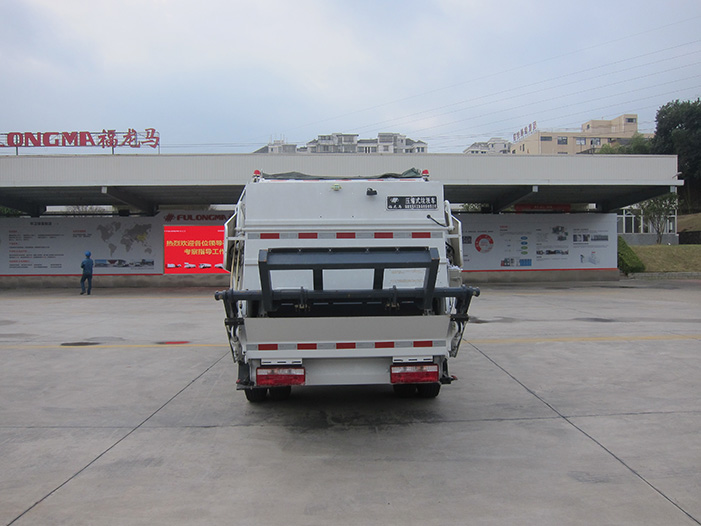

Garbage truck rear
The rear of a garbage truck usually includes several core devices, such as hanging buckets, triangular buckets, large floor buckets, and swing arms.

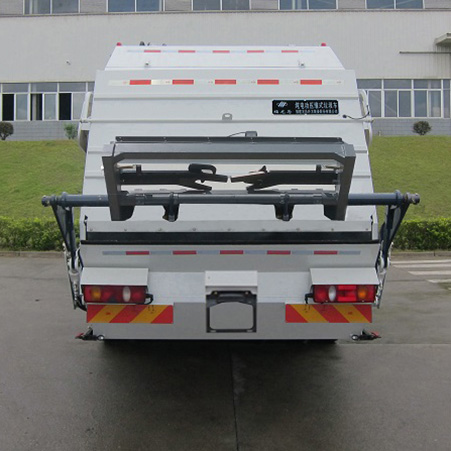

Tail-hanging bucket device
The standard configuration can hang 120L/240L garbage cans with a high matching degree. 360L and 660L hanging bucket devices are also optional. It is mainly suitable for the collection and transfer of garbage in urban areas and factory living areas.
Tail triangular bucket device
Two optional card bucket devices can be installed inside, which can hold two 120L/240L garbage cans. The main application scenarios are the collection of garbage in the city center and the transfer of garbage to the landfill outside the center. One car can be used for multiple purposes, saving worry and effort.
Tail large floor bucket device
The main application scenario is the transfer of some garbage in large and medium-sized cities. It can be matched with forklifts and small dump trucks to directly pour garbage into the bucket for garbage recycling and re-transfer, which saves time and has high work efficiency.
Tail swing arm device
The main application scenario is the garbage collection and transfer work in Xinjiang and sparsely populated areas in Western countries. It can be matched with a swing arm garbage bucket (ground, pit bucket) of about 3 cubic meters. After collection, the garbage is directly transferred to the garbage transfer station and landfill.
Garbage truck performance optimization
- The appearance of the box is a circular arc streamlined shape, and the four-axis plate rolling machine is rolled into an arc at one time, eliminating the risk of leakage. It is simple and beautiful, has strong anti-deformation performance, and good structural reliability. At the same time, it effectively increases the actual area, which exceeds similar products. The material uses high-strength manganese steel plates, which are not easy to deform, wear-resistant, and corrosion-resistant.
- The electrical system equipped with the whole vehicle can realize full automatic control of the engine output, ensure the selection of acceleration or idling state under working or other working conditions, reduce power loss and failure rate, reduce fuel consumption, and be more stable and energy-saving.
- The intelligent control system adopts an imported CAN bus design and modular structure. Through the combination of proximity switch and oil pressure sensing, an efficient, stable, and easy-to-maintain compression solution is achieved. It has three sets of manual, automatic, and semi-automatic operation modes. The interior of the cab, the front of the box, and the rear of the box can be operated and equipped with a remote control, which can be convenient and efficient in all different working environments.
- High-quality accessories are used to achieve a compression ratio of more than 1:2.5, a single cycle ≤ 20 seconds, and a doubling of garbage collection efficiency using the latest external cylinder structure and two-way compression technology.
- Considering the customer’s use environment to the greatest extent, the humanized design has many highlights, with night lighting, double sewage tanks, drainage pipes, remote control, operation and maintenance manuals, and videos being complete.
- Special person test drive, simulate various complex working environments, the only one in China to compress physical tests before departure.
- After-sales guarantee, non-customer man-made damage, unconditional after-sales for any fault, and zero-cost solution for customers.
Summary
Although the rear of the garbage truck seems inconspicuous, it carries an important task. Whether it is the compression and unloading of garbage or the consideration of environmental protection and safety, the tail design plays a vital role behind the scenes. With the development of technology and the improvement of environmental protection requirements, the design of the tail of garbage trucks will continue to innovate, bringing more efficient, intelligent, and green garbage collection and transportation services, helping cities to better achieve sustainable development.
