The sweeper is a vehicle for cleaning and sweeping the road, it takes away the waste of the road using pneumatic conveying.

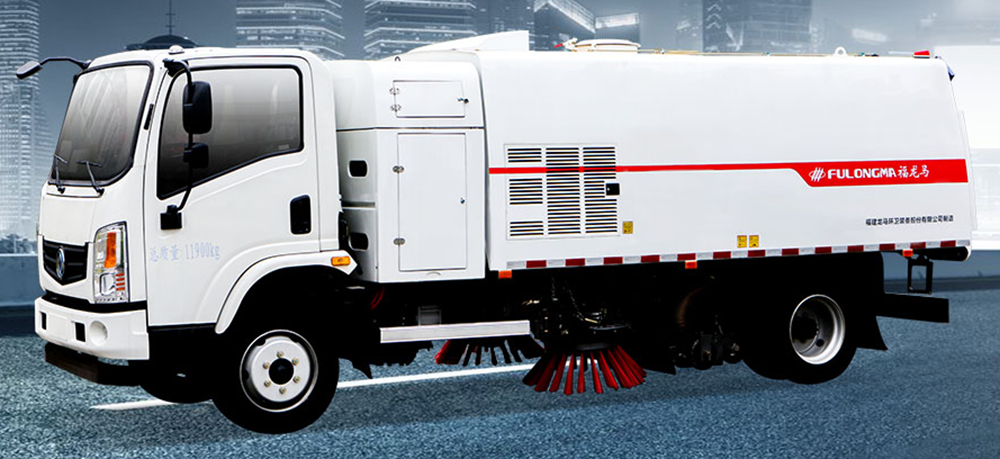

1.Cleaning Sweeper Truck Introduction
Equipped with water pumps, piping system facilities, garbage and sewage collection containers, and cleaning systems, these kinds of special vehicles are used for cleaning, sweeping, collecting, and transporting road garbage and sewage. It is an efficient road cleaning equipment that integrates road cleaning, garbage recycling, and transportation, high-pressure cleaning, or water spraying to reduce dust. It can meet the various needs of different users and is widely used in the washing and cleaning operations of urban trunk roads, viaducts, and squares.
Road sweeping and cleaning vehicles, from pure sweeping and pure suction (such as vacuum sweeper truck) to the current mainstream suction sweeping type, which can clean the road while taking garbage away (such as road sweepers). The significant difference between a sweeper and a Cleaning sweeper truck is that it is equipped with a large-capacity clear water tank and a high (low) pressure water system to clean the road while cleaning the road.

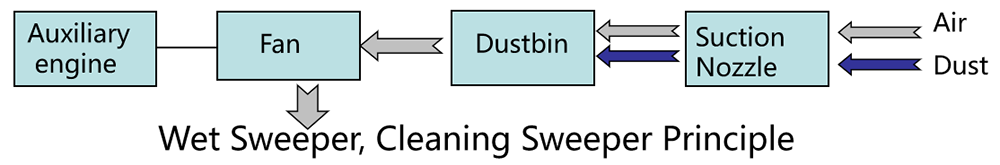

2.Introduce the principle of pneumatic conveying of Cleaning sweeper

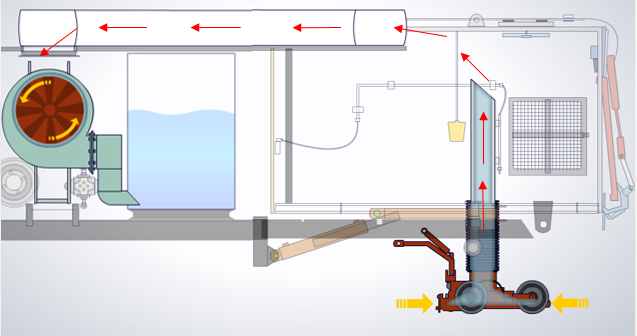

The auxiliary engine drives the fan to draw out the air in the dustbin, making the dustbin under auxiliary pressure, and the suction nozzle is grounded. The supplementary airflow flows into the dustbin at high speed from the gap between the suction nozzle and the ground, and the dust, sand, and other garbage are conveyed into the dustbin by pneumatic, finally self-unloading the dust to complete the operation process.

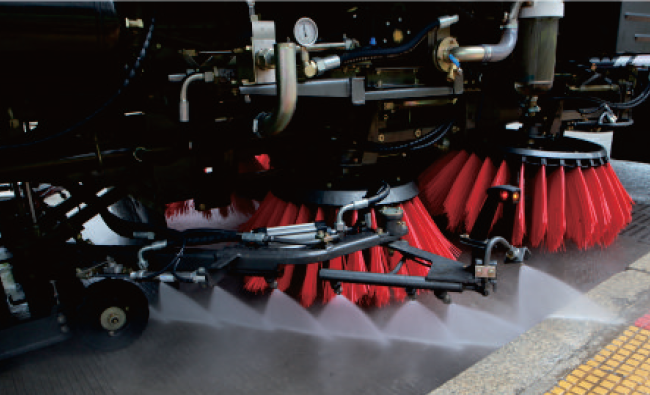

Also, a cleaning sweeper truck equipped with a high-pressure cleaning system, which used a high-pressure V-shaped water line to hit the road dust and gather it in front of the suction nozzle, and then suck it into the garbage bin with the pneumatic conveying system.

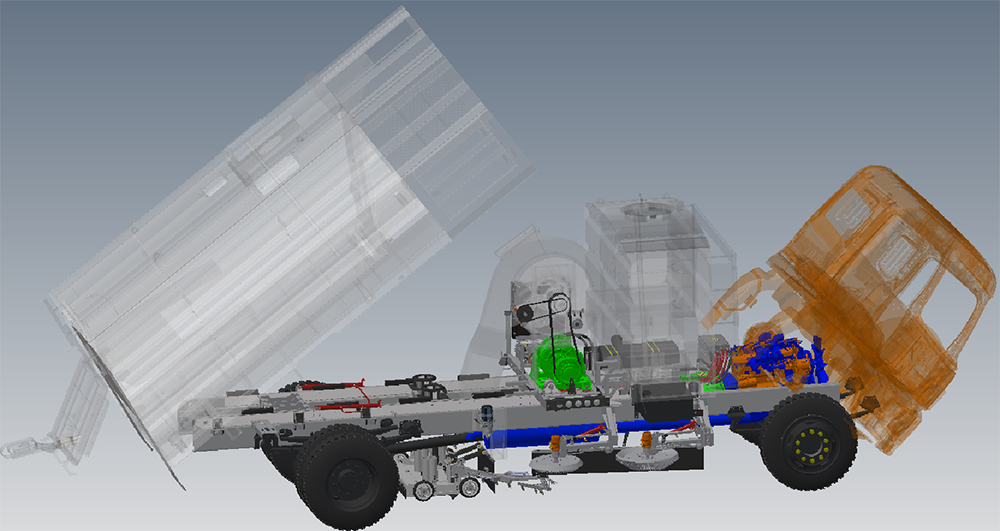

3.Cleaning Sweeper Truck parts Introduction
- Auxiliary engine with fan
Body Assembly
High-pressure cleaning
Low-pressure cleaning
Suction Nozzle
High-pressure spraying
Hydraulic System
Electric control system
Pneumatic system
Sweeper
Chassis
