The high-pressure cleaning vehicle is also known as the road cleaning vehicle. The cleaning vehicle is mainly used to clean the sediments of roads, squares, sewers, pipelines, and dredge dead angle mud trenches. It can also be used to clean industrial drainage pipes and walls. The high-pressure cleaning truck can be equipped with sprinkler and dirt suction devices to integrate cleaning and dirt absorption.

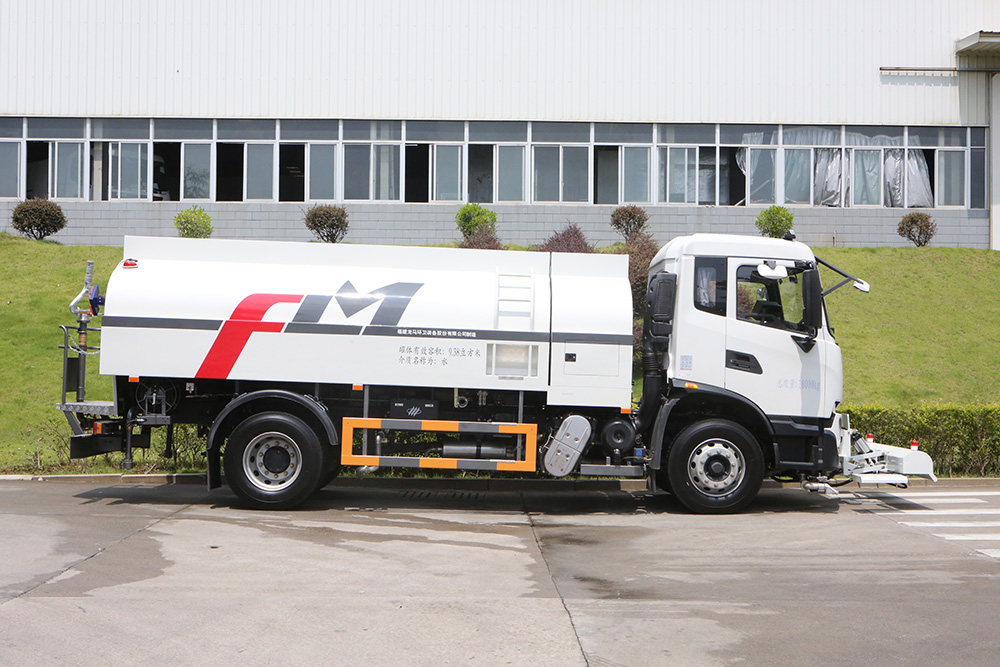

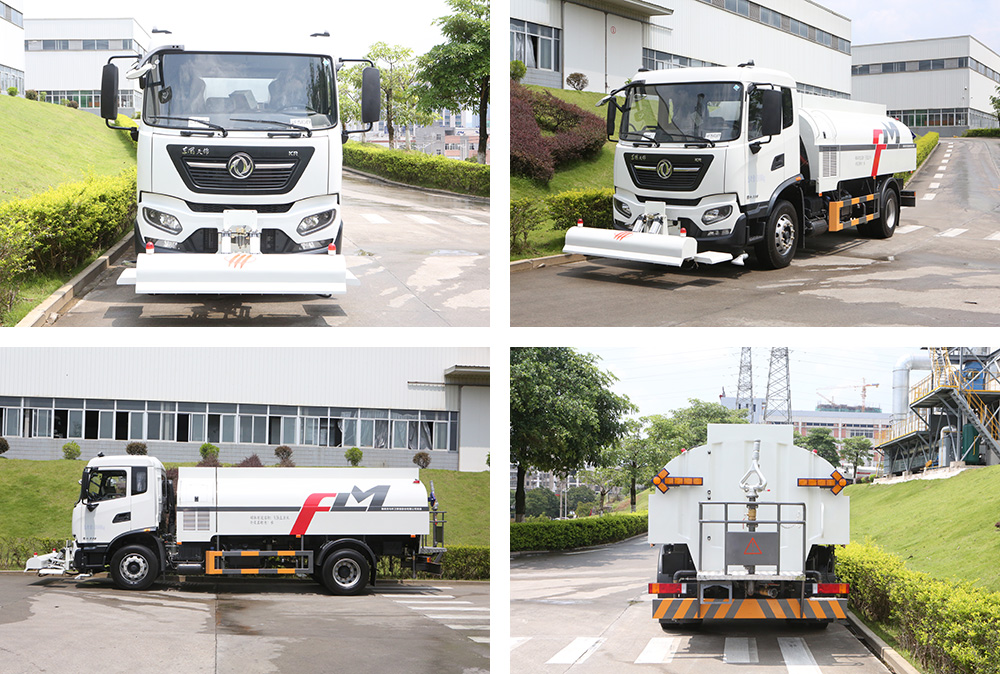

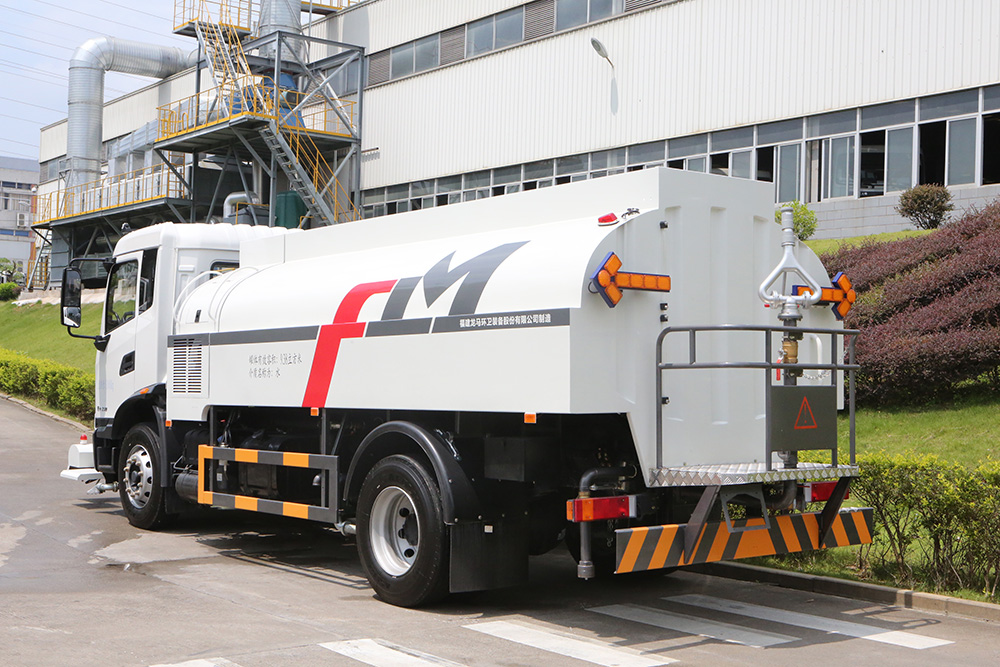

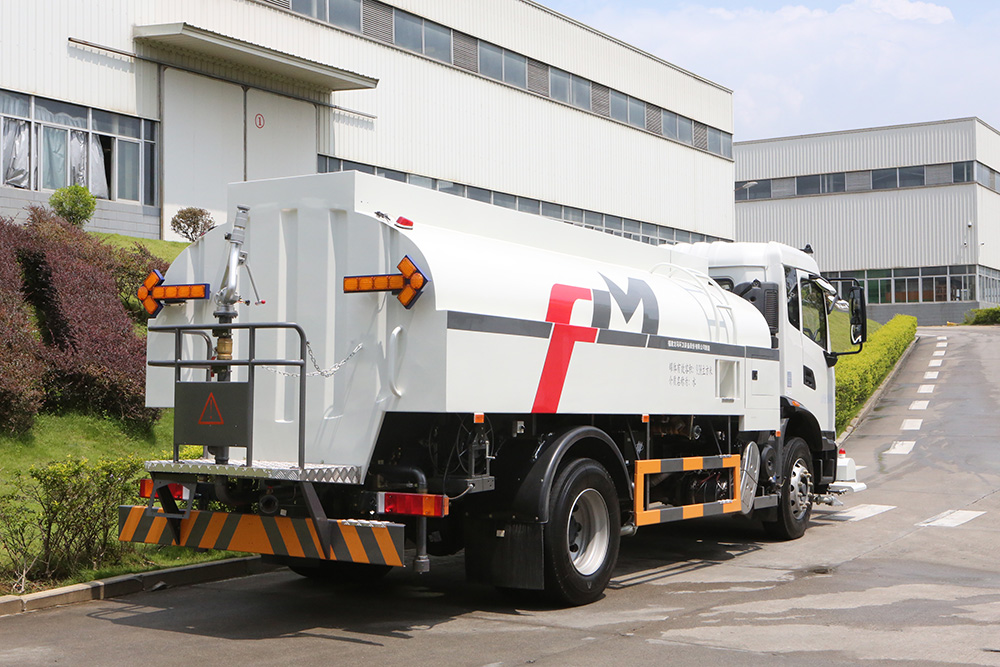

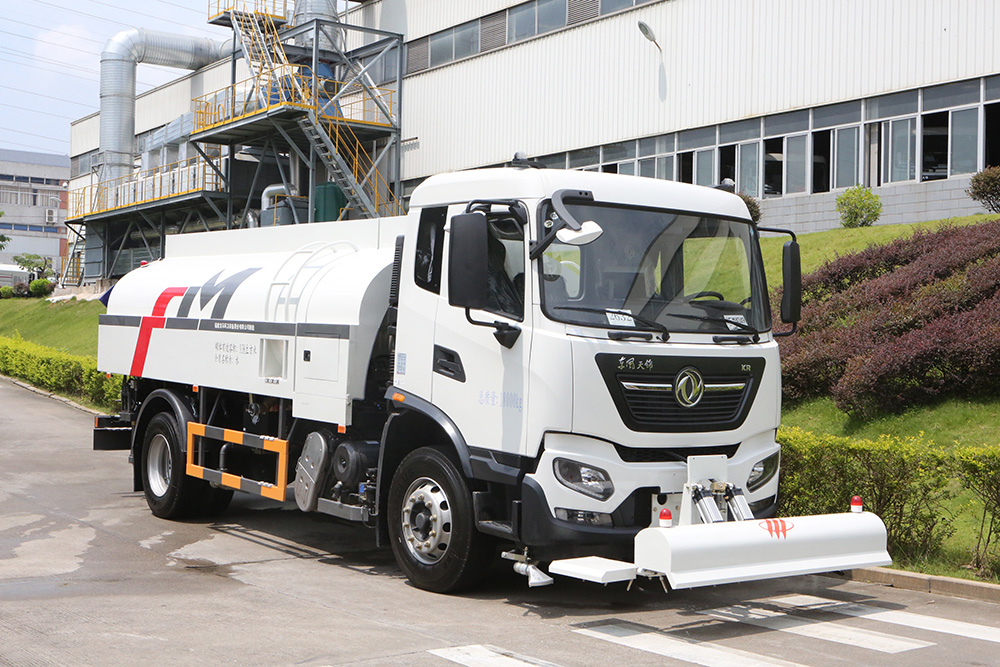

01. Picture of high-pressure cleaning truck
02. Scope of application of high-pressure cleaning truck
The product is widely used in cleaning operations of urban roads, highways, squares, ports, and docks, and watering operations of plants in green belts. Optional rear-up and rear-down spray systems can be used for spray dust reduction operations; optional self-priming devices can add water to rivers and lakes, saving tap water resources; optional left and right watering devices to achieve green watering on the left and right sides of the road, optional automatic water The cannon device realizes remote washing, sprinkling, and watering. The vehicle has multiple functions and multiple uses.
03. High-pressure cleaning truck configuration
1. High-pressure water pump: using a well-known manufacturer’s plunger pump, with high efficiency and good reliability. The rated working pressure of the pump is 14MPa, and the rated flow is 137L/min.

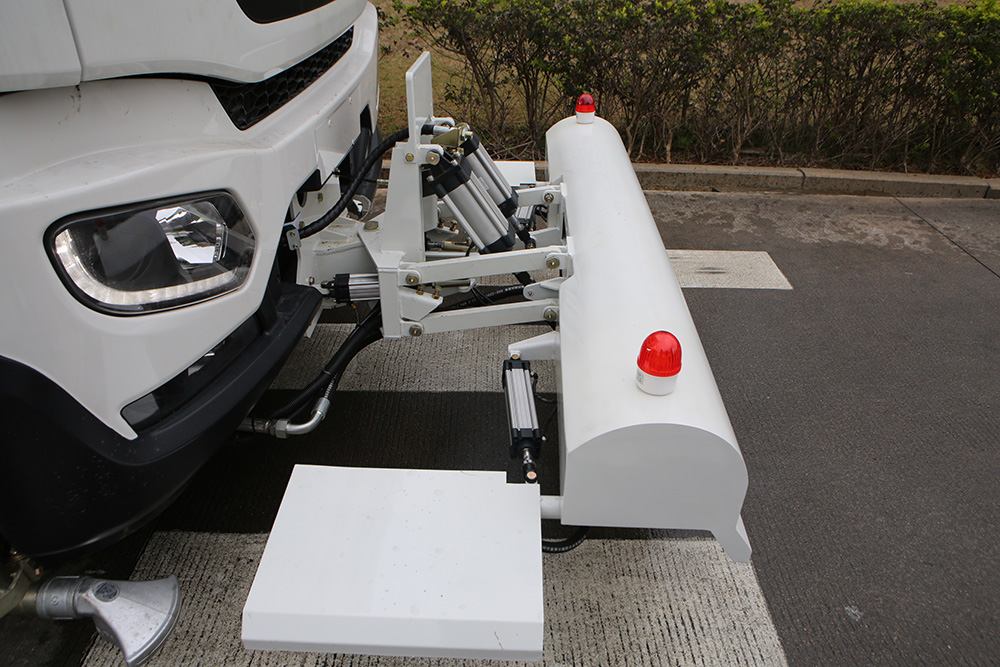

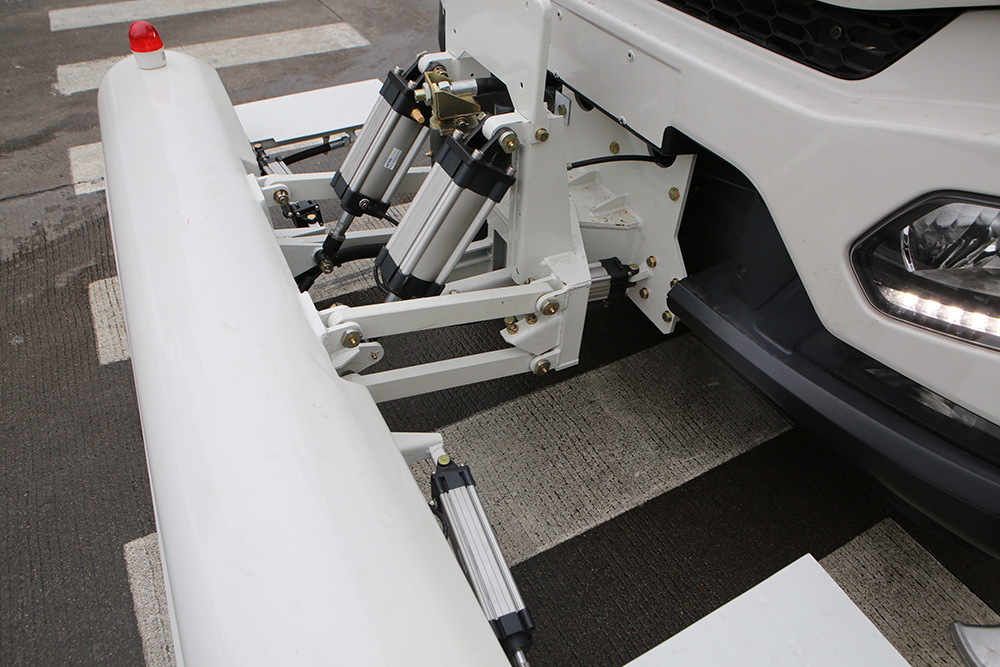

2. Front cleaning sprinkler: The front cleaning sprinkler has a simple and elegant appearance, and the cleaning width is not less than 3m. It can be deflected left and right. When encountering obstacles in the front, the left and right spray rods can shrink inward to avoid the obstacles, and automatically return to normal working position.
3. The right side cleaning guardrail device: realizes the high-pressure cleaning operation of the curb, guardrail base, road guardrail, etc. when the vehicle is driving.
4. Single-point dredging device: It can realize the deflection in the left and right directions, and is used to clear the local sanitary corners of the road.
5. Hand-held spray gun and reel: When in use, it can be taken out directly from the car wash gun box, and the reel comes with a 20m long water hose. Used for car body cleaning, local road cleaning, and other operations.
04. Maintenance of high-pressure cleaning vehicles
1. The maintenance of the automobile chassis and supporting pumps shall be carried out in accordance with the corresponding operating instructions.
2. Before the vehicle is used, it should be run-in according to the requirements of the vehicle instruction manual.
3. Lubrication system maintenance: The vehicle needs to be cleaned and maintained every 5000km-10000km. It also needs to be cleaned and maintained when the engine is too noisy, the acceleration is weak or the water temperature is too high. Cleaning the sludge and other deposits inside the engine can avoid the oxidation and thickening of the oil at high temperatures, which can effectively reduce the wear of engine components, thereby prolonging the life of the engine and improving the power of the engine.
4. Cooling system maintenance: The vehicle should be cleaned and maintained once during the winter and summer seasons. I hope you clean and maintain it once every 6 to 8 months during normal driving, or when the water temperature is too high, water leaks or the pot is boiling. Remove the traces and scale that cause the engine to overheat, prevent harmful corrosion, avoid and stop the leakage of seals and water tanks, and completely replace the old coolant.
5. Fuel system maintenance: The vehicle needs to be cleaned and maintained once every 800km-1000km, or when you find the engine is trembling, lagging, poor acceleration, black smoke, powerlessness, and fuel consumption. It is necessary to remove the colloid and carbon deposits inside the system to prevent harmful corrosion, avoid and stop the leakage of seals and water tanks, and completely replace the old coolant.
6. Gearbox maintenance: clean and maintain once every 800km-1000km of the vehicle, or when the gearbox slips, the water temperature is high, the gear shift is slow, or the system leaks. Remove harmful sludge and paint film deposits, restore the elasticity of gaskets and O-rings, make the gearbox shift smoothly, improve power output, and completely replace the old automatic transmission oil.
7. Power steering system maintenance: the vehicle needs to be cleaned and maintained once every 1000km-2000km, or the system leaks when the steering is difficult, after replacing the power steering gear accessories, it must also be cleaned and maintained once. Remove harmful sludge and paint film in the system, remove steering difficulties at low temperatures, stop and prevent leakage of power steering fluid, remove steering noise, and completely replace old brake steering fluid.
8. Braking system maintenance: the vehicle is cleaned and maintained once every 800km, or when the ABS reacts too early or too slow. Remove the harmful sludge paint film in the system, remove the danger of work failure at ultra-high temperature or ultra-low temperature, effectively prevent the brake fluid from deteriorating and expiring, and completely replace the old brake fluid.
05. Working video of high-pressure cleaning truck
