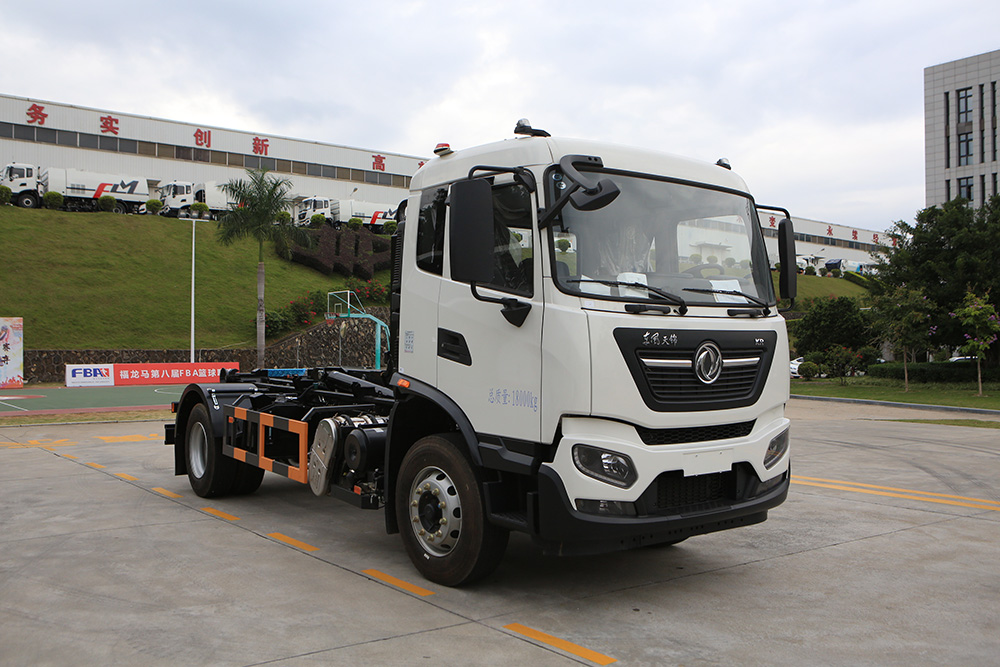

Hook-arm garbage trucks are also called unloadable garbage trucks. It is a sanitation garbage truck that is currently more popular among users. It is mainly used for municipal sanitation collection and transportation of various garbage in the city, especially for collecting and transporting residential garbage. The hook-arm garbage truck is fully hydraulic, easy to use, and easy to operate.

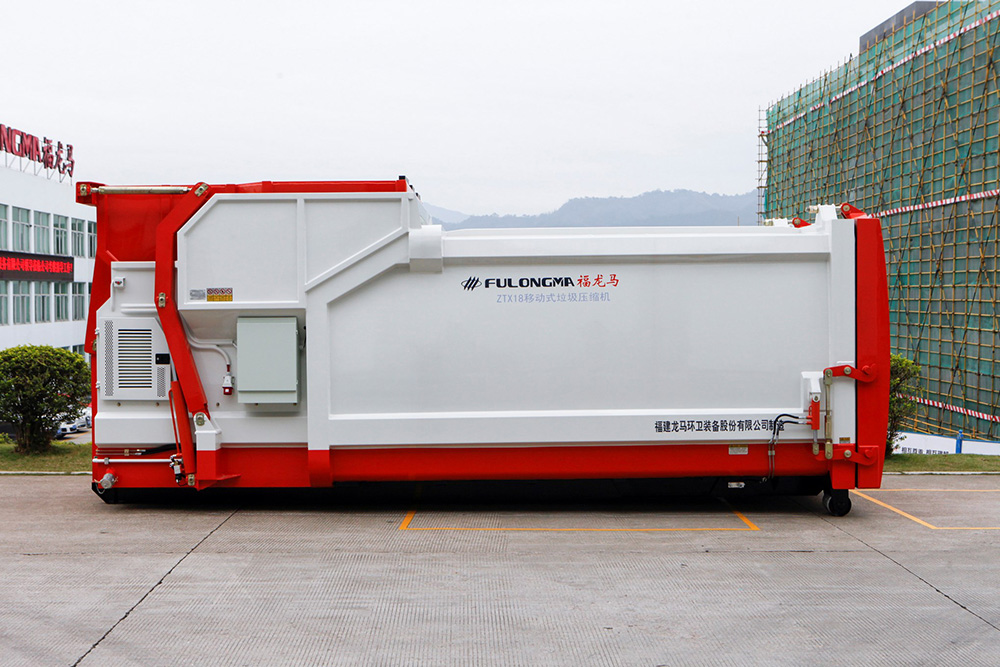

01. Hook arm garbage truck compartment

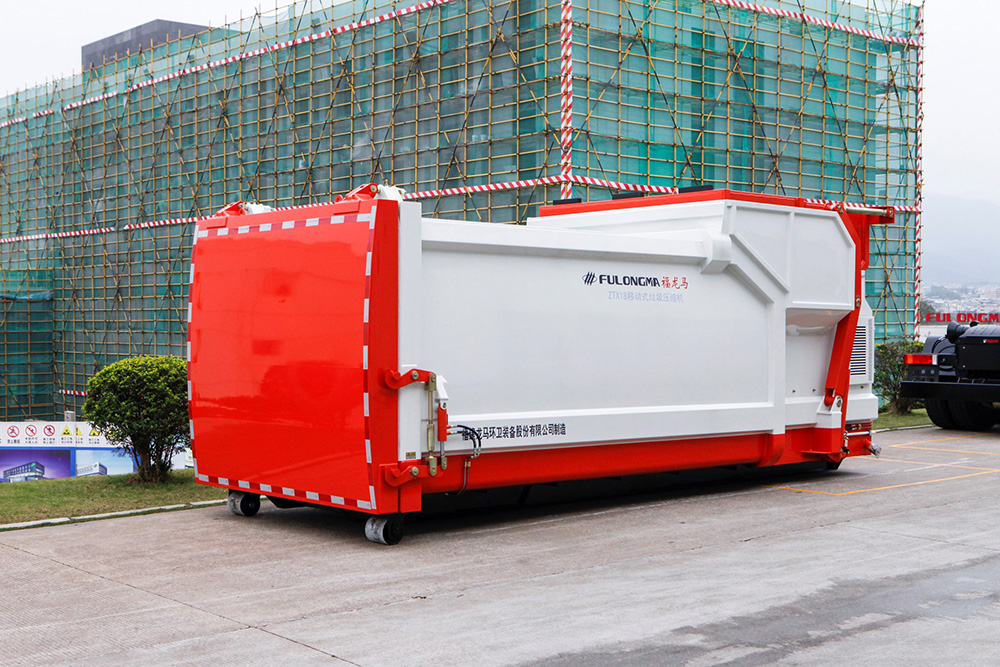

1. The bottom of the box is equipped with a pair of iron wheels to facilitate the movement of the trash can when it is hoisted and unloaded, and the rear of the box can be opened (with a locking mechanism and equipped with a sealing strip).
2. Hook arm garbage truck trash cans include high-quality carbon steel trash cans, stainless steel trash cans, with a volume of 2 squares, 2.5 squares, 3 squares, 4 squares, 5 squares, 6 squares, 8 squares, 10 squares, 12 squares, and other different options.
3. The material, shape, volume, and other models of the trash can are complete, and they can also be customized according to different needs.
4. Trash cans are used in conjunction with hook-arm garbage trucks. Different types of garbage trucks can be selected according to the user’s needs, the traffic conditions of the road section, and the volume of the supporting garbage cans.

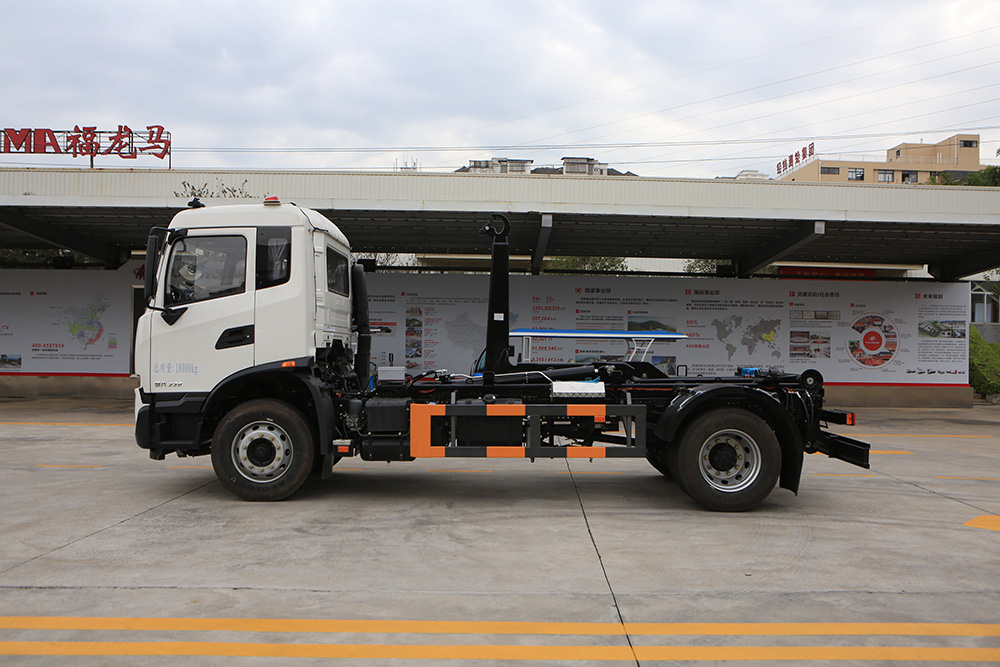

02. Hook arm garbage truck composition

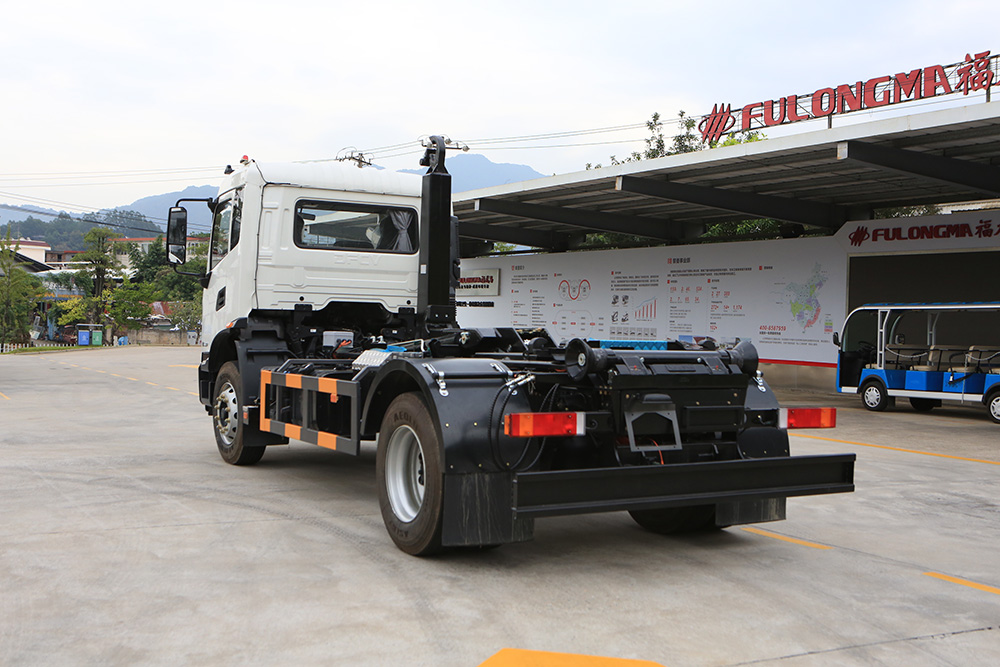

1. Consists of automobile chassis, telescopic pull arm, main boom cylinder, movable sleeve arm, sleeve arm cylinder, attached frame, flip frame, support leg, locking frame, locking cylinder, and multi-way reversing valve.
2. One end of the flip frame is connected to the attached frame, and the other end is provided with a movable sleeve arm, and a horizontal and vertical locking system is installed in the middle.
3. One end of the main boom cylinder is connected to the movable sleeve arm, and the other end is connected to the attached frame.
4. The horizontal locking mechanism can connect the trash bin body and the turning frame into one body by locking the oil cylinder, and then connect the movable sleeve arm and the turning frame into one body through the extension of the telescopic oil cylinder, and then extend it in the main oil cylinder. When exiting, a dump angle is formed, resulting in a dump.
5. The hook box and the release box are horizontally locked in the extended and released state, while the sleeve arm cylinder is in the retracted state, the telescopic pull arm returns to the movable sleeve arm, the longitudinal locking mechanism is disengaged, and the working pull arm is in a short-term operation Hook box and dropbox.
