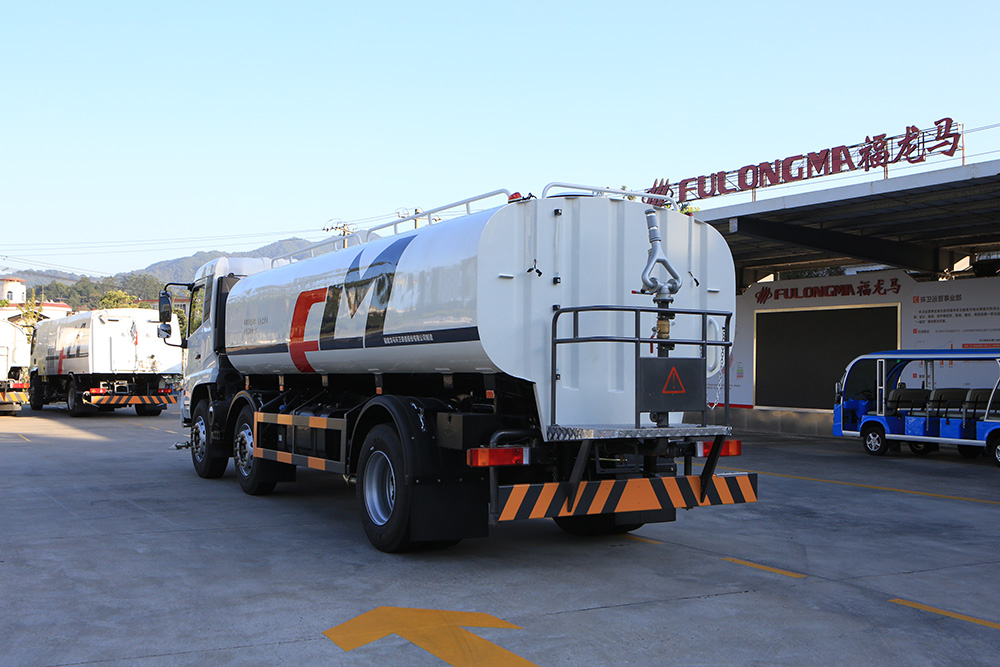

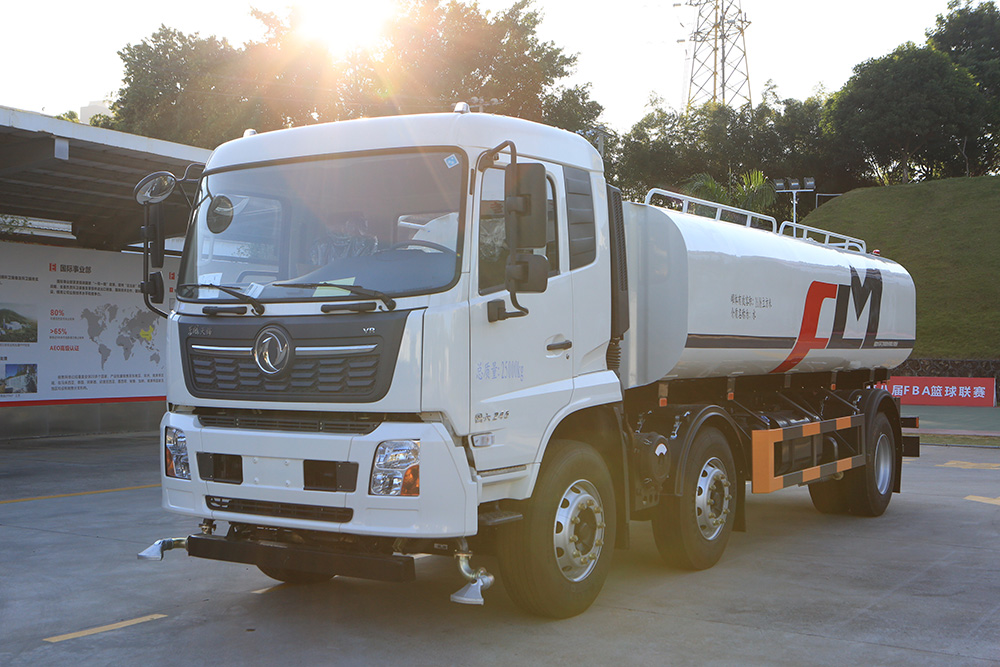

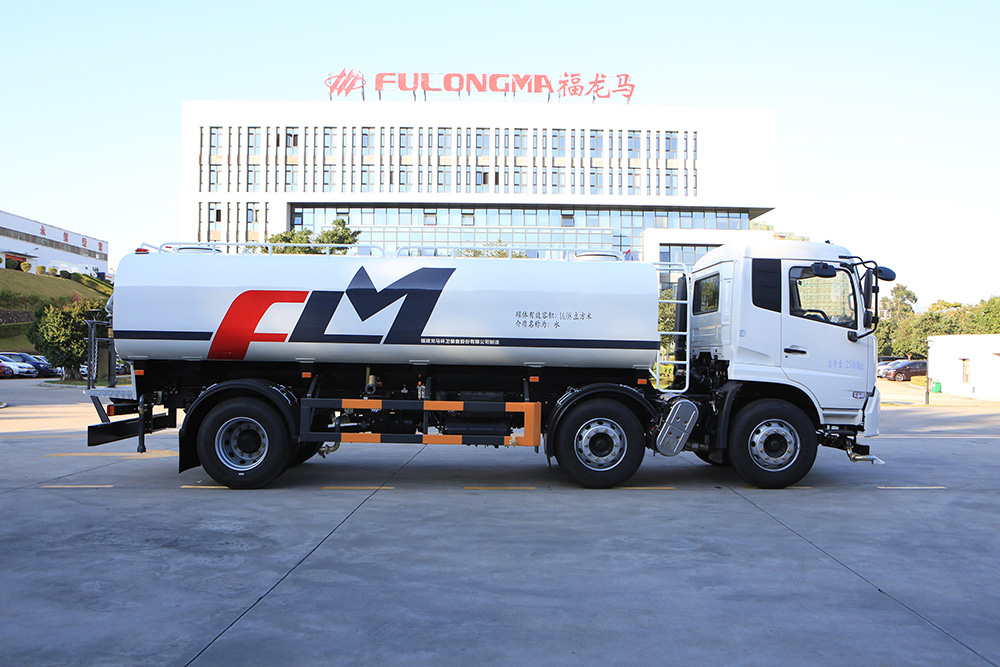

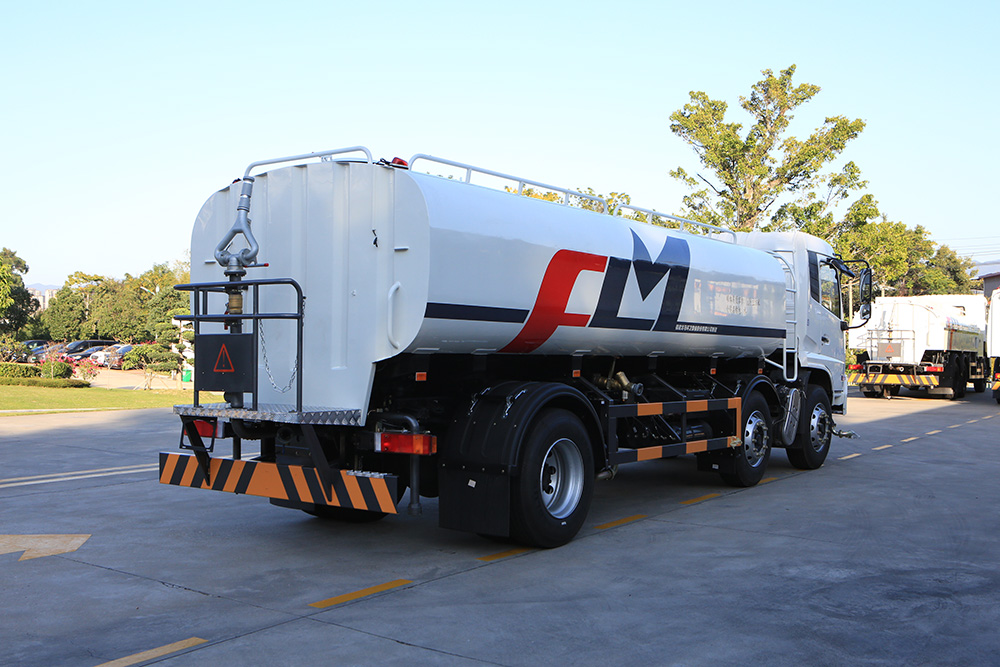

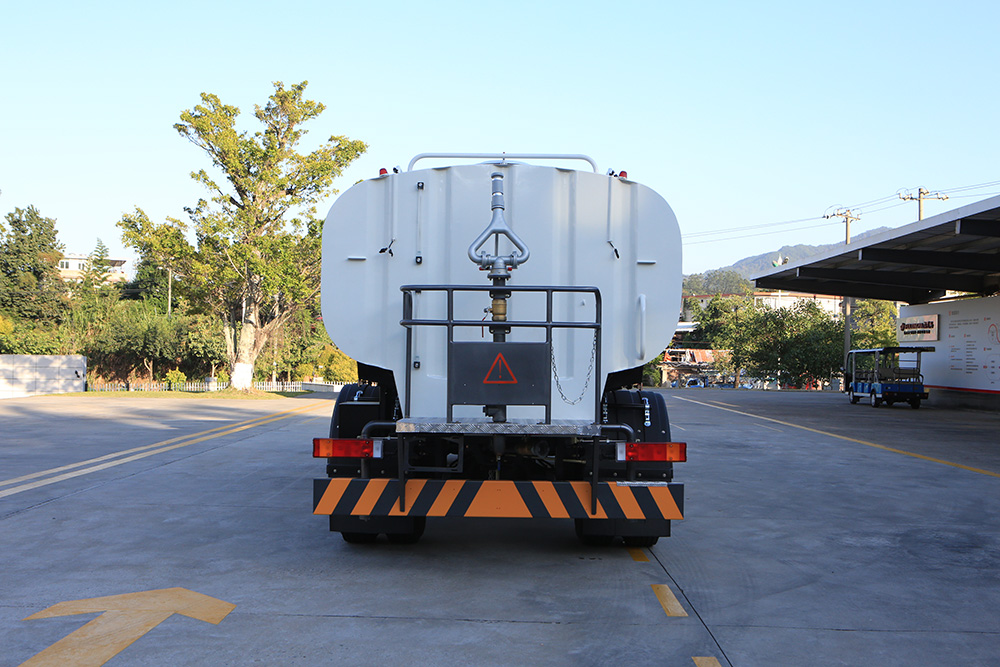

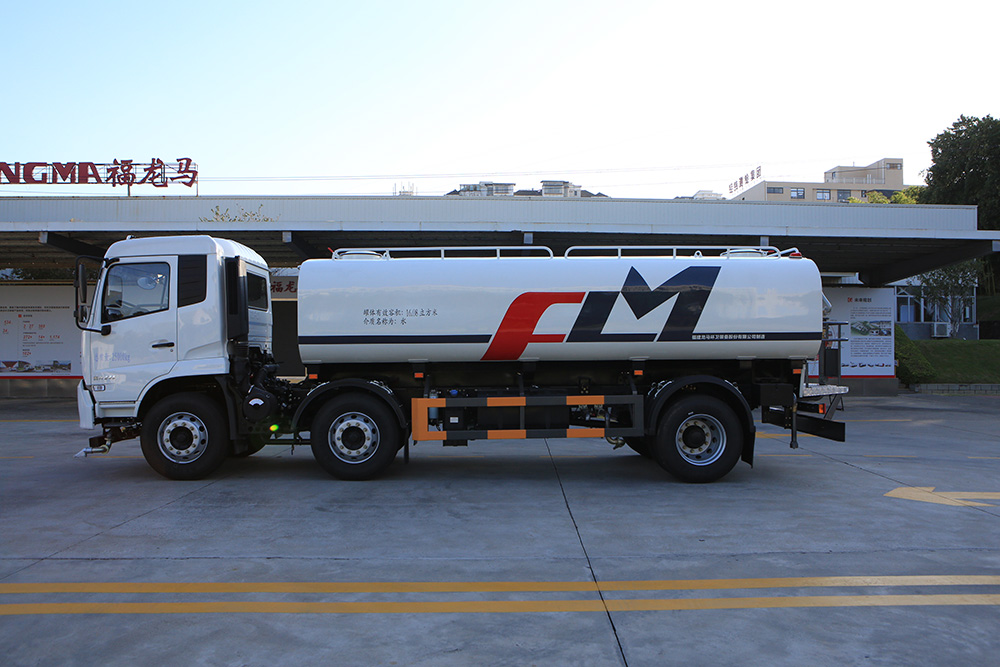

FULONGMA sprinkler is mainly suitable for all kinds of road washing, trees, green belts, lawn greening, construction of roads, factories and mines, and high-altitude buildings. It has the functions of water spraying, dust pressure, high and low spraying, pesticide spraying, guardrail flushing, etc.
01. Large sprinkler chassis configuration
Dongfeng D3L Seiko chassis adopts 4350+1350 double-axle design, Cummins 230 horsepower engine, original air conditioner, ABS, electric doors and windows, central control locks, steel wire tires, etc.
02. Large sprinkler body configuration
Volume 12-15 square (tons), carbon steel tank, tank thickness 4mm. High-power self-priming and self-draining pump. With a front flush, rear spray, side spray, greening anti-aircraft gun, high-level shower, rear working platform, optional spray unit.
03. Function introduction of large sprinkler
Four aluminum alloy nozzles at the front of the vehicle can be adjusted up, down, left, and right. Suitable for road flushing. The rear is equipped with 2 aluminum alloy nozzles (heads), and the left and right side sprays can be used to maintain the green belts on both sides of the road. Rear working platform greening water cannon (can be rotated 360 degrees, can be tilted up and down 150 degrees, can be adjusted to flush, heavy rain, drizzle, water mist), can green high-speed edges, green dead corners, dust, and haze, temporary fire sprinkler width ≥ 15m, The range of the anti-aircraft gun is ≥28m, the range of the fog gun is 30-150m, the self-priming depth is ≥7m, and the amount of water spraying is ≥0.5L/㎡.
04. Special instructions for large sprinklers
FULONGMA can thicken the tank according to customer requirements, professional anti-corrosion, anti-rust, thermal insulation and other treatment, optional stainless steel tank, and pipeline, so that the sprinkler can transport water or load other liquid substances (such as milk, drinking water) function, we can design and modify it according to customer requirements.
05. Functional advantages of large sprinklers
1. Excellent craftsmanship: a large plate rolling machine is used for one-time forming so that the tank body has the characteristics of high strength and stable vehicle.
2. Good body passability: The body design is reasonable, has good passability, and is suitable for various places.
3. Good sealing: The tank body of the sprinkler is made of carbon steel, which has high strength and good sealing, is not easy to corrode, and the pressure-resistant tire has a strong load force.
4. Perfect functions: the sprinkler pump can absorb water and pressurized drainage, and the self-priming pump can directly inhale the water from the pond into the tank.
5. Water-like multi-function adjustment: the sprinkler can be adjusted: straight-through, heavy rain, light rain, moderate rain, drizzle, suitable for a variety of industries.
06. Large sprinkler working video
