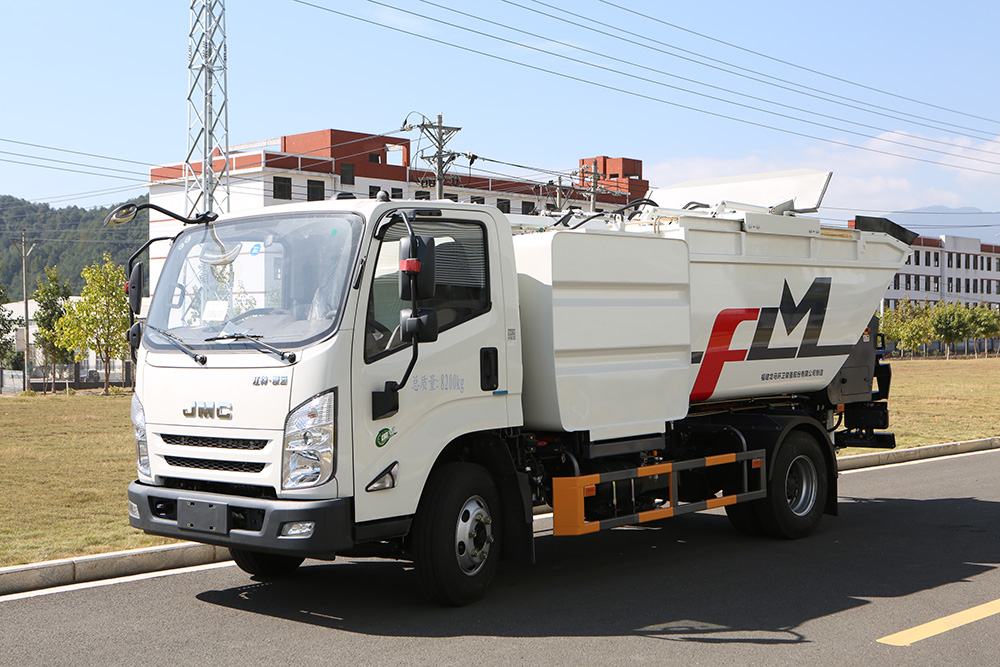

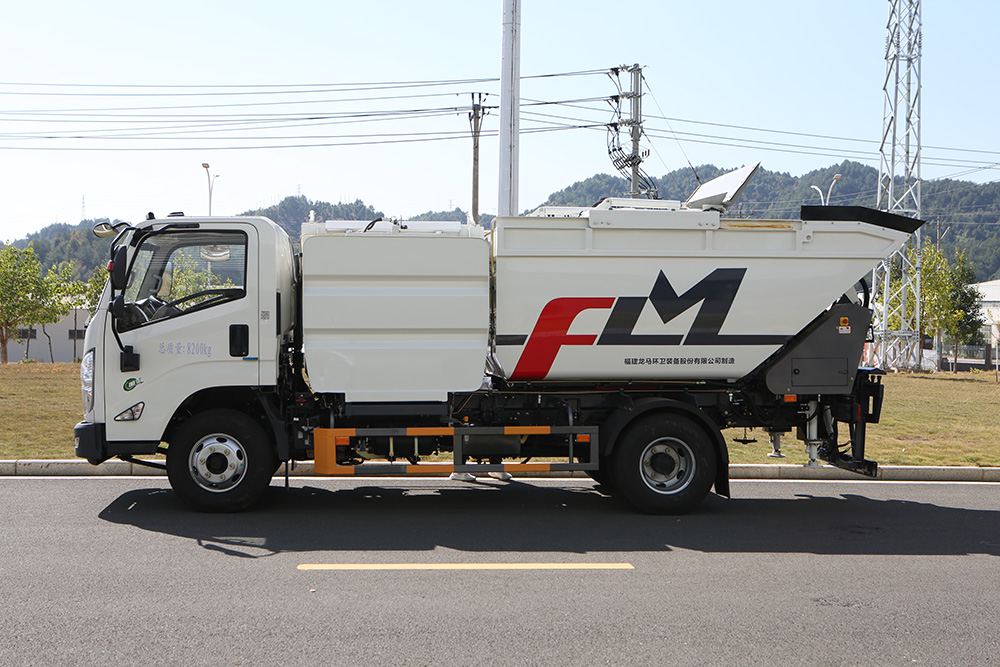

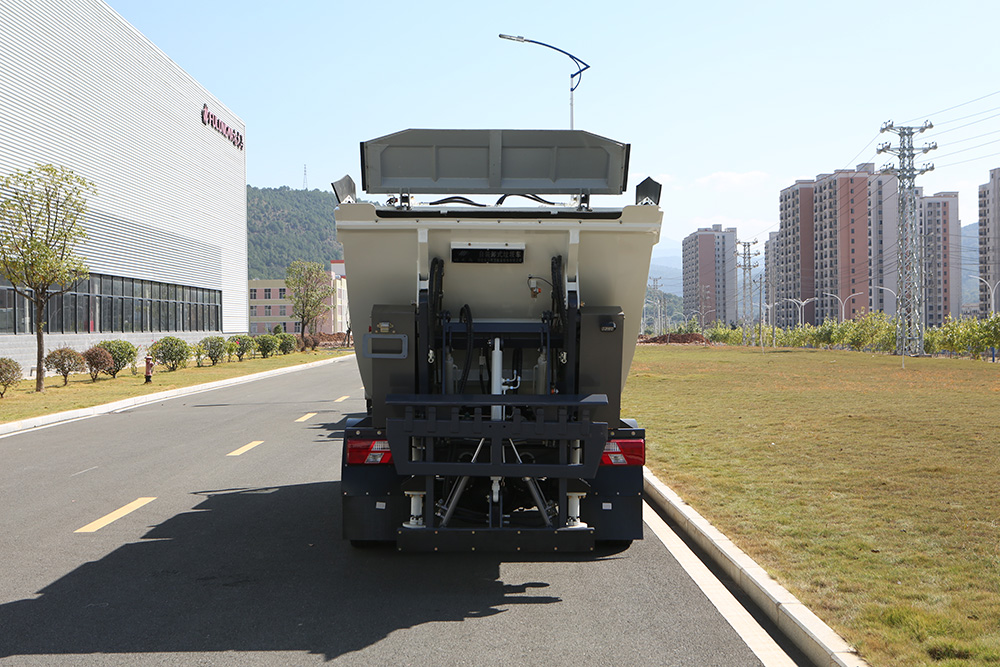

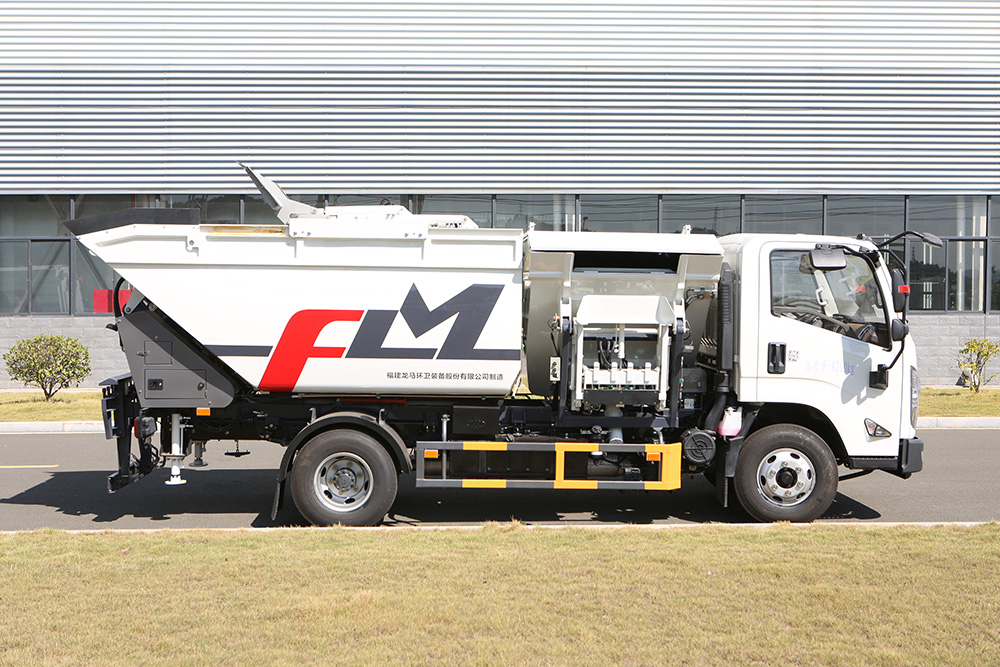

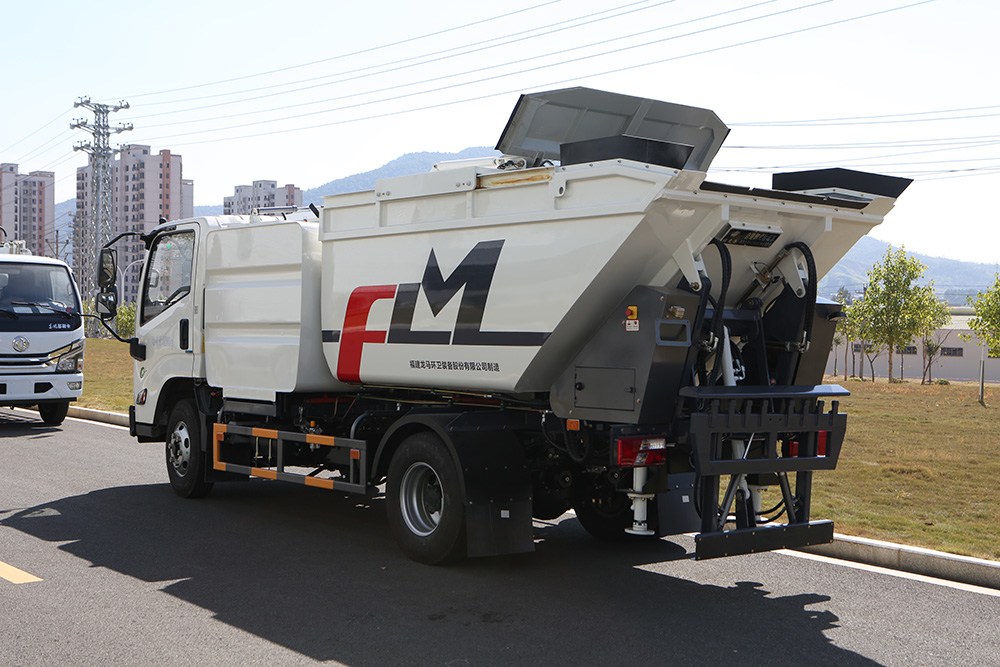

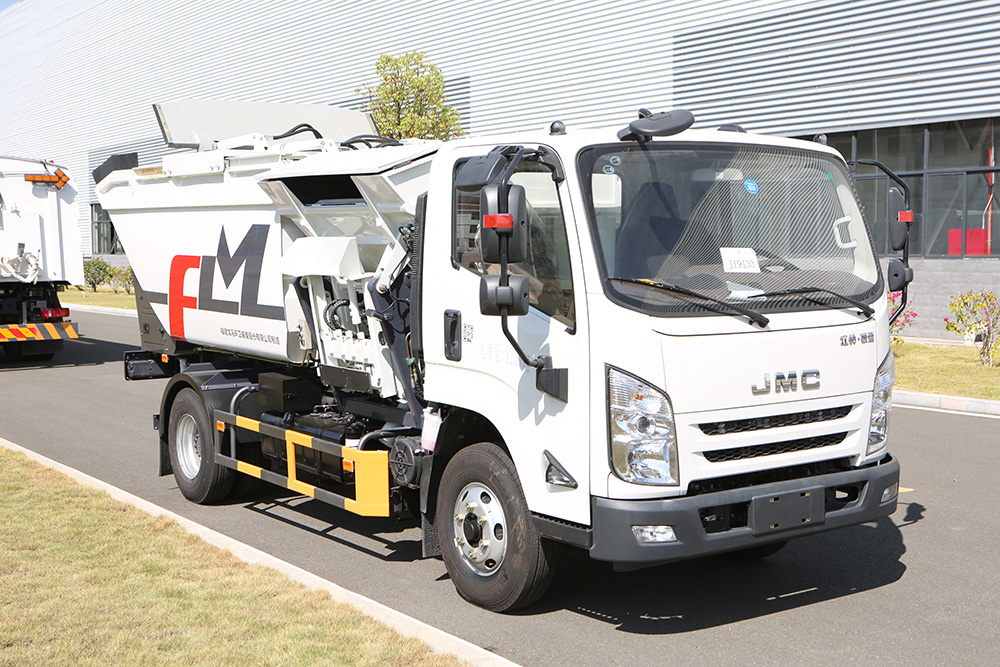

As a new generation of garbage collection vehicles, FULONGMA non-leakage dump trucks have novel operation methods. They are multi-functional products with advanced performance, beautiful appearance, and reliability. They are suitable for sanitation, municipal administration, property communities, and residential areas with a lot of garbage. , Urban street garbage disposal, all have the function of sealed self-unloading, hydraulic operation, and easy to dump the garbage.
01. Performance characteristics of leak-free dump trucks
1. The high-level overturning structure of the garbage bin prevents the leakage of garbage and sewage along the way during transportation, so as to avoid secondary pollution during transportation.
2. The new type of rear-turning feeding mechanism has a short single feeding cycle time and high running speed, making it more convenient to operate in narrow streets and residential areas.
3. The scraper compression device can compress the garbage and greatly improve the loading capacity of the body.
4. Seamless connection with large and medium-sized compressed garbage trucks or overall stations to improve user efficiency and reduce operating costs.
5. Hydraulic components and electrical components are suitable for high-quality accessories and are easy to operate.
02. Working principle of a leak-free dump garbage truck
By operating the lift control valve, the trash can is lifted up and tilted with the hoist, and the garbage in the bucket is poured into the carriage to complete a single loading of garbage. Operate the lift control valve in the reverse direction, and the trash can is lowered with the hoist; the garbage loading is completed. When dumping again, operate the dump control valve, the garbage can is tilted and lifted around the rear tilting axis, the rear door of the box is opened, and the garbage is dumped out of the box. The automatic loading and unloading garbage truck is completed by the hydraulic control system to complete the lifting and lowering of the hoist and the self-unloading function of the garbage, which reduces the labor intensity of workers and improves the working environment.
The collection and transportation method of automatic loading and unloading garbage trucks is currently the most widely used garbage collection and transfer method in China. The functions of its special devices are all powered by the automobile engine and are realized by hydraulic mechanism manually or electronically or pneumatically. The box body of the vehicle adopts a high-quality carbon steel plate fully sealed and welded structure, which has the advantages of high strength, lightweight, dust-proof, overflow-proof, and no secondary pollution.
03. Operation steps of a leak-free dumping garbage truck
1. Before loading garbage, it is necessary to operate the power take-off (the lower left of the steering wheel in the cab) after the no-load operation reaches the specified standard air pressure, and check whether there is any leakage or abnormality of each part.
2. Place the trash can at the hook of the hoist, and then push the lifting or upper cover (optional) operating handle to the raised position, and the lifting cylinder on the right side of the box or the top cover opening cylinder extends out to lift The machine drives the trash can up and rotates to turn over the trash, and the trash enters the box. Release the operating handle to return it to the neutral position.
3. Push the lift operating handle to the retracted position, and retract the lift cylinder on the right side of the box or the top cover opening cylinder, so that the hoist drives the trash can down and places it on the ground, releasing the operating handle to make it return to the middle position, complete a load, then release the power take-off, the car can be transported. Also note: If a small scraper is installed in the box, please push the handle in the direction of the operation sign to push out the scraper, push and scrape the garbage at the front of the box to the rear of the box, and turn the handle upside down before loading the garbage again. Pull back to retract the scraper and return the handle to the neutral position; to prevent the garbage from pouring into the scraper and the front end of the box and being stuck; At this time, the self-unloading operation handle can be pushed to the open position, and the self-unloading cylinder at the bottom of the box body extends out so that the box body rotates around the self-unloading flip seat and raises a certain angle so that the garbage at the front end of the box body slides to the back of the box body due to its own weight. After finishing, pull the operating handle back in the opposite direction or return to the neutral position, and then let the box fall flat to release the handle.
