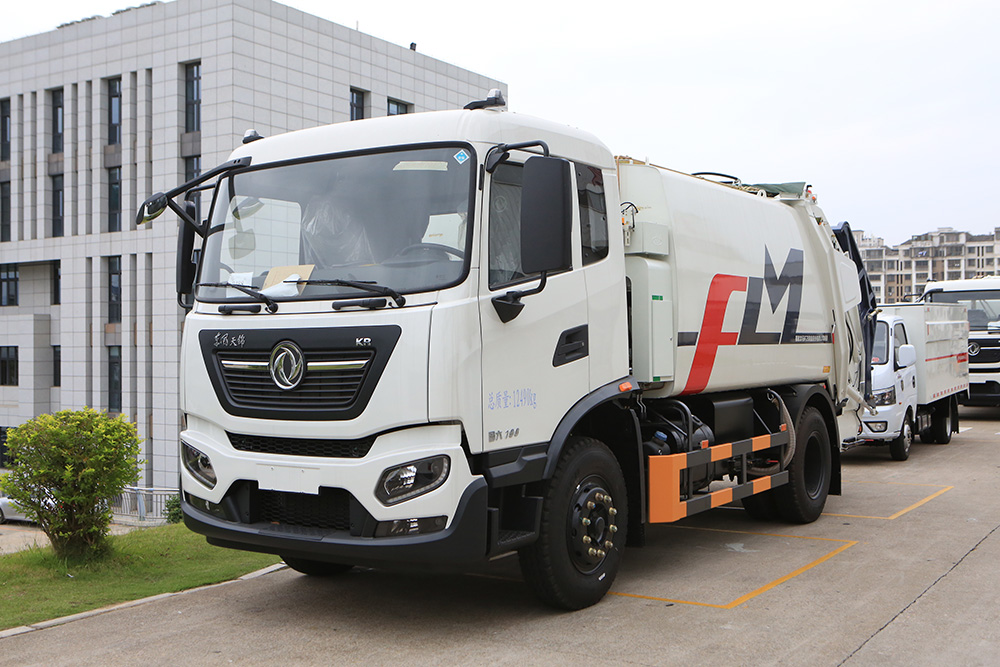

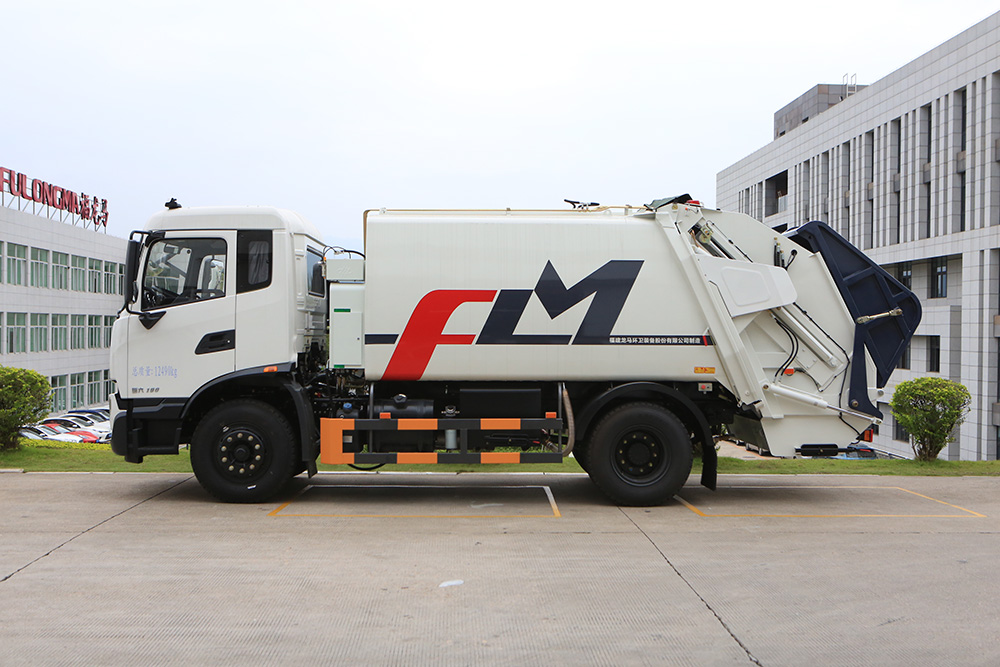

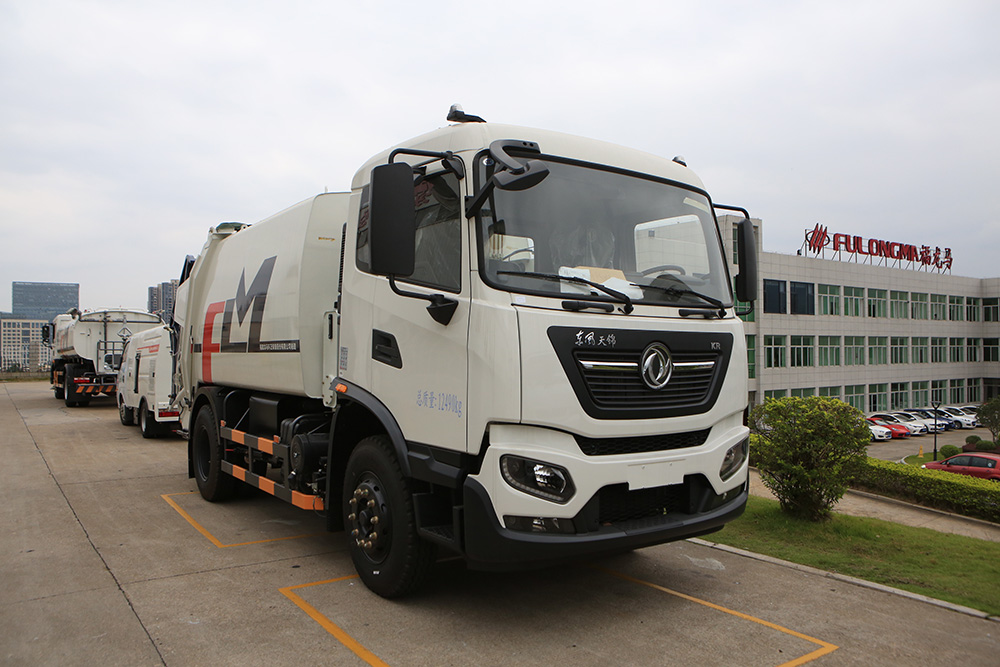

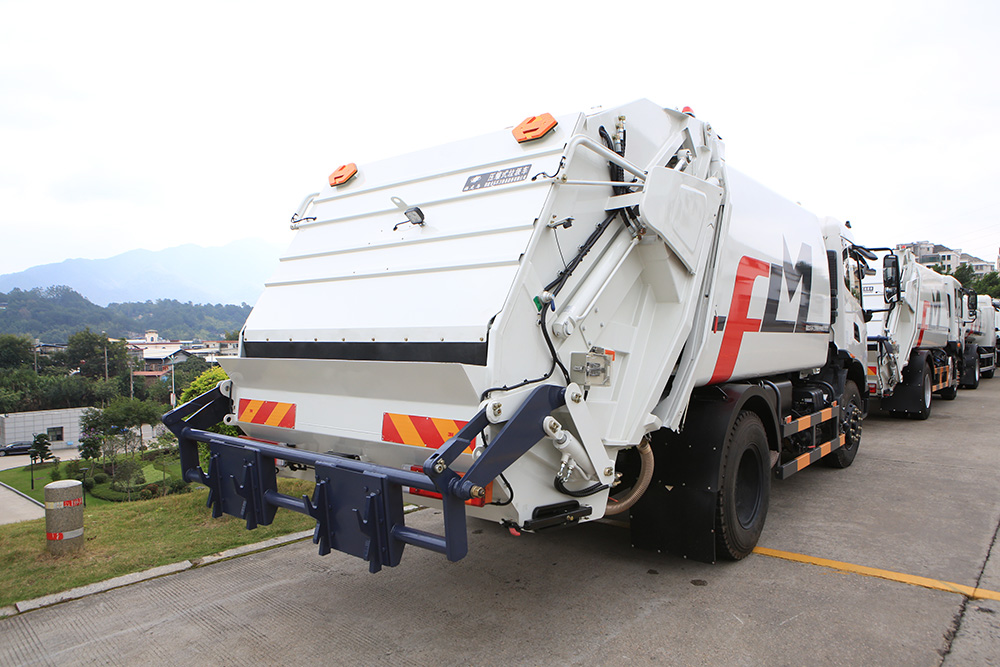

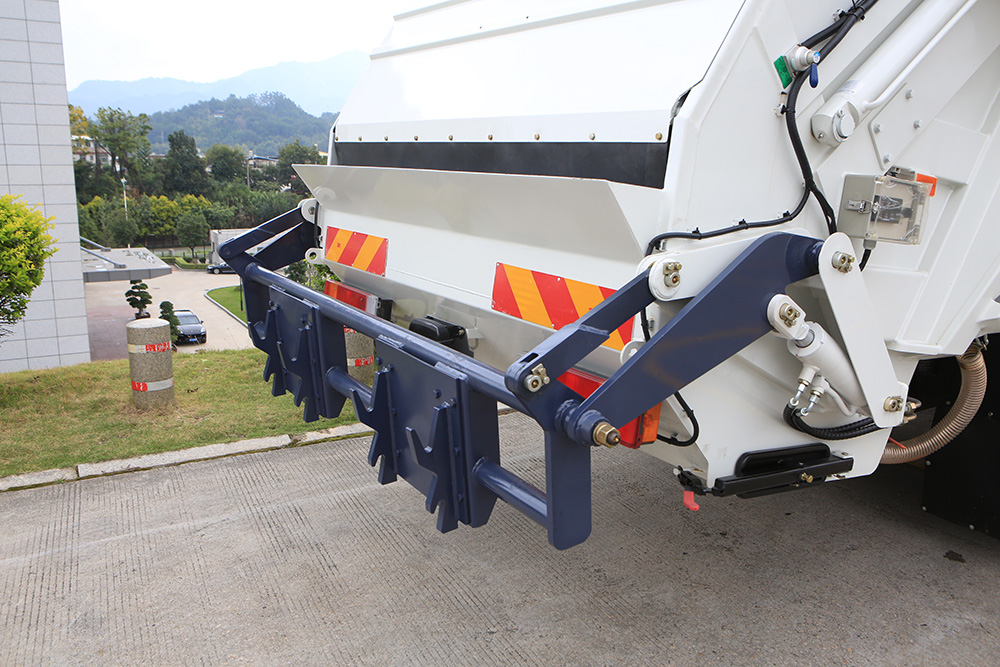

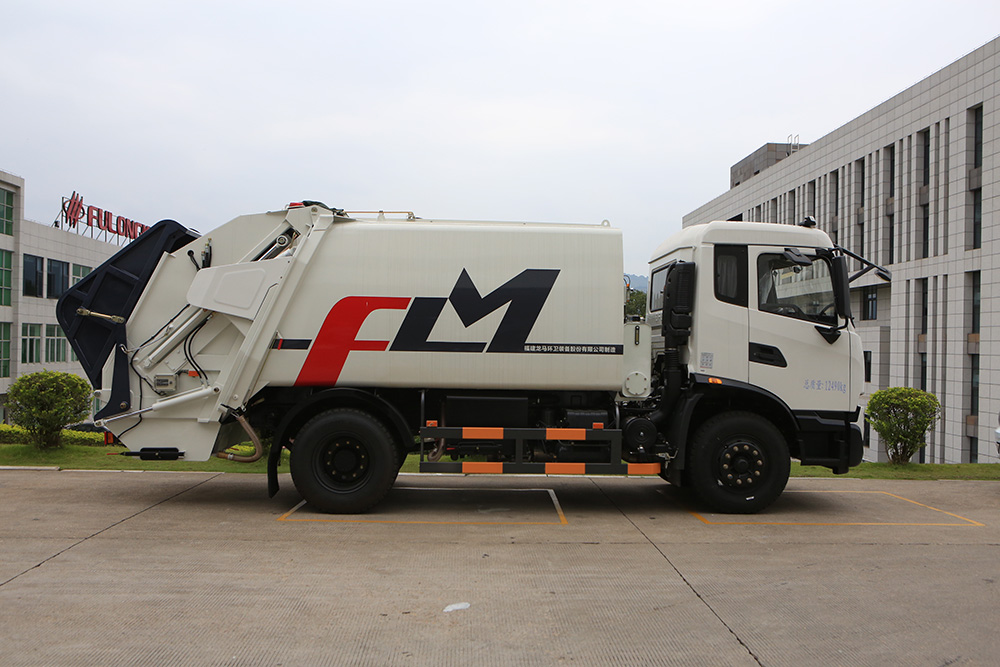

The FULONGMA medium-sized 12-ton compression garbage truck uses the rear-loading filler to connect with the trash can or garbage bucket, and together it is combined into a mobile garbage transfer station to realize the pollution-free collection and transportation of multiple buckets of garbage in one truck. It effectively prevents secondary pollution caused by scattering and flying during collection and transportation.
01. Medium-sized 12-ton compressed garbage truck body
The garbage can be selected as a rectangular box or a new arc-shaped box according to the needs. The whole is welded with high-strength wear-resistant steel plates. The frame design is reasonable and firm. Good force, not easy to deform. The push shovel is composed of a steel pipe skeleton and a circular arc panel, which is not only light in structure, but also improves the fluidity of garbage, and discharges the material cleanly and thoroughly.

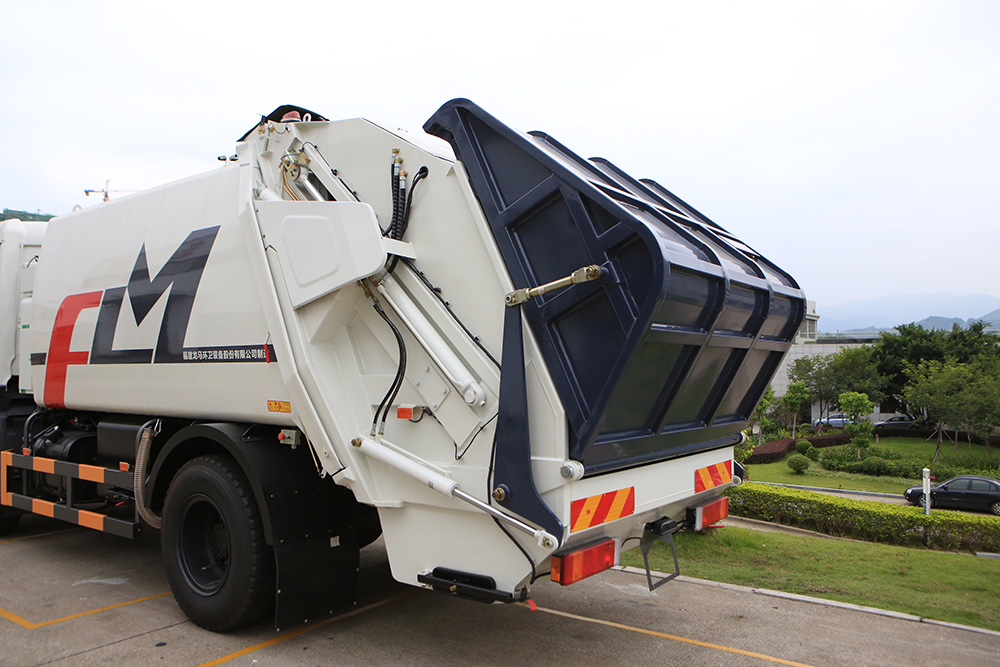

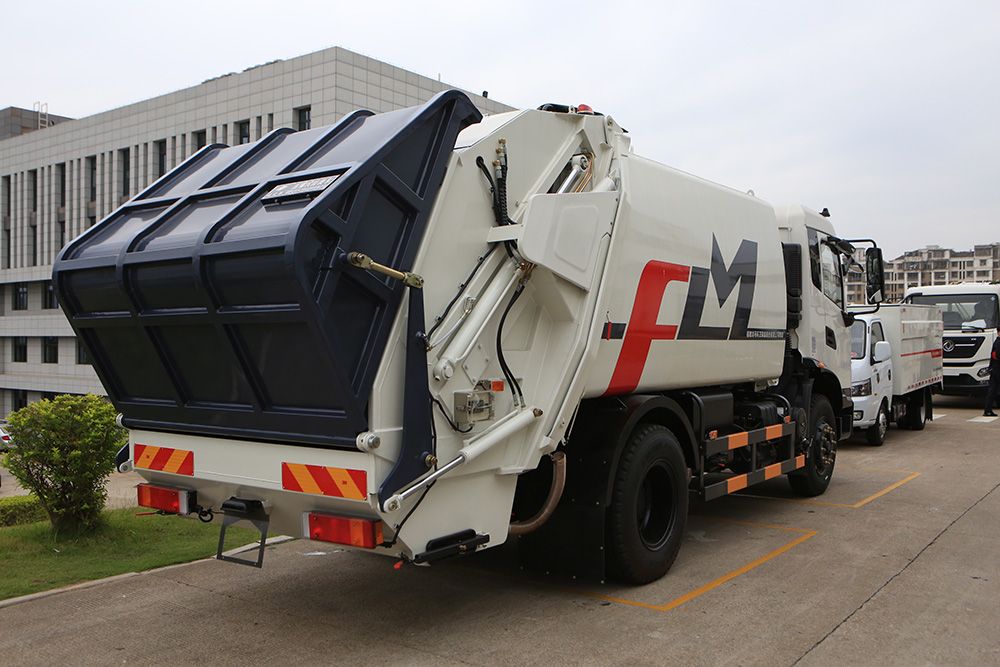

02. Medium-sized 12-ton compression garbage truck pressing mechanism
The press-filling mechanism is composed of a sliding plate, a scraper, and other components, and the garbage in the hopper is pressed into the box body by the sliding of the sliding plate up and down and the rotation of the scraper. Each component of the linkage operation adopts a well-stressed beam-plate or box-type structure, which is firm in structure and light in weight; the filler hopper is made of wear-resistant high-strength steel, which has good wear resistance and improved service life; the sewage tank is installed under the filler. , to prevent secondary pollution.
03. Medium 12-ton compression garbage truck presser lifting mechanism
The lifting device of the pressing mechanism adopts a hydraulic lifting safety circuit, and a one-way balance valve is set on the lifting cylinder in the hydraulic system. The valve cuts off the direct connection between the lifting oil cylinder and the hydraulic hose, and even if the oil pipe bursts, the filler will not drop suddenly and cause a vicious accident, thereby improving the safety of use.

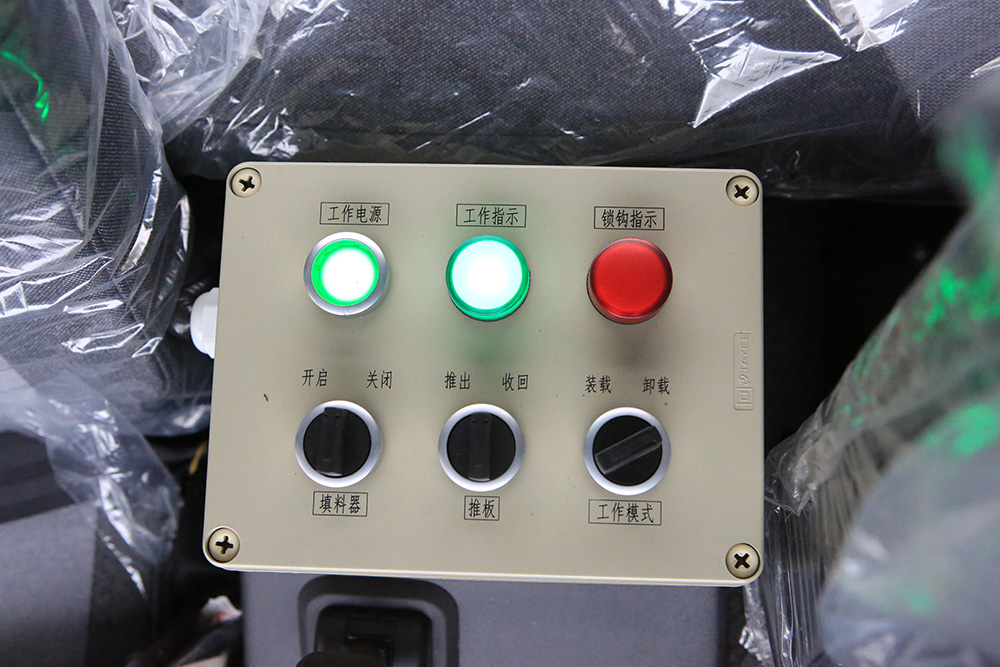

04. Automatic control system for the medium-sized 12-ton compression garbage truck
It adopts a PLC electronic control system (with two control modes of one-key operation and manual operation), and there are three operation boxes in total (two can be operated inside the cab in time and on the left and right sides).
05. Advantages and characteristics of medium-sized 12-ton compression garbage trucks
1. High-strength wear-resistant slider
The use of high-strength wear-resistant sliders, canceling the bolt fixing method, completely avoids the slideway damage caused by loose bolts, and has self-lubricating properties, stable performance, and good wear resistance.
2. External cylinder
Rodless cavity for oil intake, unlimited pressure, fast speed, stronger pressure, used with compaction valve, high compaction density.
3. Pulley type flip plate
The clamping method of the flip plate adopts a pulley structure, which is firm and stable and has high reliability.
4. High-strength manganese steel slide
The slideway is formed by the one-time cold drawing of thickened high-strength steel, with low friction, wear-resistance, and not easy to deform, and the error is less than 1MM.
5. Four filters
Using advanced filtering equipment, before the hydraulic oil enters the fuel tank, impurities and water are filtered through the equipment.
6. The overall seat design of the flip plate
The overall seat design of the flip plate makes the force more stable. The force-bearing part of the connecting rod support is integrally cast, with stable performance, not easy to break, desoldering, and safe and reliable.
7. Three-layer fashion coating process
The entire painting and spraying process goes through three processes, high-quality paint is selected, and the painting quality is strictly controlled.
8. Integral side panel of the car body
The side panel of the box body is made of the whole board without a tailor welding process, which is formed by one-time bending, and has no welding seam on the edge, which prevents water leakage, has a more beautiful structure, and is durable.
9. Standardized process
The standardized production process is adopted, and the tooling process is strictly followed. From blanking to assembly, it is made by professionals to improve product performance. All cutting parts are laser-cut to improve accuracy and reduce errors.
