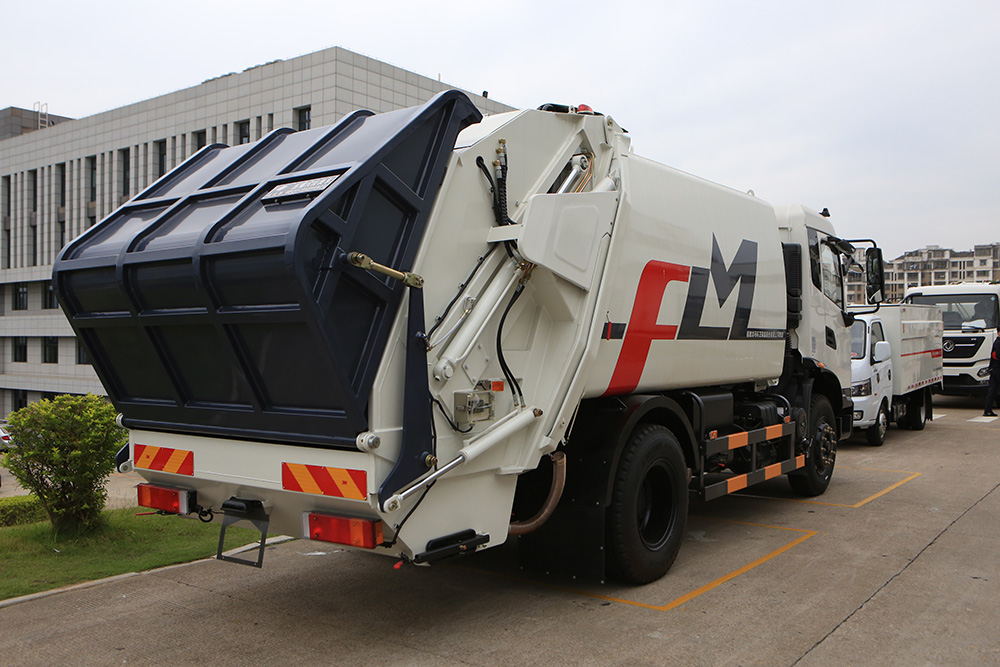

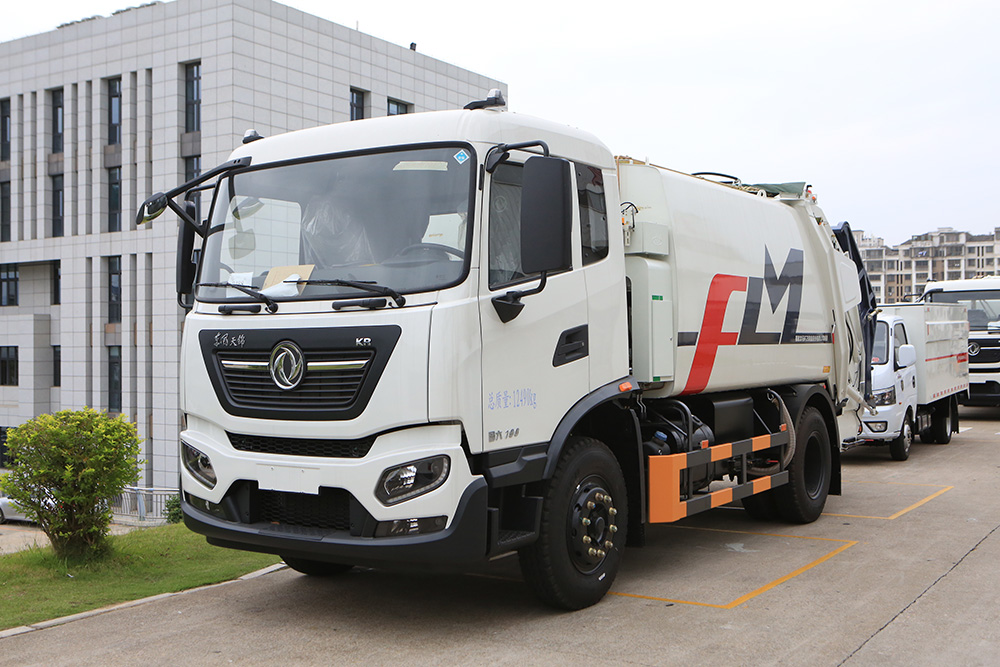

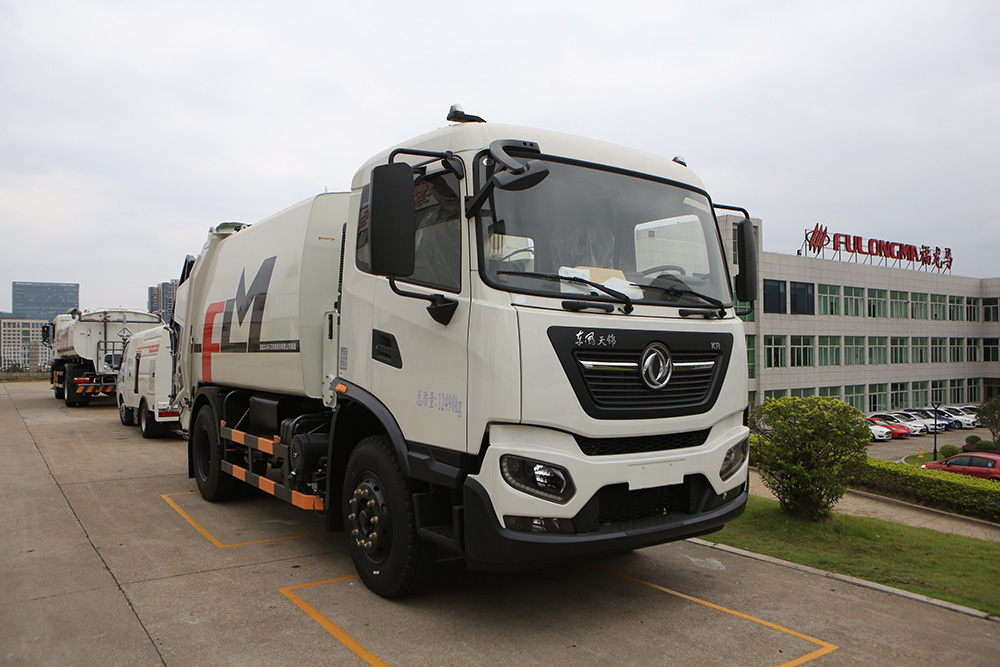

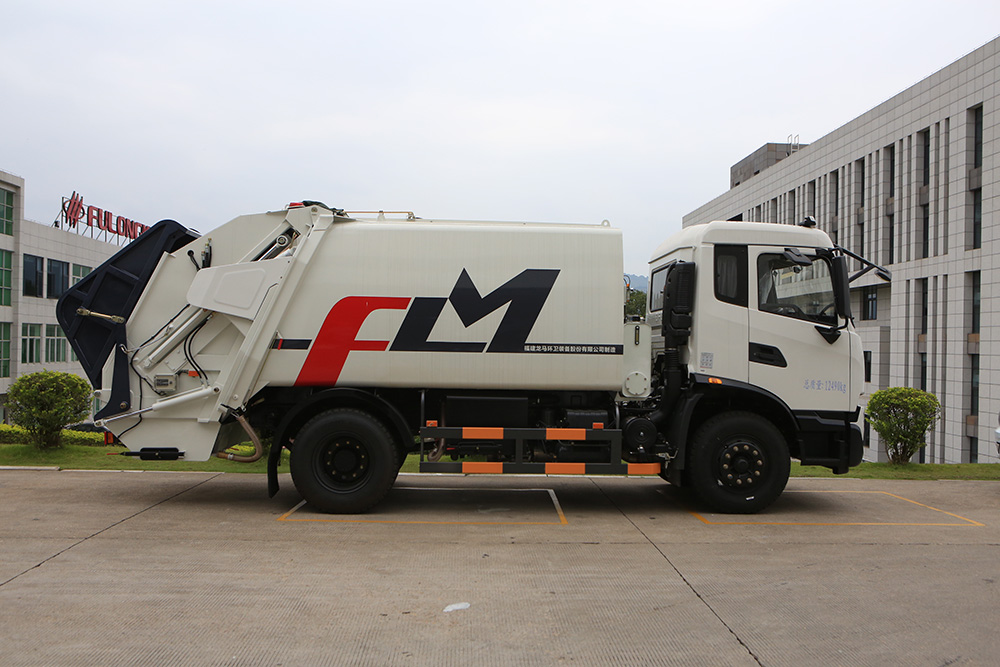

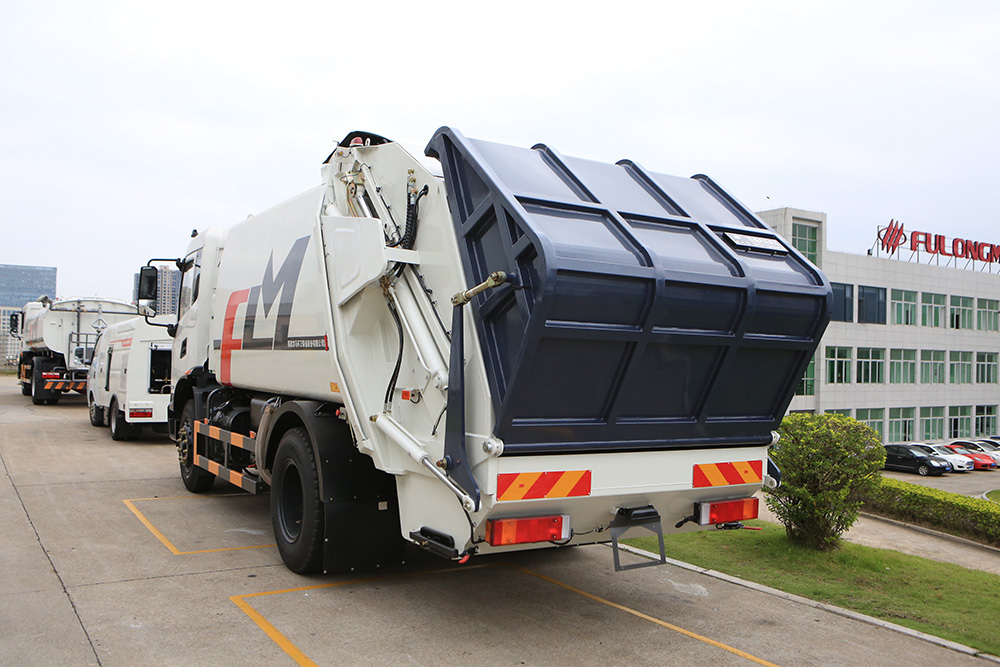

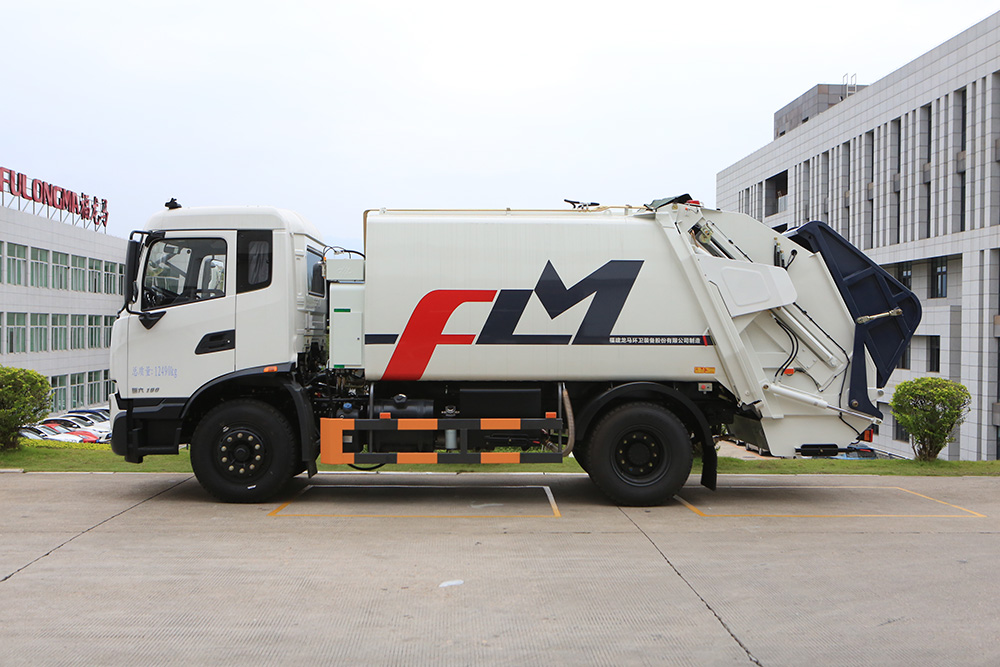

FULONGMA medium-sized 12-square compression garbage truck is an efficient garbage truck. It can avoid spilling along the way and cause secondary pollution during the process of collecting garbage trucks. The compression garbage truck is divided into side loading and rear loading. Some compression garbage trucks are rear-loaded. The compression garbage truck adopts electromechanical-hydraulic integration technology. Through the special device for garbage trucks, garbage is poured, compressed, and pushed. The sewage in the garbage enters the sewage tank to solve the problem of garbage transportation. secondary pollution.
01. Compression garbage truck chassis configuration
The 12-square compressed garbage truck adopts Dongfeng Dolica D9 chassis, Dongfeng Cummins 210 hp (optional Yuchai 200 hp) engine, authentic National VI emission standard, Dongfeng 6-speed gearbox, air conditioning, steering assist, clutch assist, ABS anti-lock braking system, air brake, electric glass, row and half cab with sleeper.
02. Compression garbage truck body configuration
The 12-square compressed garbage truck is mainly composed of a 12-square sealed garbage box, charging mechanism, a compression mechanism, unloading mechanism, oil pump, oil cylinder, control valve, etc. The material of the box is a 5mm thick Q345 manganese steel plate, and the volume of the box is 12 cubic meters, The charging mechanism is composed of brackets, connecting rod mechanisms, cams, hooks, etc. The compression mechanism of the 12-square compression garbage truck is composed of a pressure plate welded by a steel plate and channel steel, a guide wheel, and an oil cylinder seat. The garbage is compressed into the car body, the compression cycle time is 25s, and the compression density can reach 0.8 tons/cubic. The unloading mechanism of the 12-square compressed garbage truck is composed of the unloading cylinder and the unloading push plate. The unloading push plate is welded by a steel plate and a bracket. It is positioned by the guide groove, and the unloading push plate is pushed by the extension of the oil cylinder to discharge the garbage, and the time for pushing and unloading the garbage is less than 20s.
03. Rear flip structure of compression garbage truck
1. The hanging bucket turning structure can turn over two 240L trash cans.
2. Small floor bucket turning material structure, a bucket hanging device can be installed in the bucket to turn over the trash can.
3. The rear swingarm is turned over, which can be used with multiple 2-4 square garbage buckets.
4. The large floor bucket overturning structure can directly collect the garbage in the trolley, forklift, and tricycle into the filling bucket.
04. Six advantages of compressed garbage trucks
1. The collection method is simple and convenient: the garbage in the trash cans, trolleys, and tricycles can be directly poured into the filling bucket, and collected into the garbage can for compression and transfer, which changes the messy old appearance of garbage cans on the streets of the city. Avoid secondary pollution.
2. High compression ratio and large loading capacity: the maximum crushing pressure of the 12-cubic garbage truck can reach 12 tons, the maximum compression ratio can reach 0.8 tons/cubic, and it can effectively load 9.5 tons of domestic garbage.
3. Operation automation: using an imported computer PLC control system, all filling and unloading operations can be operated by one driver, which reduces the labor intensity of sanitation workers and greatly improves the working environment.
4. Good economy: When the special equipment is working, the computer control system automatically controls the throttle, which effectively reduces the operating fuel consumption.
5. Double insurance system: The operating system has dual functions of computer control and manual operation, which can ensure safety and improve the utilization rate of vehicles.
6. Various turnover mechanisms: optional garbage can turnover mechanism, small floor bucket with hanging bucket turnover structure, rear swing arm turnover structure, and large floor bucket turnover structure.
