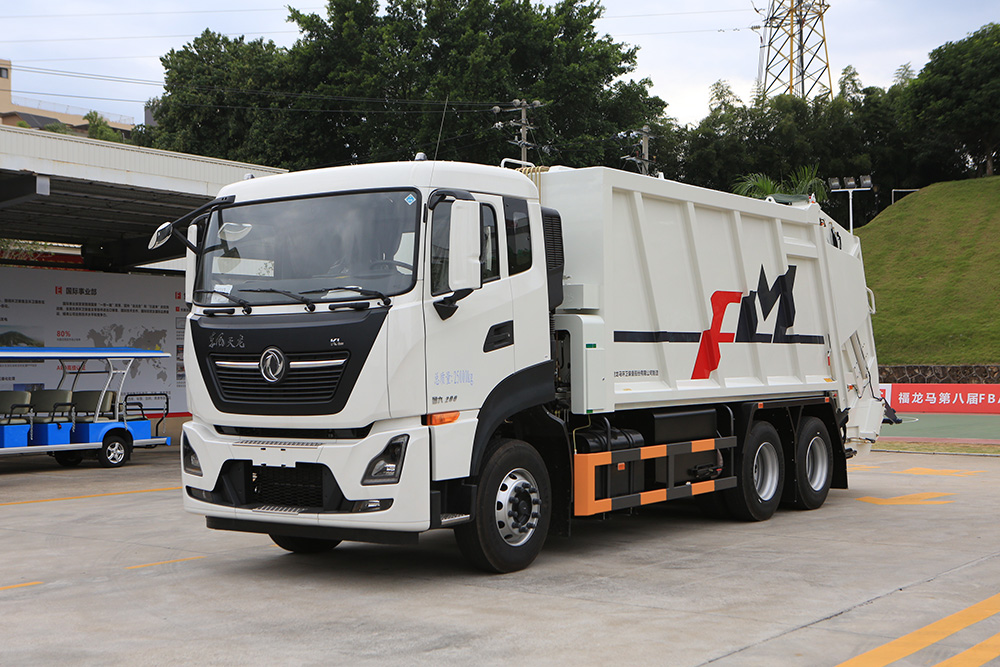

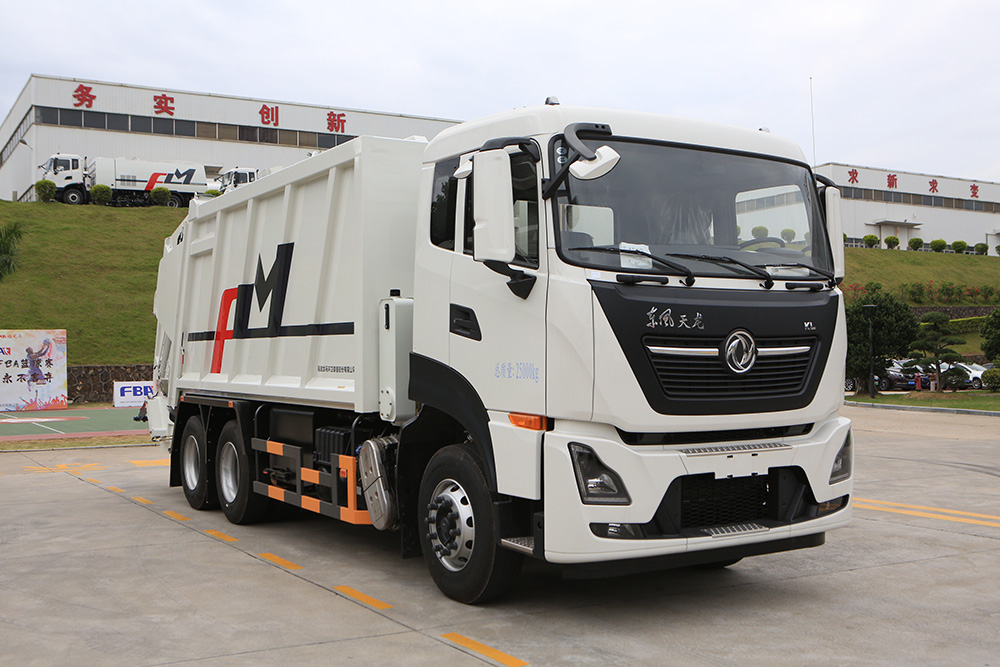

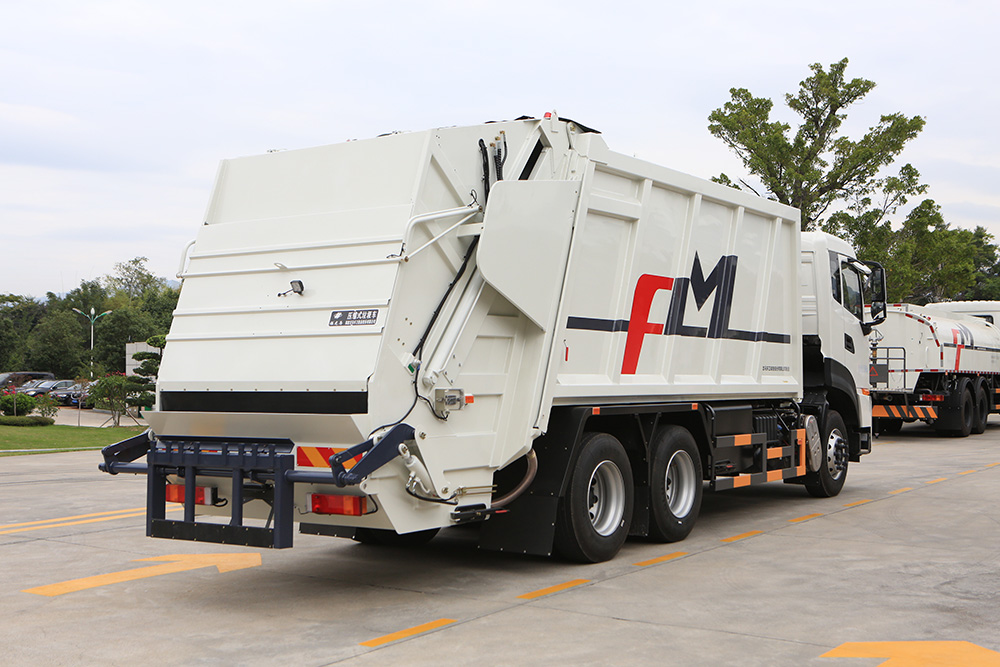

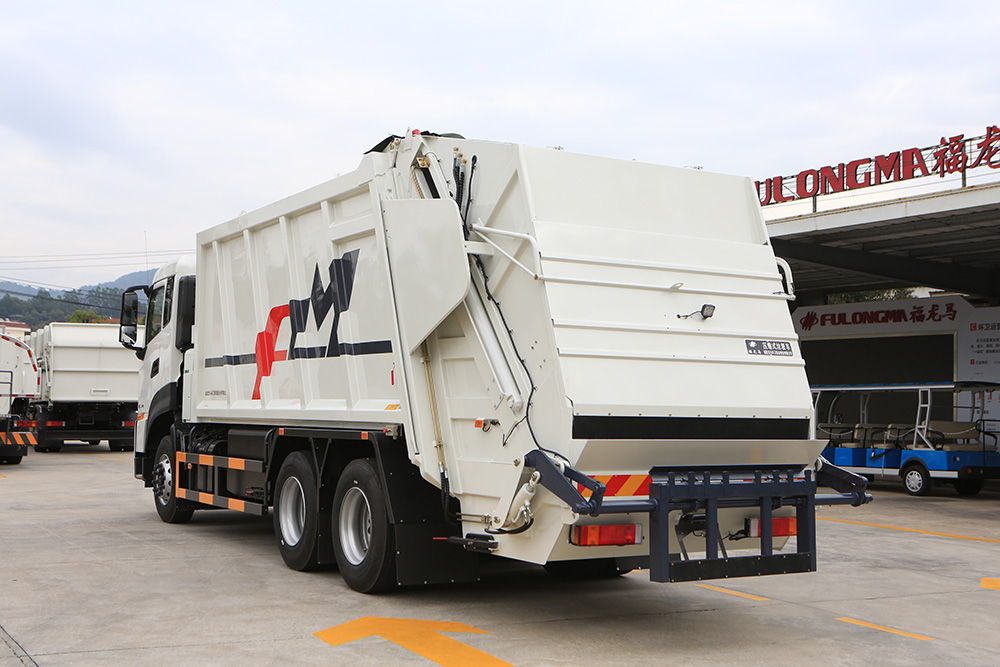

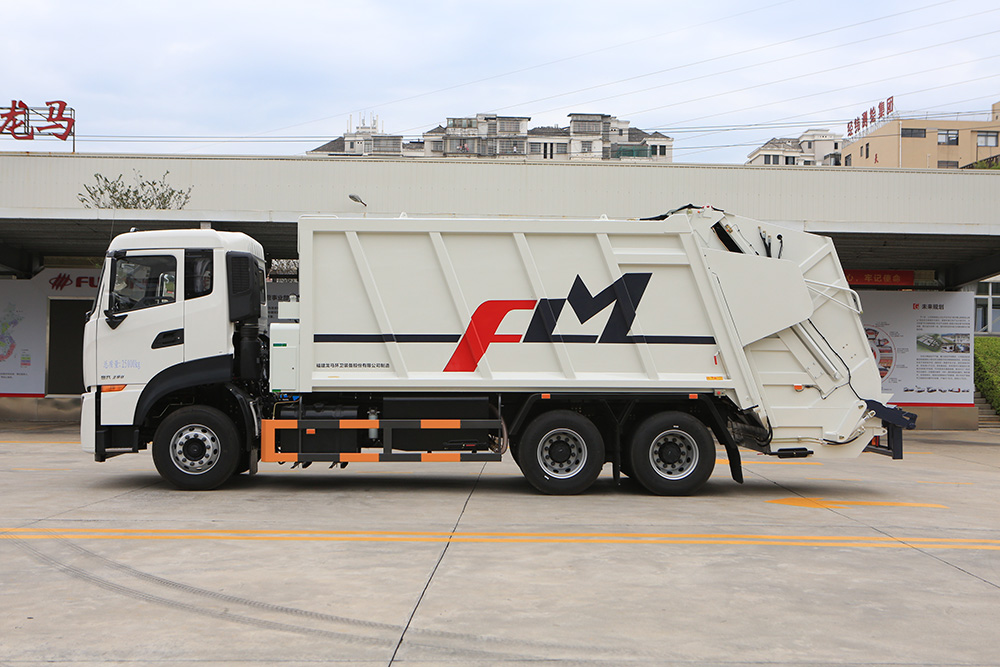

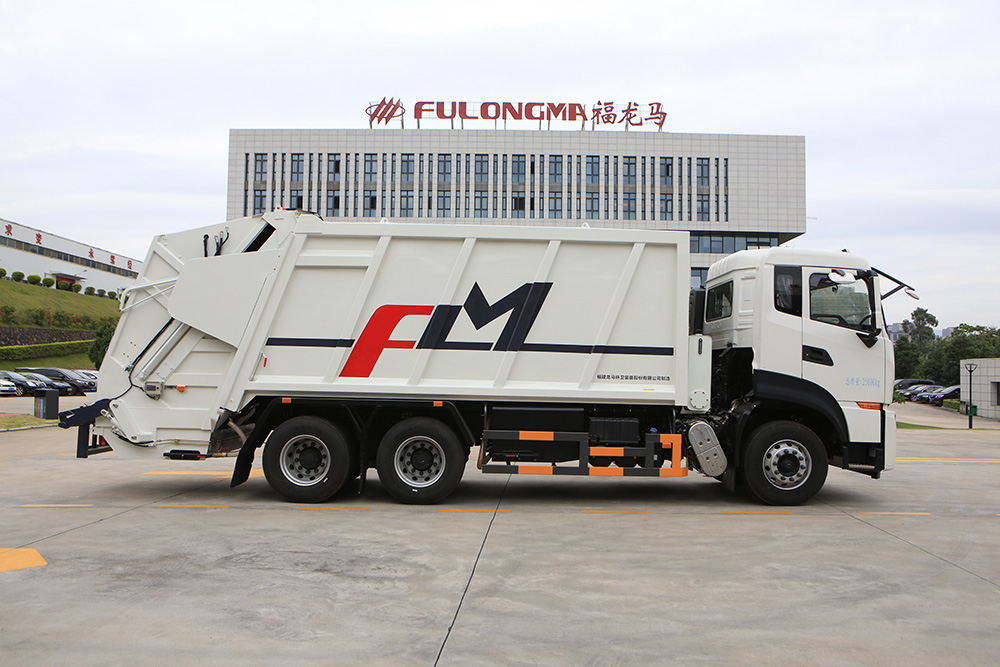

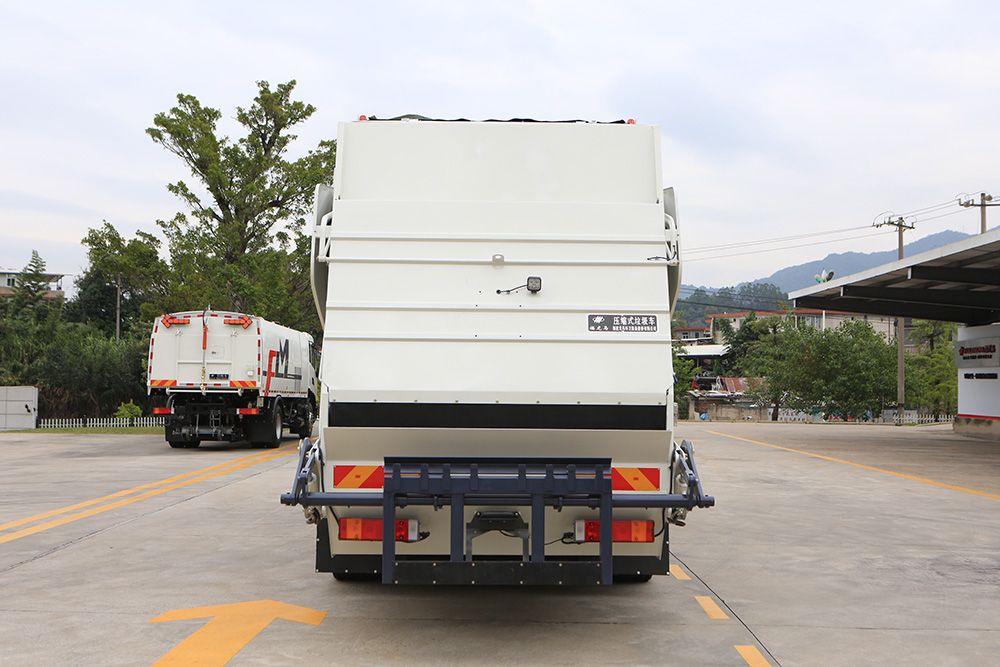

FULONGMA natural gas compression garbage trucks are usually mainly used for environmental sanitation, large factories, and mines. They are used to transport all kinds of garbage. They are suitable for the transportation of residential garbage in the community. The loaded garbage can be compressed and crushed to reduce its volume and greatly increase the garbage. The efficiency of collection and transportation.
01. Natural gas compressed garbage truck configuration
The FULONGMA natural gas compression garbage truck adopts a rectangular structure garbage bin, the bottom surface is flat, the sides and top surfaces are arc curved surfaces, beautiful appearance, lightweight, good force, and no deformation. The natural gas compression garbage truck turning mechanism adopts a glass fiber reinforced plastic skirt to enhance Improve the overall coordination and tightness. According to the customer’s requirements, the turning mechanism can be made into hanging bucket type and swing arm type, with reasonable structure, reliable performance, and convenient operation.
It adopts Dongfeng Tianjin Tian gas chassis, flat-top row half-cab, Yuchai Guowu 190 horsepower engine, wheelbase 4500mm, front axle 45 tons, rear axle 9 tons, DF6S900 gearbox, 900R20 steel wire tires, with original factory ABS, overdrive gear, driving recorder, under protection.
02. Features of a natural gas compressed garbage truck
1. Large loading capacity: the garbage collection method is simple and the compression ratio is high, and the loading capacity is equivalent to two and a half times of the non-compressed garbage truck of the same ton level.
2. Operation automation: Adopting an advanced computer control system, only one driver is required to operate all loading and unloading operations. Two operation modes, fully automatic and semi-automatic can be set, which not only reduces the labor intensity of sanitation workers but also greatly improves the working environment.
3. Good economy: When the special equipment is working, the computer control system automatically controls the throttle.
4. Turning mechanism: optional turning mechanism with a trash can (or bucket), hoisting multi-capacity trash cans, supporting the use of national iron hanging barrels or plastic hanging barrels, strong filling, squeezing the garbage into the carriage, and compacting it shirk.
03. Advantages of a natural gas compressed garbage truck
1. Sealed garbage compartment: high-quality steel plate, environmentally-friendly seal
There is an automatic door at the rear of the car body, which can be opened automatically when unloading. Q235 carbon steel high-quality steel plate is used in manufacturing. A stainless steel plate can be added to the bottom of the box to ensure the smoothness of the medium during self-unloading. At the same time, the bottom of the box can be equipped with anti-icing settings according to the seasonal temperature of the region to ensure the normal operation of the vehicle.
2. Hydraulic system: high-quality oil cylinder, no leakage
The use of high-quality lifting cylinders, operating valves, compression fittings, high-pressure hoses, and high-pressure steel pipes are reasonably installed. At the same time, reliable fixing devices are arranged to ensure that there is no leakage for a long time, to achieve reliability, convenient maintenance, and prolong service life.
3. Double insurance system: manual and automatic, free switching
The operating system has dual functions of computer control and manual operation, which greatly guarantees and improves the utilization rate of the vehicle.
4. Diversified overturning institutions: multi-capacity, diversified
Optional configuration with a trash can (or bucket) turning mechanism, hoisting a multi-capacity trash can, can tip over 300L trash iron bucket, 800L small trash bucket, 250L plastic trash can, 1400L sealed trash hopper, etc.
5. Hydraulic lifting safety circuit: effective isolation, safe and explosion-proof
The explosion-proof valve in the hydraulic lifting system effectively blocks the hydraulic hose and the lifting cylinder. In the event of a pipe rupture, there will be no danger and it is relatively safe.
