The road sweeper is a new type of efficient sweeping vehicle that integrates road sweeping, garbage recycling, and transportation. It is widely used in road cleaning of arterial highways, municipal and airport pavements, urban residential areas, parks, garages, etc. The road sweeper can not only sweep garbage, but also dust and purify the air medium on the road, which not only ensures the beauty of the road, purifies the air, but also reduces and prevents the occurrence of traffic accidents and further extends the service life of the road. The road sweeper greatly liberated the work intensity of sanitation workers, improved work efficiency, and reduced secondary pollution such as dust.

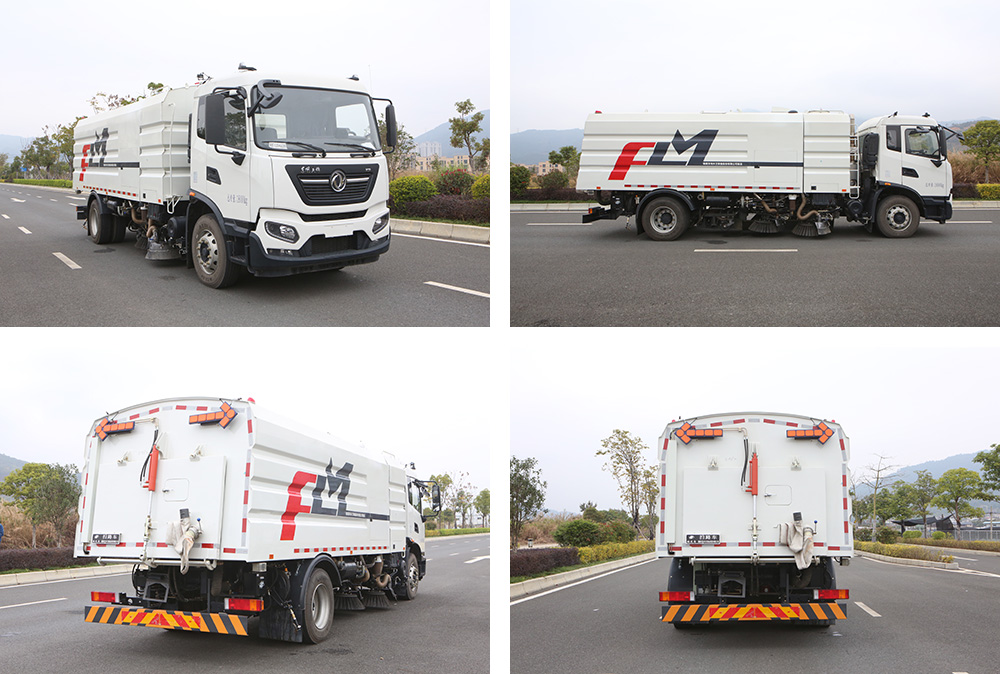

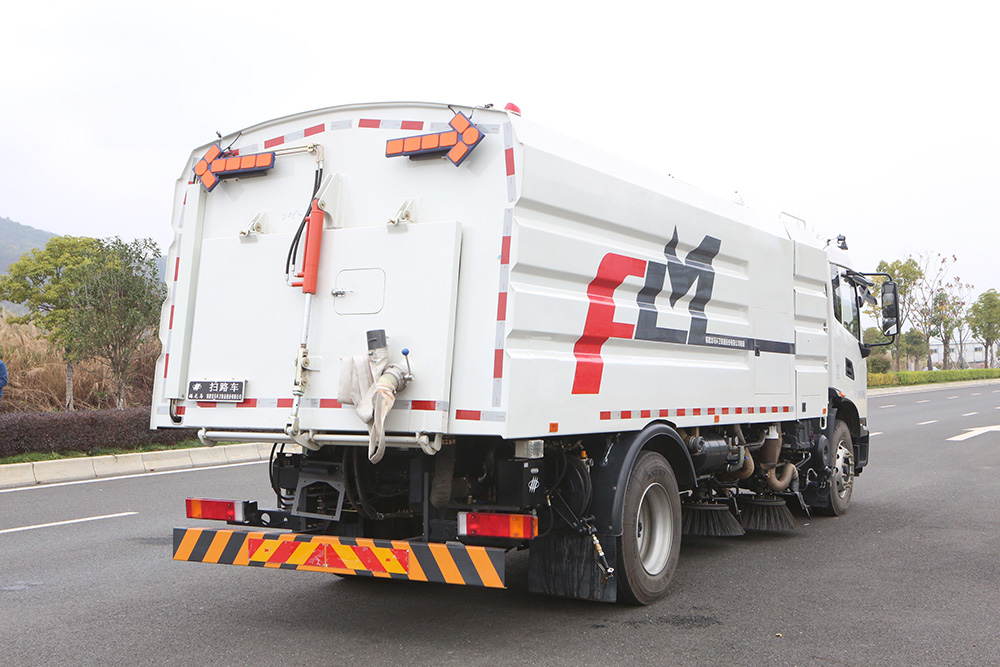

01. Multi-picture display of road sweeper
02. Road sweeper configuration

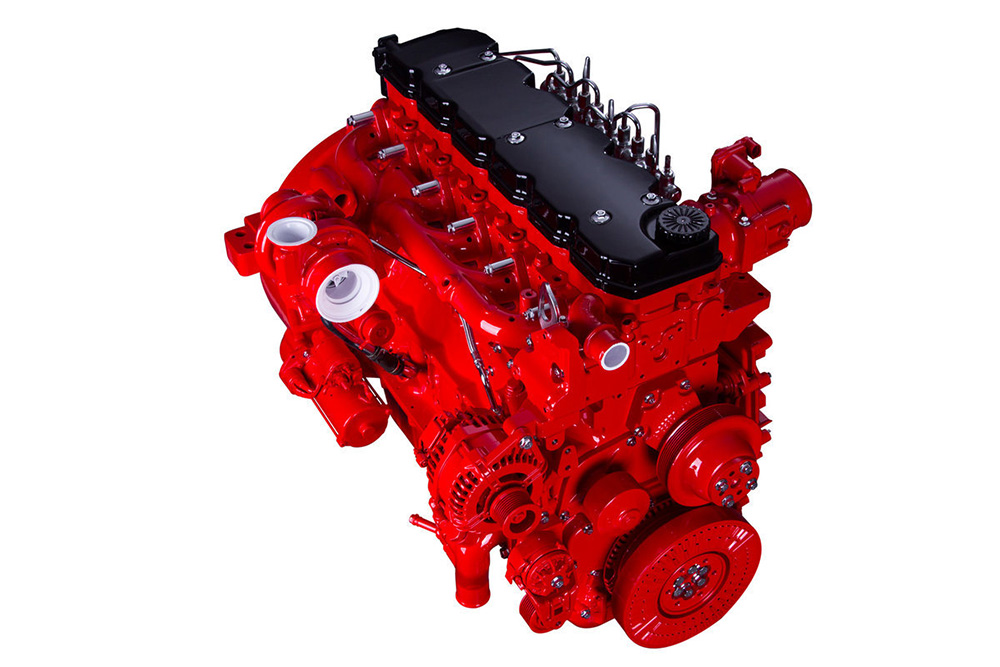

Adopt Dongfeng Cummins D6.7NS6B230, 230 horsepower, 6.7L diesel engine, the auxiliary engine adopts Cummins QSB5.9-C210-30, rated power 154kW, speed 2200r/min, equipped with air brake, air brake, electric windows, central control, With air conditioning, ABS, etc.
Top configuration: water tank volume: 6 cubic meters, garbage bin volume: 7 cubic meters; 4 sweep pans in the middle, independent 3-speed speed regulation of sweep pan speed, maintenance-free self-separating clutch, maintenance-free fan, LED arrow light at the rear, manual pump Emergency system, the front sweeping brush arm rotating mechanism uses high-tech wear-resistant engineering spacers, no grease, precision cold-formed seamless hydraulic tubing, maximum sweeping width: 3.5 meters, sweeping speed: 5-40km/h, sweeping efficiency: ≥97 %, the maximum cleaning capacity: 140000m2/h.
Optional configuration: optional reversing and right scanning images; front flushing and rear spraying (sprinkler pump), front green cannon; front and rear spraying; enlarged auxiliary water tank; hand-held suction pipe; low water level alarm; cab air conditioning.
03. Features of road sweeper
1. The cab of the road sweeper can seat 3 people, is safe and comfortable, and is easy to operate. It is equipped with original heating and cooling air-conditioning.
2. The road sweeper uses a combination of suction and sweeping methods to collect garbage, wet dust removal, electro-hydraulic control, and hydraulic tipping and unloading operations to clean the road surface.
3. The road sweeper uses the auxiliary engine to drive the fan and hydraulic system to ensure that it can continue to work during the driving process and ensure the continuity of the cleaning process.

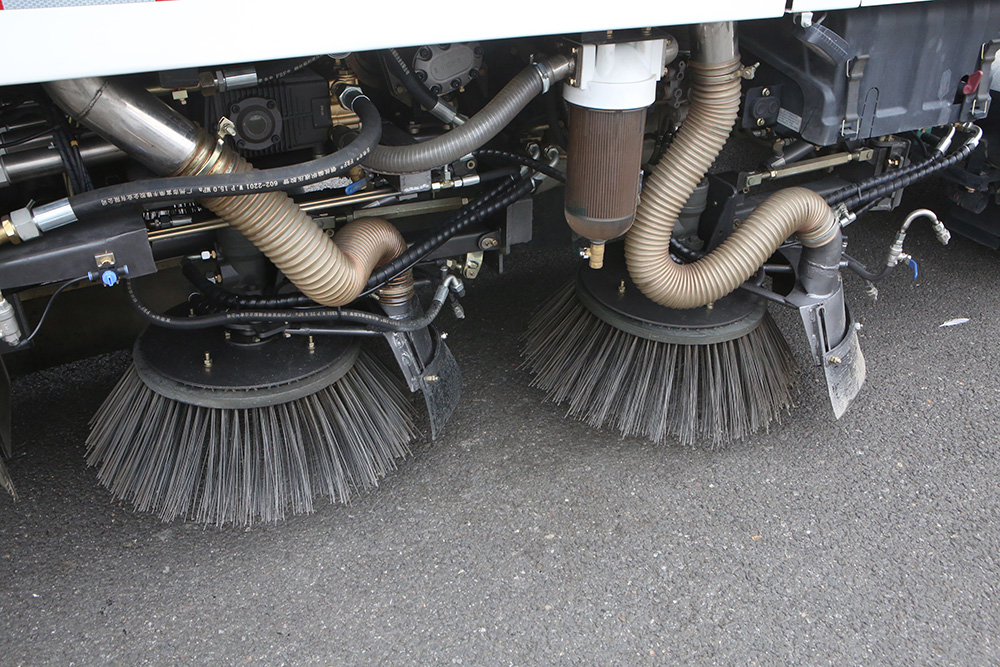

4. The road sweeper adopts the structural arrangement of “four-plate brush + rear suction nozzle”, which is convenient for the adjustment and maintenance of the sweeping device and suction nozzle, and the vehicle has good passability when transferring.

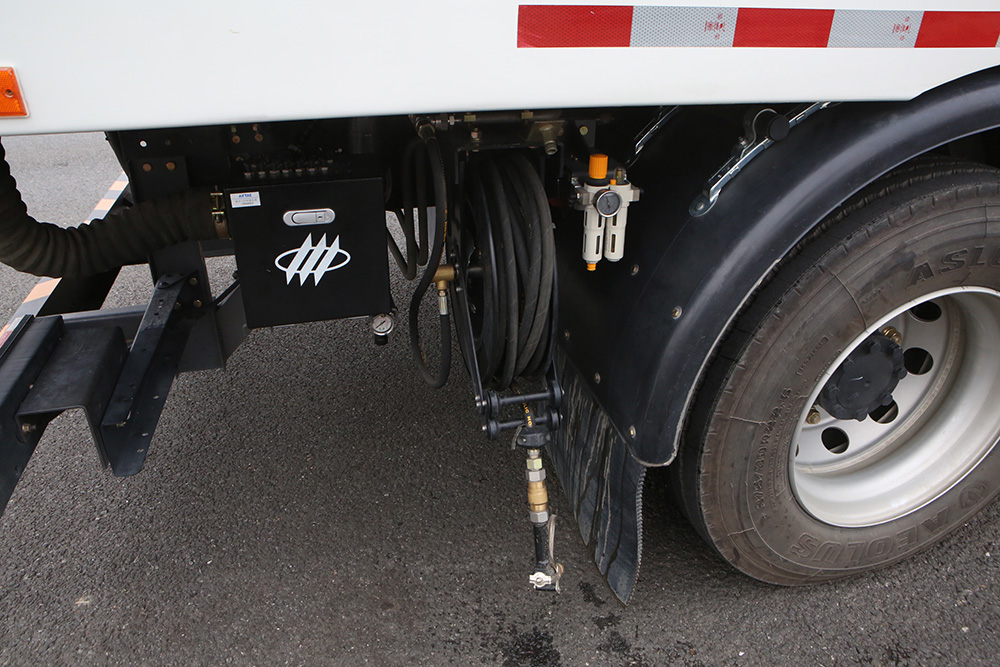

5. The standard high-pressure water pump is equipped with a 20-meter automatic retractable hose reel. The inner inclined surface structure of the material box and a high-pressure water cleaning device are required to quickly flush the trash box.
6. The sweeper of the road sweeper has obstacle avoidance protection and reset functions. It retracts after encountering an obstacle and resets after crossing the obstacle.

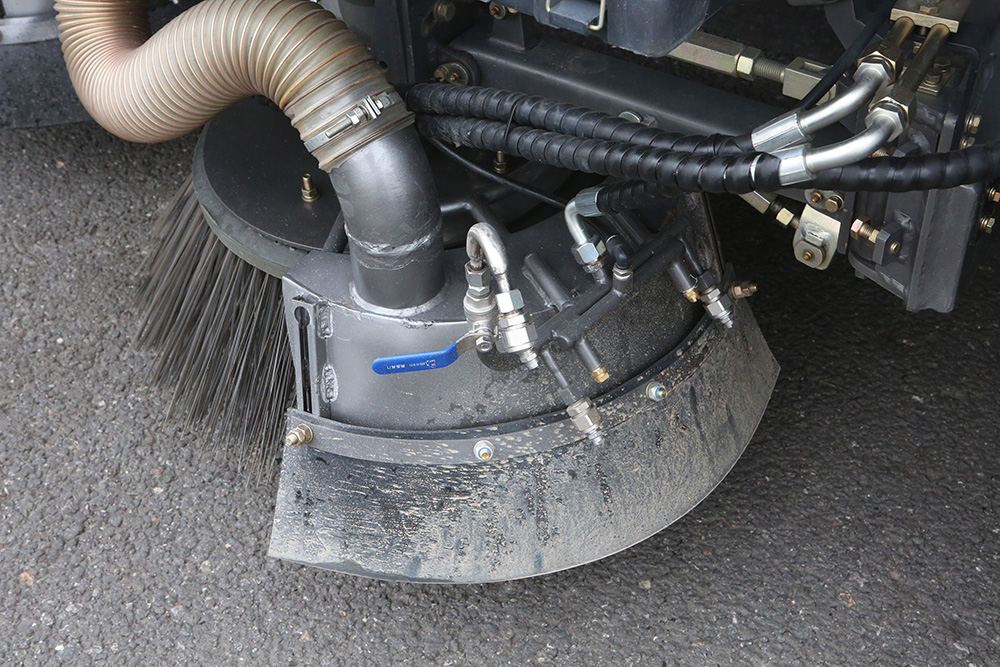

7. The sweeping disc adopts a full-wire sweeping brush, and the sweeping disc speed can be adjusted in a large range to ensure a good cleaning effect under various pollution conditions;

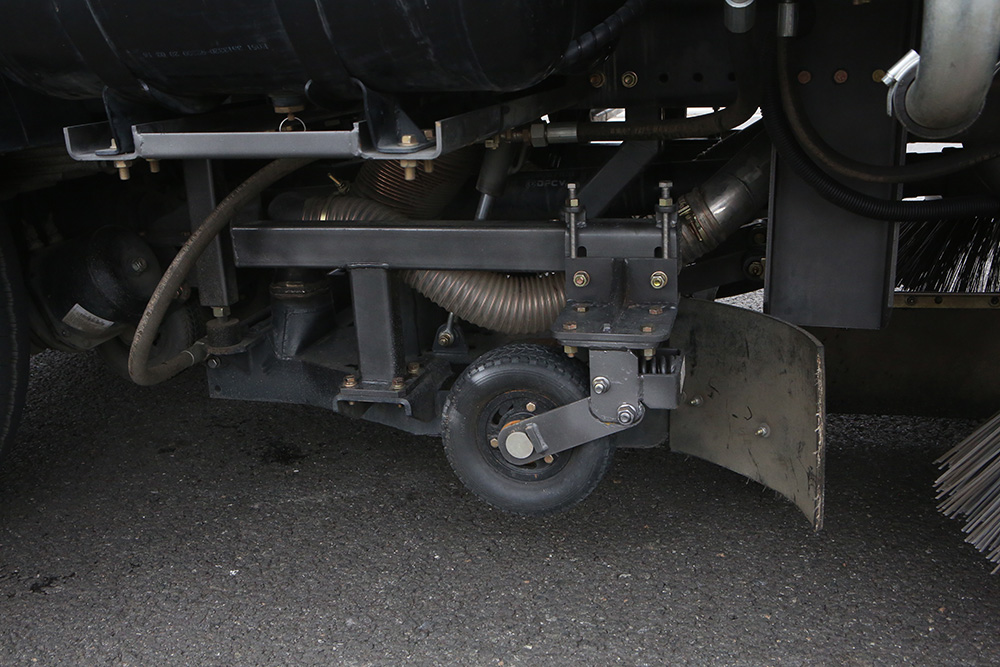

8. The road sweeper adopts a full-floating suction nozzle that can be automatically leveled with the road surface, which has a good dust suction effect and long service life.
9. The CAN bus intelligent control system is adopted to realize the intelligent centralized control of electricity, liquid, and gas. The driver can complete various actions in the cab through the display screen and understand the operating conditions, operating parameters, and fault information of the vehicle.
