FULONGMA road sweeper is a new type of high-efficiency sweeping equipment integrating road sweeping, garbage recycling, and transportation. It can be widely used in road cleaning of arterial highways, municipal and airport pavements, urban residential areas, parks, and other roads. The road sweeper can not only sweep garbage, but also dust and purify the air medium on the road, which not only ensures the beauty of the road, but also maintains the sanitation of the environment, maintains the good working condition of the road, and reduces and prevents traffic accidents. Occurrence and further extend the service life of the road surface.

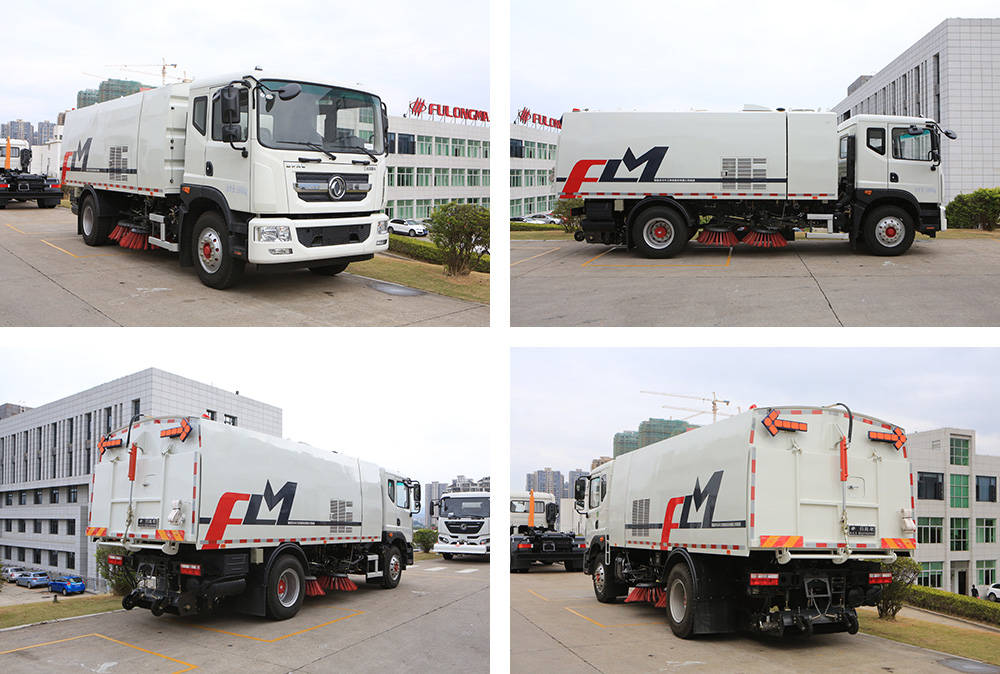

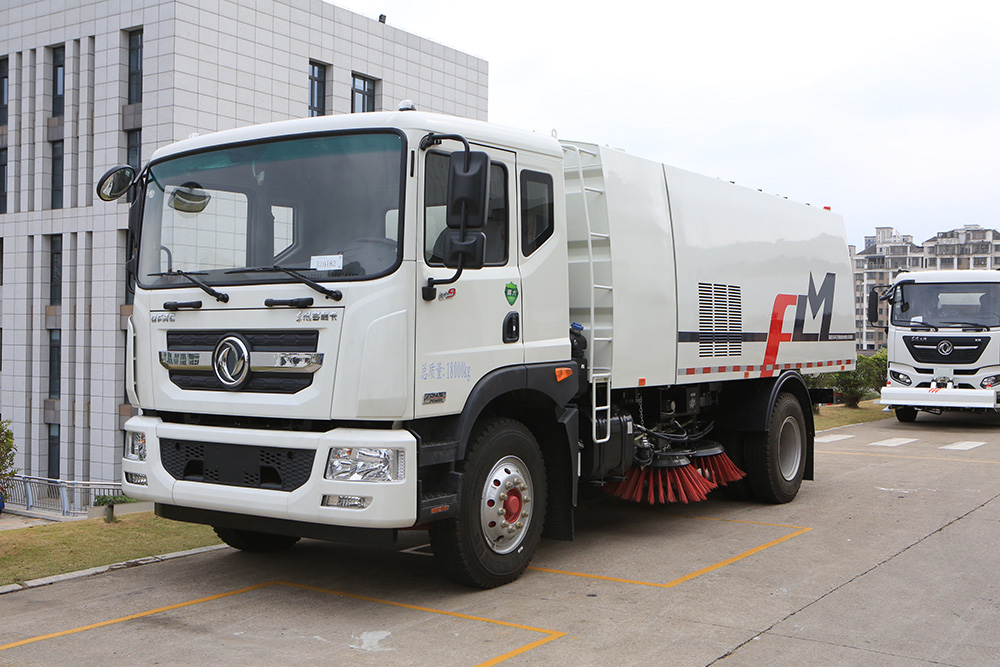

01. Picture of road sweeper
02. Road sweeper configuration

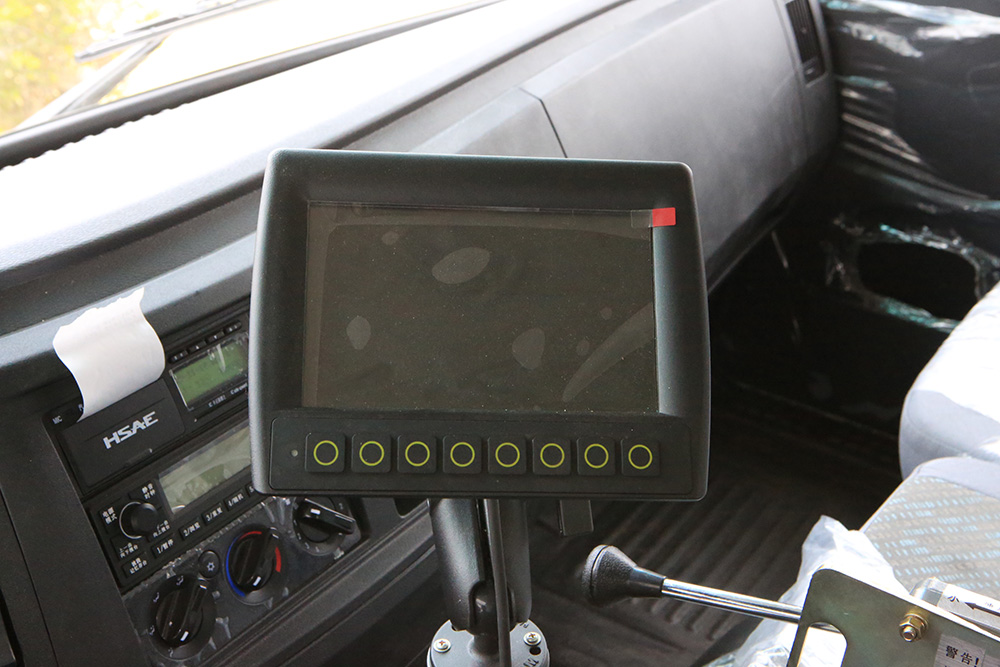

The road sweeper adopts the Dongfeng Dolica chassis, a single-row white cab that can be turned forward, air brake, direction assist, with original ABS and air conditioning. The top configuration adopts stainless steel water tank, stainless steel trash can, central 2 sweep disc, suction nozzle, high-pressure road edge cleaning, low-pressure pump front flush, stainless steel water tank, trash can; stainless steel high-pressure pipeline, tail LED arrow light, engine oil, trash can, The water tanks are equipped with anti-overflow or low water level alarm devices; in-cab monitors in reversing and washing and sweeping states.
03. Road sweeper function

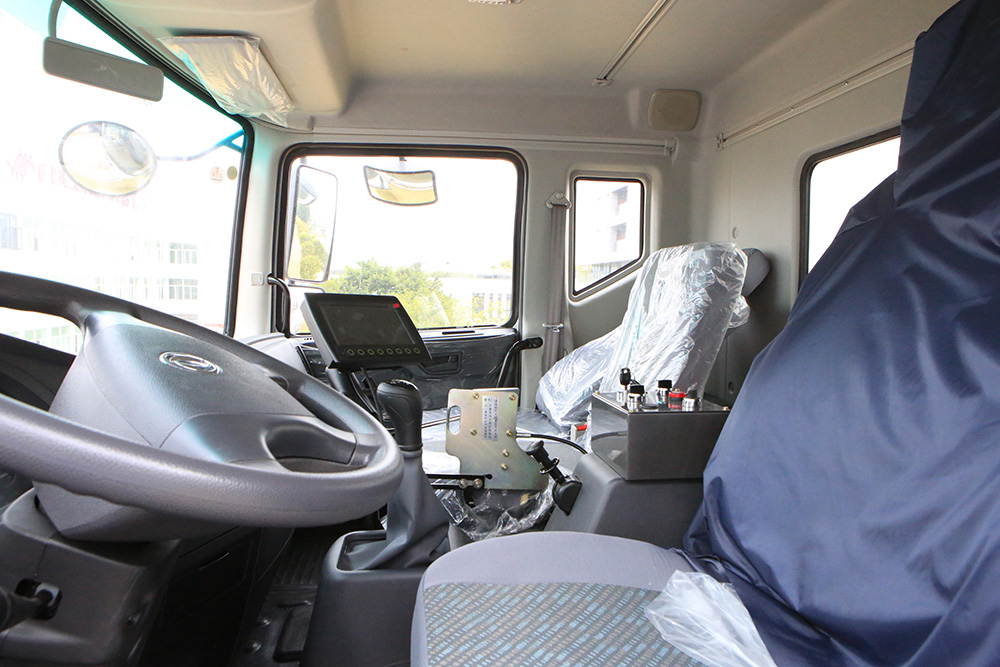

1. Adopt the combined method of suction and sweep to collect garbage, wet dust removal, electro-hydraulic control operation mode; one-button automatic control of the cleaning operation in the cab.
2. The structure layout of “four sweeping discs in the middle + spray dust suppression device + central partition + rear suction nozzle” is adopted to prevent sand and gravel from splashing and raising dust during the cleaning process. The full-floating suction nozzle that is automatically leveled with the road surface has good passability, good cleaning effect, and long service life.

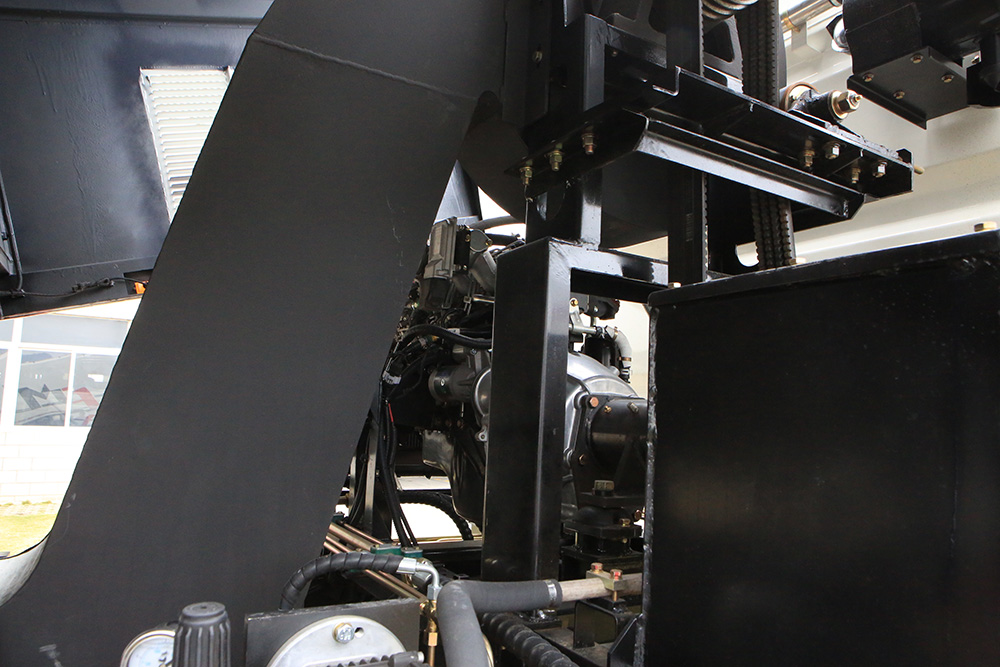

3. The transmission setting between the auxiliary engine and the fan is equipped with an automatic clutch, which can ensure the automatic separation of the auxiliary engine from the fan when the auxiliary engine starts and stops without load, reduces the impact on the auxiliary engine, ensures the continuity of the cleaning process, and improves the auxiliary engine. The working reliability and service life of the engine.

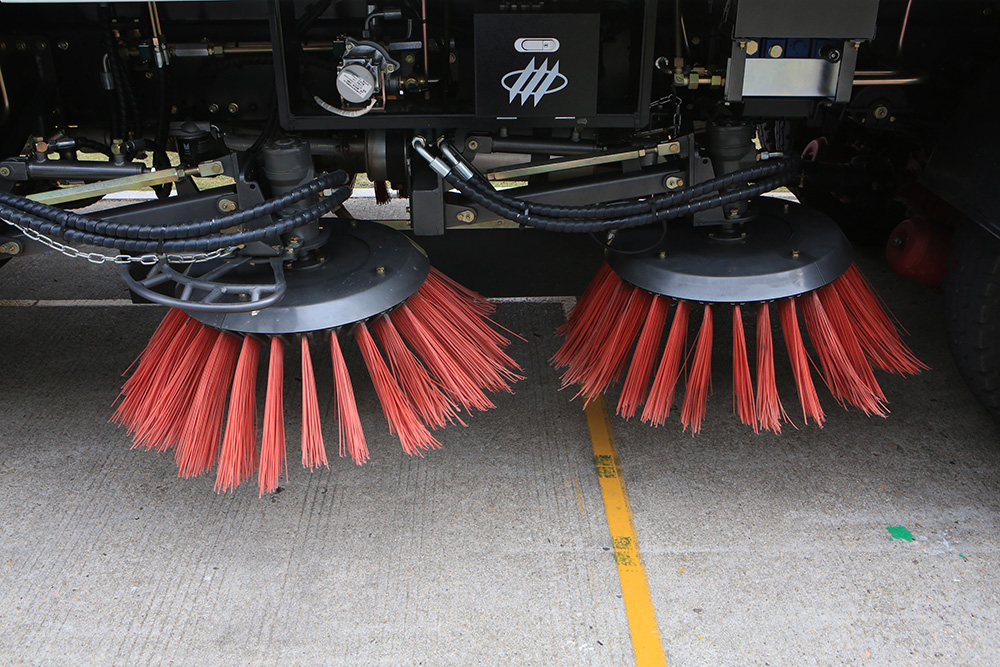

4. The scanning pan has an automatic avoidance protection function and automatic reset function when encountering obstacles, and automatically retracts when encountering obstacles, and automatically returns to position when crossing obstacles.
5. The rotating speed of the sweeping disc can be adjusted according to various cleaning conditions, which can ensure a good cleaning effect under various pollution conditions.

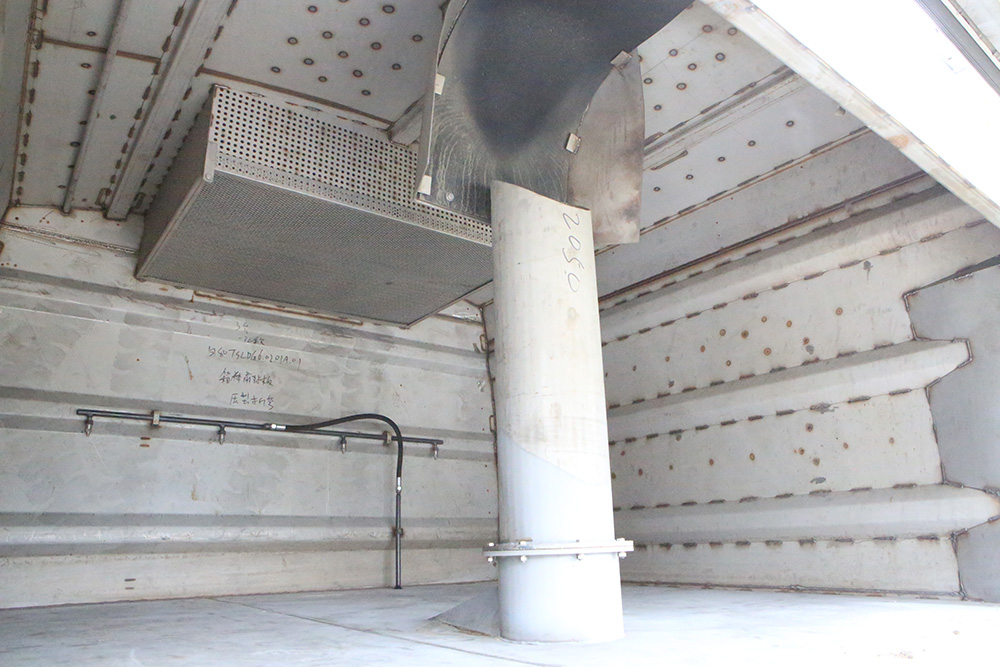

6. The garbage bin adopts a whole stainless steel single-layer structure, and the whole is not rusty.
7. It has a pneumatic net pipe antifreeze device, which can effectively ensure that the parts of the water spray device will not crack due to icing and cause structural damage.
04. Optional function of road sweeper

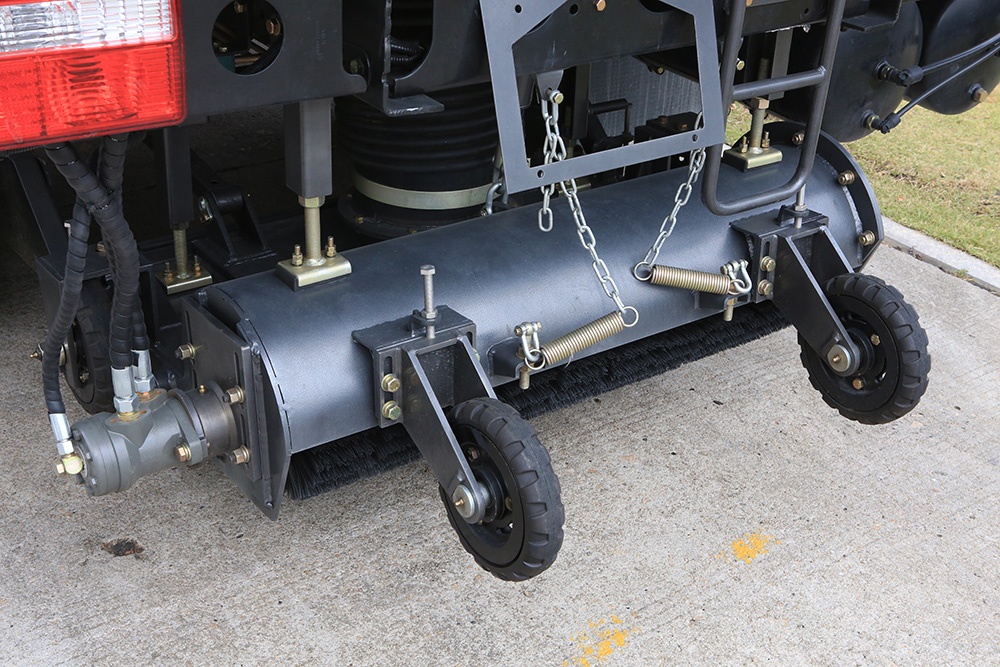

1. Snow shovel, snow removal roller brush, guardrail cleaning roller brush device.
2. Optional sprinkler cannon device for watering the flowers and trees after rinsing the sprinkler.
3. Video surveillance and reversing video functions for cleaning operations.
4. Self-cleaning device for the dustbin.
