Sewage suction truck is a relatively common type of sanitation vehicle. It is mainly used to collect and transfer sewage sludge to avoid secondary pollution of the environment. It is an indispensable vehicle for urban environmental maintenance. Let’s take a look today. The latest sewage suction truck.

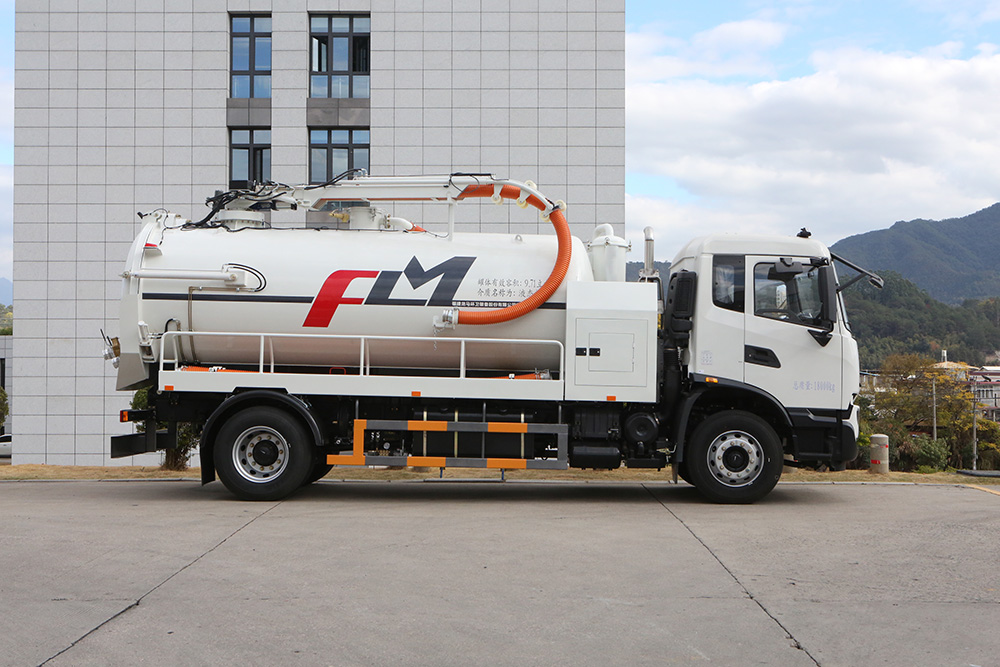

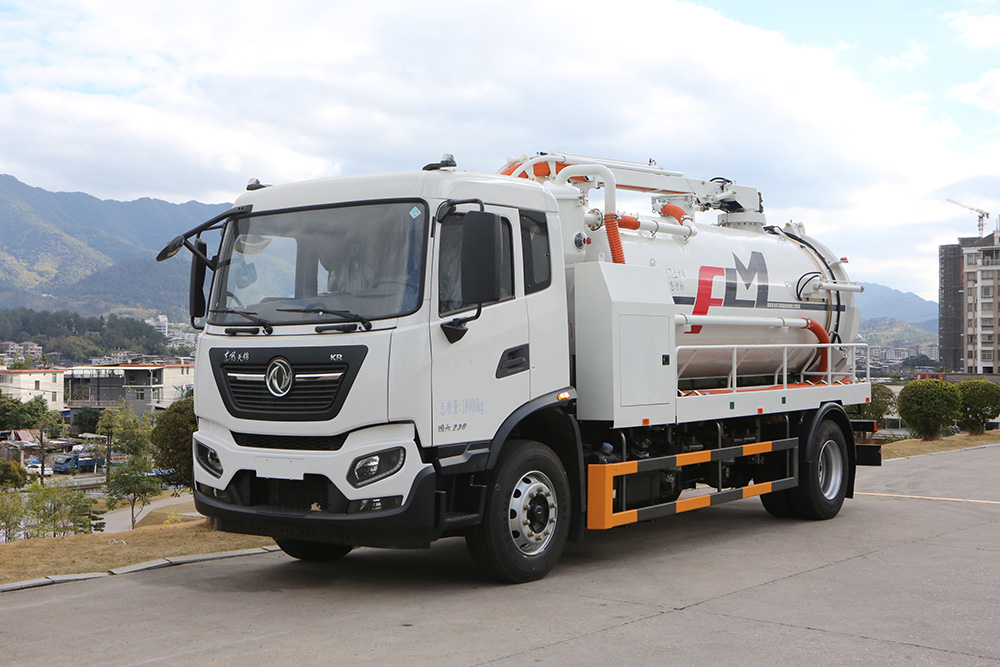

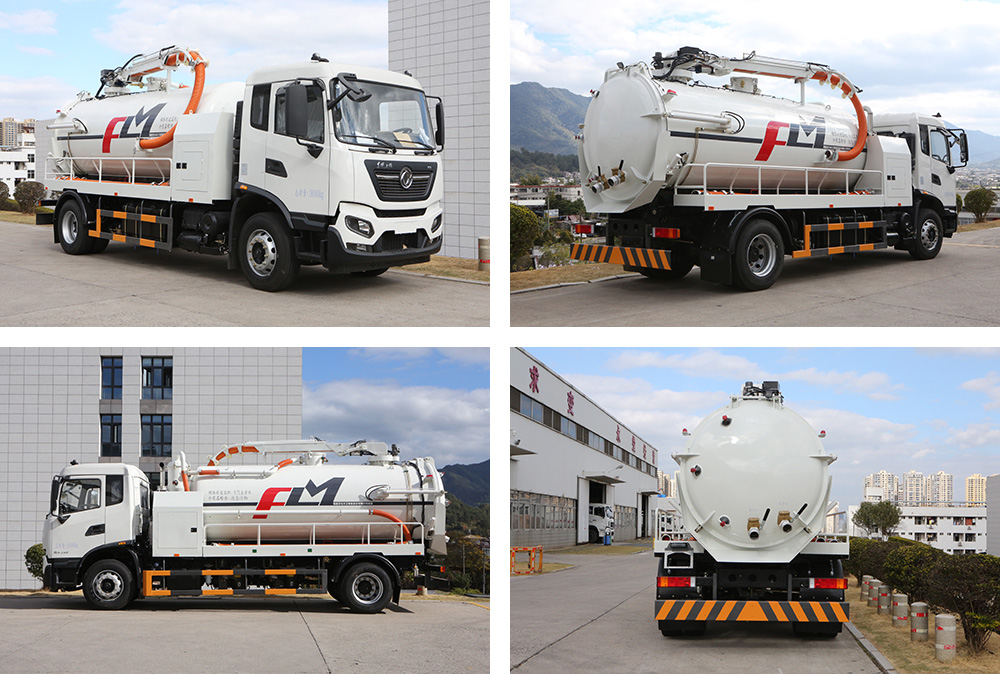

01. Picture of sewage suction truck
02. Highlights of sewage suction truck
1. The vehicle is 8.33 meters long, 2.5 meters wide, and 3.645 meters high. The total weight of the vehicle is 18 tons.

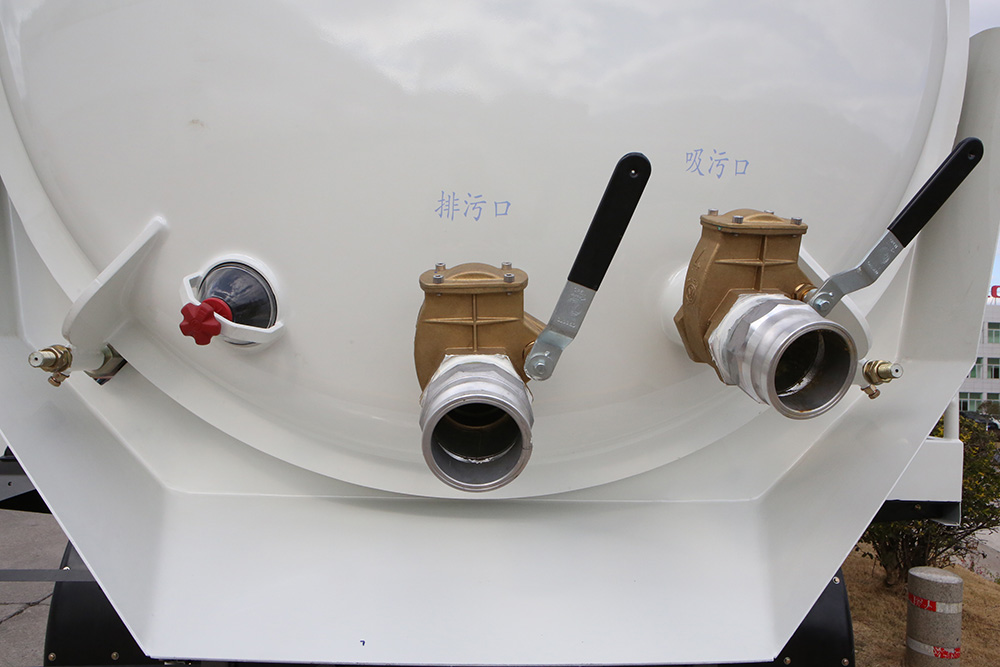

2. Imported knife valves are used for both the suction port and the sewage outlet to ensure the long-term airtightness of the sewage valve.
3. The whole vehicle tires are made of 7.00R16 steel wire tires, no spare tires, and the fuel tank is made of carbon steel, which is affordable. The surface is sealed with black paint to increase its corrosion resistance.
4. The upper tank adopts a Q345B tank with an announced volume of 10.9 square meters. The interior is treated with anti-corrosion treatment to increase its corrosion resistance and effectively extend the service life of the tank. The round tank is more compact in structure and can withstand higher pressure. More suction power.
5. The rear cover of the tank body is equipped with a sewage outlet, and the bottom is equipped with a dirt baffle to prevent the body from being polluted by sludge. The rear cover can be opened hydraulically and the tank body can be hydraulically lifted, making the sewage discharge faster and more convenient.

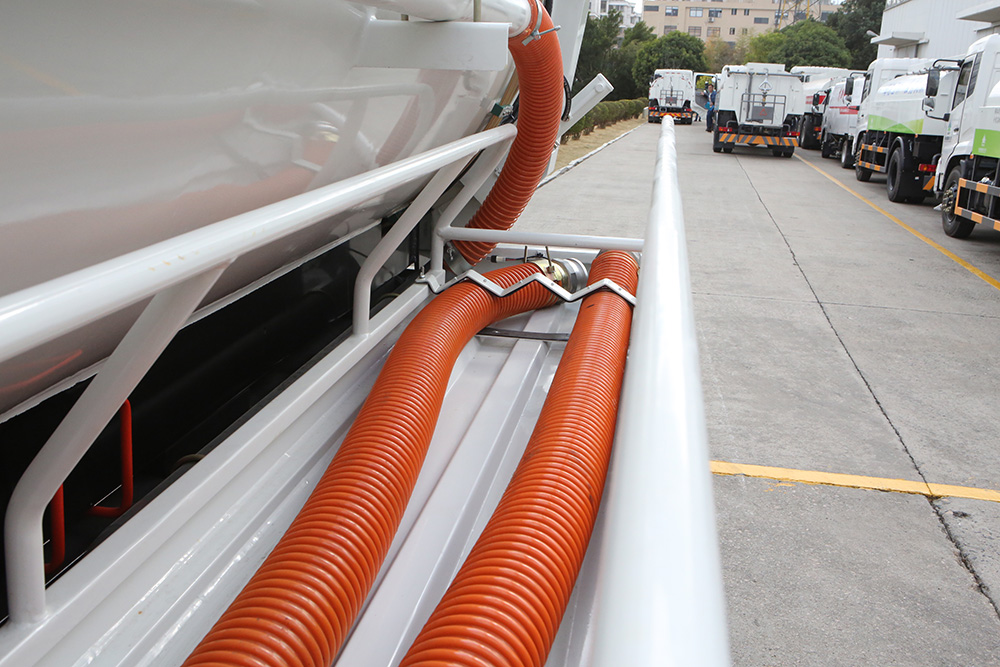

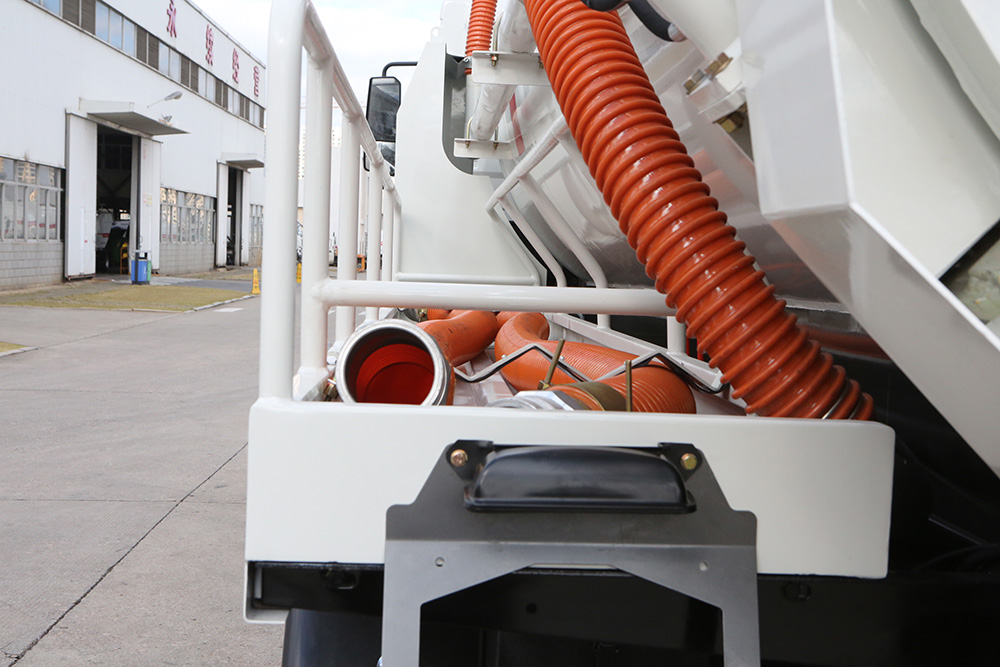

6. There are platforms for placing sewage pipes on both sides of the tank. The PVC tendon sewage pipe has good abrasion resistance, and its flexibility is also very good, and it can maintain good softness in a low-temperature environment.
7. A high-pressure reel and a small generator are installed on the right side of the tank. The standard is equipped with a high-pressure flushing pipe, which is mainly used to wash the body and sewers and is easy to use.
8. The overall design of this sewage suction truck is scientific and reasonable, with complete configuration. It has undergone strict inspections before leaving the factory and has reliable quality. It is an indispensable sanitation vehicle for urban and rural construction.
03. Sewage suction truck configuration
1. Anti-fouling vacuum pump: Strictly set up secondary protection for the vacuum pump to prevent pollution from entering the pump body to ensure sufficient vacuum for suction. The drive adopts manual operation to make the clutch convenient. The hydraulic oil pump and the vacuum pump operate synchronously, and the work is stable and reliable.
2. Water vapor separator: It mainly acts on the water vapor in the tank to separate it to ensure the normal operation of the vacuum pump. The oil and gas separator separates water vapor and oil and gas to ensure the normal operation of the engine and the vacuum pump and prolong the service life.
3. Anti-overflow valve: a one-way valve device with a float installed at the filling top, connected with the suction port of the pump. Its function is to push the one-way valve to the suction port of the device due to the action of the float when the suction tank is almost full. Under the combined action of the float and the vacuum suction, the suction port is closed to effectively prevent sewage and pollution in the large tank. The material is sucked into the vacuum pump pipeline and the vacuum pump.
4. Sewage suction pipe: Assemble a 5-7m long plastic pipe with steel wire inside the hose to prevent excessive suction or deformation and damage of foreign objects when the suction truck is working. It is professionally manufactured, environmentally friendly, and durable.

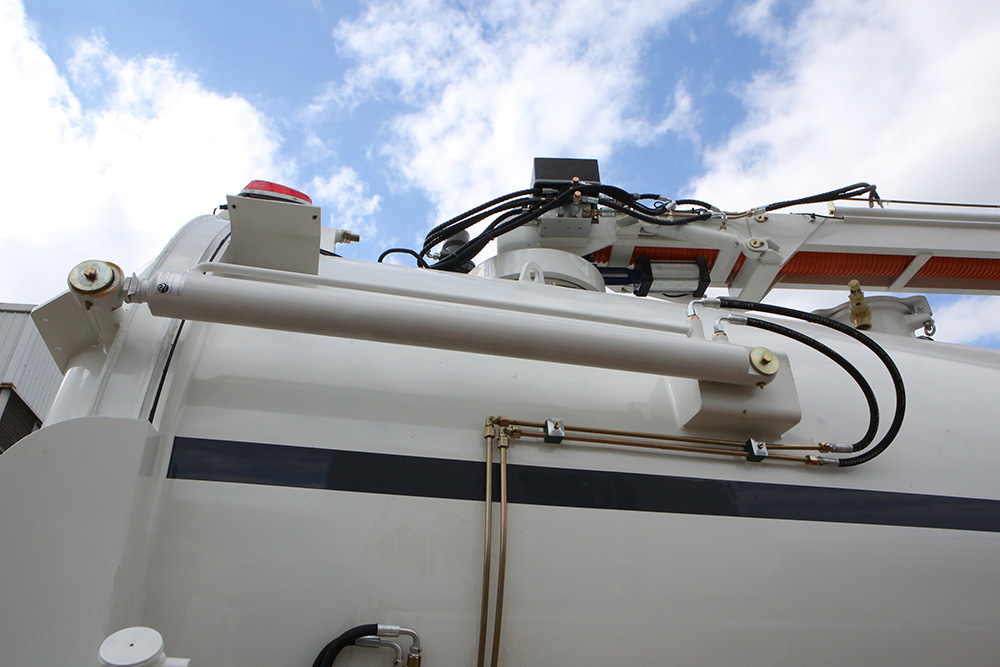

5. Hydraulic system: All the hydraulic oil ports of all components are equipped with sealing plugs to prevent the intrusion of dirt. The hydraulic cylinder is made of high-pressure galvanized steel, which has good hardness and pressure resistance, anti-corrosion and rust prevention, durable and beautiful. The hydraulic cylinder adopts an imported card sleeve type rigid connector, which greatly reduces oil leakage and oil leakage at the interface, and the service life is synchronized with the upper installation.
