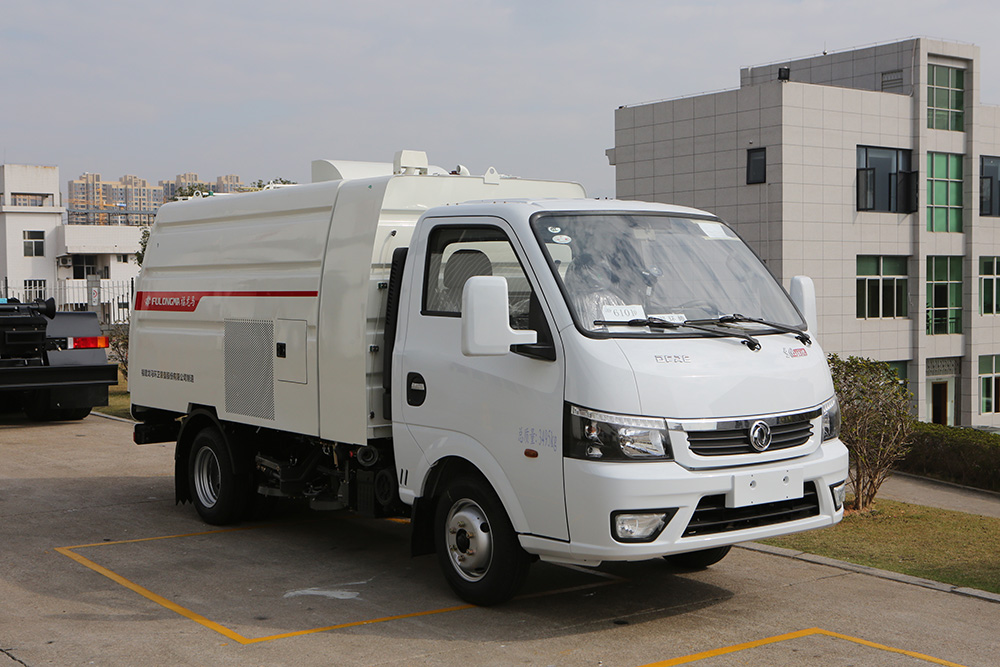

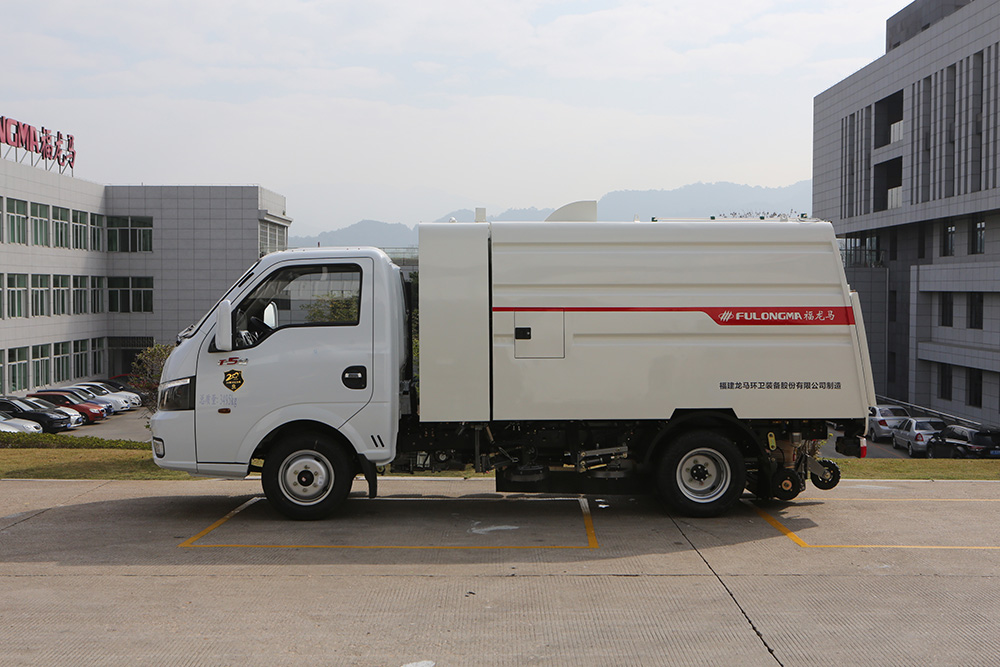

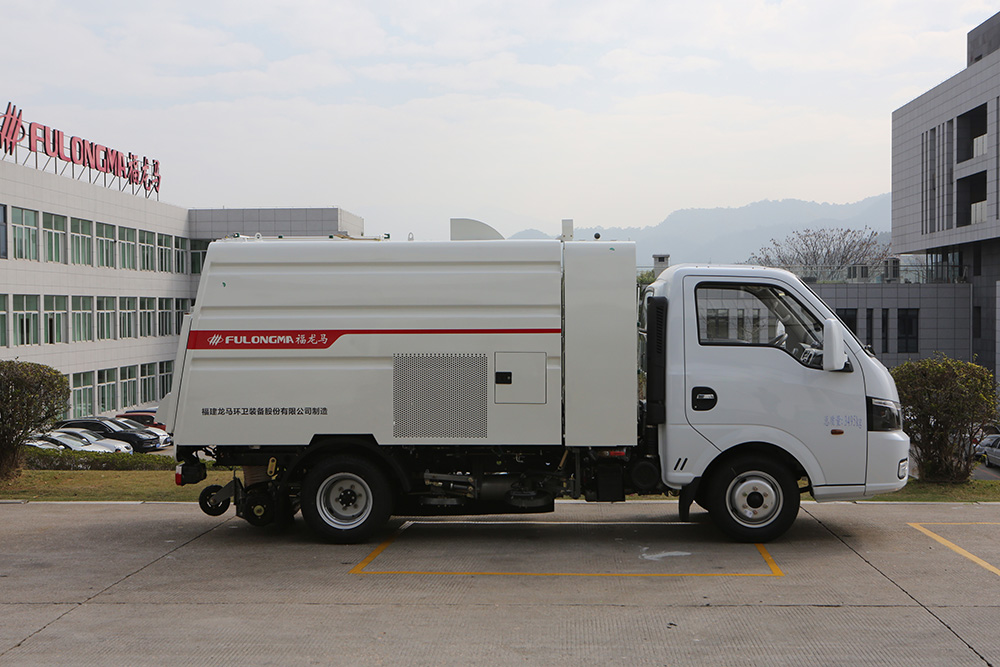

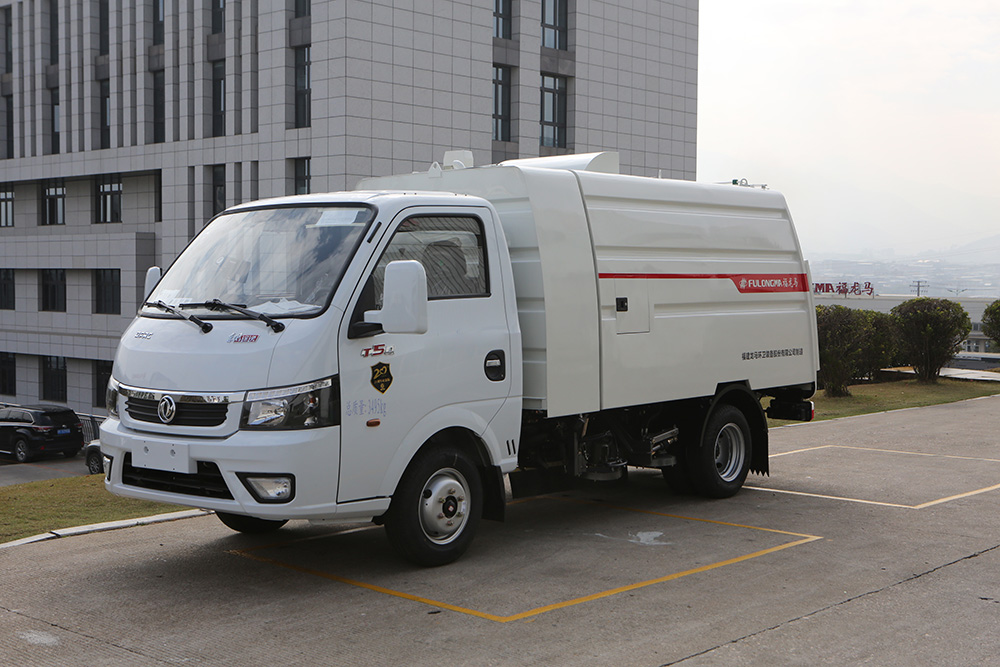

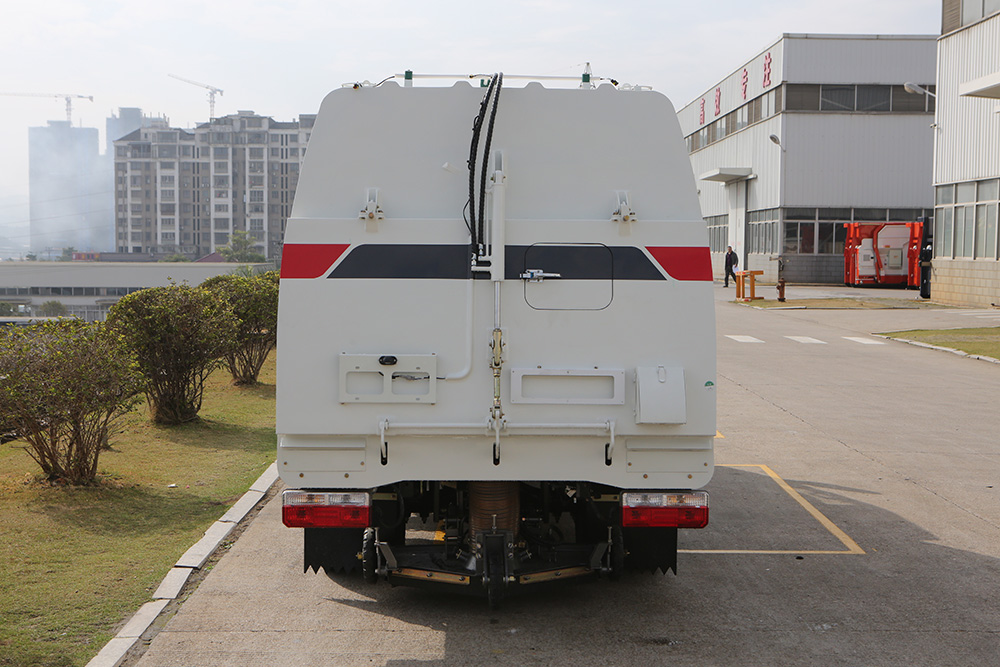

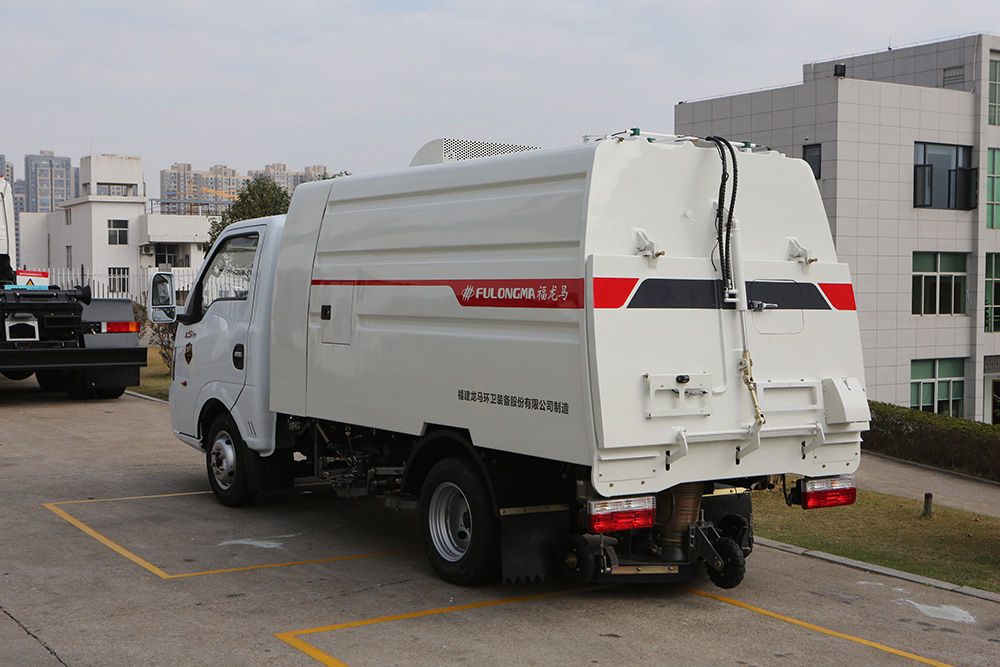

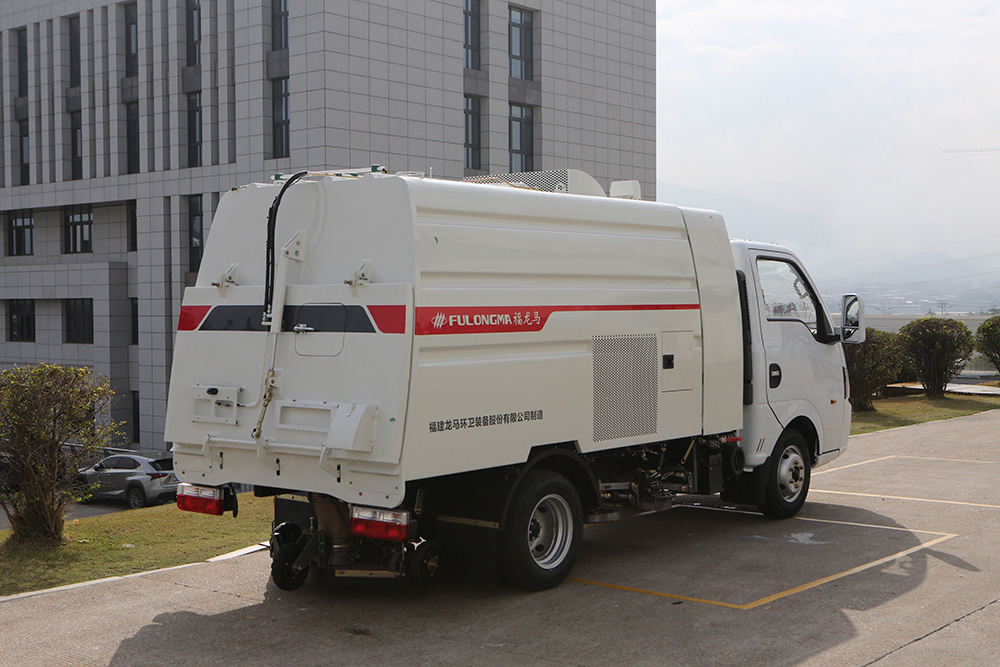

FULONGMA small road sweeper is especially suitable for the cleaning of residential roads, park squares, underground parking lots, factory warehouses, and sidewalks. The cleaning effect is good, the noise is low, and the efficiency is 30 times that of manual cleaning. Its unique whole-process atomized water cycle dust control technology can easily achieve “zero dust” during the cleaning process, and the powerful suction and sweeping ability can easily accomplish the goal of sweeping the road.
01. Small road sweeper body configuration
0.7 square water tank / 1.8 square garbage can, using Yunnei 42KW auxiliary engine, 4 sweeping discs in the middle, automatic clutch, maintenance-free centrifugal automatic fan, stainless steel garbage can, tail LED arrow indicator, manual pump emergency system, garbage lift Lift dump function. Due to its small body size.
02. Performance characteristics of small road sweepers
1. The model is small and convenient
Compared with other types of road sweepers, the small road sweeper is much smaller, which is very suitable for the cleaning operation of the underground parking lot. In the underground parking lot, compared with large road sweepers, small road sweepers are very convenient and can be used indoors, which is one of the advantages of small road sweepers.
2. The price is relatively cheap
Due to the relatively small model, the sanitation small road sweeper does not require as many materials like the large road sweeper, and the internal structure is not as complicated as the large road sweeper, so the price is much cheaper than the large road sweeper. Since the cleaning effect can also be achieved and the price is cheaper, most people are naturally more willing to choose small road sweepers, which is also one of the advantages of small road sweepers.
03. Function introduction of small road sweeper
1. Collect garbage by means of suction and sweep, wet dust removal, electro-hydraulic control, and hydraulic tipping and unloading to clean the road surface.
2. The auxiliary engine is used to drive the fan and hydraulic system to ensure that it can continue to work during the driving process and to ensure the continuity of the cleaning process.
3. The structure layout of “center four sweeping discs + spray dust suppression device + center partition + rear suction nozzle” is adopted, so that sand and gravel will not splash and dust during the cleaning process. This layout is convenient for the adjustment and maintenance of the cleaning device and suction cup. The vehicle has good passability during fieldwork.
4. The transmission between the auxiliary engine and the fan is equipped with an automatic clutch, which can ensure the automatic separation of the auxiliary engine from the fan when it starts and stops without load, reduces the impact on the auxiliary engine, and improves the working reliability and use of the auxiliary engine. life.
5. The sweeper has the automatic avoidance protection function and automatic reset function when encountering obstacles. It automatically retracts when encountering obstacles, and automatically returns when it crosses obstacles.
6. The rotating speed of the sweeping disc can be adjusted according to various cleaning conditions, which can ensure a good cleaning effect under various pollution conditions.
