FULONGMA sprinklers are also called sprinklers, multifunctional sprinklers, landscaping sprinklers, water tankers, water tankers, and multifunctional green sprinklers. It has the functions of water spraying, dust pressure, high and low spraying, pesticide spraying, fence washing, etc. It is used for cleaning road surfaces, sanitation, dust prevention, watering, spraying pesticides, etc. in urban roads, large factories, gardens, and other units to achieve beautification of the environment. effect. At the same time, it can be used for temporary emergency fire sprinklers, and each sprinkler is equipped with a special fire-fighting interface.

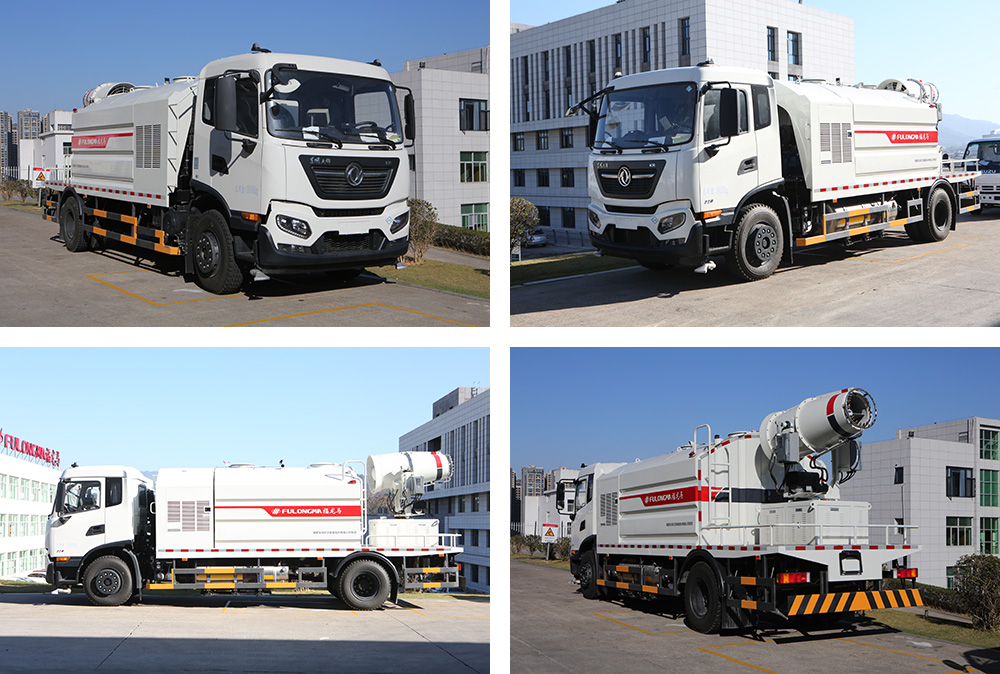

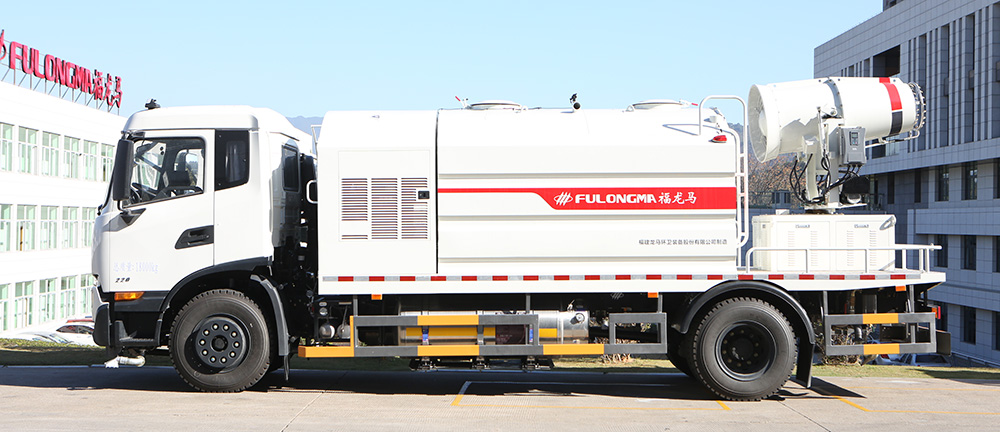

01. Multi-picture display of sprinkler
02. Sprinkler chassis configuration
Adopt Dongfeng original chassis, white front-turned 2315 cab, Fast 6-speed gearbox, 3.9 tons front axle, 8 tons rear axle, wheelbase 4500mm, National VI Yuchai 200/Cummins 210 horsepower engine, 250 girder, 295/ 80R22.5 tubeless tires, air brakes, air conditioners, electric doors and windows, central locks, etc.

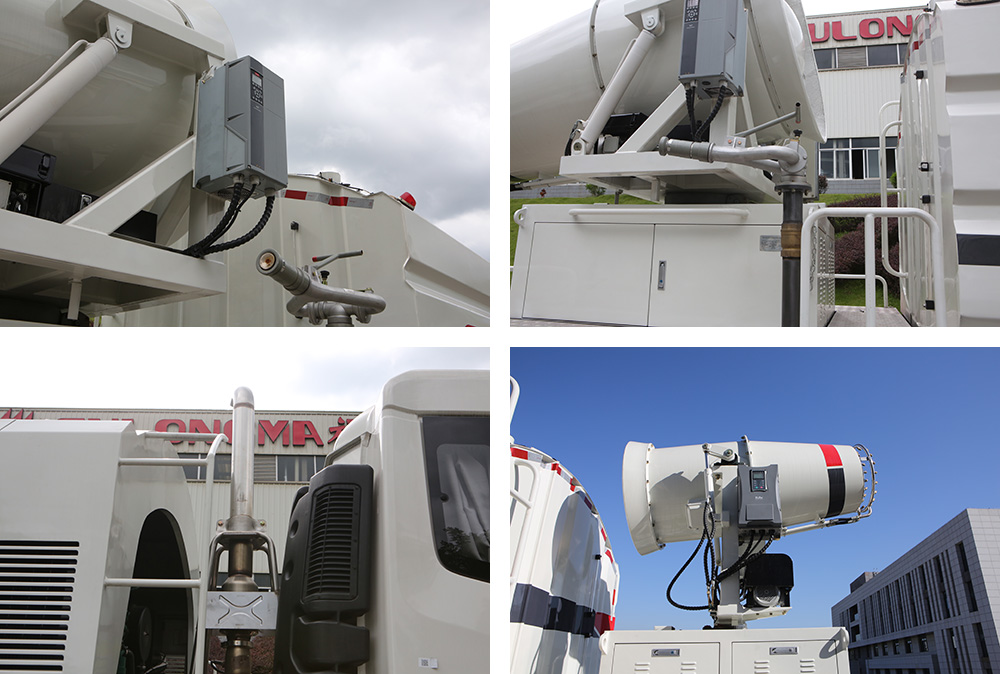

03. Sprinkler top-mounted configuration
The effective volume of the tank body is 10 cubic meters. The tank body is made of national standard Q235 carbon steel, and the tank body is a square tank. The tank body is made of national standard Q235 carbon steel. Sprinkler, side spray, platform anti-aircraft gun, high-power water pump, one self-flow valve and fire-fighting joint, two water pipes), standard high-flow water pump, the rear platform can be equipped with a 50-100 meter fog cannon.
04. Highlights of sprinkler functions

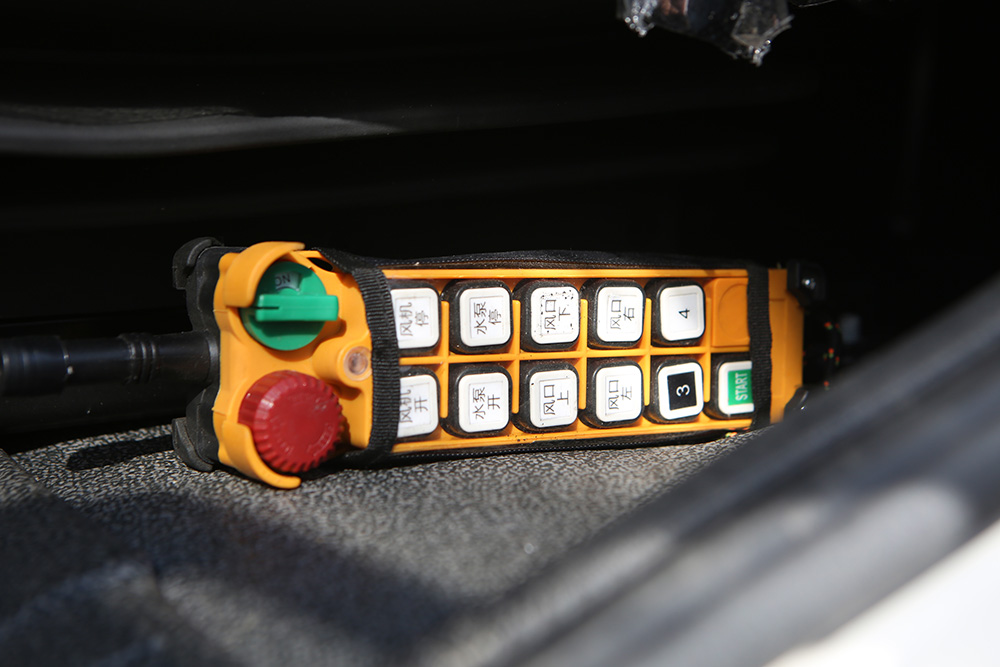

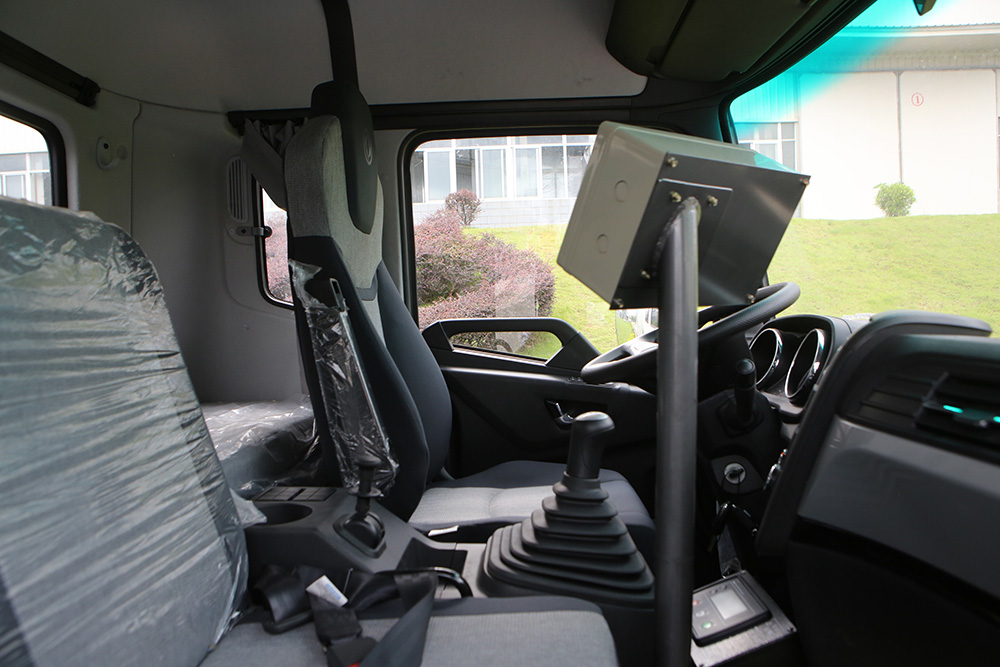

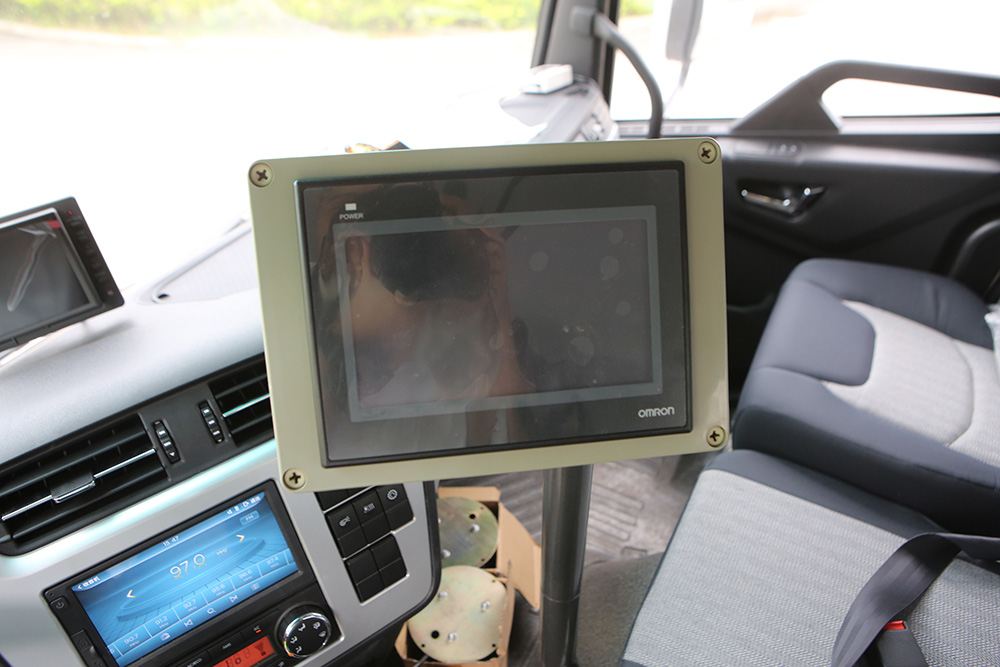

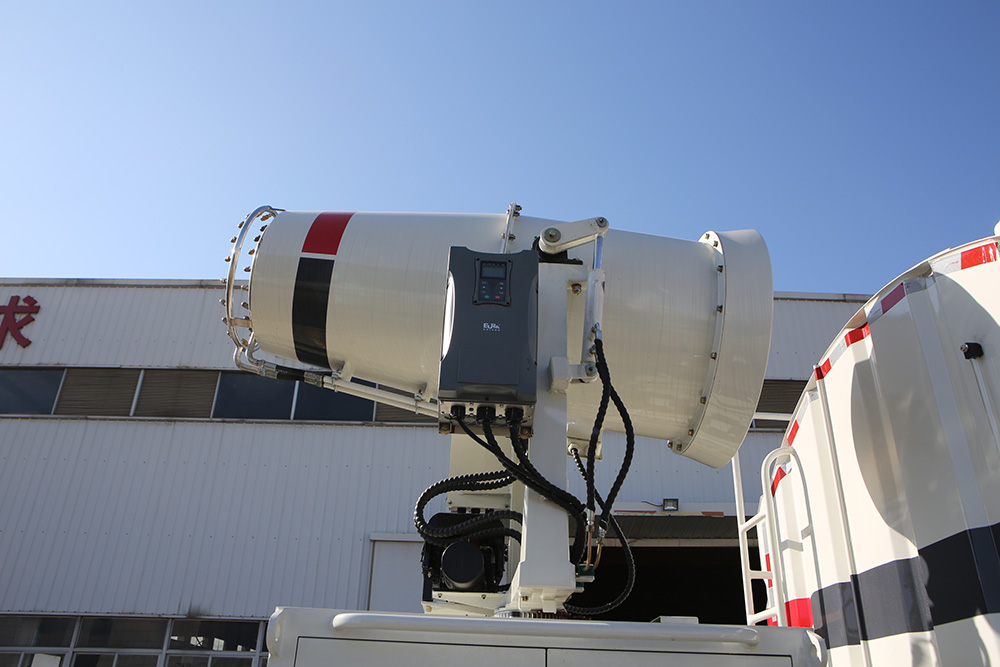

1. It adopts an environmentally friendly dust-removing air blower sprayer, compact structure, long-range, small mist particles, large coverage area, and can be operated manually or remotely. All tasks can be carried out in the cab through the camera.
2. The sprayer is equipped with an emergency stop button, and the operation is safe and reliable.
3. It has a front sprinkler function, which can not only be used for daily sprinkling, humidification, and dust reduction operations but also can be equipped with a rear sprinkler function and a pre-wash function for road cleaning operations.
4. The entire car’s waterway control adopts a highly reliable, non-polluting advanced pneumatic system, which is convenient and flexible to operate.
5. The structure is compact and reasonable, the tank volume is large, and the operation time is long.
6. The switch control valve parts and sprinkler system pipes are made of corrosion-resistant materials, and the tank body is made of a Q235B steel plate, and the interior is treated with a special process to prevent corrosion. A stainless steel tank is also optional.
7. The water tank is equipped with a low water level sensor alarm system, which can automatically alarm when the water level is low.
8. The air duct adopts double-wall silencing technology to effectively reduce the noise of air duct operation. The maximum noise of the whole vehicle is not more than 88 decibels.
9. The air duct is controlled intelligently, which can realize functions such as automatic centering and automatic left-right cycle operation.
