1. Chassis description
Dongfeng 6-speed, 250 frames, 3.9/8 ton axle, air conditioning, electric doors and windows, internal control, ABS, air brake, power steering, driving recorder. 900R20 steel wire tire. You can choose Yuchai 160 or Kanji 6-cylinder 180 horsepower engine with 3950 wheelbases.
2.Modification instructions
The tank body is made of a 4MM carbon steel plate, the partition in the tank has anti-wave after-sales service, a special sprinkler pump (the maximum vertical suction is 6 meters), the sprinkler width is 14 meters, and the range is 28 meters. The multifunctional sprinkler is equipped with 2 front sprays (can wash away mud, dust, and garbage on the road); 2 rear sprays (can evenly spray water on the road, a spray width of 14 meters), 2 side sprays (Sprinkler) (can evenly water the roadside green belt), with a rear working platform, and a green sprinkler cannon installed on the platform (the sprinkler can be rotated in all directions and can be continuously adjusted into a straight, heavy rain, light rain, drizzle, fog can be adjusted to wash tall trees), water diversion time <5min, flow rate 90m3/h. With 1 fire connector, 1 gravity valve, 1 filter device, humanized ladder, and side guard rail, and install sprinkler music horn.

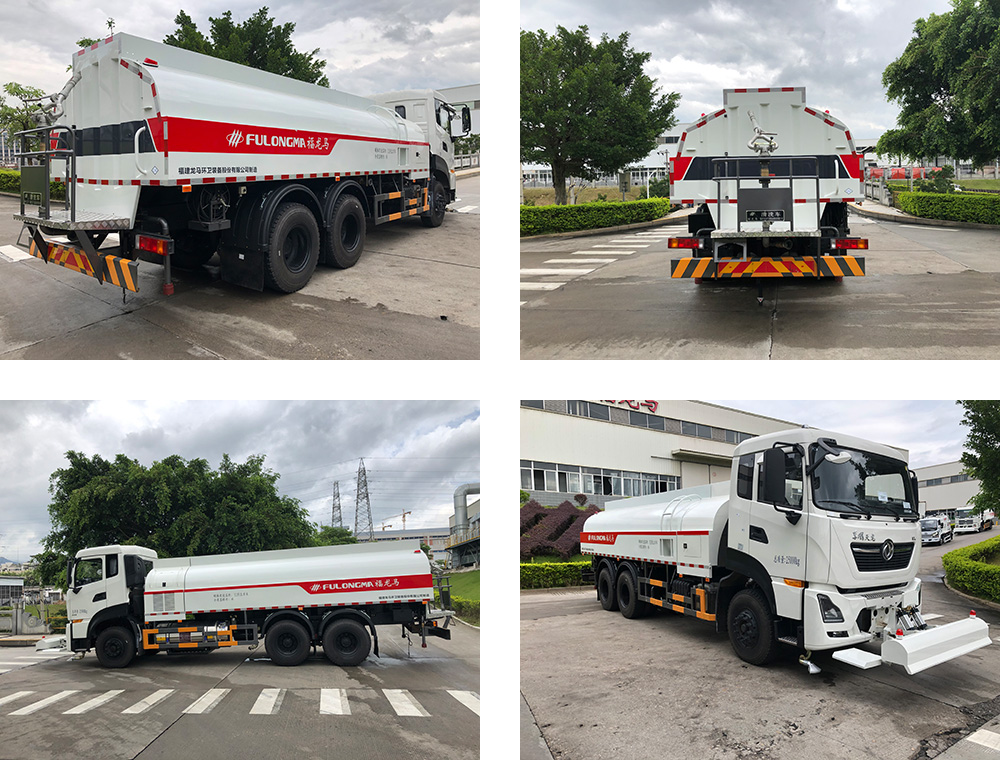

3. Multi-directional icons
4. Product details

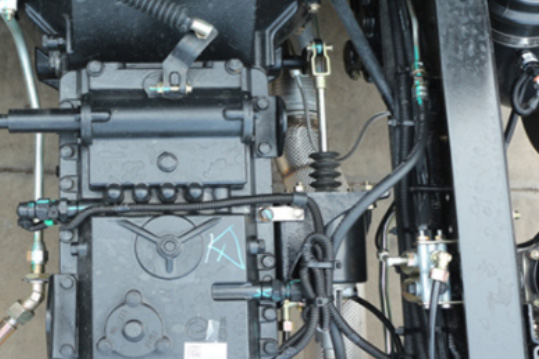

Gearbox
Authentic 5-speed gearbox with the auxiliary transmission, more gears, more choices, suitable for complex road sections, easy shifting, worry-free climbing.

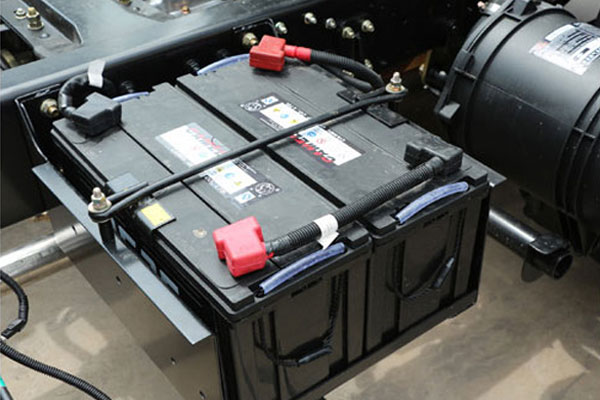

24V battery
Leading technology, life is extended by more than 12.8%; active special substances are added to the plates to increase the charging acceptance performance by more than 15.6%

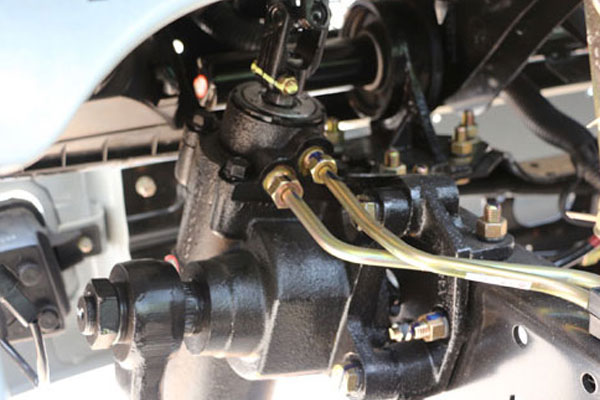

Original hydraulic direction assist
The steering wheel and the steering wheel are all connected by mechanical parts, with precise control, direct road feeling, and rich information feedback; the hydraulic pump is driven by the engine, with abundant steering power, mature technology, and high reliability.

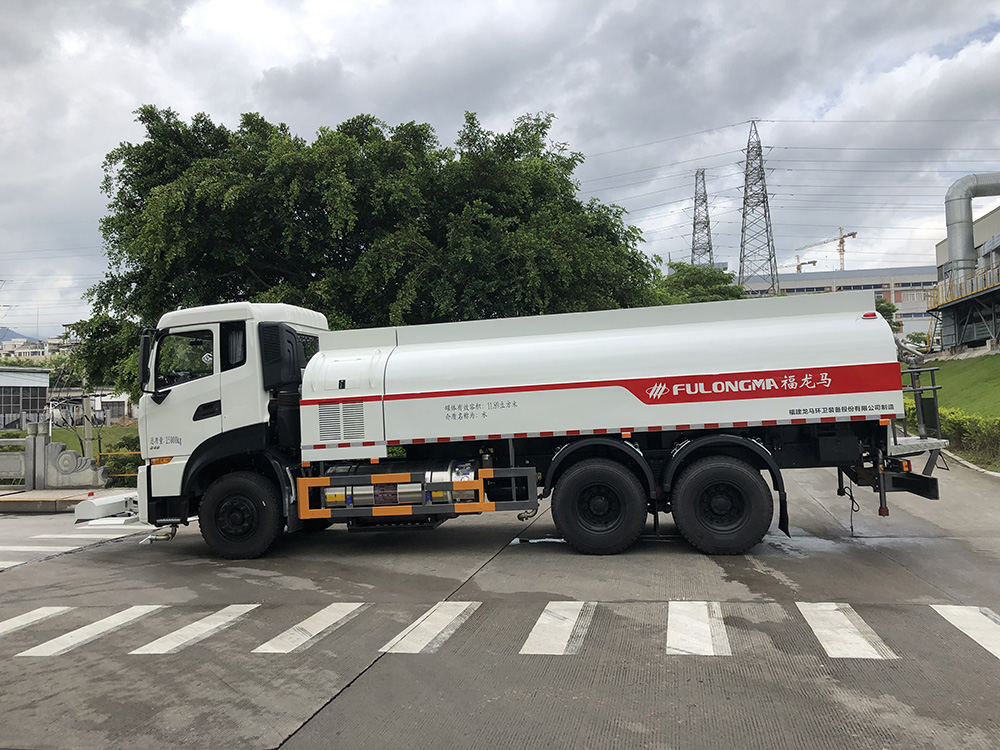

Multifunctional tops
The effective volume of the tank is about 12 cubic meters of the water truck, and the steel plate of the tank is 4MM carbon steel. The vehicle has front flushing, rear spraying, side spraying, with 65 fire interface, the rear platform with bubble without the door, front head with water level gauge, rear platform main road with the 1-inch watering interface, and rear climbing ladder.

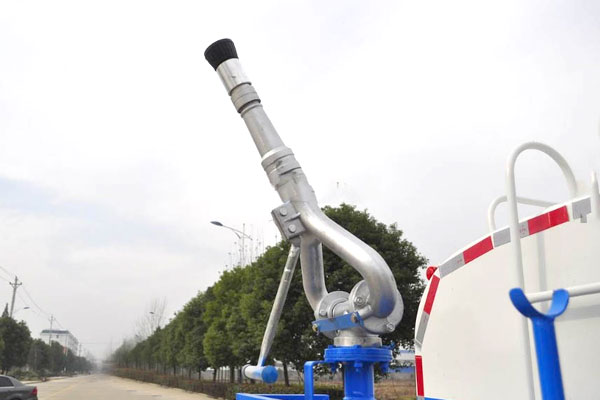

Platform artillery
It can be adjusted into a column shape with a range of ≥28 meters; it can be adjusted into a fog shape with a range of ≥15 meters; it is used for remote irrigation and also used for auxiliary fire fighting operations.

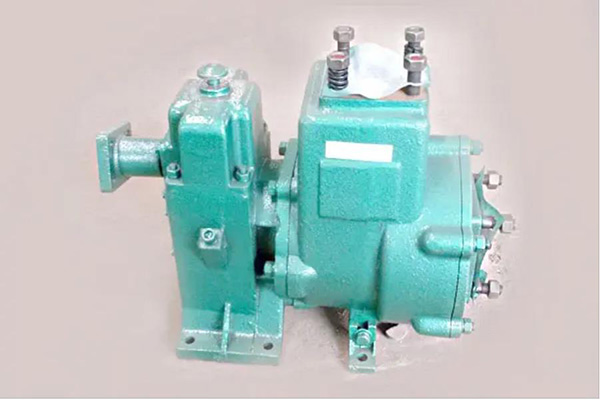

Sprinkler pump
The flow rate is 60 cubic meters per hour, the head is 90 meters, and the self-priming height is 7 meters. It has the advantages of simple structure, stable operation, high efficiency, and reliable use.

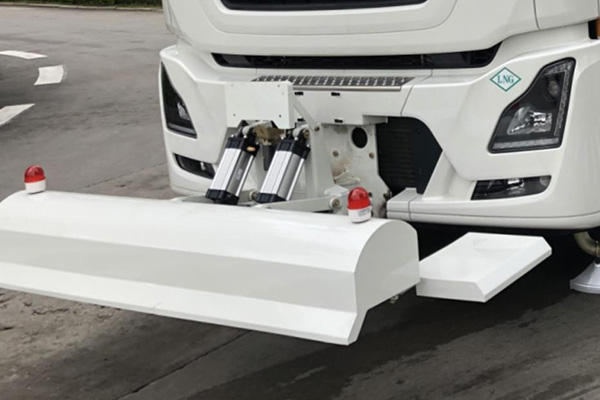

Forward nozzle
With a steam-operated valve (optional), the flow rate is 460L/MIN, the washing width is ≥14, and it is used for washing roads such as highway squares.

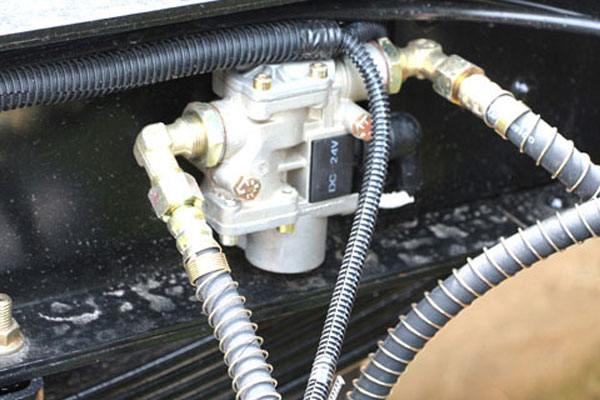

Anti-lock Brake System (ABS)
Give full play to the effectiveness of the brakes, shorten the braking time and distance, which can effectively prevent the vehicle from sliding and flicking during emergency braking. It has good driving stability and steering maneuverability, avoids violent friction between tires and the ground, and reduces tire wear.
Original hydraulic direction assist
The steering wheel and the steering wheel are all connected by mechanical parts, with precise control, a direct sense of the road, and rich information feedback; the hydraulic pump is driven by the engine, with abundant steering power, mature technology, and high reliability.

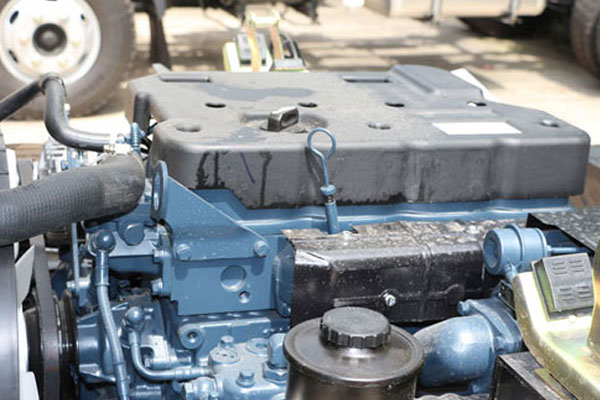

High-horsepower engine
The steering wheel and the steering wheel are all connected by mechanical parts, with precise control, a direct sense of the road, and rich information feedback; the hydraulic pump is driven by the engine, with abundant steering power, mature technology, and high reliability.

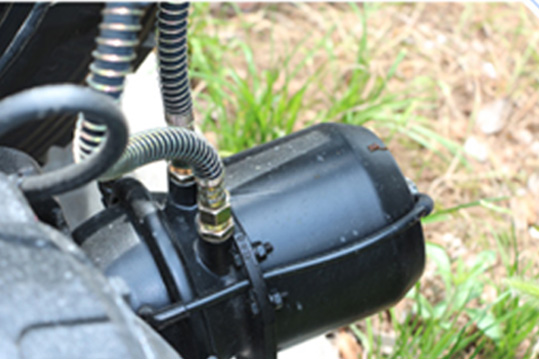

Secondary exhaust gas filter pipe
The function of the second exhaust gas filter pipe is to allow the incompletely combusted mixture to be filtered to the engine again through the airspeed cleaner to avoid waste of fuel.

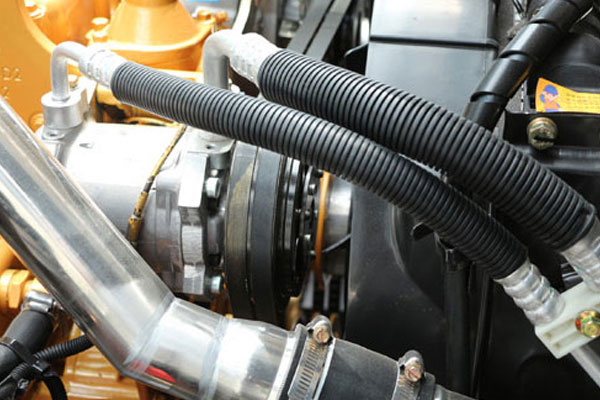

Air conditioning
Standard heating air conditioner, optional cold air conditioner to adjust the temperature and humidity in the car, provide the driver with a comfortable air-conditioning system, warm in winter and cool in summer, it is your ultimate enjoyment.
