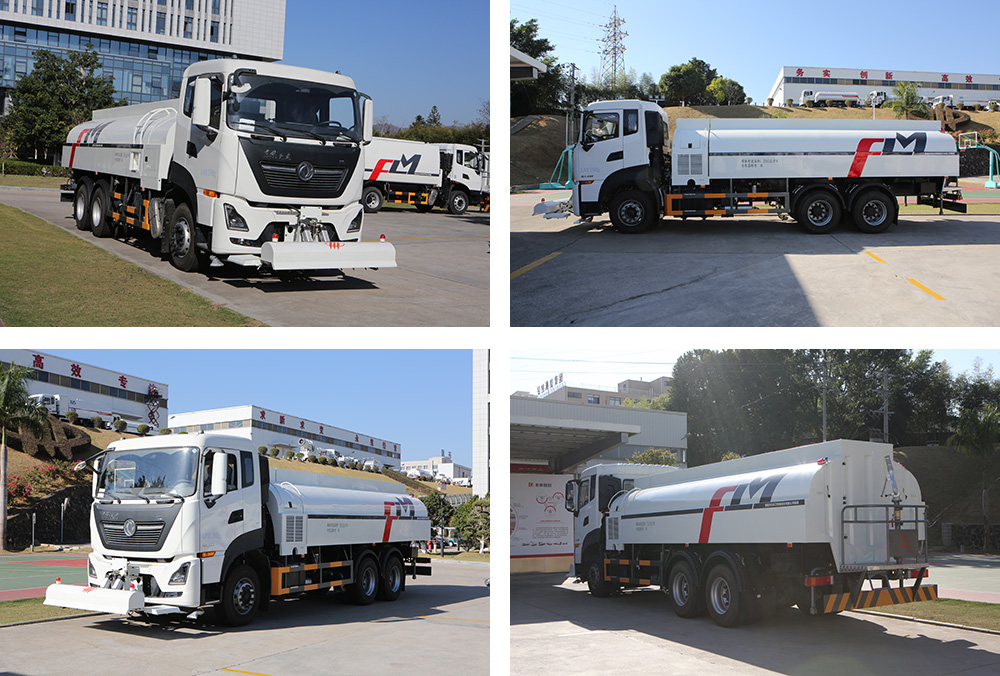

Sprinklers are also called sprinklers, anti-epidemic and disinfection sprinklers, multifunctional sprinklers, landscaping sprinklers, water tankers, and water trucks. The sprinkler is suitable for washing all kinds of roads, trees, green belts, lawns, roads, factories and mines, and high-altitude buildings. It has the functions of water spraying, dust pressing, high and low spraying, pesticide spraying, guardrail washing, etc. It also has the functions of water transportation, drainage, and emergency fire fighting.

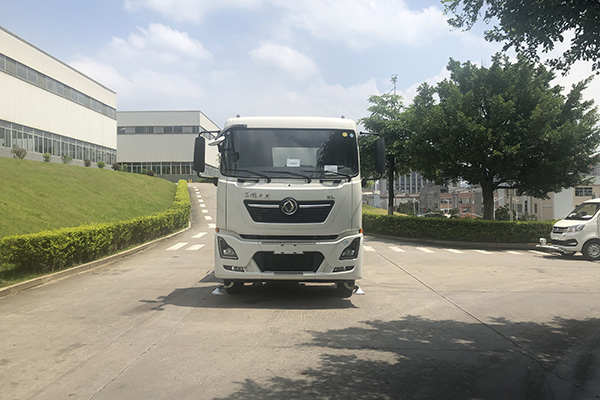

1. Dedicated chassis: The product adopts the golden power chain of the high-quality engine + aluminum alloy transmission + reinforced rear axle.

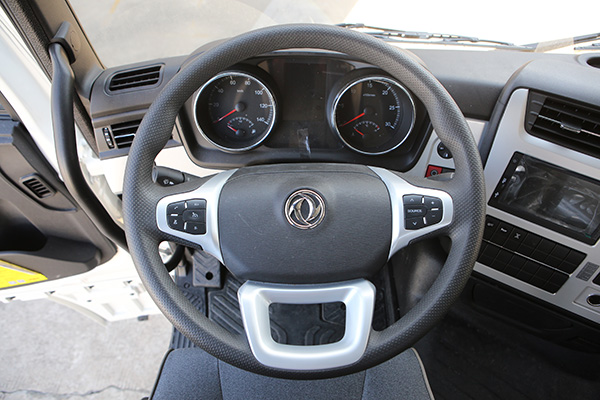

2. Comfortable driving: The cab space is more spacious and comfortable than the same industry. The noise reduction muffler is adopted. The NVH of the vehicle is more superior and comparable to passenger cars. The field of view is wider, and more driving information can be grasped during driving. Increase air circulation to keep the driver awake.

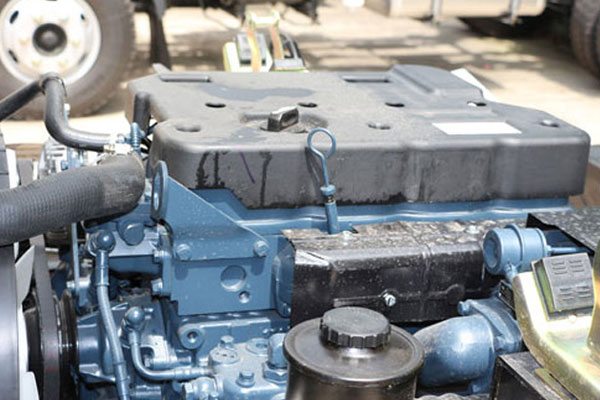

3. Engine: Fuel type: Diesel, emission standard: National VI Maximum power: 169kWkW (230ps) Displacement: 4700ml.

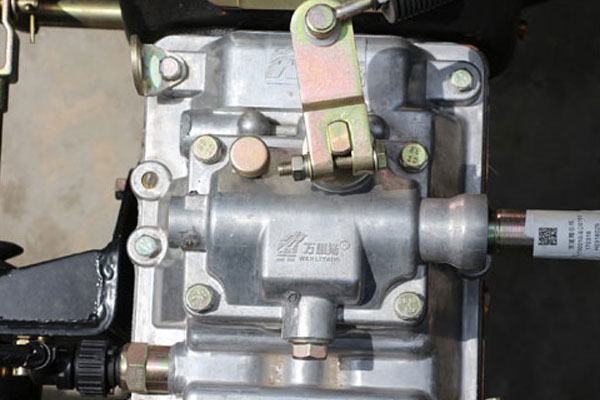

4. Gearbox: change the transmission ratio, expand the range of driving wheel torque and speed to adapt to frequently changing driving conditions; enable the car to travel backward under the same rotation direction of the engine; use neutral to interrupt the power transmission, The engine can be started and shifted, and it is convenient for the transmission to shift gears or perform power output.

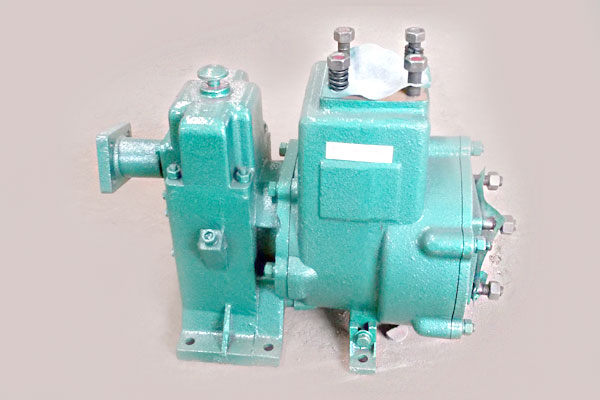

5. Sprinkler pump: make the water in the pipeline flow. It is mainly a self-priming centrifugal pump with a speed-increasing box. It is mainly composed of a pump body, impeller, mechanical seal, shaft, speed-increasing box, and other components. The power required by the sprinkler pump is directly provided by the automobile engine through the power take-off, and the sprinkler pump is driven by the transmission rotation.

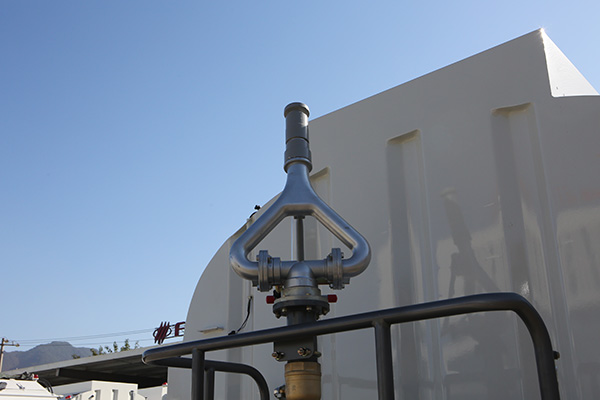

6. Sprinkler cannon: can be rotated in all directions, can be continuously adjusted to direct, heavy rain, light rain, drizzle, with safety guardrail, equipped with high-power special sprinkler pump, the pump can be self-priming and self-draining, install the filter, with fire interface, Water can be fed through a fire hydrant, with a self-flow valve.
7. Working platform: The rear working platform of the sprinkler is generally cut by a 5mm thick checkered plate, and then welded to the chassis of the sprinkler after bending. Guardrails will be installed on the operating platform to prevent the sprinkler from operating during the sprinkler operation. An accident occurred to the person standing on the rear working platform.
8. Power take-off: It is one or more sets of variable speed gears, also known as power output, which is generally composed of a gearbox, clutch, and controller. It is connected with the low gear of the gearbox or the output shaft of the auxiliary box to output the power. To external working devices, such as lifting pumps, etc.

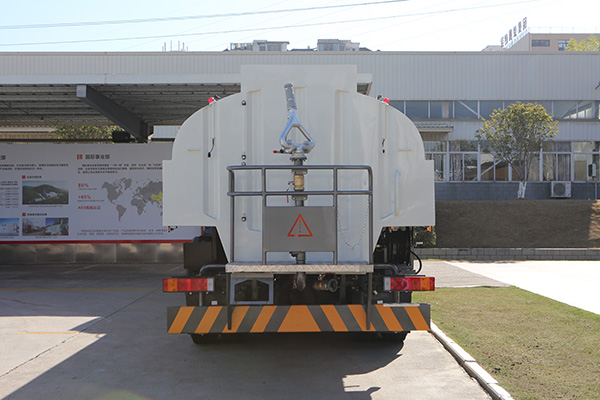

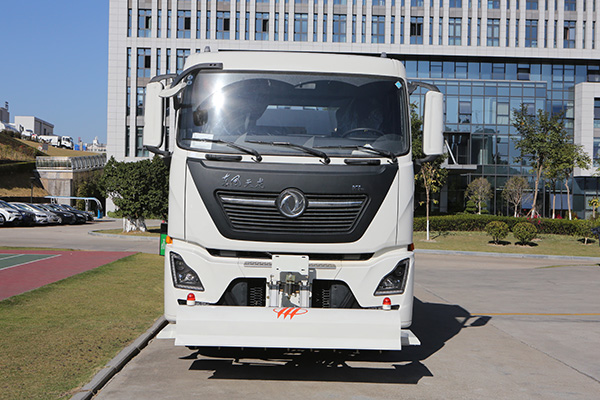

9. Front spray and back spray: front spray and back spray, the front is equipped with a duck-shaped nozzle or a round nozzle, the back is equipped with a cylindrical spray nozzle or a shower nozzle, and there is a working platform at the rear, equipped with a high-pressure water cannon. 8 nozzles (optional) can also be installed at the rear, which is generally used to wash the streets.
10. Nozzle: It consists of a nozzle and a nozzle seat. The nozzle is made of pure aluminum alloy, anti-corrosion, and anti-rust. It has a variety of diameters for selection and can rotate freely. It is mostly used on sanitation sprinklers and green sprinkles.

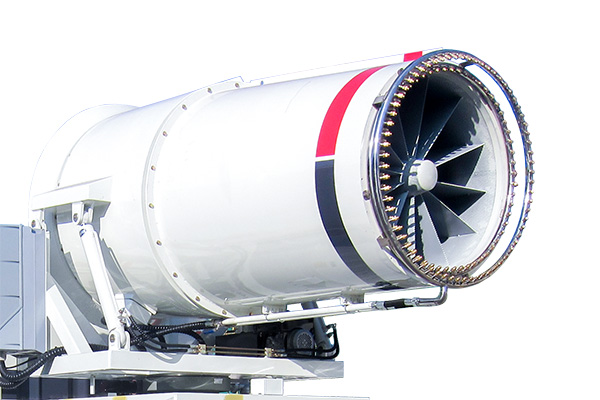

11. Optional sprayer: The user can choose a sprayer of 20-120 meters according to the actual use.
12. Dedicated customization: special operating environment requires applicable dedicated customization. In order to meet the needs of the market, our company provides a reasonable and personalized modification plan to strengthen its functions on the original basis. The existing sprinklers include: GPS, fire water cannons, electromagnetic valves, pneumatic valves, visual operating systems, external power, medicine trays, sprayers, and other personalized modification programs, and other modification programs can also be customized according to customer needs.
13. Working status: Pull the rear handle of the four-way valve parallel to the ground, and open the ball valve you want to spray (front flush, rear spray, side spray, shower) → start the engine → hook the transmission into the gear → power take-off Pull the switch back to shift the gear and take power → disconnect the clutch → the sprinkler pump starts to run → start sprinkling → the water in the tank is finished → push the power take-off to handle forward to disengage → the sprinkler pump stops running.
