The FULONGMA multifunctional tunnel cleaning vehicle is a carefully designed and developed product that adopts advanced technology and combines the specific conditions of the highway tunnel. This equipment has the characteristics of convenient operation, flexible action, a wide range of optional equipment, reliable quality, high cleaning efficiency, and good cleaning effect. It is an ideal product for road tunnel cleaning.

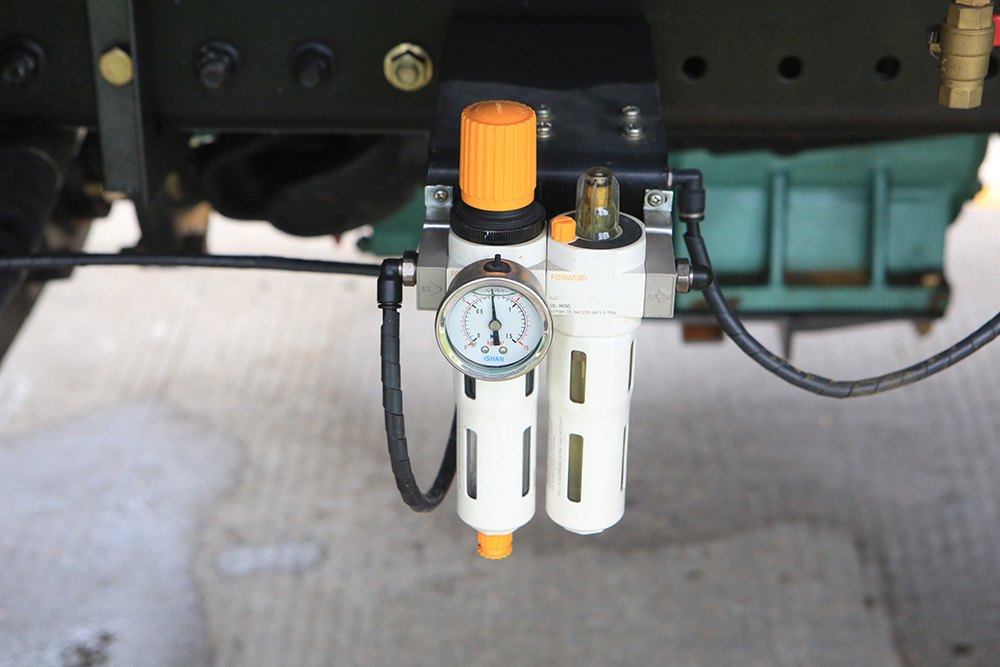

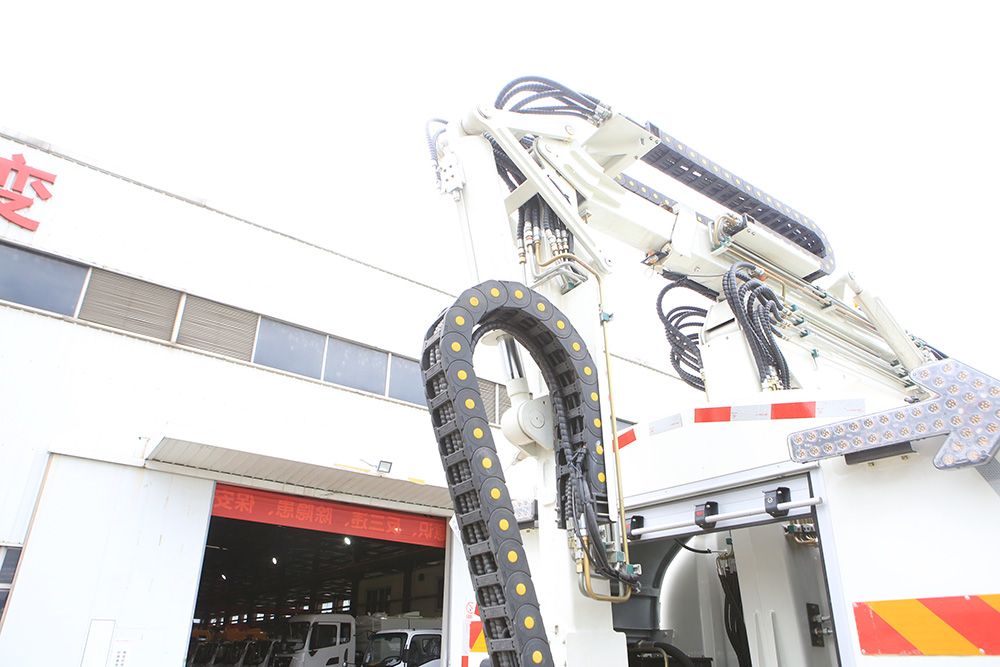

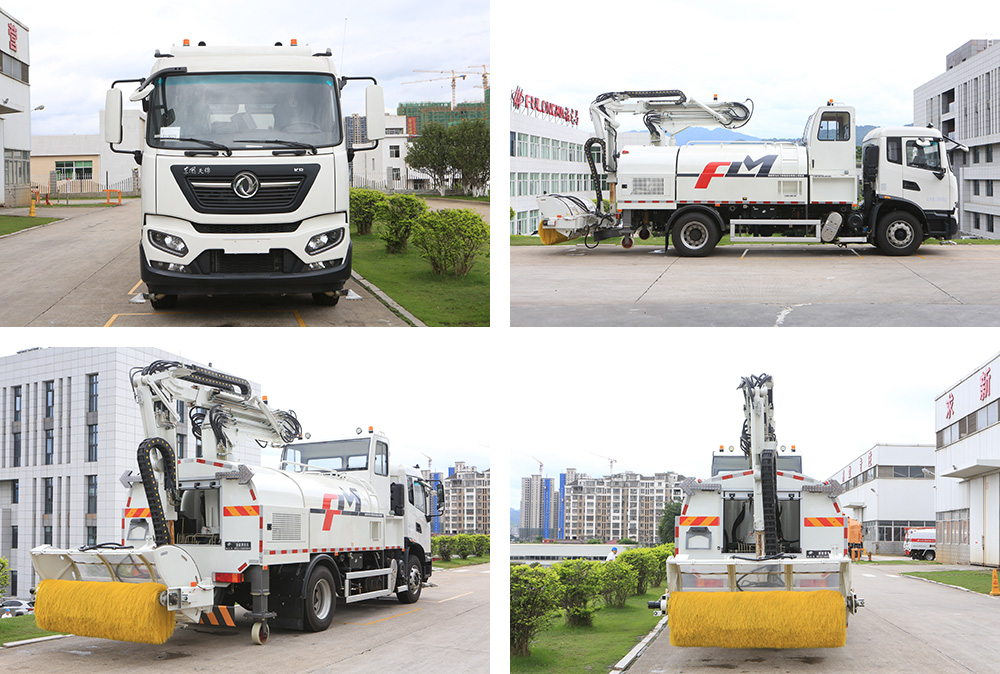

01. Detailed picture of tunnel cleaning truck
02. How to use the tunnel cleaning truck
1. First of all, it should be noted that: when the cleaning operation is not in progress, the main power switch marked on the system operation panel should be placed in the off state.
2. Before carrying out the operation, check the hydraulic oil level, (the level gauge on the left side of the oil tank) when the oil level is close to the positive and negative zero or lower than the middle position of the level gauge, add hydraulic oil. Observe the color of the oil at the same time, and replace the hydraulic oil in time when the oil is obviously black or emulsified.
3. When preparing for the cleaning operation, first check the status of the whole vehicle and the working system and confirm that it is normal before proceeding.

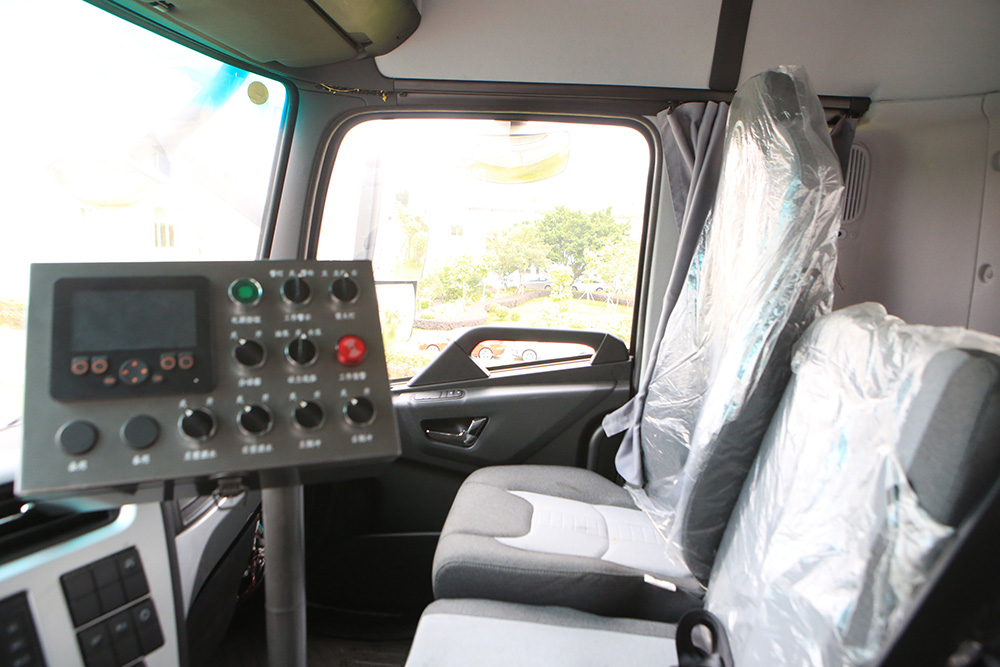

4. When the corresponding operation switch on the control panel needs to work, press the action marked on the control panel to operate, until the action reaches the required position, immediately release the operation button. When the brush body needs to be rotated to work, the corresponding operating button should be operated instantaneously, generally within 3 seconds. When the system makes a hiccup sound, immediately release the switch to automatically power off. Give the electricity time, otherwise, not only the system will not work, but the electromagnet will be burnt in serious cases.
03. Working principle of tunnel cleaning truck
The tunnel wall (sound-proof screen) cleaning vehicle uses the self-developed WTO26/8738PQ8-ST power take-off as its power to drive the hydraulic pump. The hydraulic flow and pressure output from the hydraulic pump passes through the distribution valve to the cylinder, hydraulic motor, and scissor hydraulic The lifting platform controls the rotation and lifting of the cleaning arm, the cleaning of the roller brush, the water spray of the high-pressure water gun and the lifting action of the scissor hydraulic lifting platform to complete the cleaning of the guardrails, road signs, and toll greenhouses on both sides of the highway or municipal road. The hydraulic lifting platform can realize the function of a small aerial work vehicle.
04. Main advantages of tunnel cleaning truck

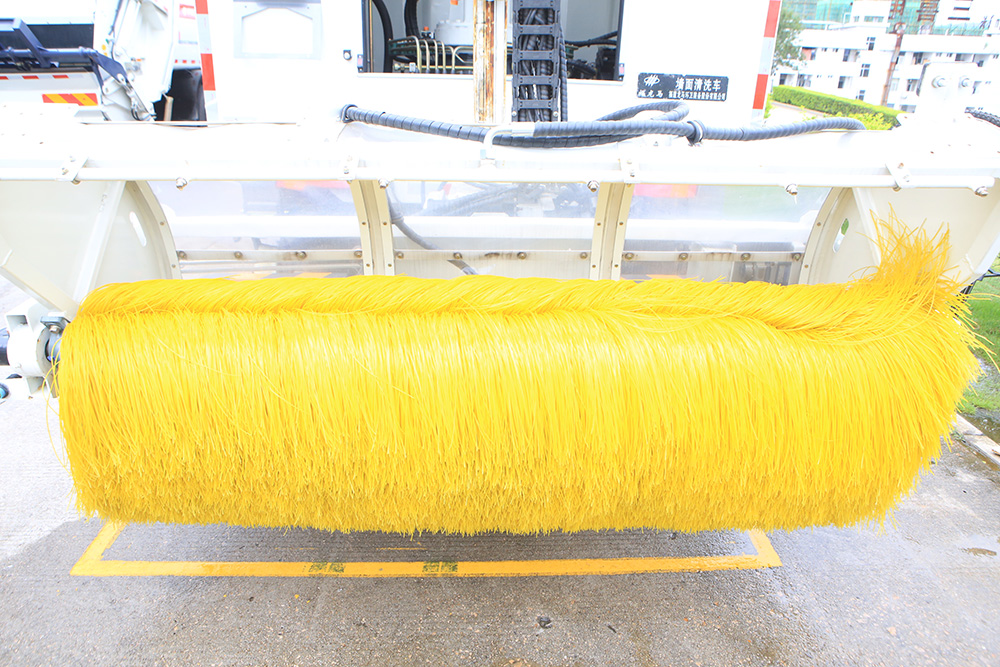

1. Regarding the cleaning effect, the tunnel wall (sound-proof screen) cleaning vehicle uses high-grade imported abrasive cotton plastic brush filaments with a high friction coefficient and high water absorption, instead of smooth and non-wearing nylon filaments and detergents, which not only has the cleaning effect Greatly improved, the operation process is also more energy-saving and more environmentally friendly.
2. The cleaning arm can be rotated left and right, and the cleaning height can be adjusted up and down, so that it is convenient to clean the walls on both sides of the tunnel, and the cleaning range is large.
3. The water tank of the waterwheel is used as the water storage tank, which can ensure long-distance cleaning, and the water pressure and flow can be adjusted.
4. It is not equipped with the auxiliary engine as power, which increases the load capacity of the water tank, which can reach about 12 cubic meters, which can continue to work for a long time and improve work efficiency. Effectively save the use cost and reduce the failure rate.
