This cleaning and sweeping truck is a new generation of medium-sized, environmentally friendly, sweeping, and suction combined road cleaning special vehicles newly developed by FULONGMA. The cleaning and sweeping truck are mainly suitable for mechanized cleaning and cleaning operations in urban streets, municipal squares, and large factories and mines. The vehicle has high operating efficiency. , The technical performance is advanced and reliable, and the appearance is beautiful, and it has been widely praised after the listing.

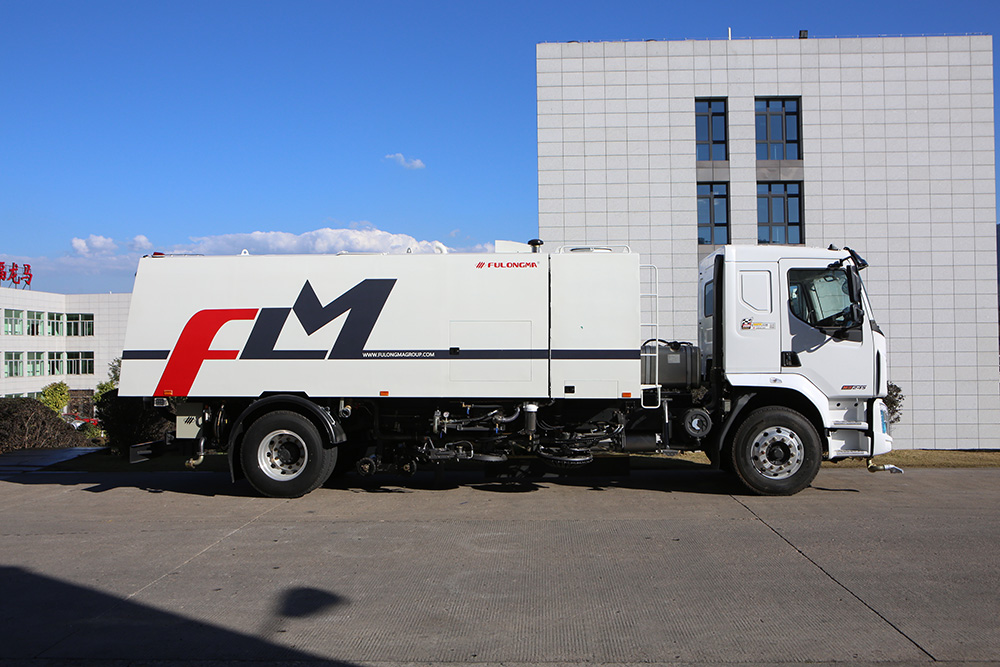

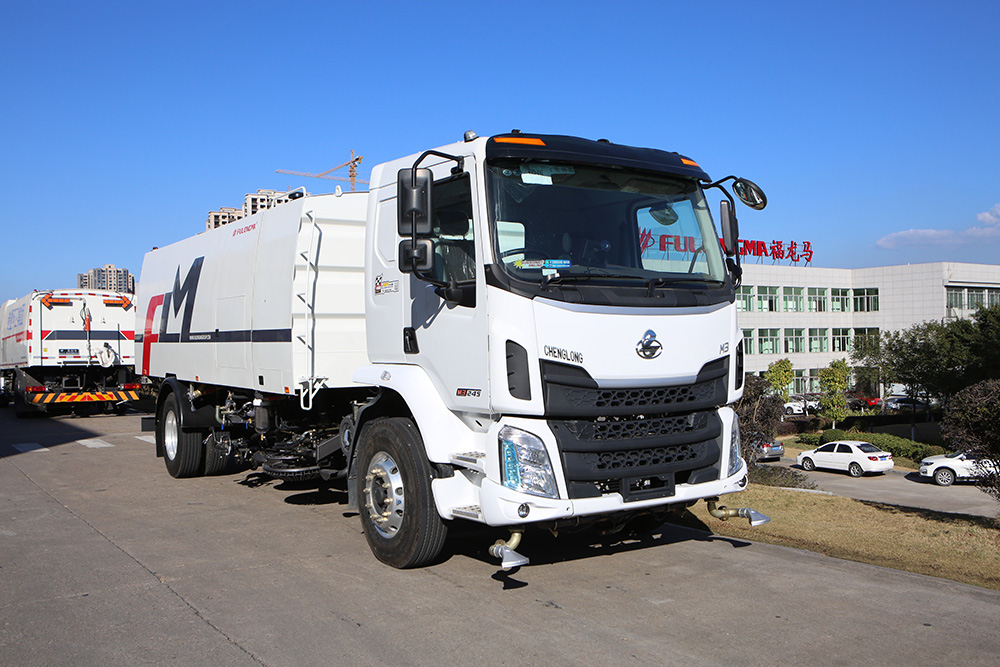

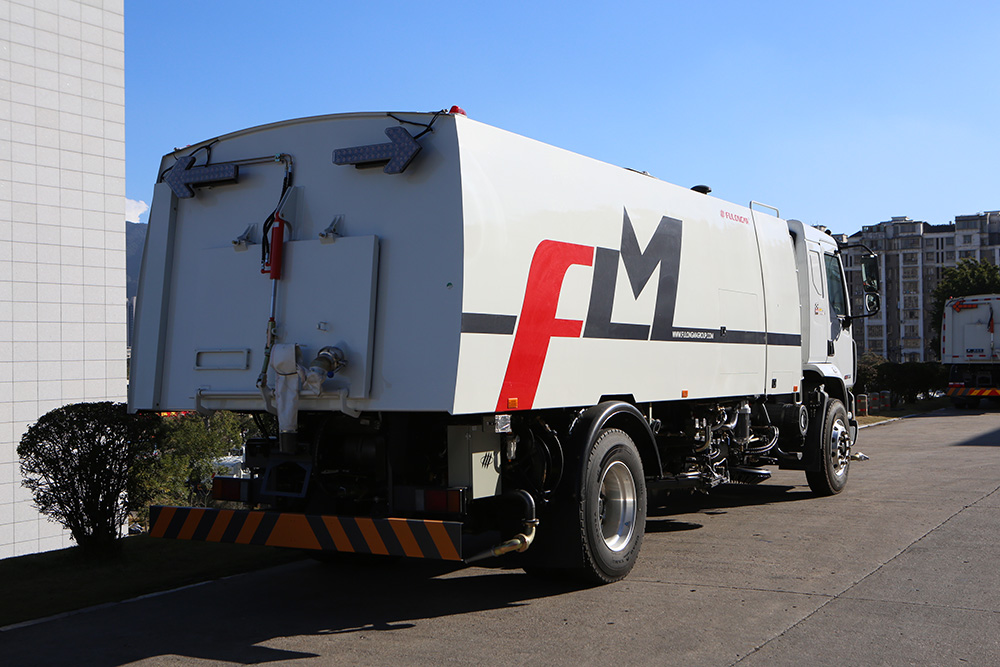

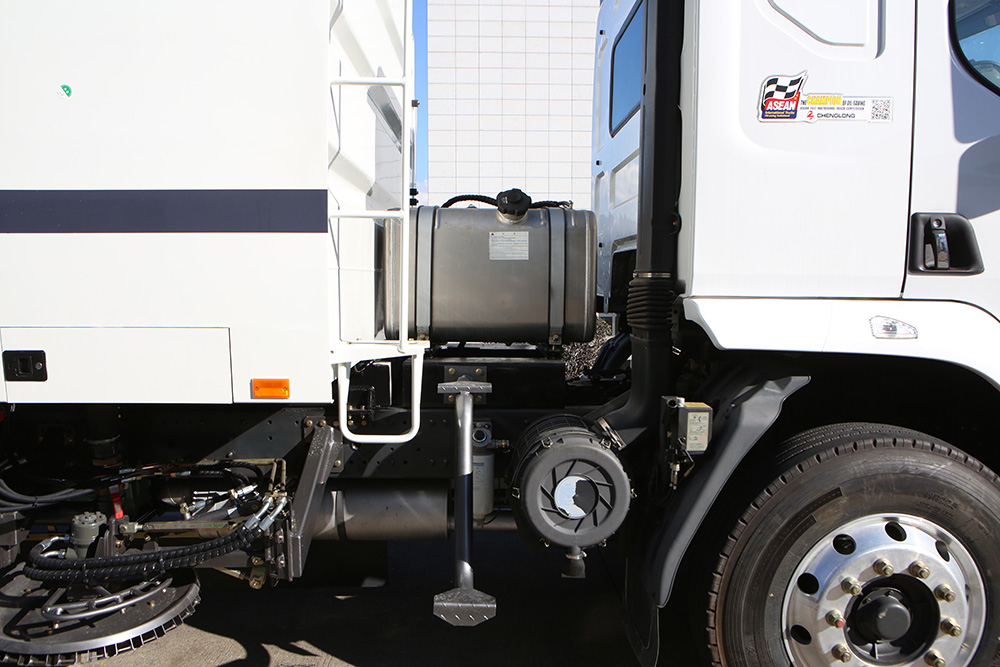

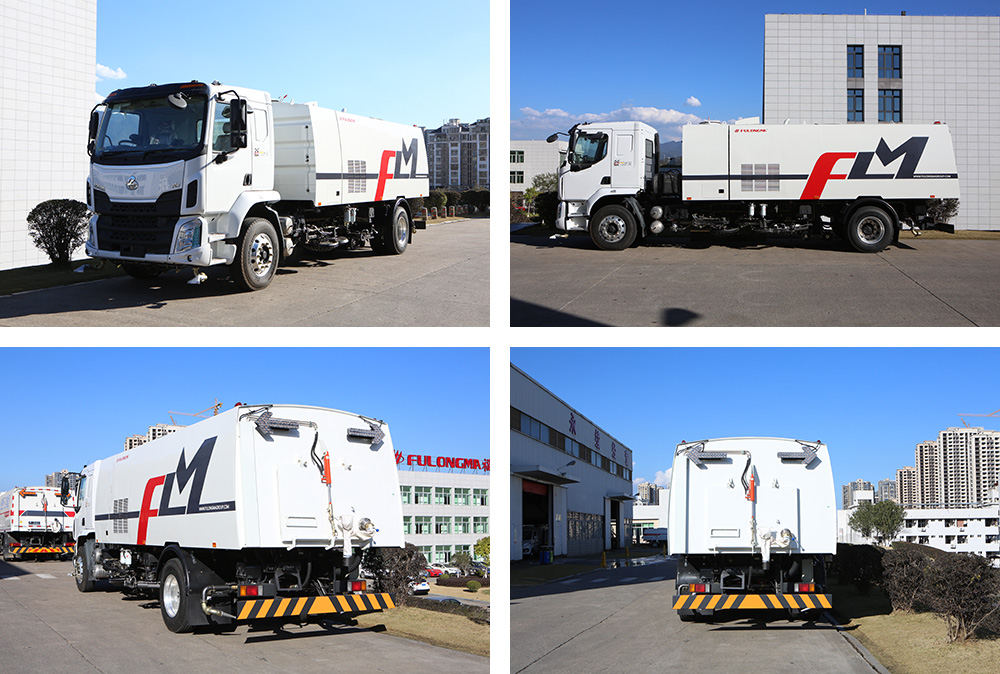

01. Detail display of cleaning and sweeping truck
02. Configuration composition of cleaning and sweeping truck

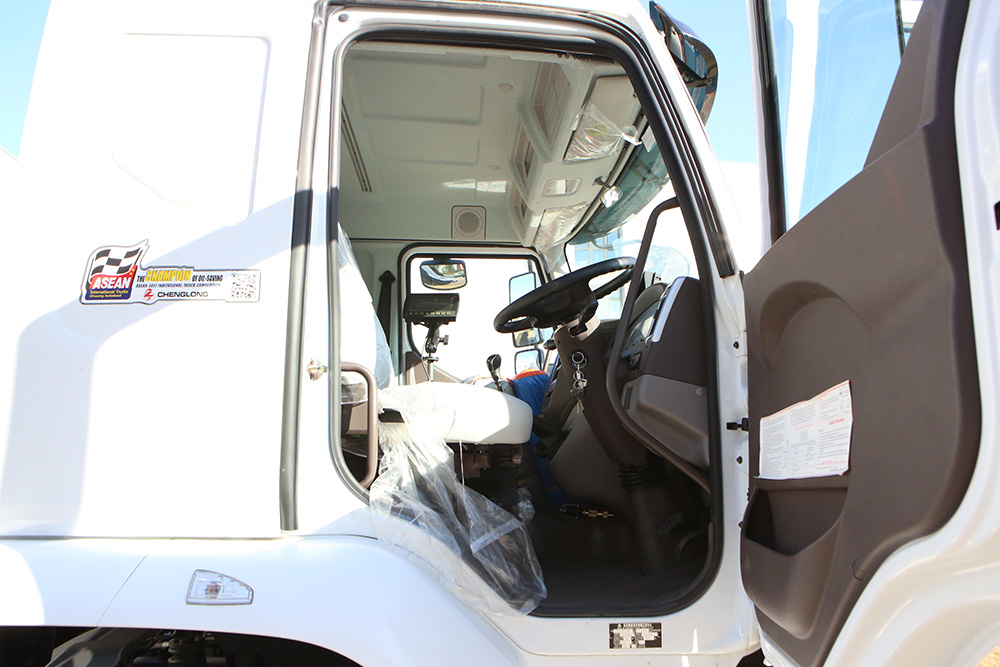

1. Chassis configuration: adopt the original Dongfeng Chenglong chassis, new comfortable cab, 5300mm wheelbase, equipped with D6.7NS6B230 engine, power 169kw, equipped with rotating, steering assist, air-cut brake, multi-function steering wheel, electric glass, original air conditioner, ABS and other configurations.
2. Dedicated configuration: central 4 scan pan, rear suction cup, CAN bus intelligent control system, maintenance-free centrifugal fan, stainless steel trash can, electronic water pump, trash can lifting and dumping, tail LED arrow light, manual pump emergency system.
3. Top configuration: stainless steel water tank and trash can, QSB5.9-C160-30 sub-engine, automatic clutch, large maintenance-free fan with two-shaft seat, pneumatic net pipe antifreeze, PLC one-button control system, LED arrow light at the rear, Low-pressure pumps, oil, trash cans, and water tanks are all equipped with low-water level alarms.
03. Advantages of cleaning and sweeping truck function

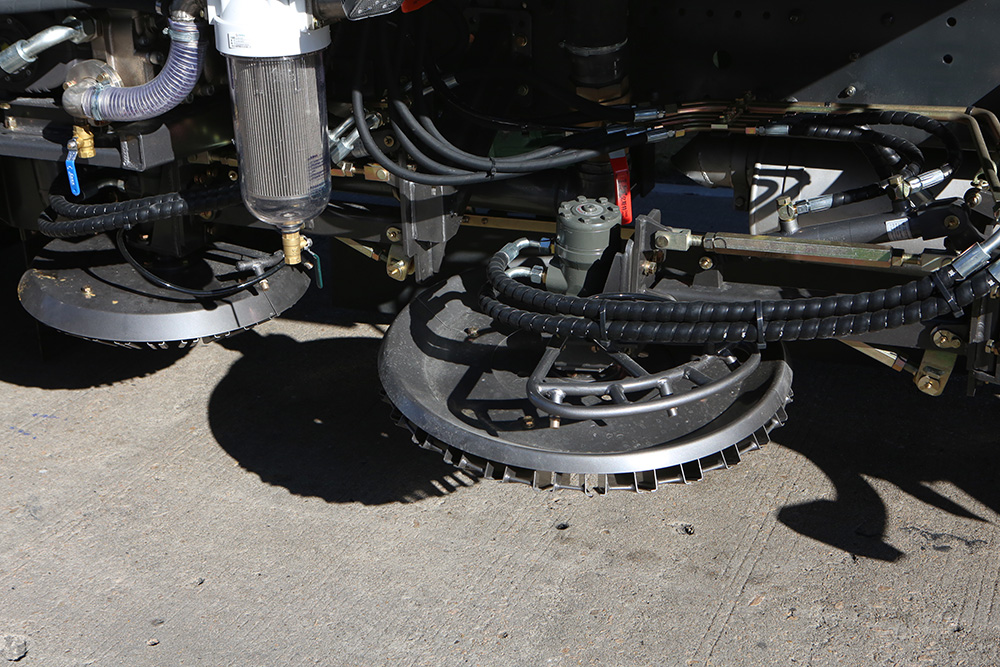

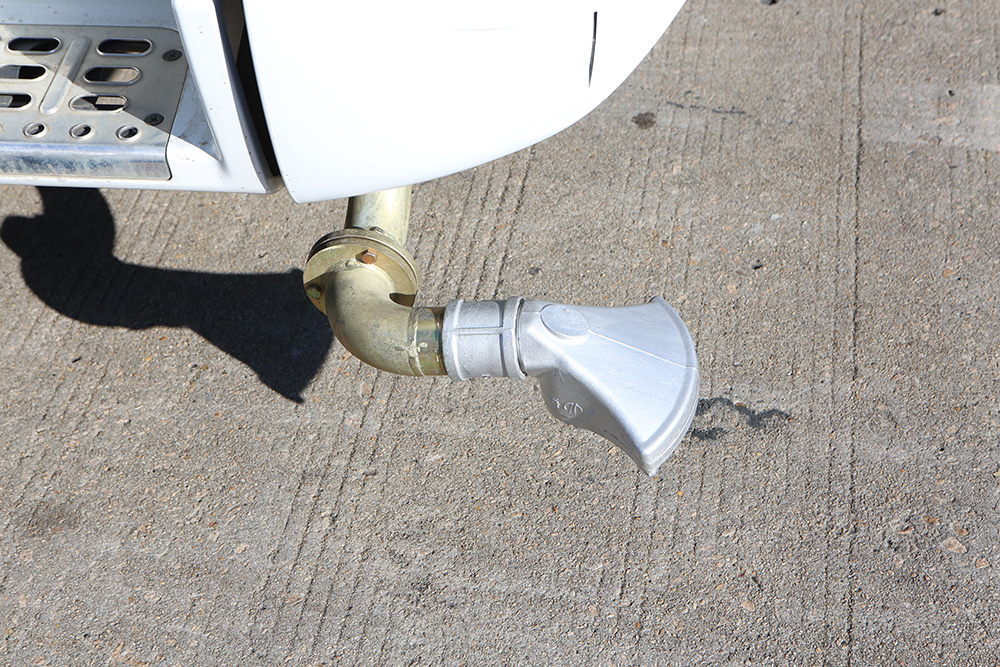

1. The left and right and rear spraying dust pressure system, two front sweeping discs, which can automatically avoid, the middle suction cup, equipped with high-pressure cleaning function, front flushing, and sprinkling device.
2. The garbage is collected by suction and sweeping, and the road is cleaned by wet dust removal, electro-hydraulic control, and hydraulic tipping.
3. The auxiliary engine is used to drive the fan and hydraulic system to ensure that it can continue to work during driving and ensure the continuity of the cleaning process.
4. Adopt the structure arrangement of “four-plate brush + rear nozzle plate”, which is convenient for the adjustment and maintenance of the cleaning device and the suction nozzle, and the vehicle has good passability when transferring.
5. An automatic clutch is set to rotate between the auxiliary engine and the fan, which can ensure the automatic separation of the auxiliary engine from the fan when it starts and stops under no load, reduces the impact on the auxiliary engine, and improves the working reliability and service life of the auxiliary engine.
6. The scanner has automatic avoidance protection and automatic reset functions when encountering obstacles. It automatically retracts after encountering obstacles and automatically resets after crossing obstacles.
7. The speed of the sweeping disc is adjusted according to various cleaning conditions to ensure a good cleaning effect under various pollution conditions.

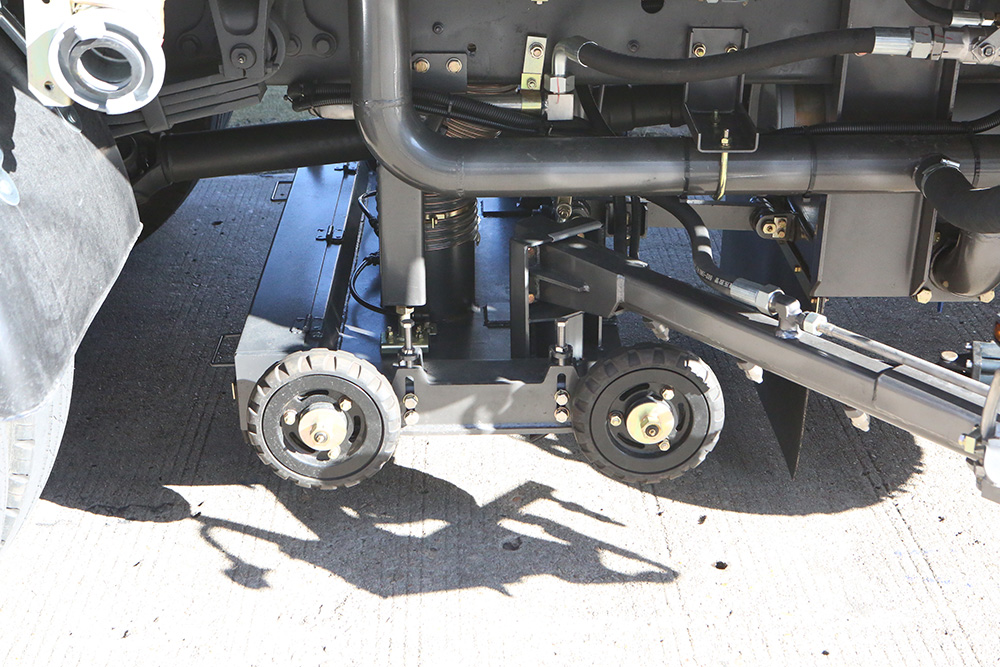

8. It adopts an advanced and efficient special fan and a full-floating suction nozzle that can automatically level the ground along with the road surface, which has a good cleaning effect and long service life.
04. Video of cleaning and sweeping truck work
