The electric compression garbage truck is a new generation after-loading compression garbage truck independently developed and designed by FULONGMA on the basis of absorbing the advantages of a variety of similar products. The garbage truck has a beautiful appearance, excellent performance, advanced control, and control, and adopts after-loading material compression. And the two-way compression technology completes the collection of urban domestic garbage, the effective volume is 12.5 tons, and the garbage compression density is 0.65-0.8t/m3, and its comprehensive performance has reached the advanced level of similar products.

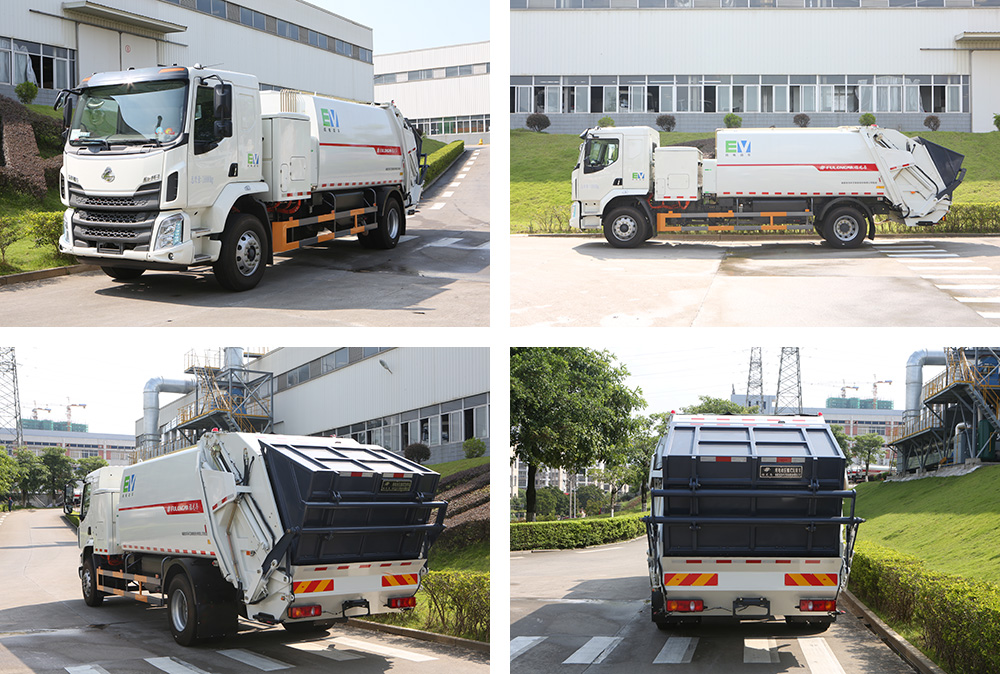

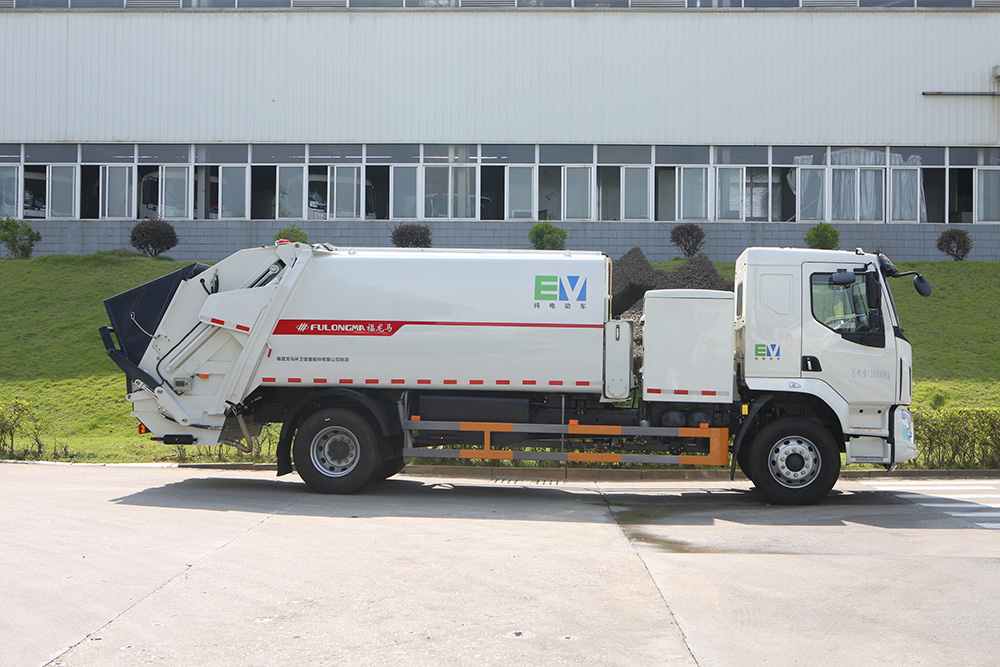

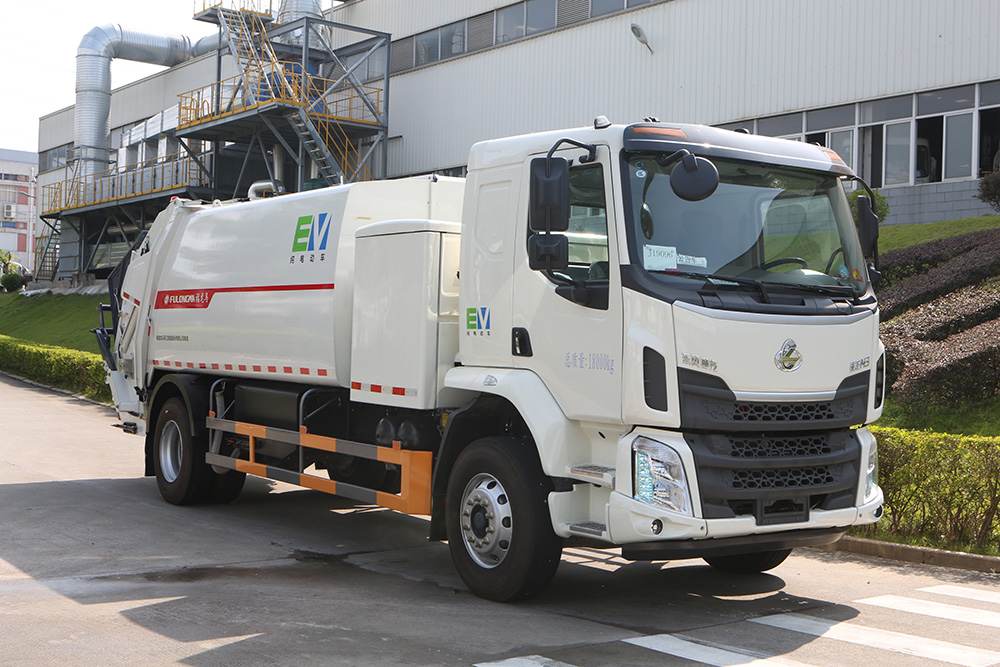

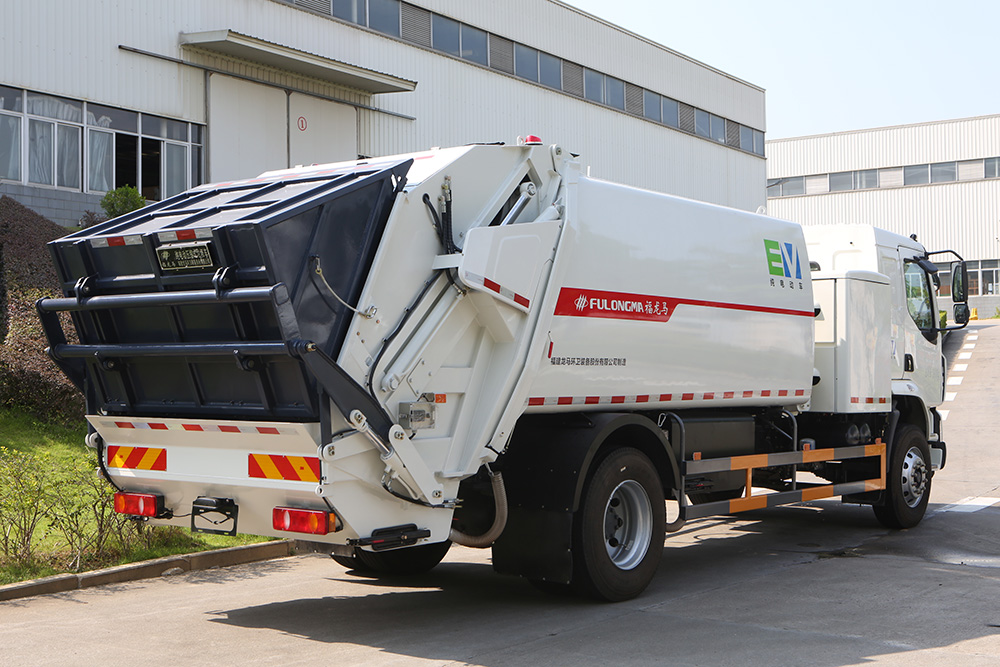

01. Picture display of electric compression garbage truck
02. Electric compression garbage truck body configuration
The new non-reinforced box has a beautiful and elegant plane arc, and the effective compression volume is 12.5 tons. The main components such as the trash can are made of B480GNQR high-strength weather-resistant steel plate produced by Shanghai Baosteel, and adopt an arc design, which is simple and beautiful, has a large effective volume, outstanding overall structural performance, and strong impact resistance. The box body can be painted with patterns and words as required.
03. Scope of application of electric compression garbage truck
This product is mainly suitable for the collection and transfer of barreled, bagged, and bulk domestic garbage in urban residential areas, communities, large factories and mines, and government institutions. Through the joint efforts of FULONGMA technical research and development personnel, this product is currently equipped with a variety of bucket (bucket) mechanisms to meet the needs of different users for garbage collection:
1. Standard 120L/240L/660L plastic trash can and 330L iron trash can flip mechanism, and the filler can be equipped with a fully sealed cover plate;
2. Triangular dustpan bucket turning mechanism;
3. Fully enclosed dustpan bucket turning mechanism;
4. Swing arm type turning mechanism (can be equipped with standard plastic barrel/iron barrel turning structure in the middle).
04. Advantages of electric compression garbage truck modification
1. The opening of the side power take-off can be controlled by controlling the air-controlled hand pull valve in the cab, which is more convenient and effective. With the air source intervention of the original chassis, the power take-off operation is more stable and reliable. The phenomenon of gearbox gears meshing with each other, dislocation, and toothing.
2. Double pumps can be selected according to the needs of customers, and the targeted design avoids the situation that the flow rate is too large and the speed of the compressed garbage truck is too fast in certain working conditions, which causes serious damage to the structural parts and heat generation of the hydraulic system.
3. The U-shaped integrally formed truss slot with high strength of Japanese technology is adopted as the movable guide rail of the garbage pushing plate, which has strong pressure resistance and good deformation resistance.
4. Adopting a unique back pressure design, which can compress the household garbage to a ratio of 2.5:1. With the same volume of the box, it can load more garbage and improve work efficiency.

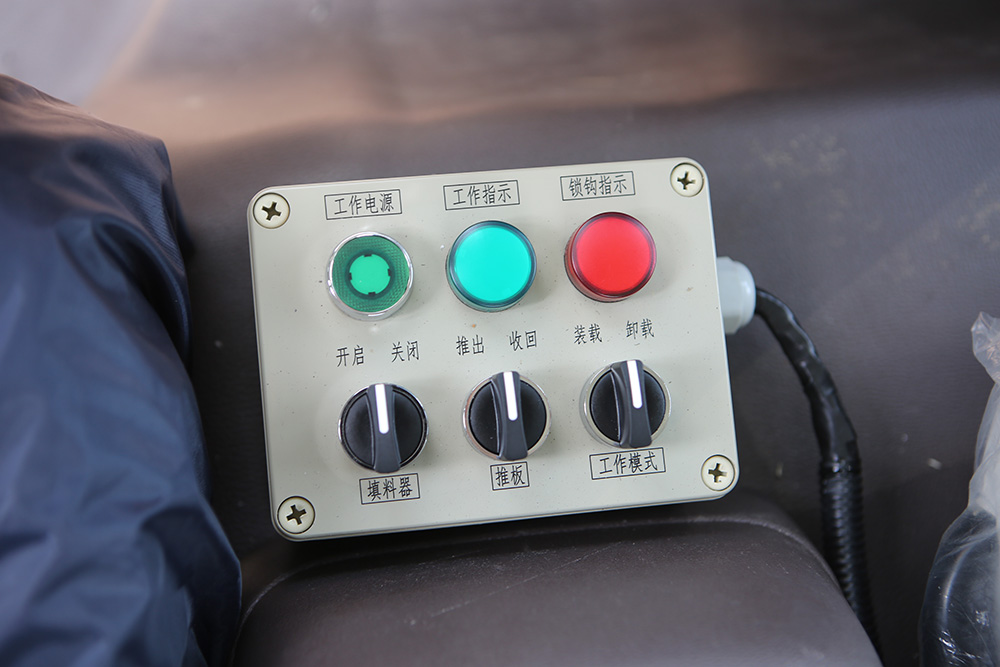

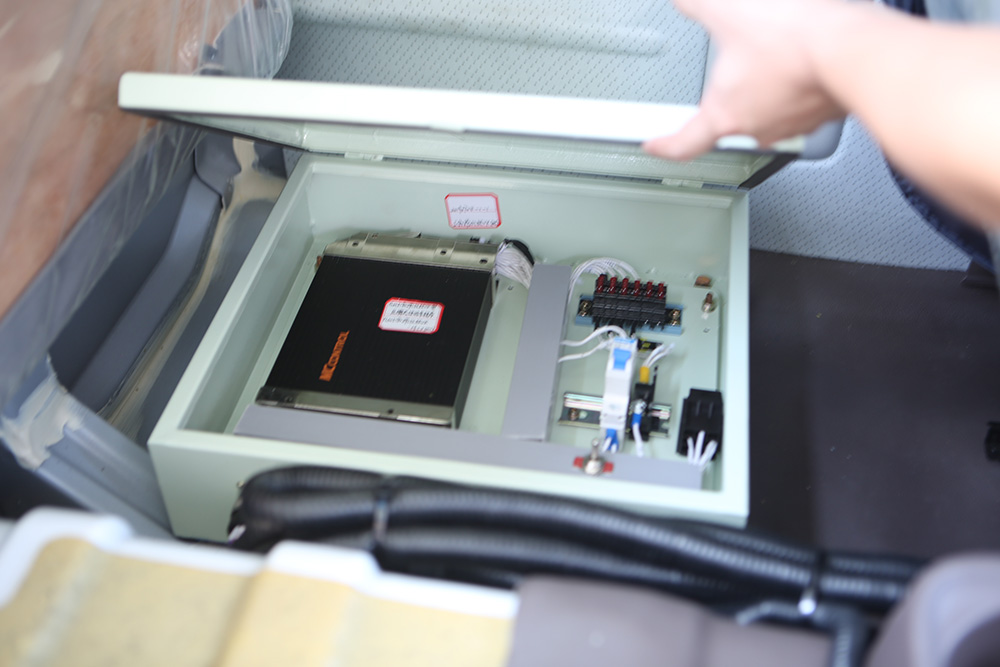

5. The whole vehicle adopts manual + electronic control (PLC logic control) control mode. The electronic control adopts Siemens imported modular programming design and is equipped with a professional waterproof control box. The wiring harness connectors are unified and centralized control. The structure is simple, the appearance is beautiful, and the function is reliable.
6. The hydraulic system of the whole vehicle is redesigned, adopting pilot back pressure design and creep compression technology, which greatly improves the compression capacity of the whole vehicle and maximizes the compression capacity of the compressed garbage truck.
7. Adopting a unique sealing design and widening of the filler, which thoroughly improves the problem of sewage leakage during the loading and transportation of the after-loading compressed garbage truck, making it more hygienic, clean, and environmentally friendly.
8. Equipped with night work lights, convenient for sanitation workers to work at night.
