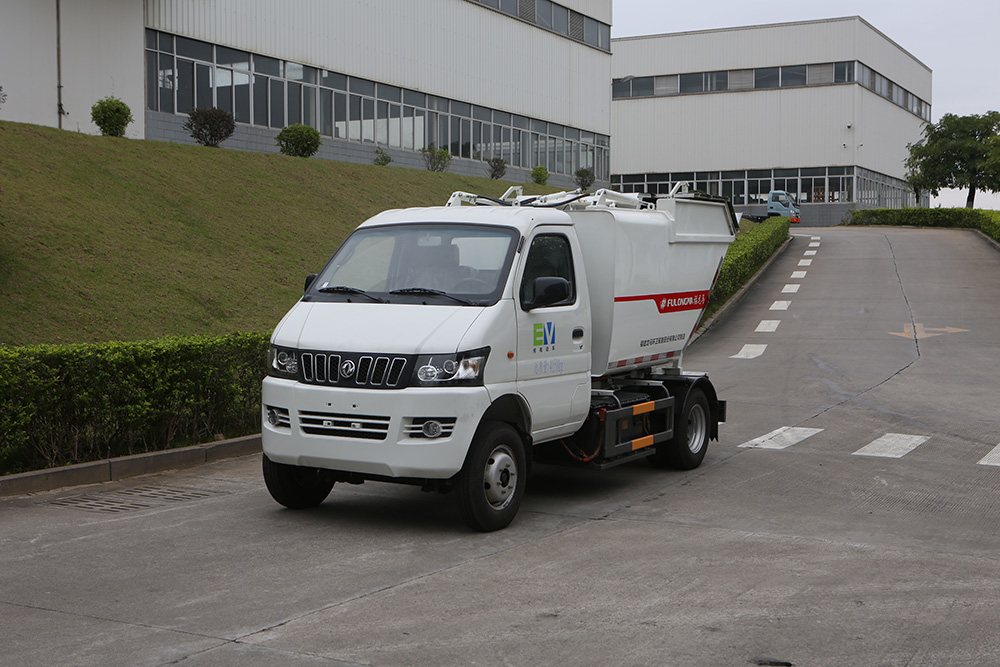

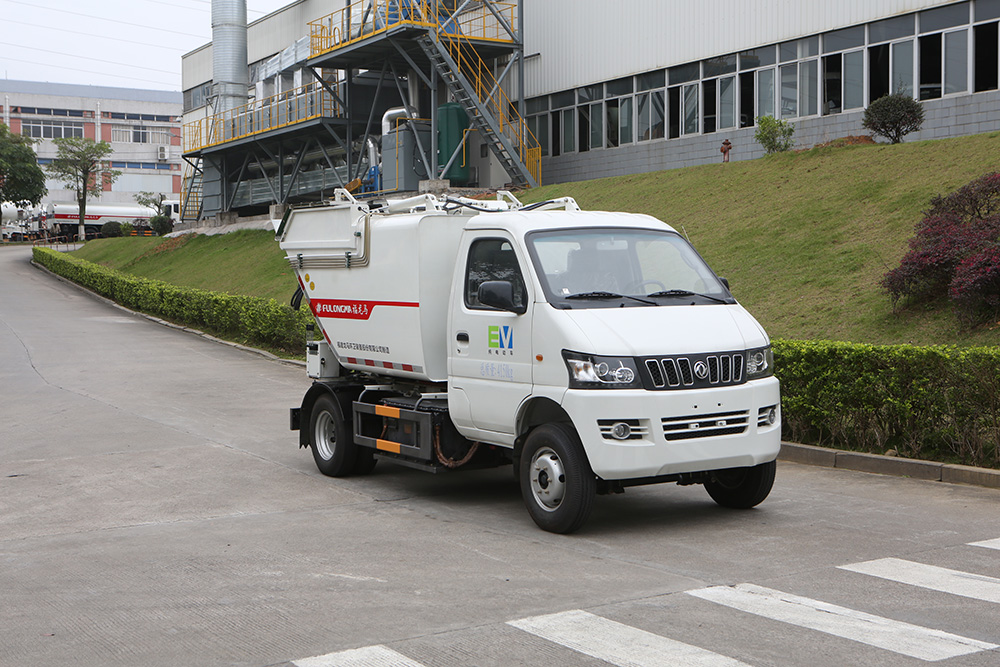

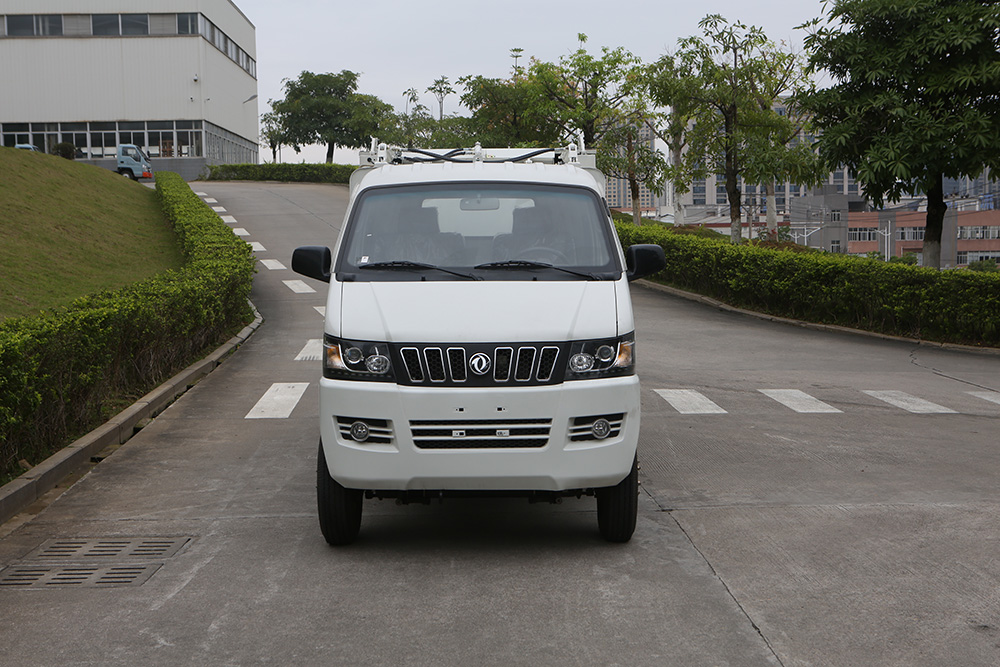

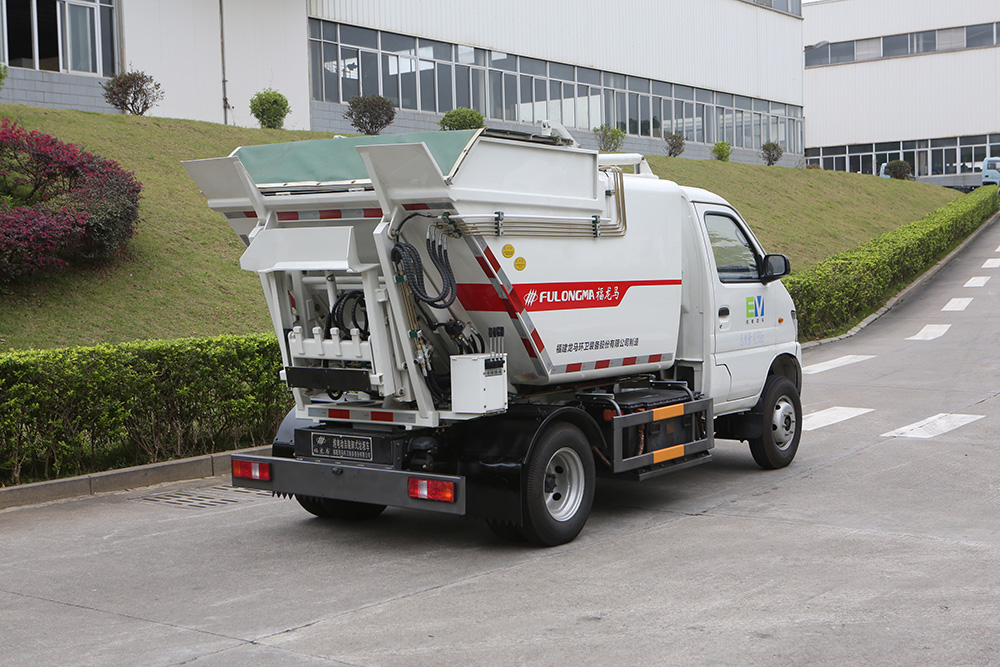

FULONGMA pure electric self-loading and unloading garbage truck is a pure electric self-loading and unloading garbage truck independently developed according to market needs. The vehicle adopts hanging buckets for automatic collection and manual filling and collection, which is economical and applicable. This product has a wide range of applications and low requirements for environmental conditions. It is suitable for rural areas, urban streets, and other large areas. It is mainly used for the collection and transfer of domestic garbage. At the same time, it can be used with large garbage compression trucks and conjoined garbage compression bins.
01. Functional configuration of FULONGMA pure electric self-loading garbage truck
1. Chassis configuration

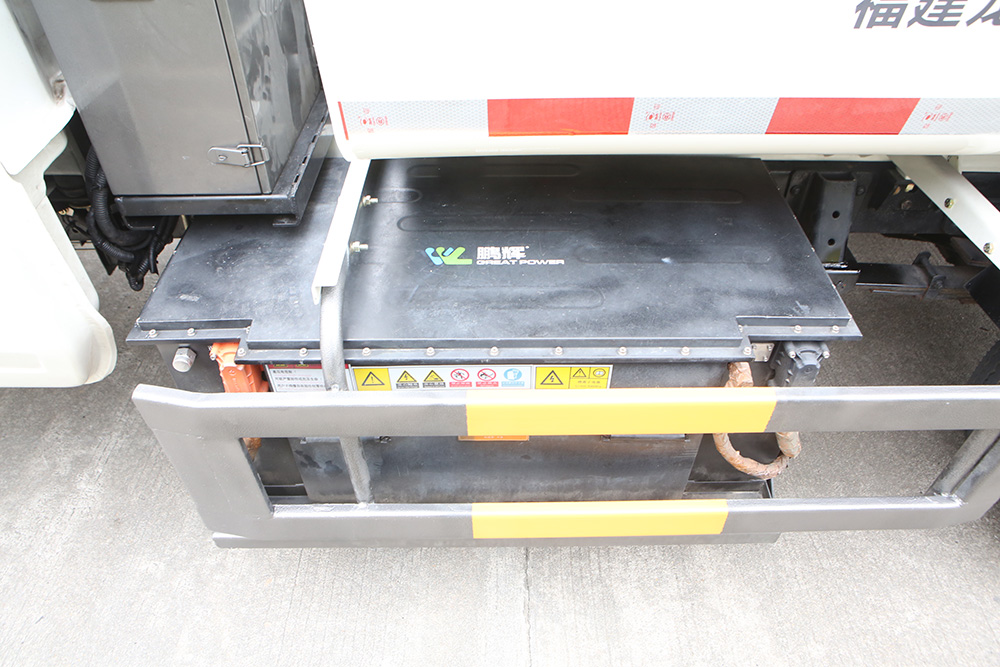

This model adopts the EQ1046TTEVJ pure electric chassis produced by Dongfeng Motor Co., Ltd., with strong power and strong carrying capacity. The chassis is a new energy chassis with reliable quality.
2. Bodywork configuration
1) Trash can

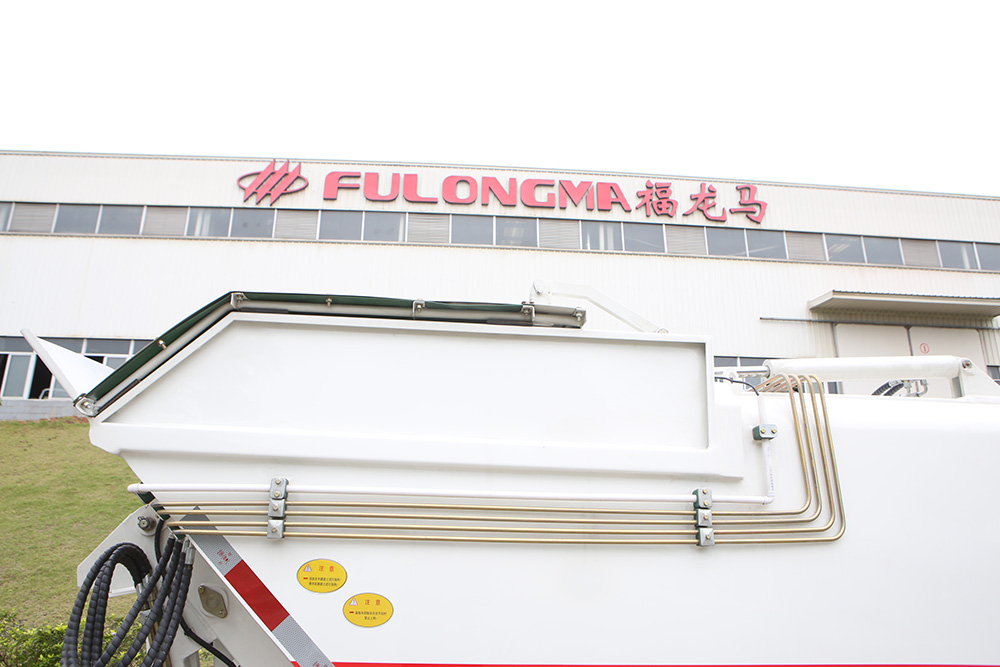

The feeding method of the trash bin is rearward feeding, and the unloading method is rear tipping unloading. The side plate and bottom plate are made of high-strength and high-quality steel by bending at one time, with reasonable rigidity matching, convenient dumping of garbage, and easy cleaning. The garbage bin adopts a non-leakage ship-shaped design to ensure that there is no leakage of sewage.
2) Compression mechanism
The compression mechanism is set on the top of the trash bin. The compression mechanism is composed of a scraper, a skateboard, and its accessories; the skateboard is installed on the top of the carriage and slides back and forth along the track; the scraper is installed on the skateboard and can rotate, and the skateboard drives the scraper to simultaneously Lose garbage is compressed, the net load rate and transfer efficiency are higher, and the operating cost is lower.

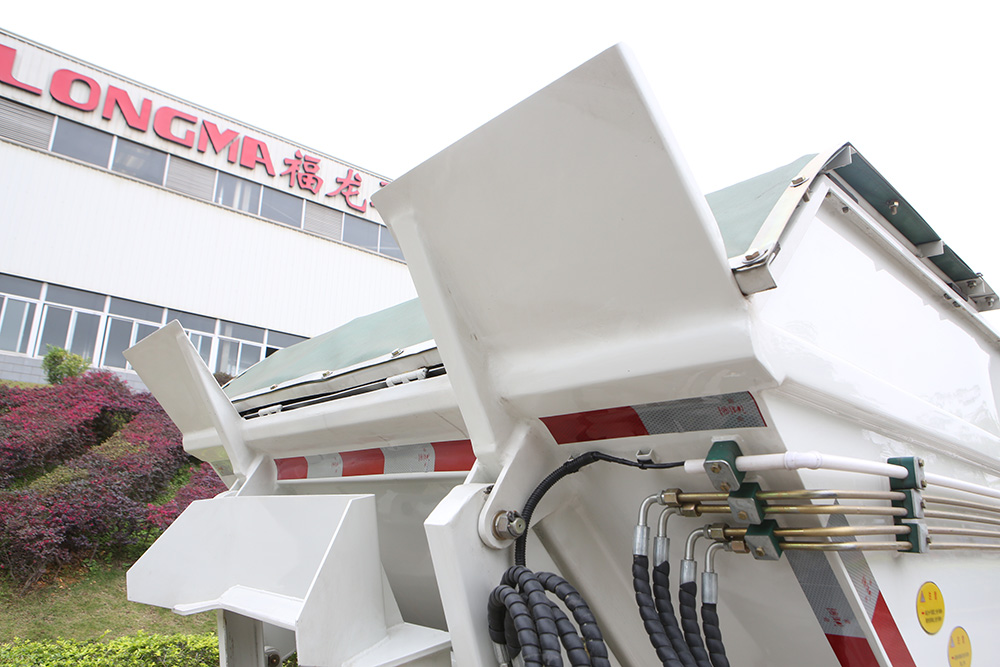

3) Feeding mechanism

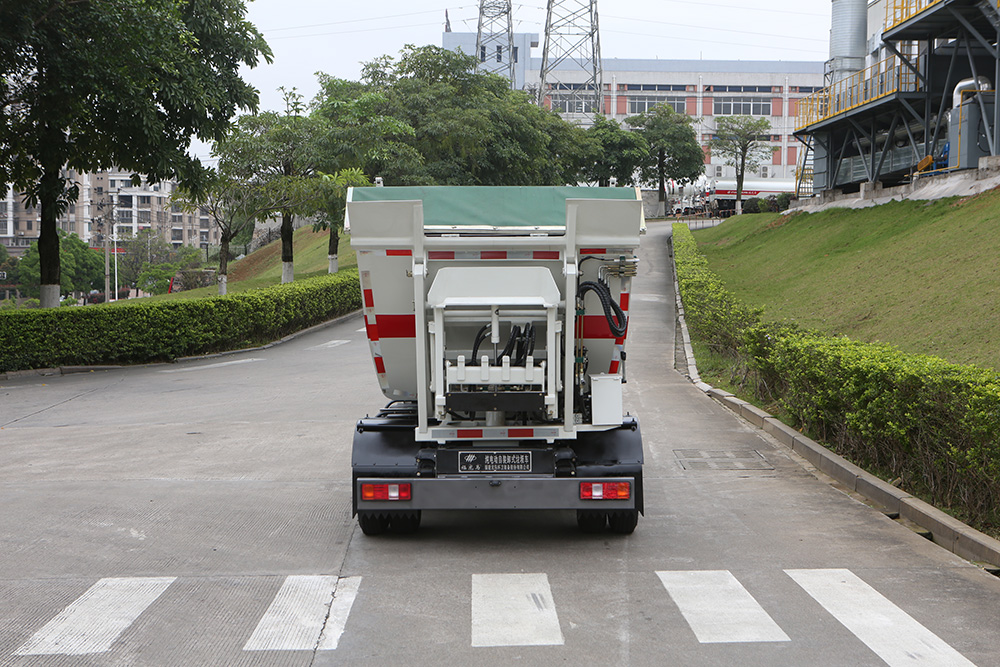

The well-designed multifunctional rear feeding mechanism is more concise, with high working reliability and convenient daily maintenance. Good product adaptability makes it possible to load two 120L/240L trash cans or a single 660L trash can at the same time, meeting the needs of customers using multiple trash cans of different specifications at the same time.
02. Advantages of FULONGMA pure electric self-loading garbage truck
1. Good quality
1) High configuration: hydraulic and electrical control components are internationally well-known brands, with excellent quality and high reliability.
2) Aluminum alloy guardrail: The side guardrail is made of aluminum alloy profile, the overall appearance is beautiful, and it can be fully recycled to prevent waste of resources and environmental pollution.
2. High security
1) Two-way balance valve is designed for the lifting oil circuit of the carriage, which is stable in action, less impact, safe and reliable.
2) Equipped with mechanical safety struts for maintenance and double insurance.
3) The vehicle is equipped with an emergency manual hydraulic lifting device.
4) There are safety outriggers at the rear of the vehicle. The safety outriggers are opened during unloading to ensure the stability of the entire vehicle during unloading; the outriggers are automatically recovered after the car body falls into place after unloading to ensure driving safety.
5) There is an emergency stop button on the right side. When a dangerous situation occurs, the operation can be stopped urgently to ensure safety.
6) The vehicle body is equipped with multiple safety warning labels to remind the operator to pay attention to safety.
7) The entire vehicle has an action interlocking program to ensure that each action can be executed safely.
8) Sound, light, and voice reminders during operation to ensure the safety of personnel and vehicles.
3. Energy saving and environmental protection
The whole vehicle adopts a multi-speed control mode, matching different speeds according to different working conditions, with low speed, energy-saving, and environmental protection.
4. Long service life
The key components such as the side panels, bottom plates, and scrapers of the carriage are made of high-strength steel plates, which have good strength and long service life.
03. FULONGMA pure electric self-loading and unloading garbage truck operation mode
The vehicle adopts the controller control mode, adopts high-quality electrical components, and compiles different control programs according to different requirements to realize vehicle intelligent control, safety control, and humanized control operation. Moreover, the controller has short-circuited self-protection, so the system has uniformity Strong, high reliability, convenient operation, and maintenance, etc.

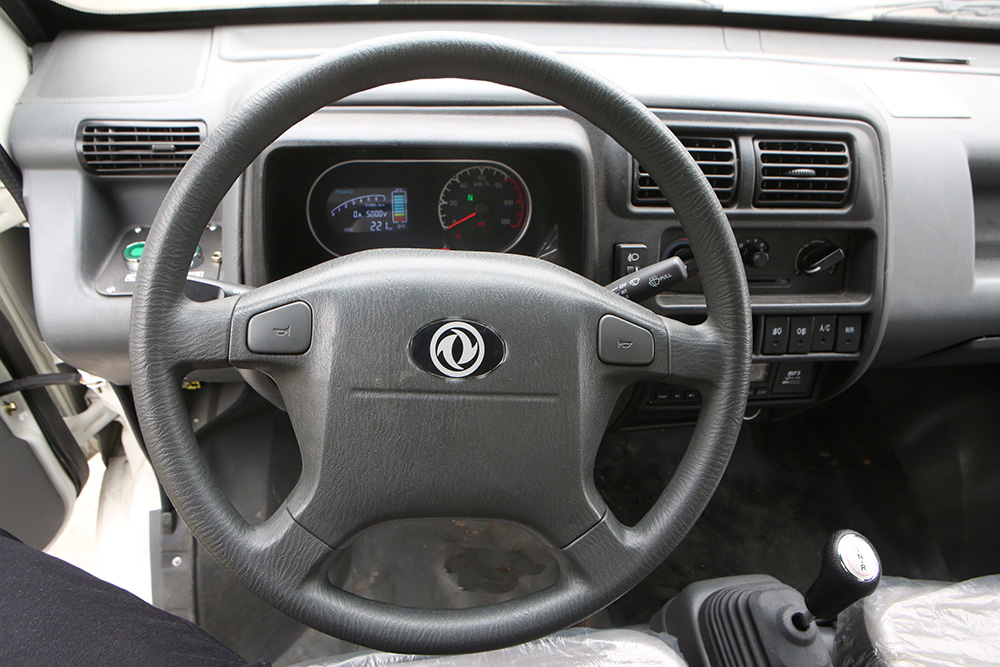

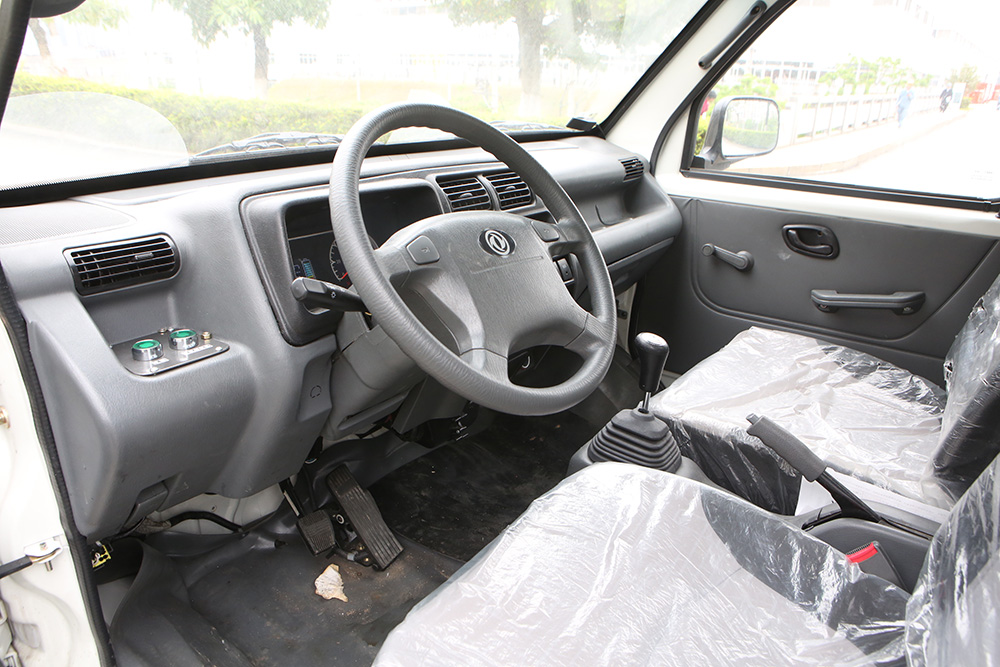

The operating box in the cab, located in the middle of the dashboard, is mainly used for working power switches, working light switches, voice switches, etc.

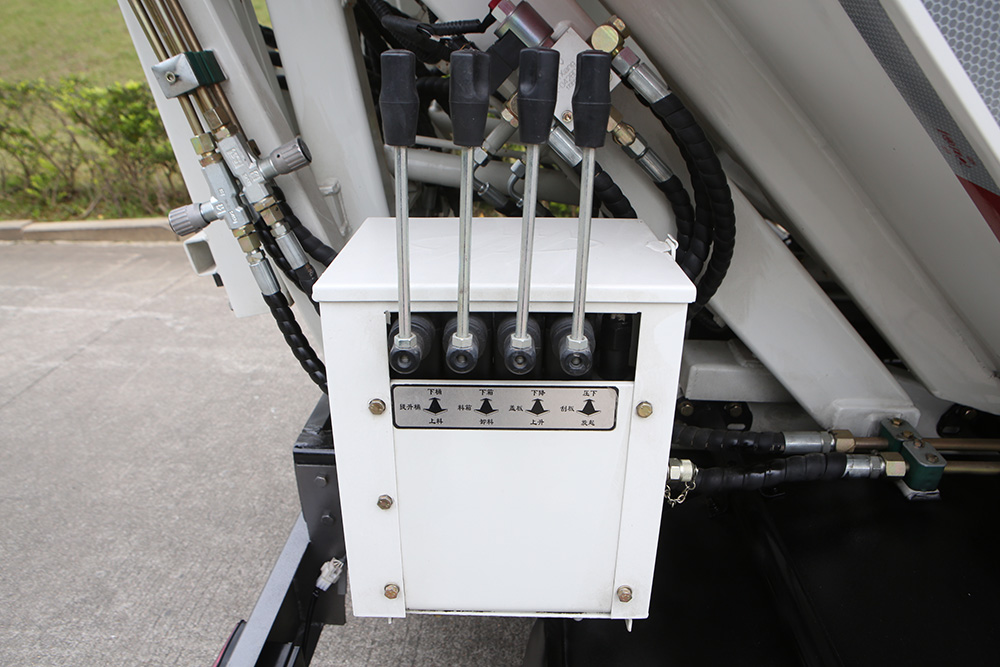

The operation panel at the rear of the vehicle is located on the right rear side of the vehicle. It is mainly used for loading, unloading, one-key compression, and driving preparation of the trash bin.
The remote control is used to control the loading, unloading, and pressure filling cycle of the trash bin.
An emergency stop button, located on the rear right side of the vehicle, is used for the emergency stop button.
