Food waste collection trucks, also known as meal garbage trucks or swill trucks, are garbage trucks. Special vehicles for collecting and transporting domestic waste and food waste. The food waste collection truck not only optimizes the environmental sanitation of residents, but also reduces the smell of kitchen garbage in the air, reduces the possibility of breeding cockroaches and bacteria, improves the sanitation operation environment, and reduces the pollution caused by the scattering of garbage.

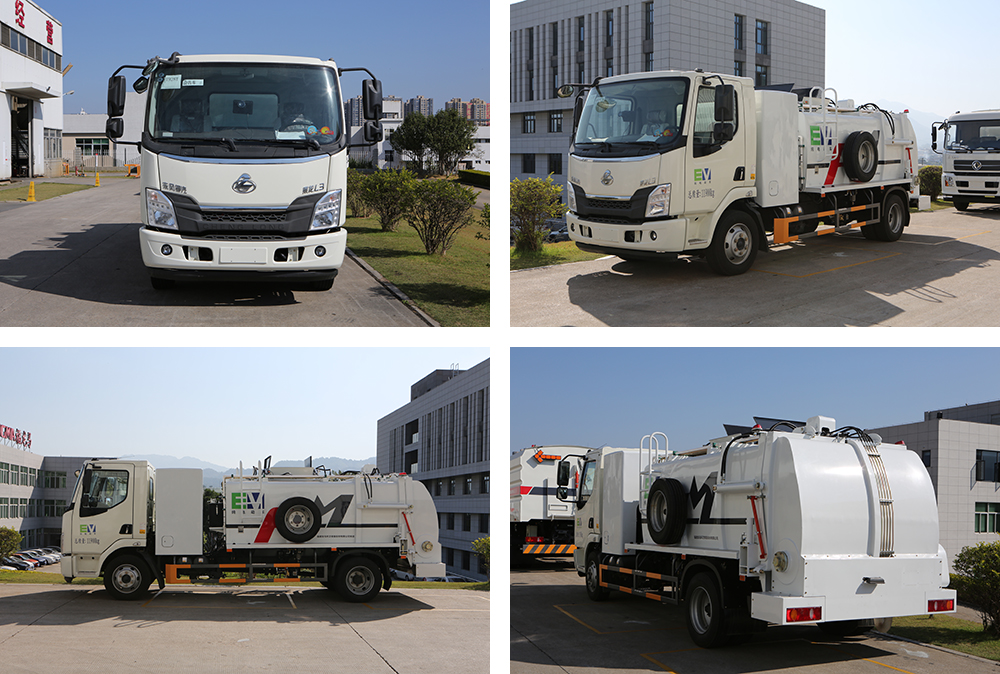

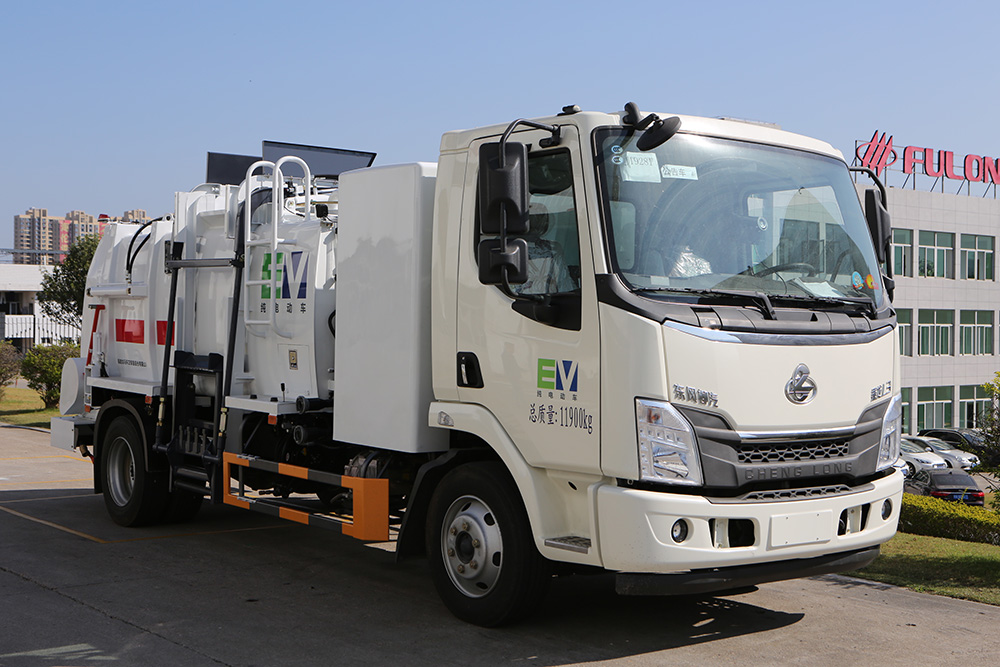

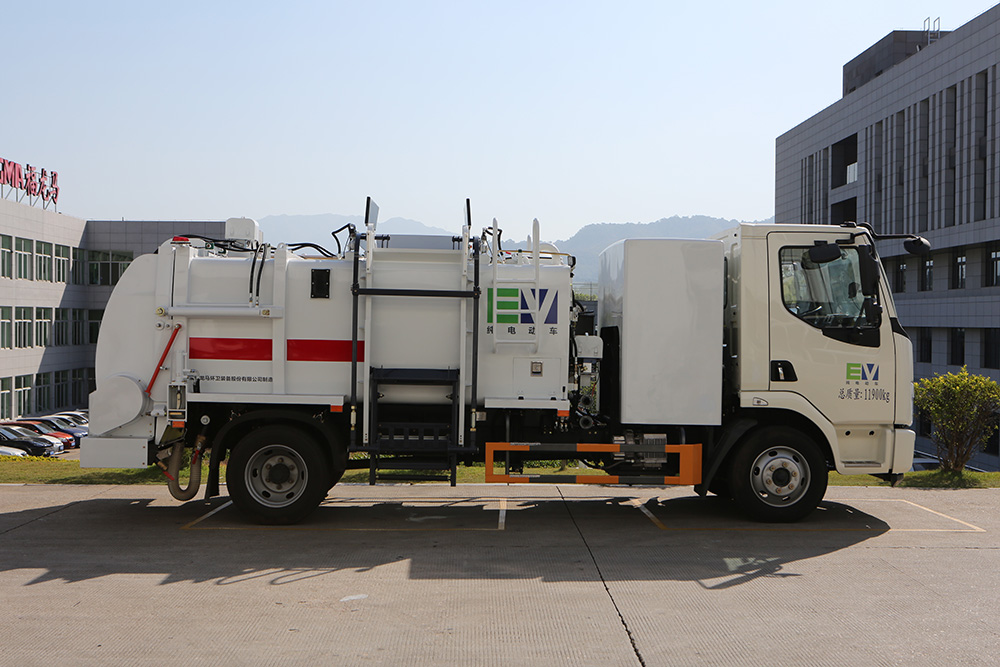

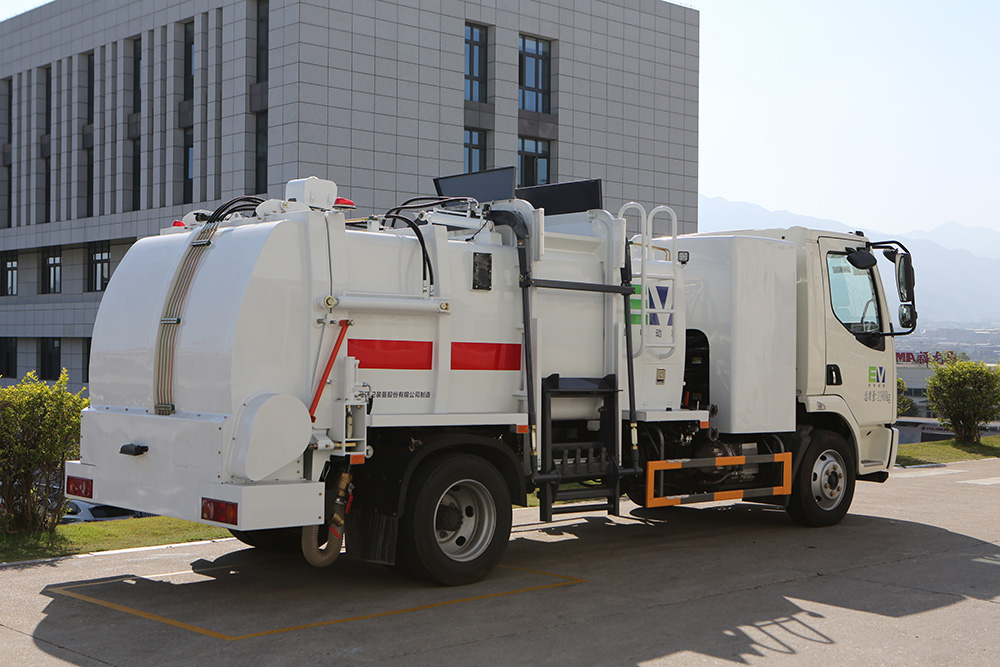

01. Multi-picture display of pure electric food waste collection truck
02. Pure electric food waste collection truck configuration
1. Adopting Dongfeng pure electric vehicle chassis, using the battery of the chassis itself, and adopting electric control design for the main operating system, which not only saves energy but also reduces operating costs. At the same time, it shares the power battery with the chassis. The driver drives the hydraulic system, etc., to realize the functions of garbage loading, unloading and collection, and transportation.
2. The upper body is composed of a box body, a rear door mechanism, a sealing and locking mechanism, a push plate mechanism, a bucket hanging mechanism, and an operating mechanism.
3. The pure electric kitchen waste loading is completed by the trash can lifting system, which has a trash can locking structure for loading and unloading. The trash can is well connected to the trash input port to ensure that food waste is not spilled or missed during the loading and unloading process. There is a sufficient distance between the garbage input port and the push plate, and the push plate and the inner surface of the tank are equipped with a sealing device to prevent the kitchen waste from overflowing behind the push plate during the input and separation process. The hydraulic system consists of pumps, hydraulic valves, sequence valves, hydraulic cylinders with various functions, and high and low-pressure pipelines.
4. The tank body is divided into upper and lower layers. The lower layer is a sewage collection tank after solid-liquid separation. The sewage tank is high at both ends, low in the middle, and has a water outlet at the low end to ensure clean sewage discharge.
03. Introduction to the function of pure electric food waste collection truck
Slowly lift the barreled kitchen swill waste through the lifting frame, and pour it into the compartment on the top of the car (the compartment can be divided into a box body and a tank body), and the thrown waste is squeezed by a powerful push plate and placed in the tank body. Solid-liquid separation is realized, and the separated liquid enters the sewage tank at the bottom of the tank. The solid waste is compressed and stored in the tank, and the volume becomes smaller. After being filled up, it is repeatedly sent to the kitchen waste resource optimization treatment plant.
04. Advantages of pure electric food waste collection truck
1. The loading capacity is strong, and it can realize the preliminary separation of the oil and water of the kitchen garbage in the box and the reduction of the garbage volume, and it is equipped with a large-capacity sewage tank.
2. A special rubber strip is used for sealing between the dustbin and the rear door assembly, which has good sealing performance and secondary pollution.
3. It adopts electric and hydraulic combined control and is equipped with safety protection switches to ensure the accuracy and reliability of each mechanism.
4. The working tank and the working platform are carried by the chassis, and any place that needs to be treated for swill, only one driver and one worker can be there on call.
05. Details of pure electric food waste collection truck

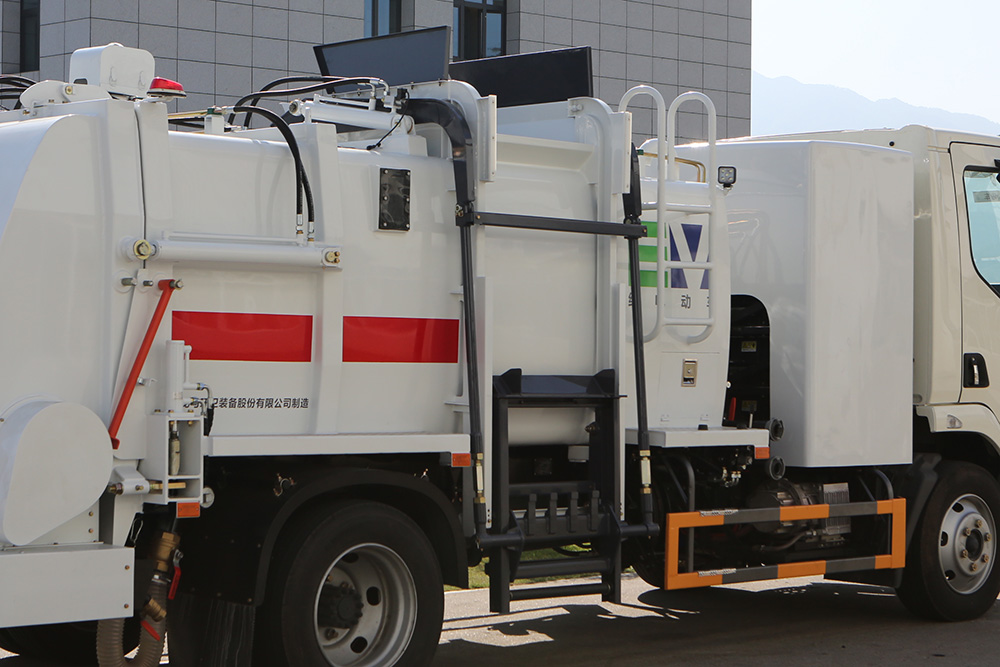

1. Tie rod elevator
The pull rod elevator is a component that dumps the food and kitchen waste in the trash can into the trash can and is driven by an oil cylinder to realize the mechanism for discharging and resetting through the pull rod device. The hoist is combined with the feed port to prevent misoperation.

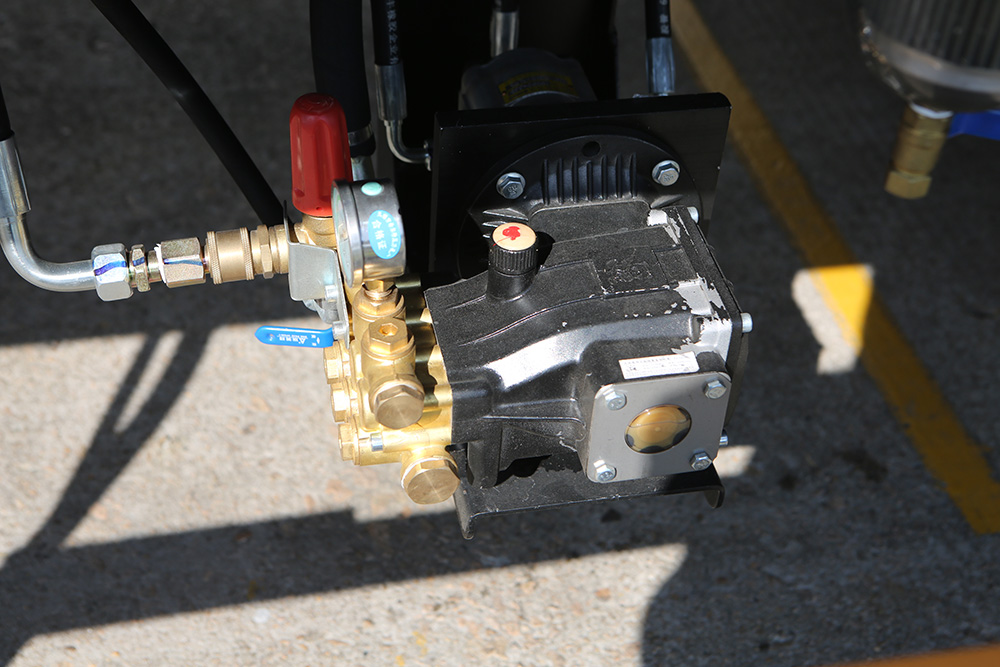

2. The cabinet is equipped with a cleaning device
Equipped with high-performance cleaning machines, water tanks, and reel spray guns on the market, they form a complete cleaning device that can clean the car body.
3. Curved box
The structural design of the arc-shaped box body ensures the optimization of the product performance, and the curved surface design of the box body improves the rigidity of the overall frame while increasing the aesthetics of the product.

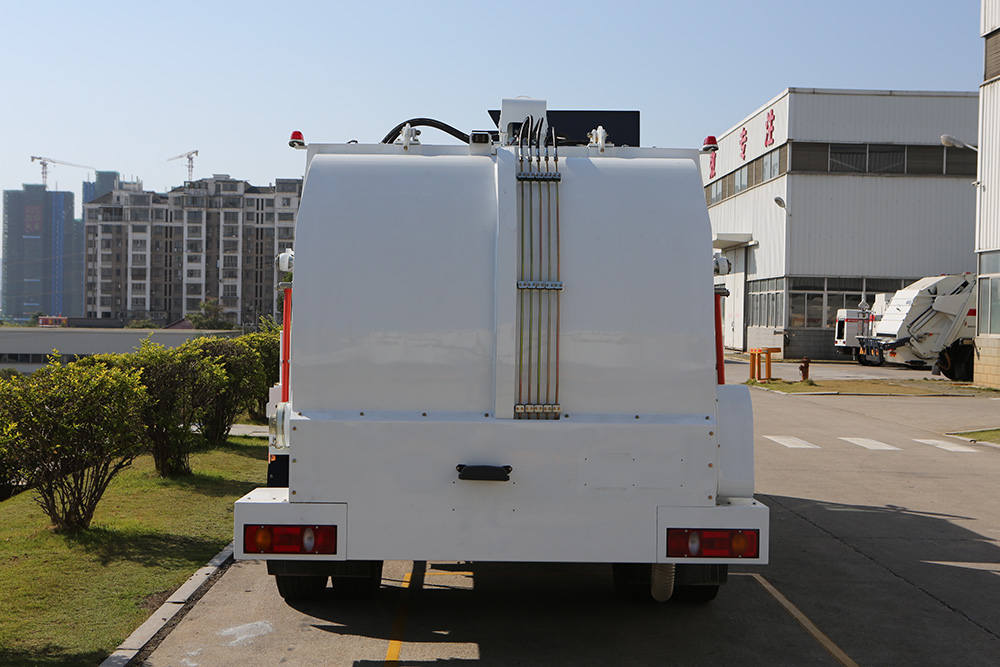

4. Hydraulic locking of the rear door
The back cover is hydraulically controlled, with wear-resistant and anti-corrosion silicone sealing strips, and bolt-type cylinders are locked to enhance sealing, avoid sewage leakage and peculiar smell, and effectively prevent secondary pollution.
5. Dozer unloading
Driven by an oil cylinder, the dozer is slid along the track of the trash bin with the help of wear-resistant nylon sliders, so as to push the solid trash out of the car body for unloading, and the squeezing force can also be used to more thoroughly separate the solid and liquid.
6. Safety brace
When cleaning the cabinet and maintenance, the rear door must be opened with a safety brace to strengthen safety protection.
7. Visual pollution window
The double sight window structure is convenient for the operator to observe the liquid level of the compartment and prevent liquid garbage from overflowing.
