The electric fecal suction truck is mainly used for the urban and rural sanitation departments to suck and transport feces and other sewage. The fecal suction truck is suitable for suction of feces, sewage, sludge, and liquids mixed with small suspended debris, and is suitable for municipal sanitation, large and medium-sized Small industrial and mining enterprises, communities, schools, septic tank cleaning and transshipment, urban pipeline cleaning and dredging, factory biogas slurry cleaning, etc.

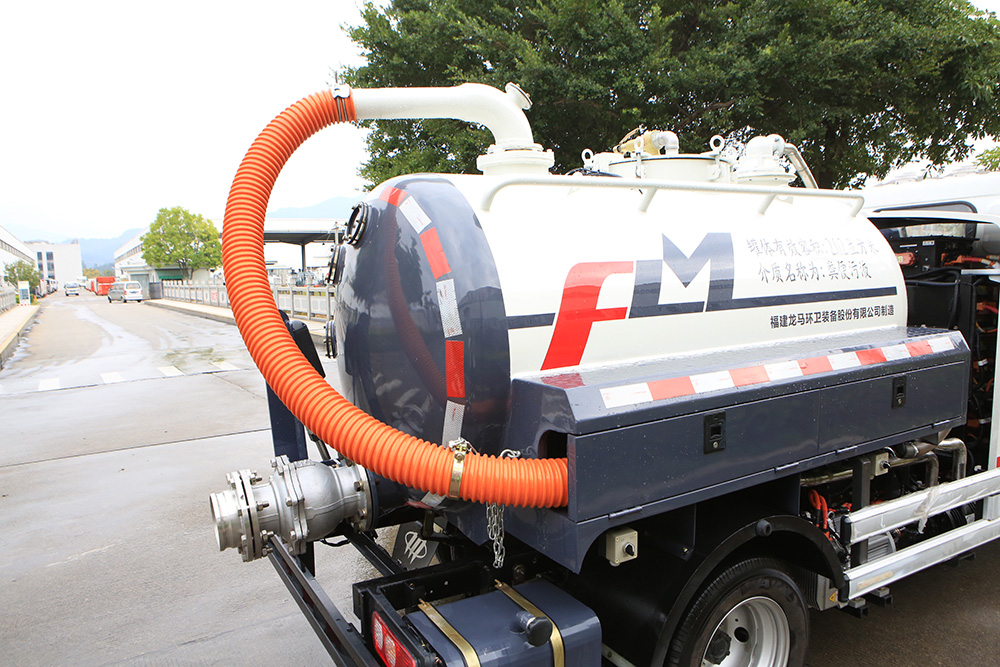

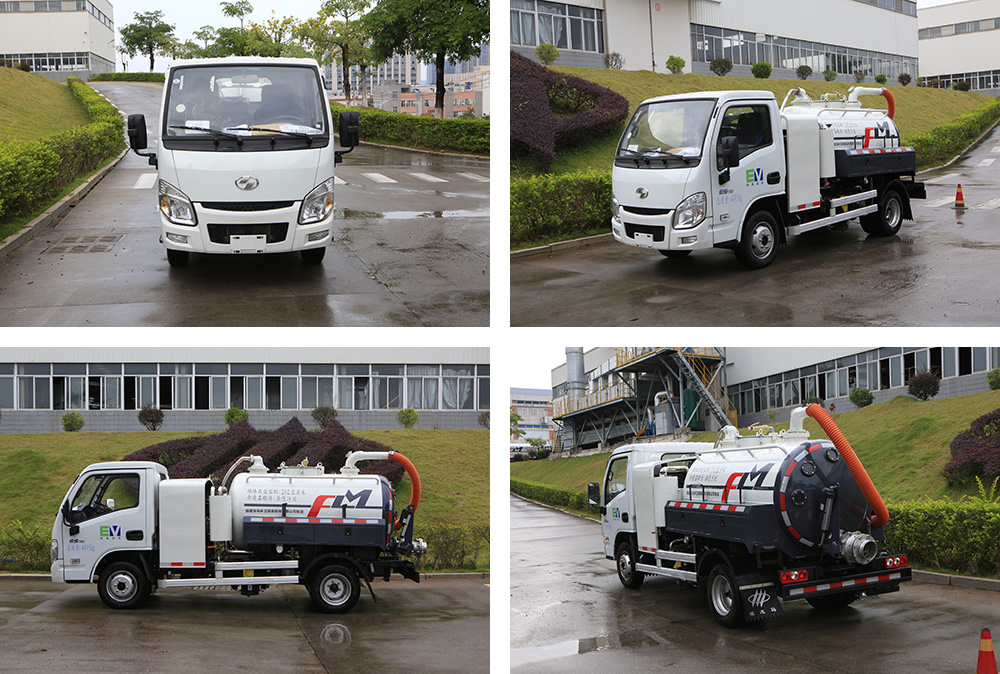

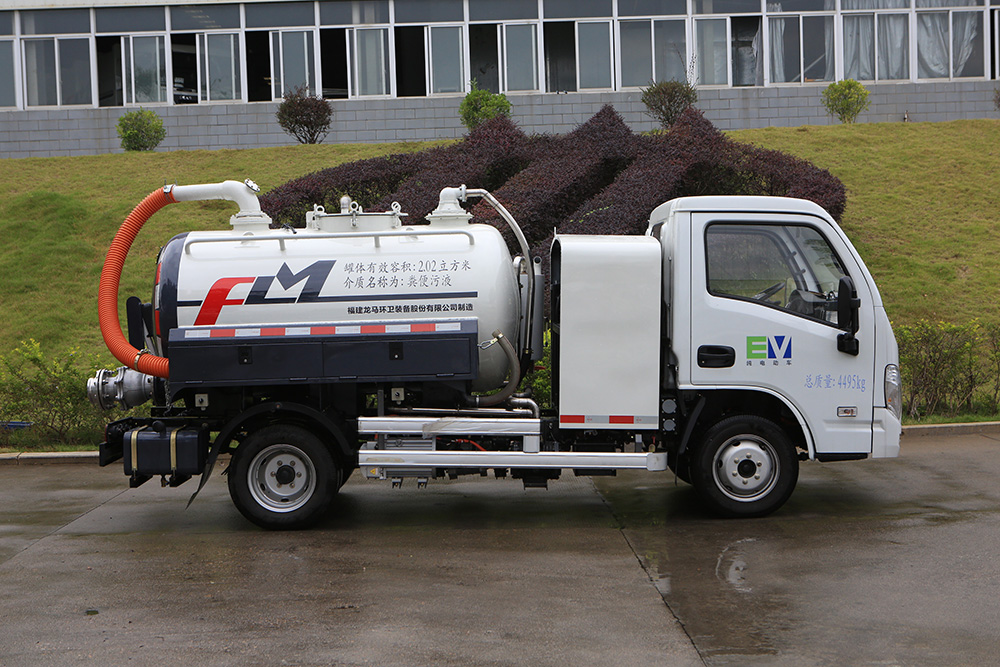

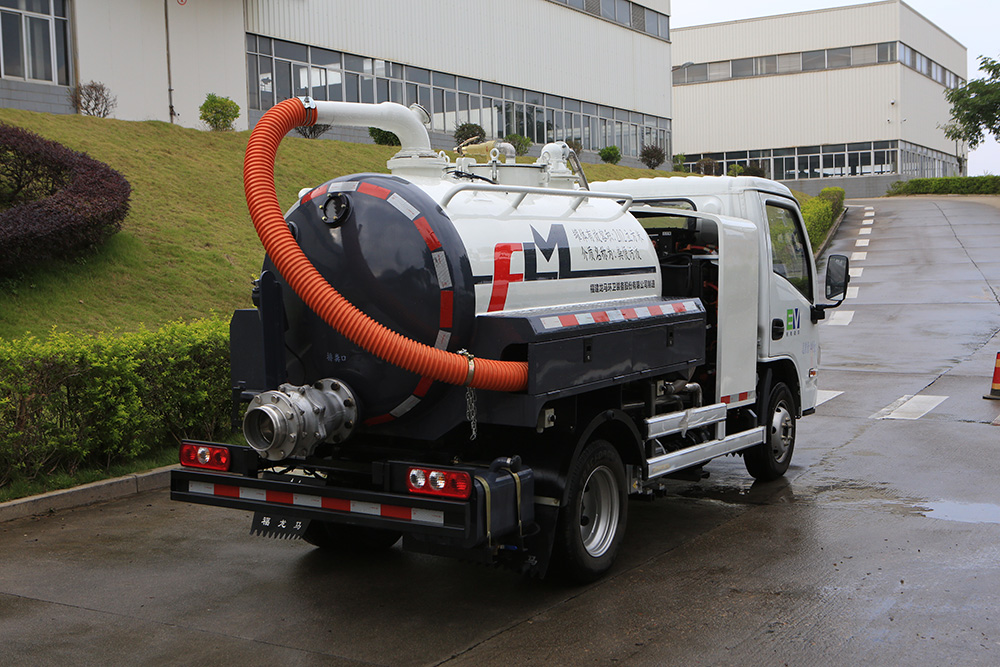

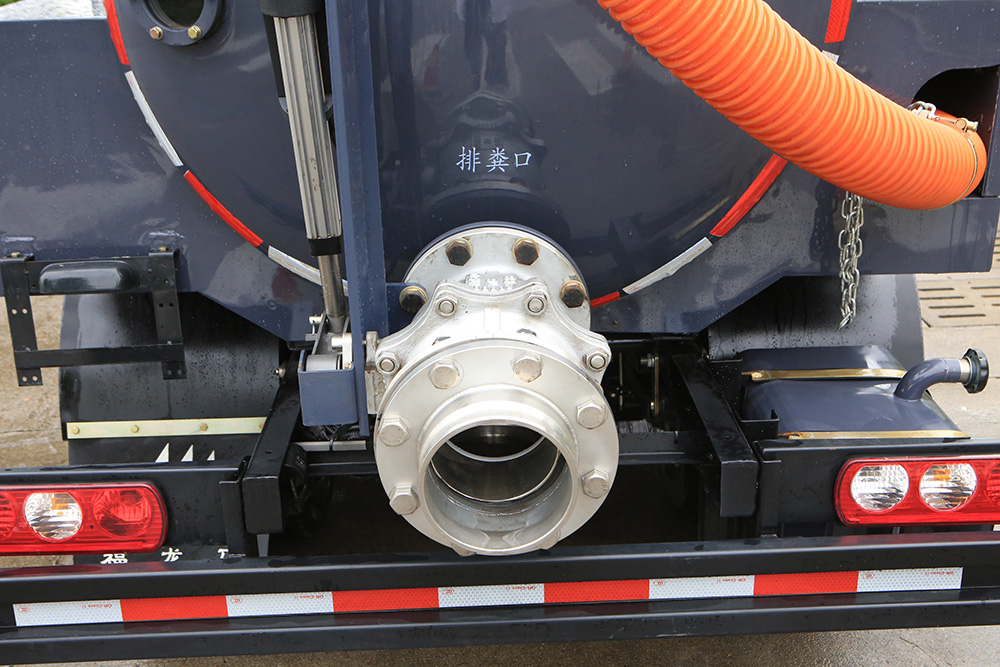

01. Detail display of electric fecal suction truck
02. Functional configuration of electric fecal suction truck
1. Chassis configuration:
SAIC Yuejin’s original chassis, the cruising range is 276km (constant speed method), the total energy storage capacity of the energy storage device is 66.84kWh, the wheelbase is 2850mm, the total mass is 4495kg, the total tank volume is 2.11m3, the battery energy density is 154wh/kg, and the vehicle length is 5330mm. It is 1680mm wide and 2210mm high.
2. Upload configuration:
It adopts a round Q235B tank body (stainless steel tank body is also optional) and is matched with a butterfly head formed by integral compression, which has better pressure-bearing performance and is safer. The whole vehicle adopts three-dimensional design methods and means to carry out the overall appearance and structural design, parts design, and virtual assembly of parts, making the structure more compact, and the whole vehicle more reasonable and beautiful.
3. Optional configuration:
Optional float level controller, optional full electronic alarm, optional full automatic stop, optional without deodorizing device. Vehicle-mounted information: chassis certificate, vehicle certificate, vehicle-mounted tools, various gaskets, vehicle warranty manual, etc.
03. Advantages of electric fecal suction truck
1. Convenient operation, fast suction speed, large suction range, self-priming, and self-discharging.
2. The sewage suction truck has the characteristics of suction, self-priming, self-draining, and direct irrigation. , 1000 revolutions per minute, fast pumping speed, full pumping time: ≤3min, suction range: ≥6m. It has the characteristics of using Shoulichang, fast working speed, easy operation, and convenient transportation.

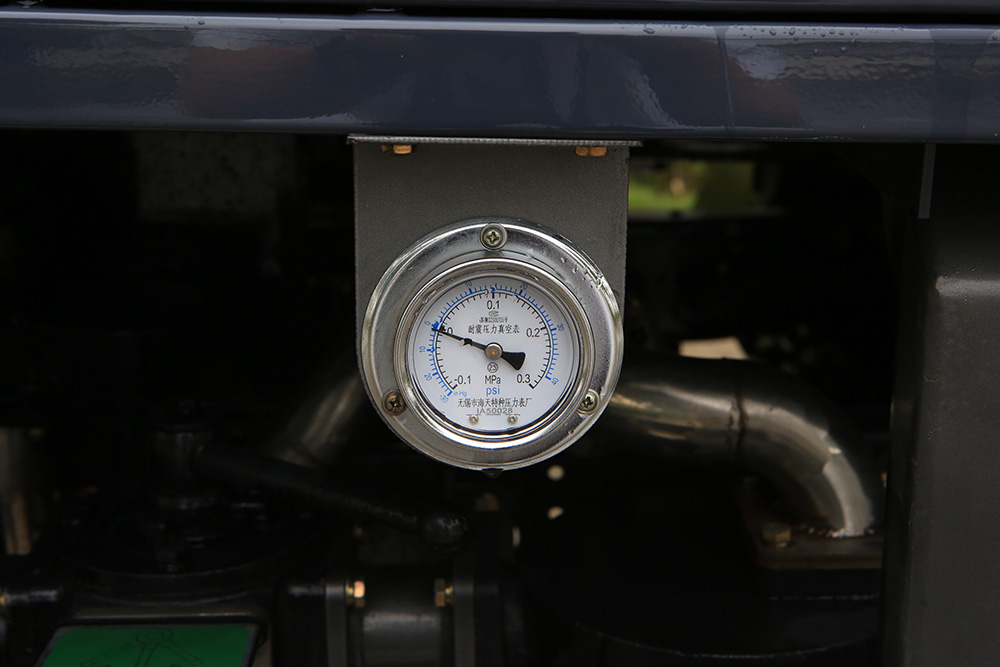

3. In order to improve the service life of this model and reduce the failure rate, this car is equipped with an overflow tank sealer and avoids the overflow tank that often occurs in other types of cars, and the vacuum pump damage caused by the overflow tank, and the vacuum degree is reduced. Failures such as inability to pump or poor pumping effect.
4. Vacuum pump, oil-gas, water-gas separation, and pipe network device, can perform positive and negative pressure operations, with strong and self-draining functions.
5. The dedicated deodorizing system for fecal suction trucks with independent patent design is small in size and has high inefficiency. It can effectively remove the odor molecules in the exhaust gas of the vacuum pump and reduce the secondary pollution of the odor to the surrounding environment.
