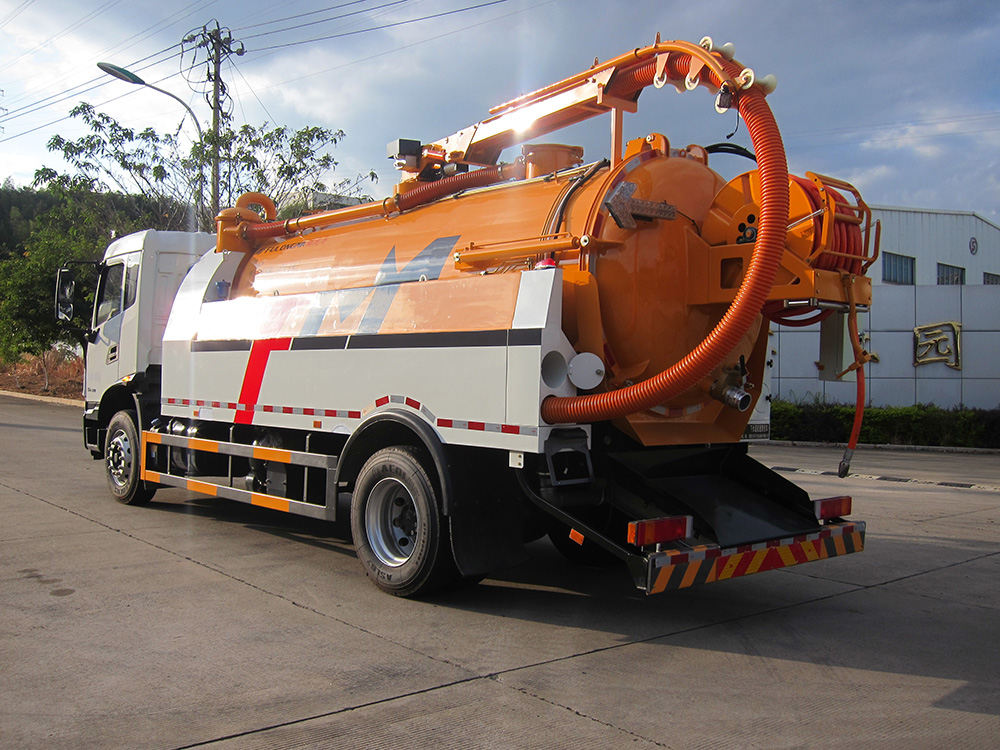

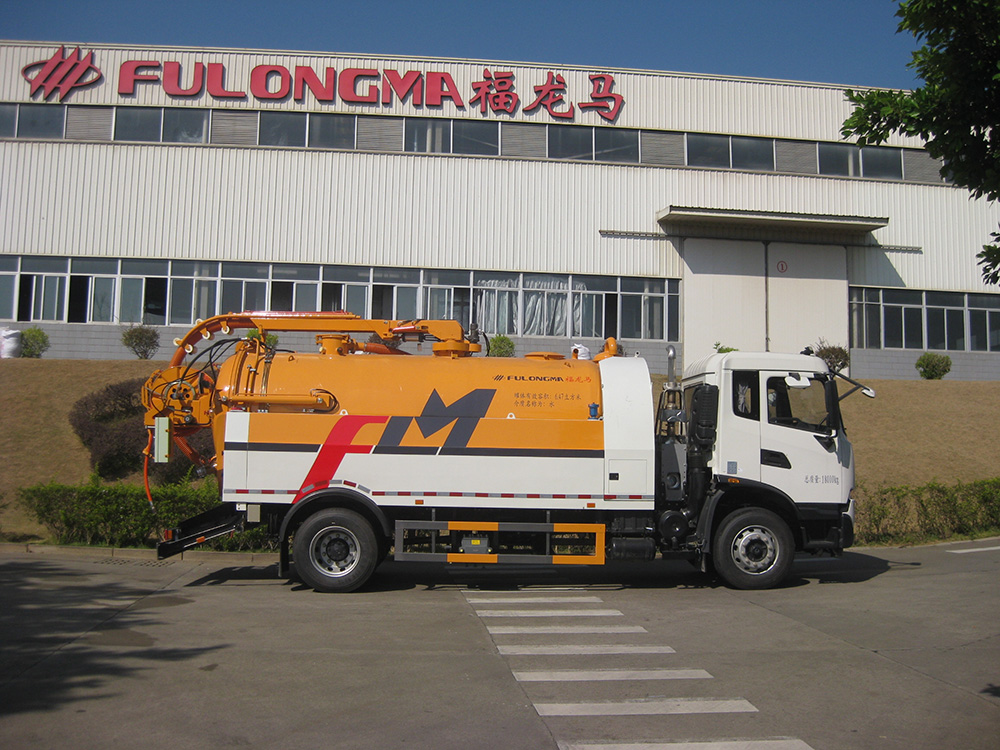

A sewage cleaning truck is a sanitation vehicle that cleans, collects, and transfers sludge, sewage, and avoids secondary pollution. This vehicle can not only dredge and clean sewers but also suck sewage tanks and septic tanks. It has dual-purpose vehicles and has high working efficiency. The truck has a long life, fast working speed, and convenient transportation. The operation is quick and easy. It is suitable for large, medium, and small-town sanitation and municipal departments.
1. Parameters of cleaning the chassis of the sewage suction truck

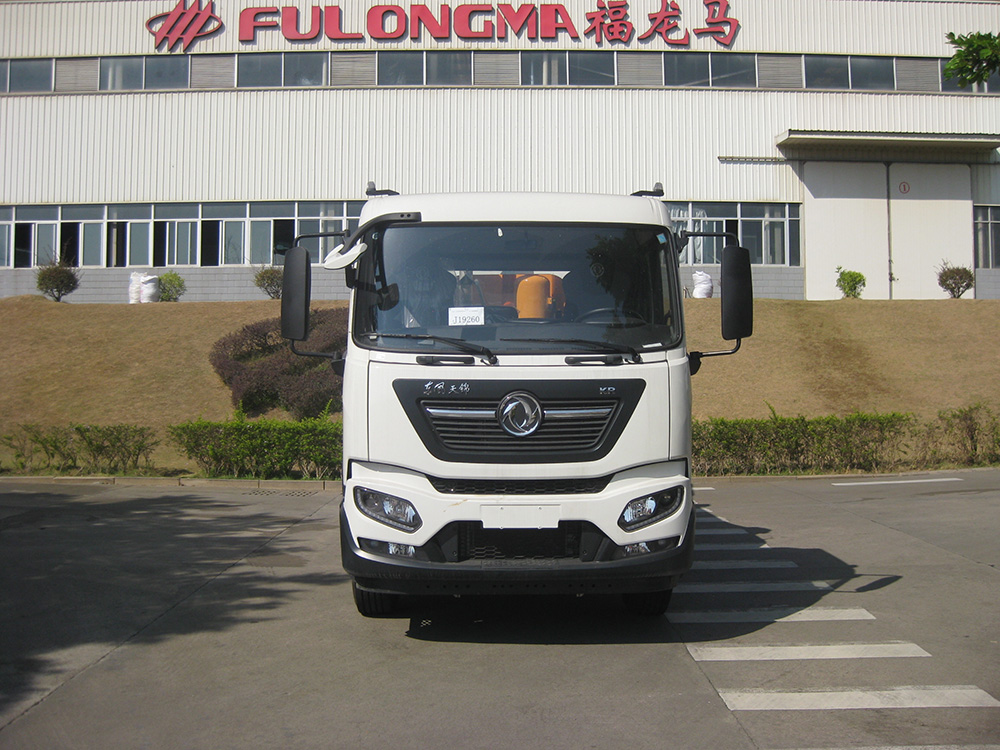

With an inter-cooling supercharger, ABS anti-lock brake system, direction assist, air conditioning, electric doors and windows, remote control keys, 900R20 steel wire tires, new interior trim.
2. Cleaning and suction truck body configuration

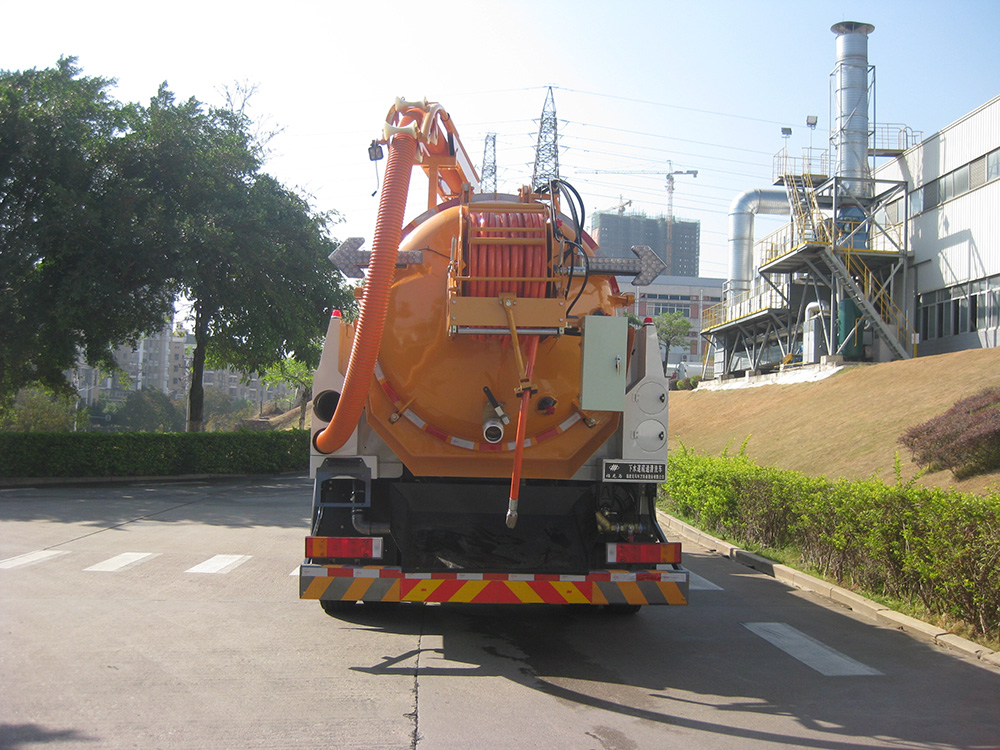

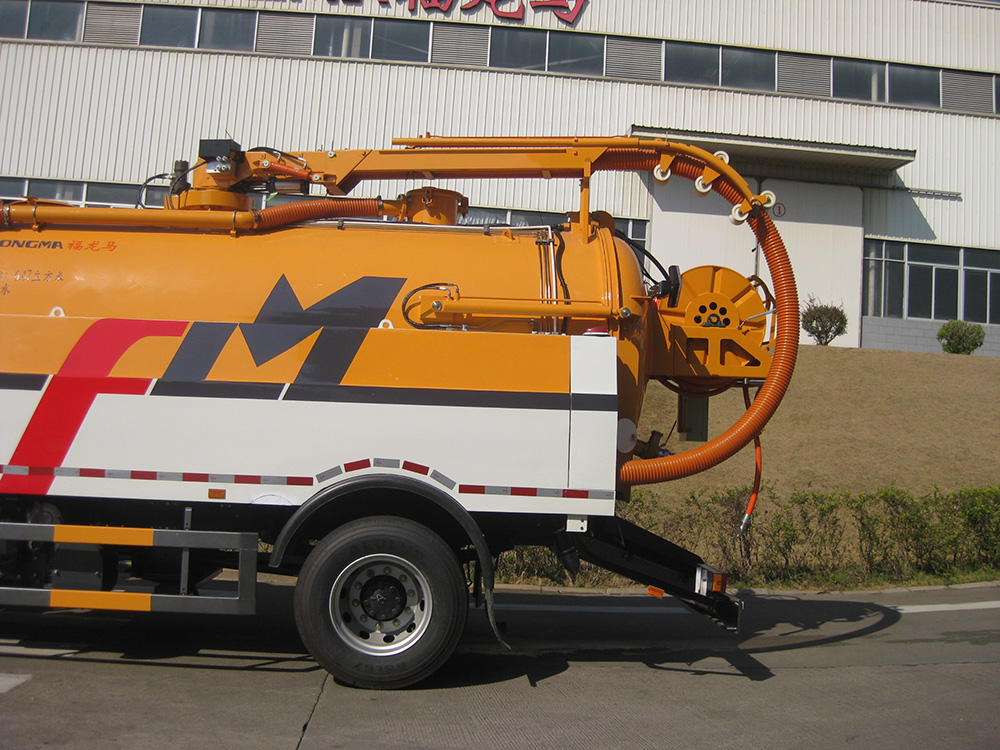

Sewage suction part: 9 square sewage tank, the tank body is made of 8mmQ235 high-quality carbon steel plate, equipped with Zibo SK-15 (optional 2BE-204) water circulation pump with large suction, a 10-meter sewage suction pipe, air inlet pipe, and filter, The anti-overflow valve is heightened, the rear cover is buckled and the rear cover is locked, the front-view sewage bright tube, and a Rio Tinto brand 100mm sewage suction port ball valve and 150mm sewage port are installed at the rear end (in some areas, additional TP can be installed according to the situation) ), the tank has a lifting function, and the back door is opened hydraulically. The 360°rotating boom on the top of the tank can be remotely operated, time-saving, and convenient.
Cleaning part: 6 square water tank, made of 4mmQ235 high-quality carbon steel plate, water inlet at the fire interface on both sides of the water tank, and a toolbox. Adopt German Pinfu 215 flow high-pressure pump, equipped with 60m inner diameter 19# high-pressure pipe, a set of 10 nozzles of different sizes, rear-mounted cleaning reel, with shower pipe device (used to rinse the high-pressure pipe after dredging the residual dirt on the pipe Object), with air blowing function (used to blow out the residual water stains inside the high-pressure pipe after each time the high-pressure pipe is finished, to prevent the cold and freezing from affecting the next use).
3. Features of cleaning sewage suction truck
Fast working speed, large capacity, suitable for collection and transportation of excrement, mud, crude oil, and other liquid substances.
The body design is reasonable and has good passability, which is suitable for a variety of places.
The fecal suction truck is equipped with a vacuum pump inside and adopts a vacuum suction method with high efficiency.
It has a compact structure, uniform airflow, low noise, high vacuum, and can realize functions such as self-priming and self-draining.
The traction force is large, the climbing performance is good, the transportation capacity is strong, and the tank body is designed to be self-priming and self-draining.
The vehicle integrates multiple functions such as washing, dredging, suction, sewage filtration, and reverses discharge, which can effectively reduce the number of vehicles and personnel and the number of round trips, which can greatly improve work efficiency, save time and cost.
Using independent patented rear door locking technology, the gap between the rear door and the tank is easy to adjust, and the sealing performance is good.
