The high-speed cleaning and sweeping vehicle is a cleaning and sweeping vehicle specially developed by FULONGMA to adapt to the cleaning and sweeping work of highways. The operating speed exceeds the limit of traditional cleaning and sweeping vehicles. The maximum operating speed of conventional road cleaning can reach 40km/h. It has many functions such as pavement cleaning, pavement cleaning, curb and curb facade scrubbing, low-pressure flushing, spray dust removal, etc. There are “full washing and sweeping”, “left washing and sweeping”, “right washing and sweeping”, “full sweeping”, and multiple operation modes to choose from.

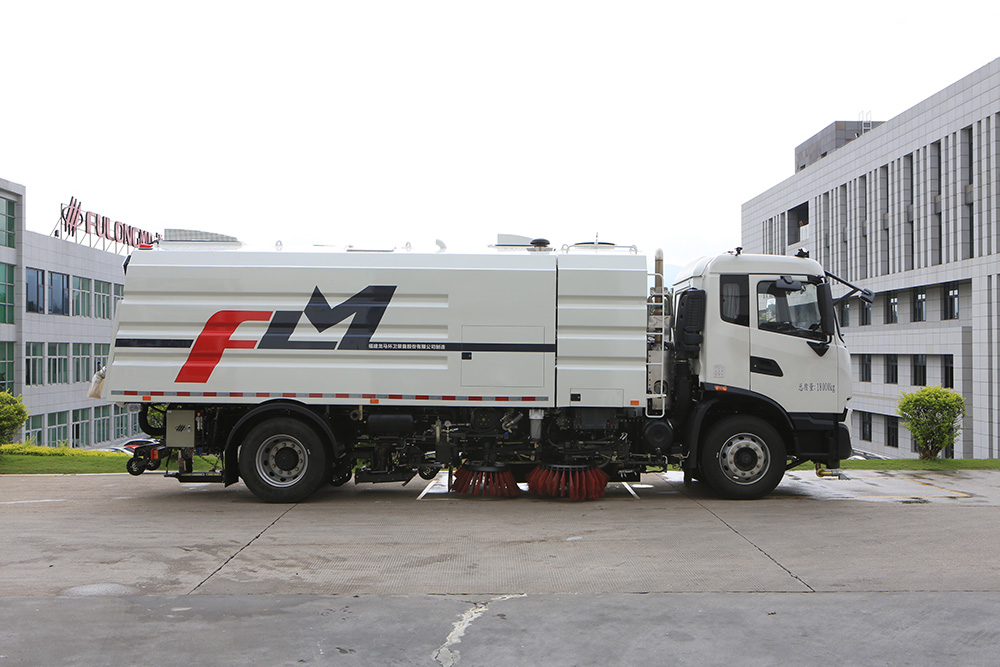

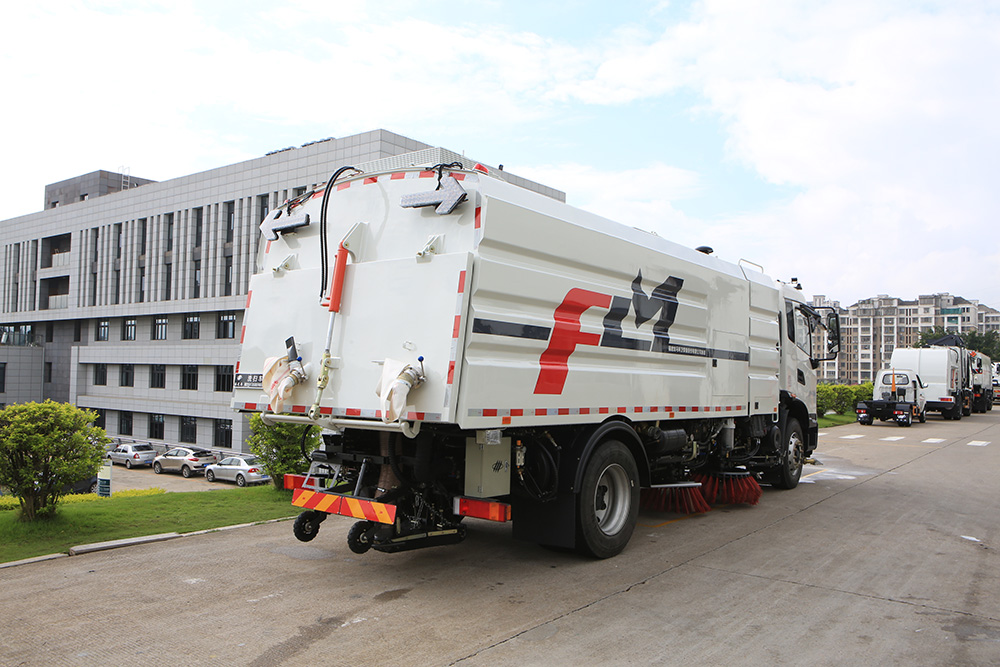

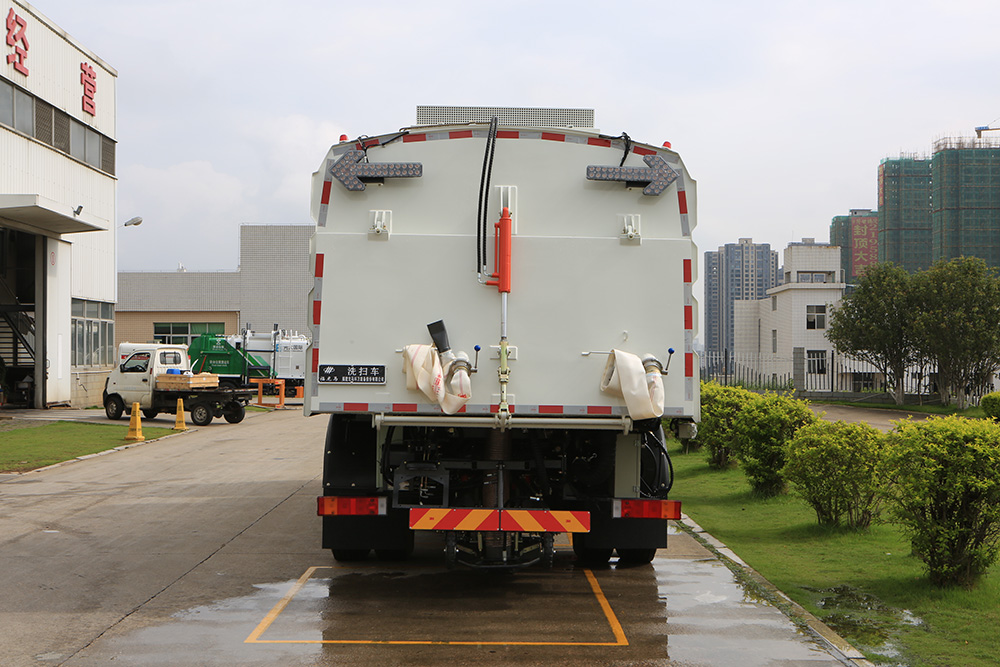

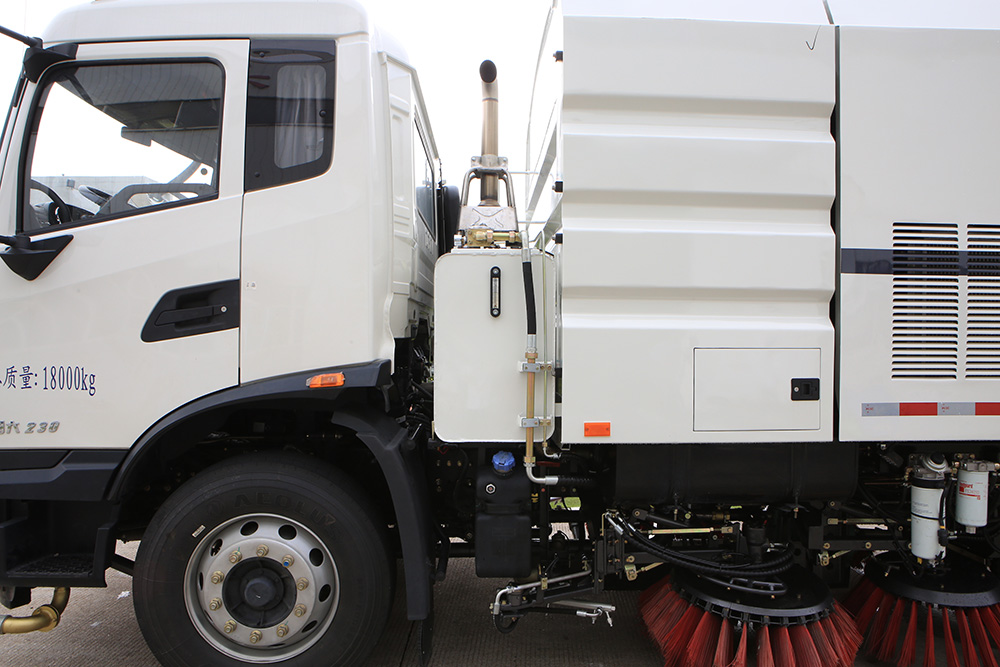

01. Multi-picture display of high-speed washing and sweeping vehicles
02. High-speed washing and sweeping truck body configuration
Mid-mounted 4 sweep disc, rear suction cup, Dongfeng Cummins chassis engine and auxiliary engine, continuously variable automatic clutch, maintenance-free centrifugal fan, stainless steel dustbin, dustbin lifting, and dumping, tail LED arrow light, manual pump emergency system. Optional front flushing and rear sprinkling, garbage bin self-cleaning function, reversing image operation monitoring, front snow shovel, snow sweeping roll.
03. Advantages of high-speed washing and sweeping vehicles

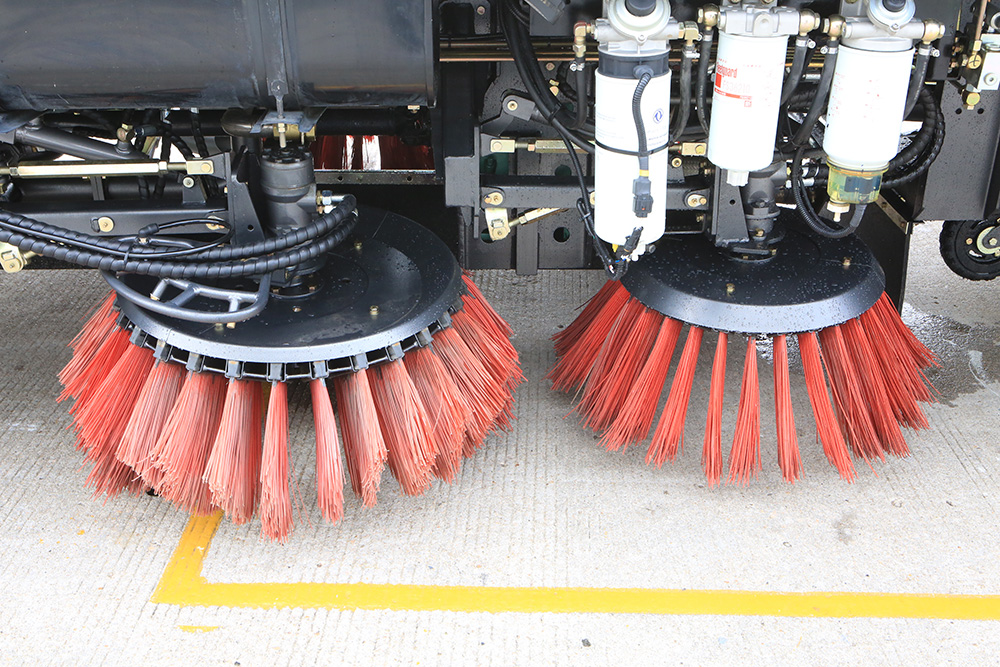

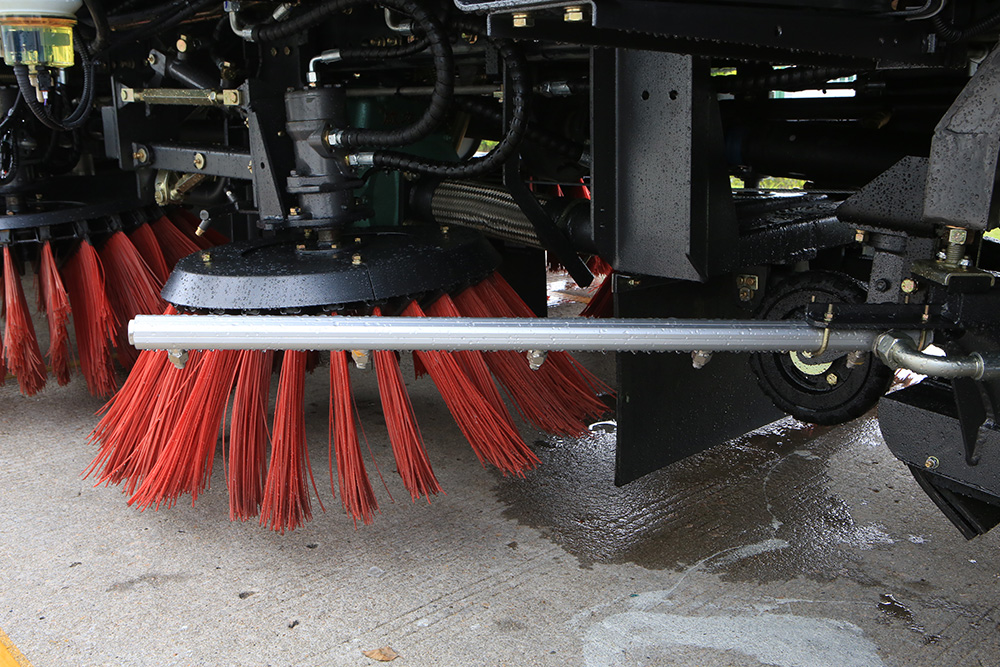

1. The structural arrangement of a “four-disc brush in the middle-rear suction nozzle” has the characteristics of large cleaning width and high cleaning efficiency, and is beneficial to the adjustment and maintenance of the cleaning device and the suction nozzle.
2. The exhaust mode under the fan outlet has a good dust suppression effect and low secondary pollution.
3. The garbage bin and the water tank are large in volume and can be cleaned continuously for a long time.
4. The left and right front scans can work independently or in linkage, and you can choose to use the right front scan or the left front scan to work independently.
5. The hydraulic system adopts a superimposed electromagnetic hydraulic valve group, which is highly integrated, reliable in work, and convenient in maintenance.
6. The control switches are centrally installed in the cab, and all electronic control operations can be in the cab.
7. Good cleaning effect. From tens of micrometers of dust to general pebbles, leaves and other debris can be effectively removed, and the cleaning efficiency is over 98%.
04. High-speed washing and sweeping vehicle function configuration

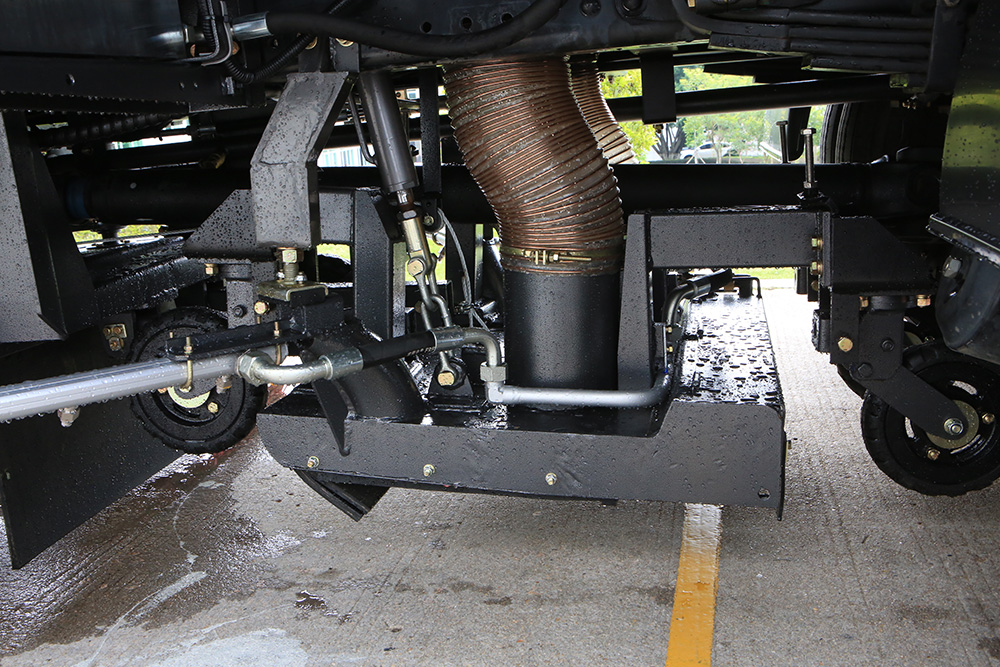

1. Adopt the industry’s first dual fan suction system, that is, the middle double suction nozzle + rear single-suction narrow suction nozzle structure to double suction the road garbage to ensure the clean rate of suction;
2. With a variety of operation modes, according to the needs can adopt the normal speed cleaning mode, deep decontamination mode, high-speed operation mode, and other working modes.
3. The box body adopts a corrugated structure, uniform stress, strong structural performance, not easy to deform and crack, and beautiful appearance.
4. The automatic adjustment technology of hydraulic floating sweeping brush ground contact distance is adopted to keep the contact force of the sweeping brush and the ground at a fixed value, and the contact surface of the sweeping brush and the ground remains unchanged. After the sweeping is worn out, it can be automatically compensated without manual labor. Adjust to ensure that the efficiency of washing and sweeping is not affected.
5. All parts of the garbage bin in contact with the garbage are made of stainless steel and will not rust.
6. The left and right front sweeping plates and the left and right sprinklers have automatic obstacle avoidance protection and reset functions.
