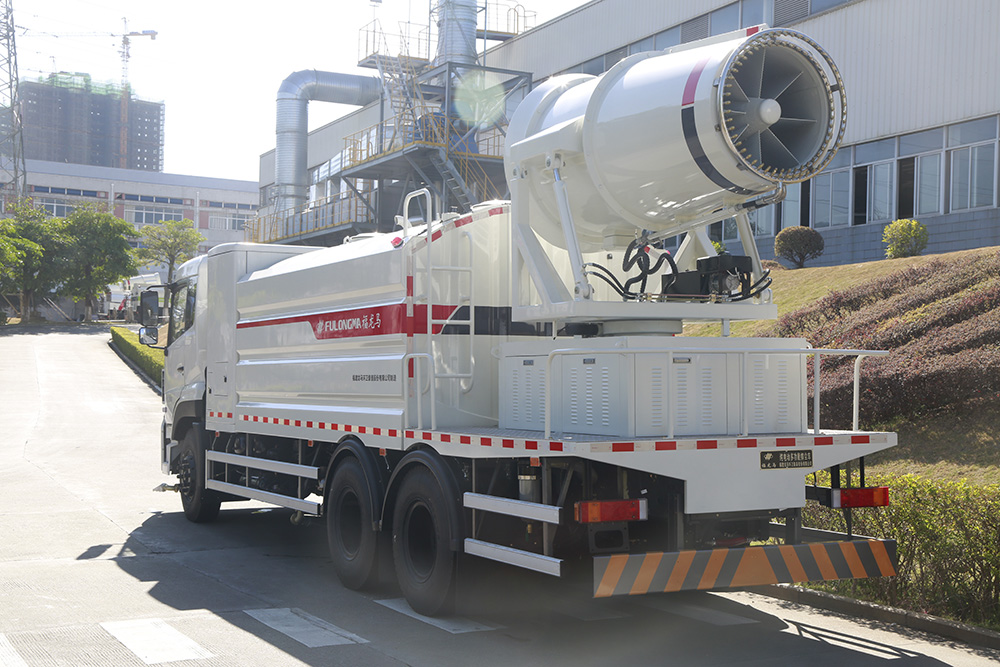

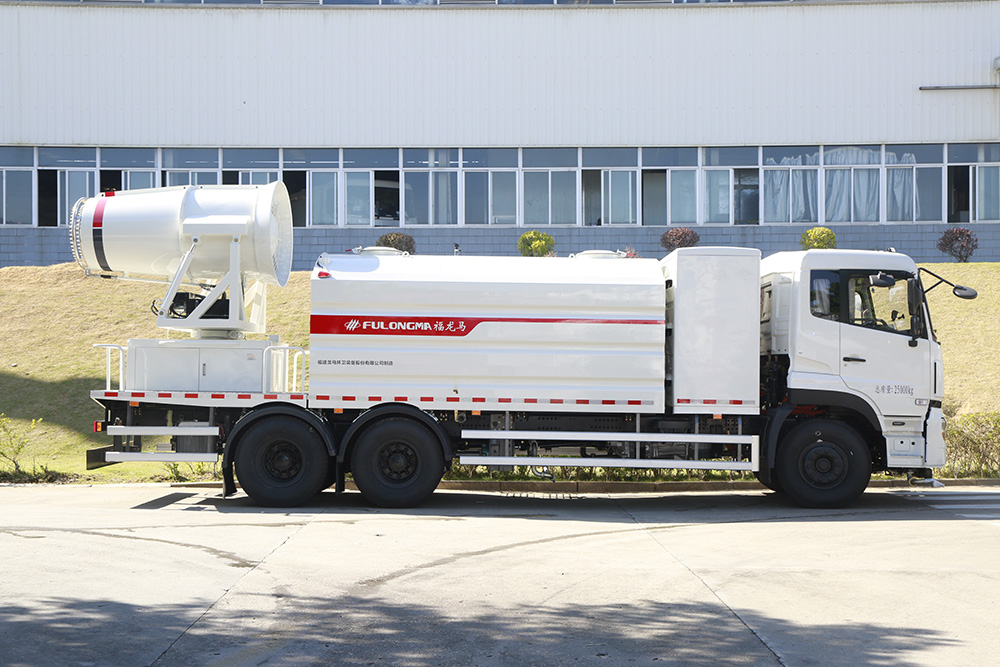

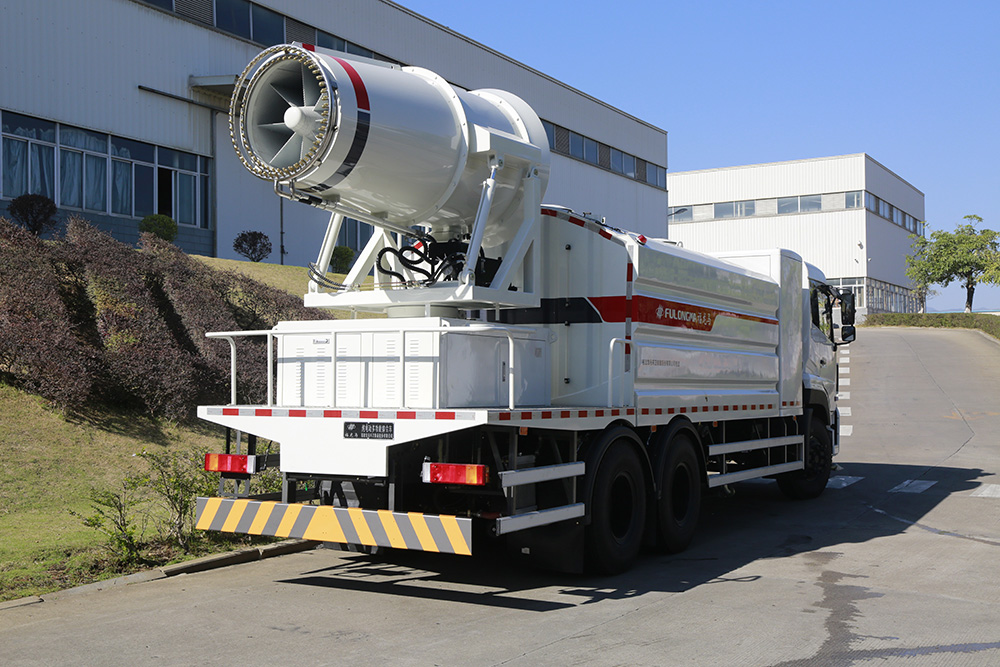

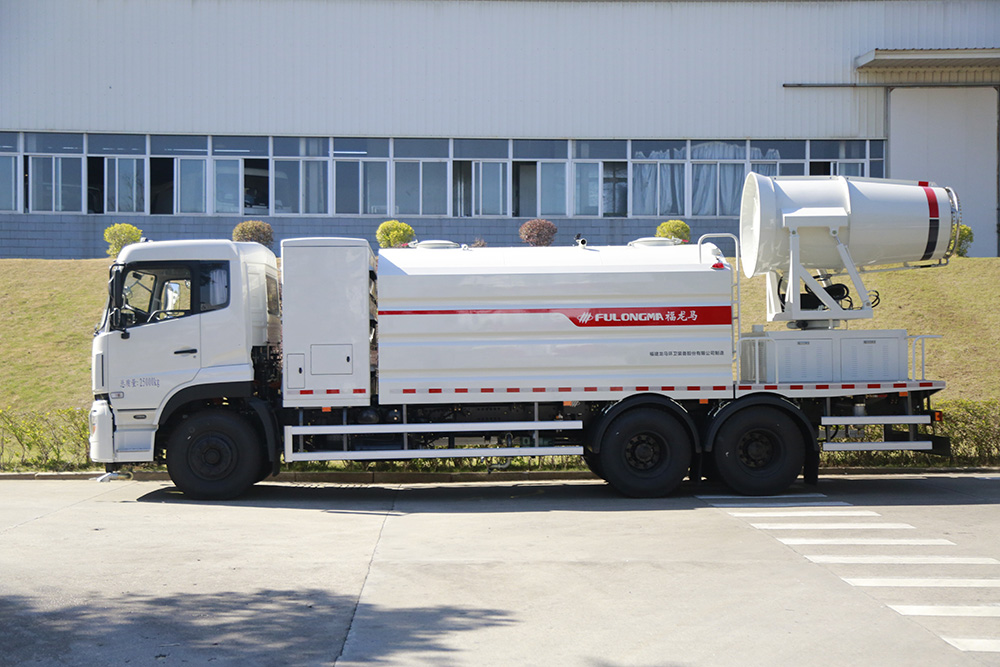

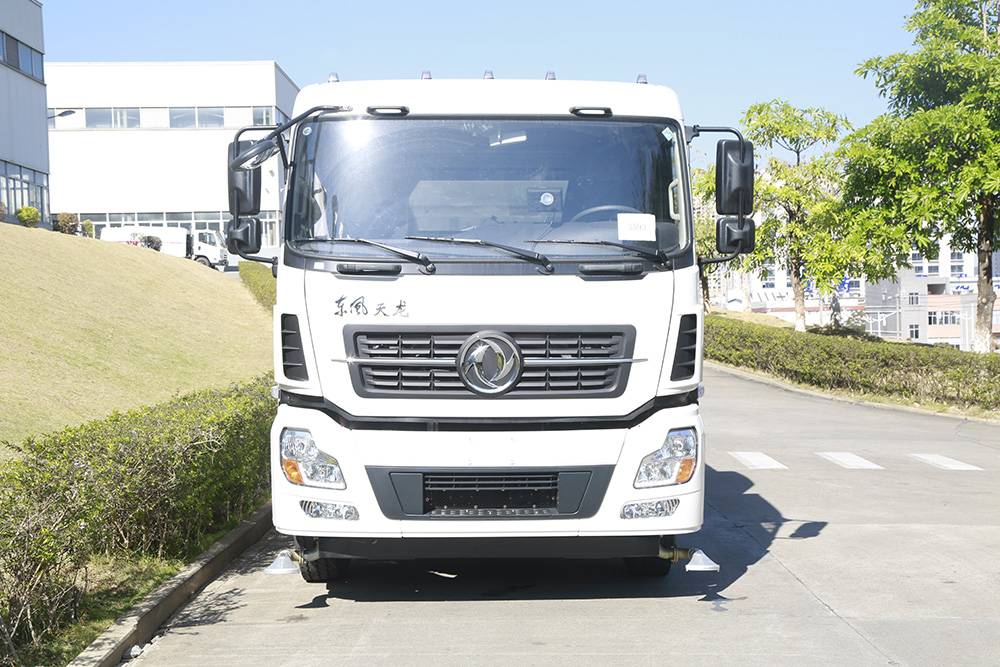

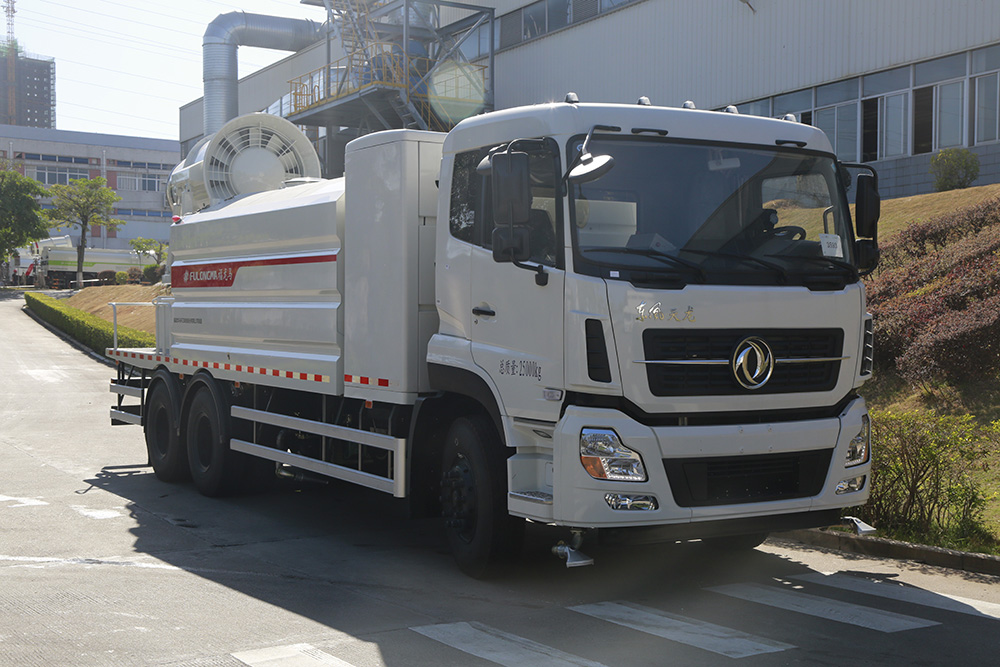

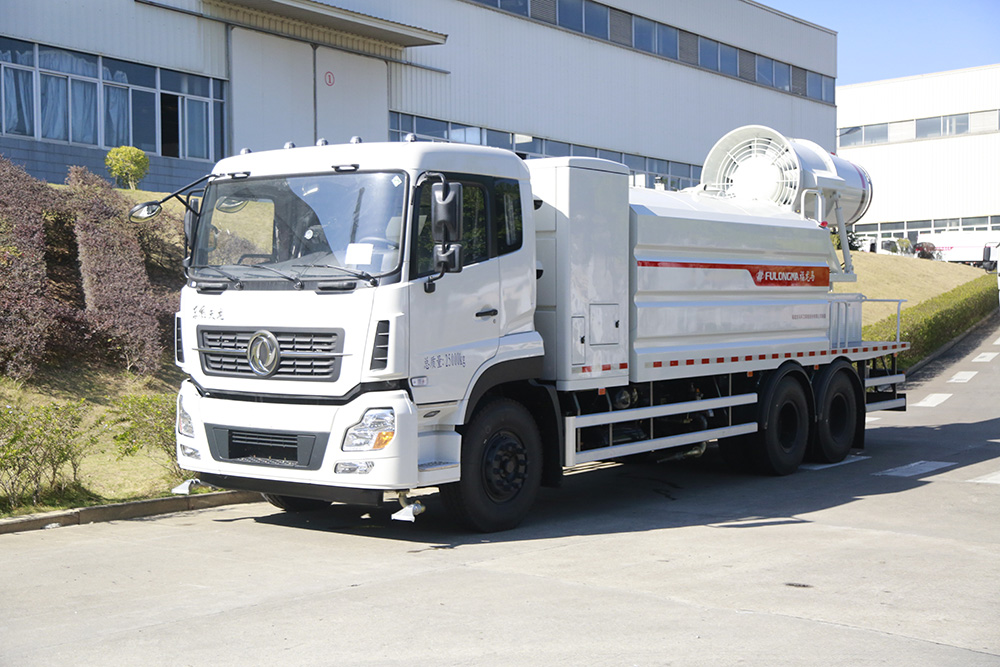

The new generation of pure electric multifunctional fog cannon trucks, adopting the second-class special chassis modification, has the characteristics of safe and reliable operation, long-range of water mist, and small water consumption. The dust suppression vehicle spray system is suitable for urban street smog management, open coal storage, Dust suppression by spraying in the storage yard of coke, sand, stone, and other industrial and mining enterprises.
01. Introduction to the functions of pure electric multifunctional fog cannon truck
Front (spray) and rear spray, with side spray, rear working platform, green sprinkler high-pressure gun installed on the platform (cannon spray shape is adjustable: straight, heavy rain, moderate rain, drizzle, continuous adjustment), equipped with a national high Quality “Chengliwei” brand high-power sprinkler pump, with fire-fighting joint, with self-flow valve, with a self-priming function, with filter.
02. Product overview of pure electric multifunctional fog cannon truck
The pure electric multifunctional fog cannon truck consists of a tank body, water pump, power take-off, transmission shaft, ball valve, spraying device, and other components. It has the characteristics of stable performance, reliable work, and universal adaptation.
The structure of the tank body of the pure electric multifunctional fog cannon truck is elliptical or square circular, made of carbon steel, advanced welding technology, the tank body is equipped with anti-oscillation and wave-proof partitions, with through holes at the bottom, and the high-pressure gas leak test after the tank body is formed Detection makes the tank have the characteristics of high strength, stable center of gravity, safe and stable vehicle transportation, etc.
03. Product remarks for pure electric multifunctional fog cannon truck
The sprinkler pump has the functions of water absorption and pressurization and drainage. The water in the pond can be directly sucked into the tank or directly connected to the fire hydrant on the city street and sucked into the tank. All pure electric multifunctional fog cannon truck vehicles have the function of transporting water or other liquid substances (such as milk, edible water), and the outer wall of the tank has the function of heat preservation after being foamed or treated with rock wool. The pure electric multifunctional fog cannon truck can also be used as a spraying vehicle. The inner wall of the tank can be treated with anti-corrosion and anti-rust treatment. Stainless steel pumps, pipes, water cannons, and stainless steel tanks are also optional. Users who have special requirements for pure electric multifunctional fog cannon trucks, please inform in advance, we can design and modify them according to user requirements.
04. Product configuration of pure electric multifunctional fog cannon truck
The pure electric multifunctional fog cannon truck is equipped with clutch power assist, cut-off brake, air-conditioning, electric glass, central control lock, adopts sprinkler pump, basic sprinkler functions, front sprinkler, rear sprinkler, side sprinkler, a working platform with an anti-aircraft gun (can be adjusted into the fog, Straight column shape), can be pumped in and out, cannon barrels on both sides of the tank, with two pumping hoses, etc.
05. Performance and characteristics of pure electric multifunctional fog cannon truck
1. Strong skill, long-range, strong penetrating power, strong adhesion of fog particles, wide coverage, and can achieve precise spraying.
2. High working efficiency and fast spraying speed; when spraying water to remove dust from the storage yard that is easy to cause dust, the sprayed mist particles are small, and when it comes in contact with the floating dust, a wet mist is formed, which can quickly suppress the dust Settling, the settling rate of fog can reach more than 80-90%.
3. The secondary atomization technology uses a specific turbine wind assist device to change the wind direction to form an angle with the flow direction of the mist particles to promote sufficient water atomization.
4. When the droplets are ejected from the nozzle, they are further broken by the high-speed and high-pressure airflow in the spray area, and the speed of the droplets is gradually increased, which improves the degree of atomization. The atomization can generally reach about 50-150um diameter droplets. . The supporting power is flexible, and it can be supplied with three-phase 380V city power or with a generator set.
5. The power supply of the matching generator set is installed on the transportation vehicle, which is flexible in operation, safe and reliable in use, and manual control operation (optional semi-automatic or fully automatic control).
6. Compared with other dust suppression spraying equipment, the water consumption can be reduced by 70% to 80% (spray gun, pure electric multifunctional fog cannon truck), and the dust area covered by water mist is much larger than other dust suppression spraying equipment.
