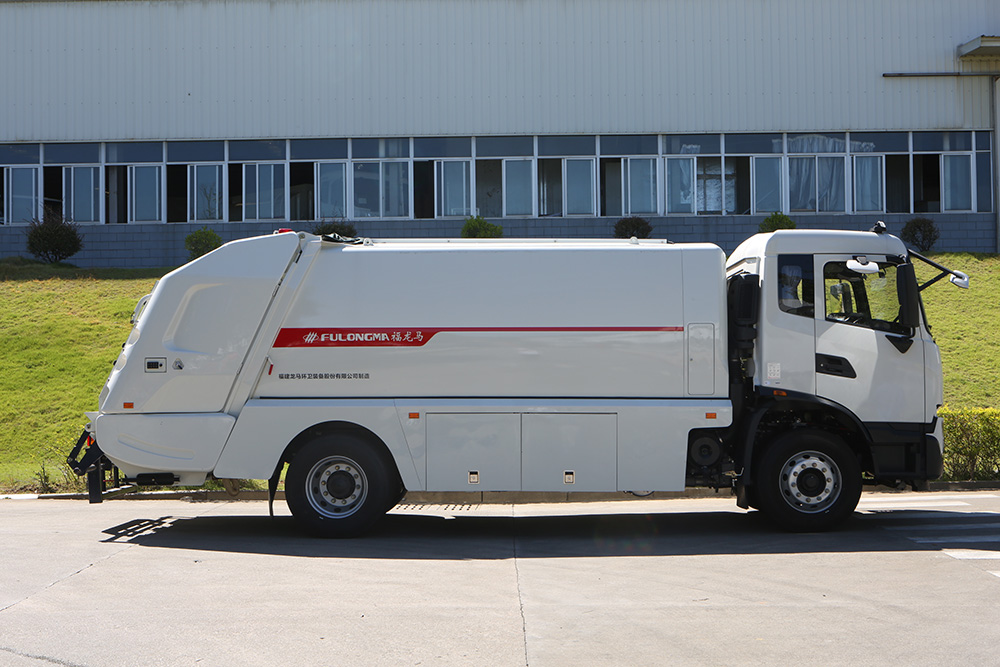

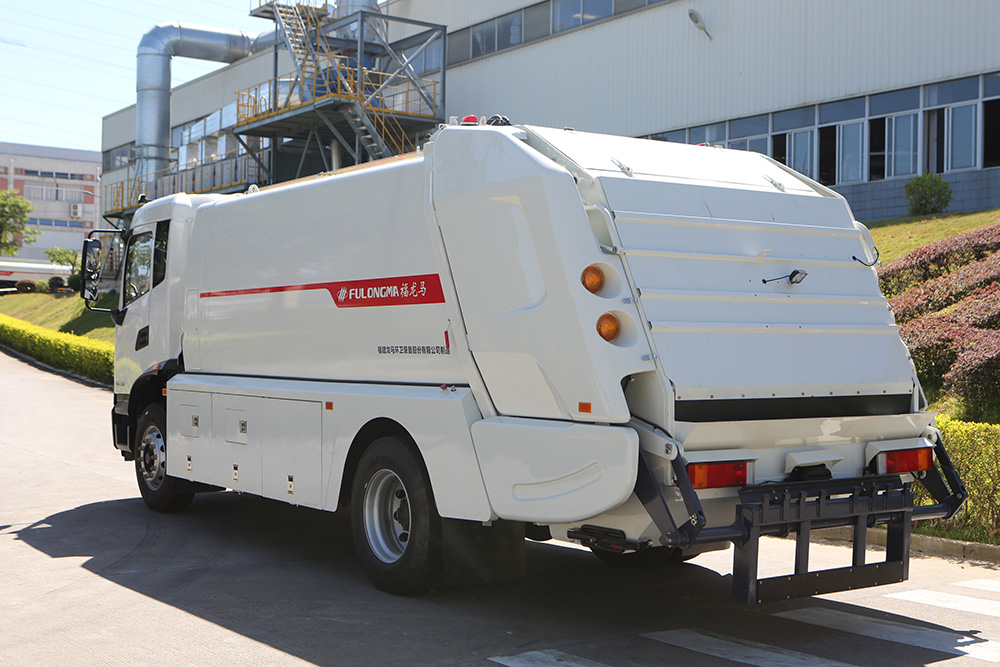

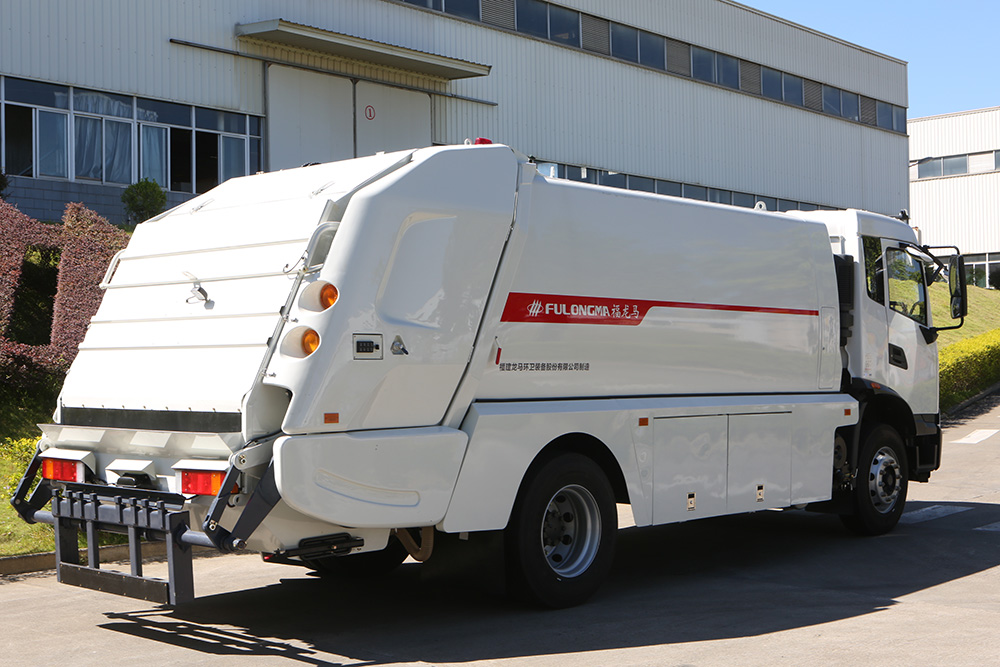

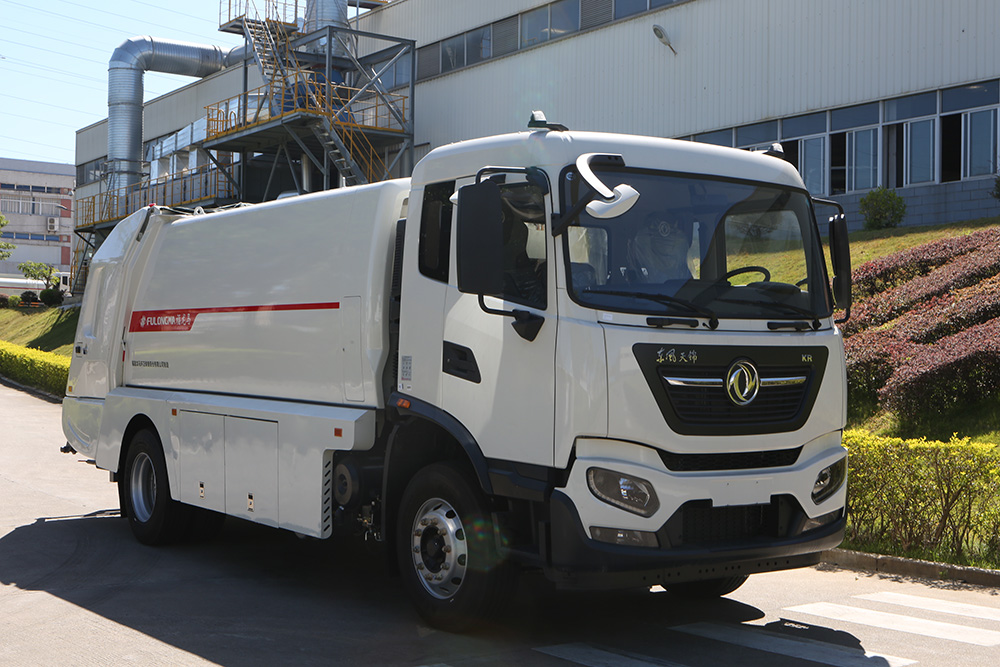

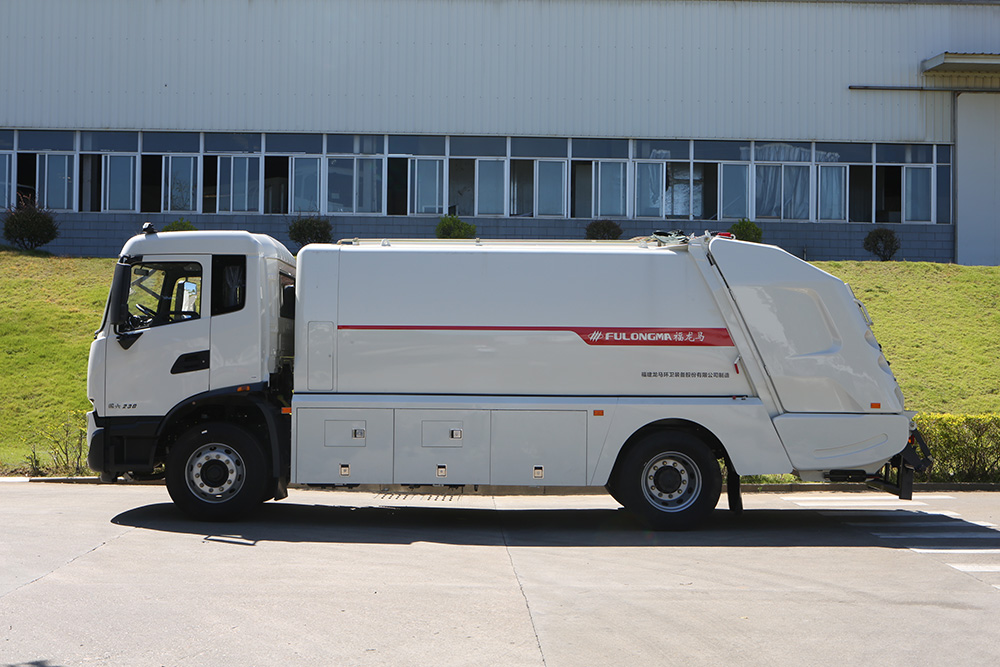

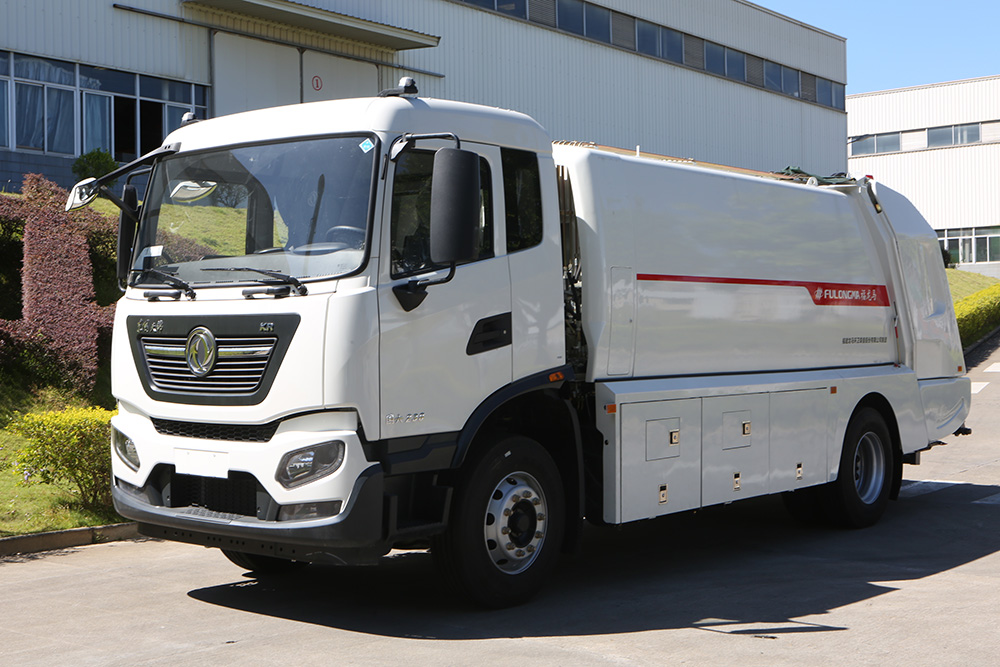

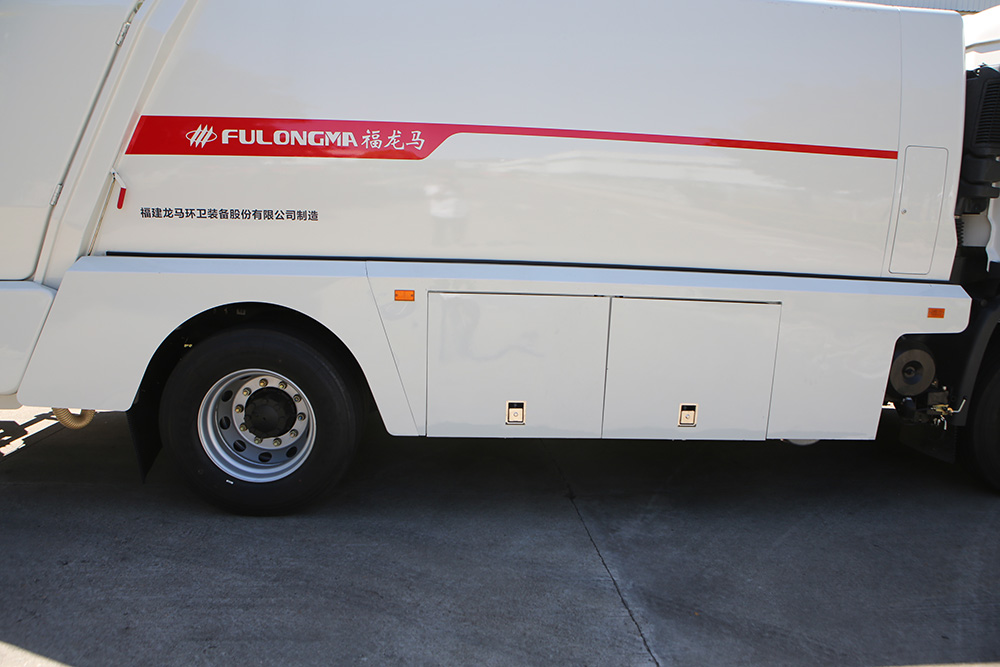

FULONGMA large-scale 18-ton compression garbage truck is restructured with Dongfeng second-class chassis and is refitted with garbage bins, dozers, fillers, bucket turning mechanisms, hydraulic systems, and electronic control systems.
01. Overview of the functions of the compressed garbage truck
1. The waste bin and filler of FULONGMA’s large 18-ton compression garbage truck are made of high-quality carbon steel plate welded structure, and the waste container adopts a circular arc section. The dustbin is equipped with a folded dozer, which is driven by the dozer cylinder and can slide along the guide rails on both sides of the bottom of the dustbin.

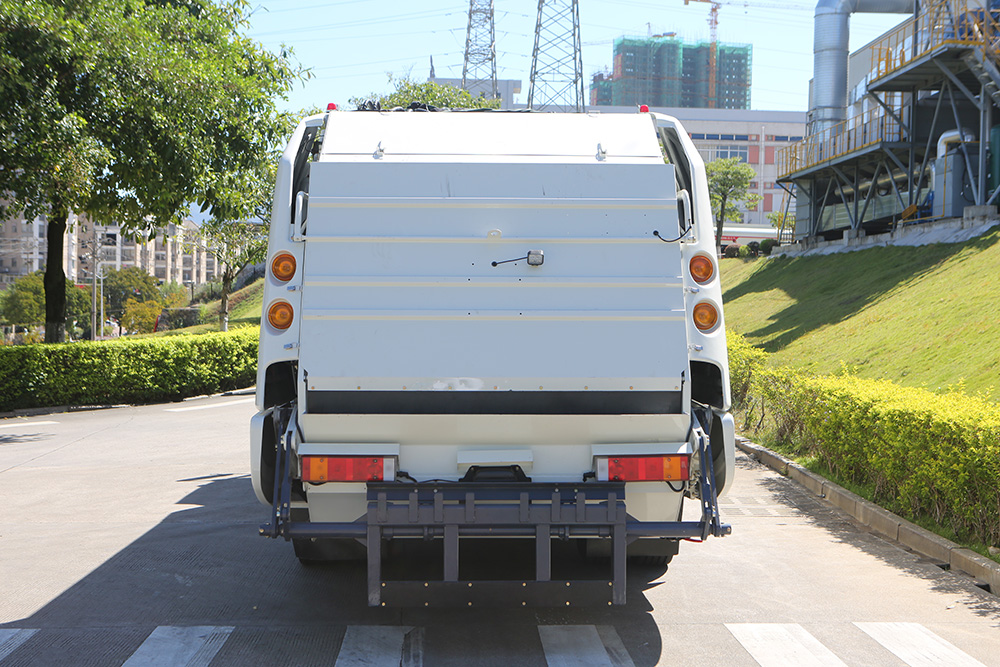

2. The filler is equipped with a sliding plate and a scraper, which are respectively driven by the sliding plate cylinder and the scraper cylinder. The sliding plate moves in the chute on both sides of the filler, and the scraper moves around the hinge axis of the sliding plate. A lift cylinder and a locking mechanism are installed between the waste bin and the filler. The lifting cylinder drives the filler to go up and down, and the locking mechanism locks the filler on the waste bin. The dumping mechanism at the rear of the vehicle realizes the overturning of the garbage bucket, dumping and returning the garbage through the oil cylinder.
3. The hydraulic system adopts a combined control valve group and the oil pipes are neatly arranged, beautiful and reasonable in layout.
02. Scope of application of compressed garbage trucks
It is suitable for garbage collection and transfer in various cities and townships, municipalities, factories and mines, and property communities.
03. Environmental analysis of compression garbage trucks
1. The compression garbage truck has implemented various relevant safety and quality standards of the country and the industry passed the stereotype inspection and strong inspection test of the nationally recognized automobile product quality inspection center and obtained the China Compulsory Certification or “3C” certification.
2. In terms of control operation, the interlocking of each operation action is realized through the logic circuit, and the safety accident caused by the misoperation is eliminated. The emergency brake button set can eliminate the hidden danger of the safety accident. The set explosion-proof valve eliminates the vicious accident caused by the sudden drop of the filler due to the burst of the oil pipe.
3. Select the second-class vehicle chassis modification that meets the national VI emission standard, implement the relevant national standards and regulations, and pass the national environmental protection system certification.
4. The garbage is in a closed state during compression, filling, and transportation. The joint surface of the garbage can and the filler is sealed with a special rubber sealing strip. The sewage generated by the extrusion of the garbage flows into the sewage at the front of the garbage can and the lower part of the filler. In the box, the filler cover completely covers the feeding port of the filler, which eliminates the phenomenon of flying garbage and dust caused by the disturbance of the vehicle exhaust during the transfer process, and eliminates secondary pollution.
04. Advantages and characteristics of compression garbage trucks
1. The collection method is simple: change the dirty and messy appearance of garbage cans on the streets of the city, and prevent secondary pollution.
⒉ High compression ratio and large loading capacity: the maximum crushing pressure is 12 tons, and the loading capacity is equivalent to two and a half times that of the same ton of non-compressed garbage.

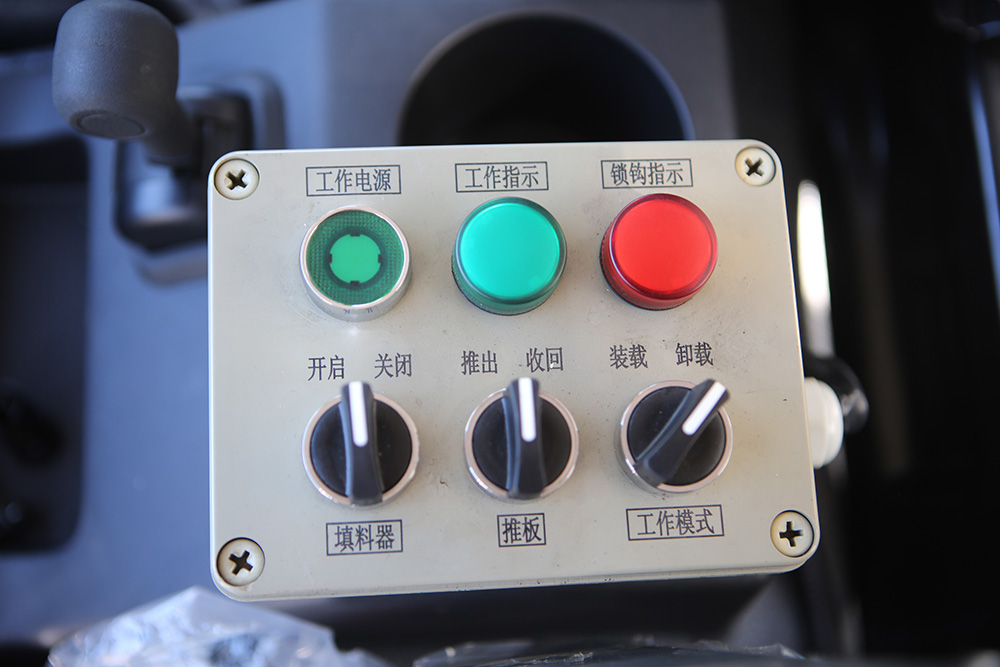

3. Operation automation: The computer control system is adopted, and the driver is required to operate all the loading and unloading operations. Two operation modes, automatic and semi-automatic, can be set, which not only reduces the labor intensity of sanitation workers but also greatly improves the working environment.
4. Good economy: When the equipment is working, the computer control system automatically controls the throttle.
5. Dual system: The operating system has dual functions of computer control and manual operation, which greatly guarantees and improves the utilization rate of the vehicle.
6. Turning mechanism: optional turning mechanism with garbage can (or bucket).
