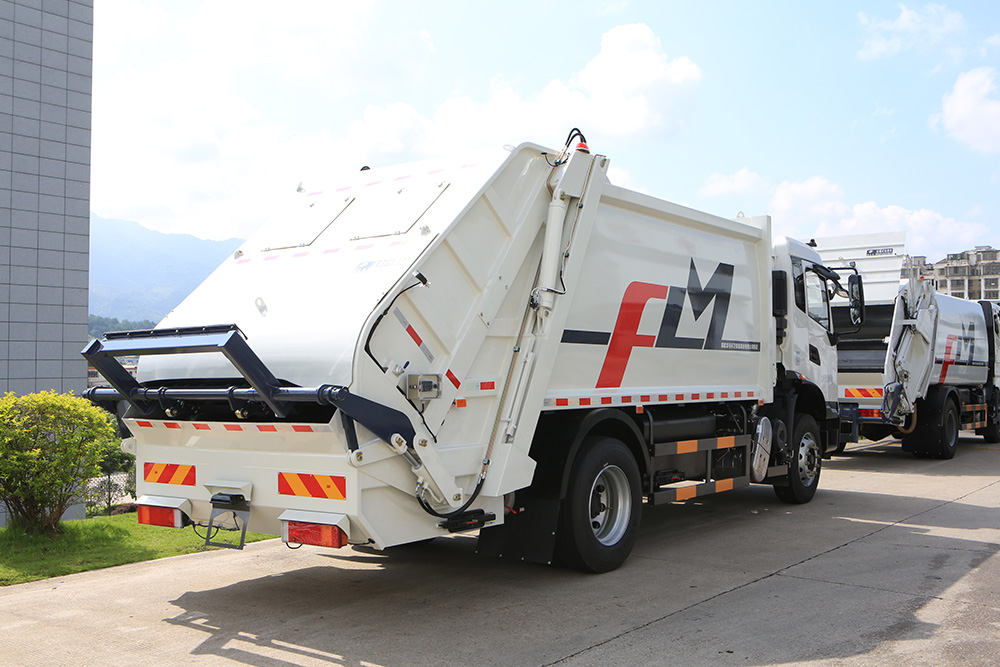

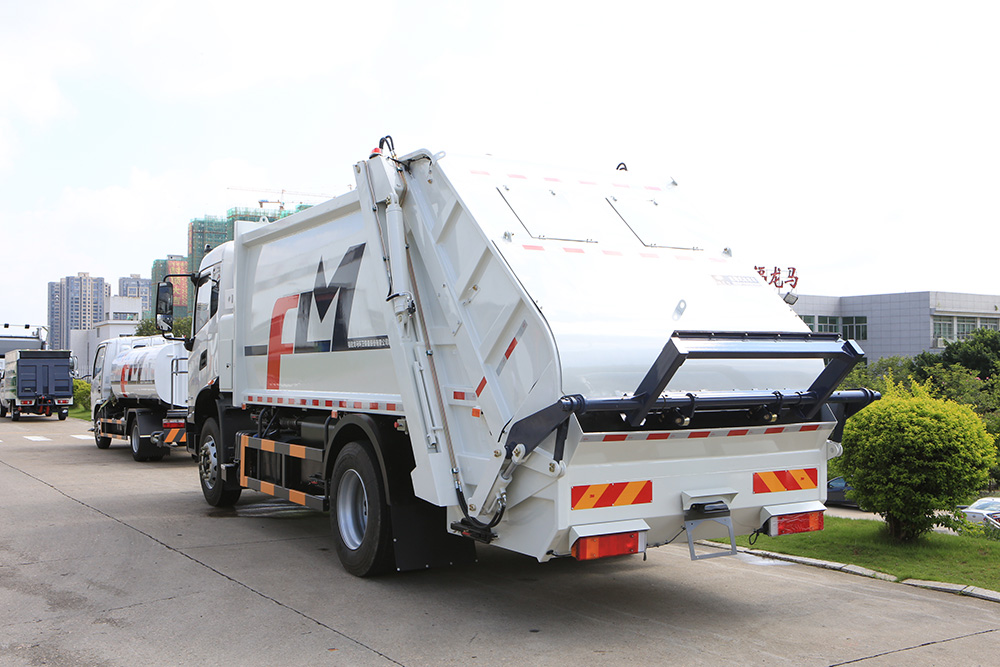

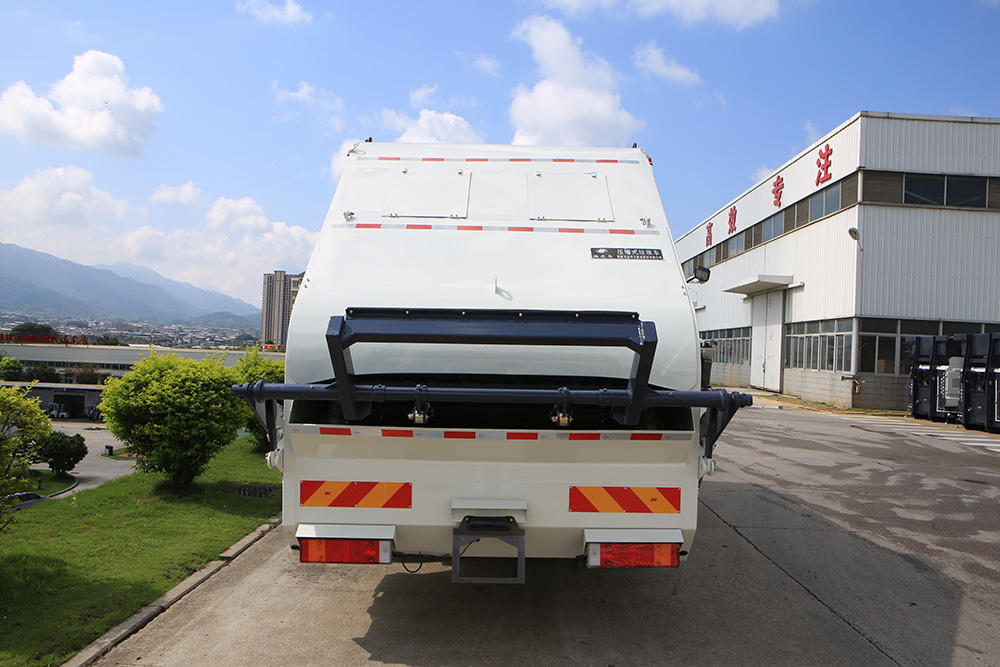

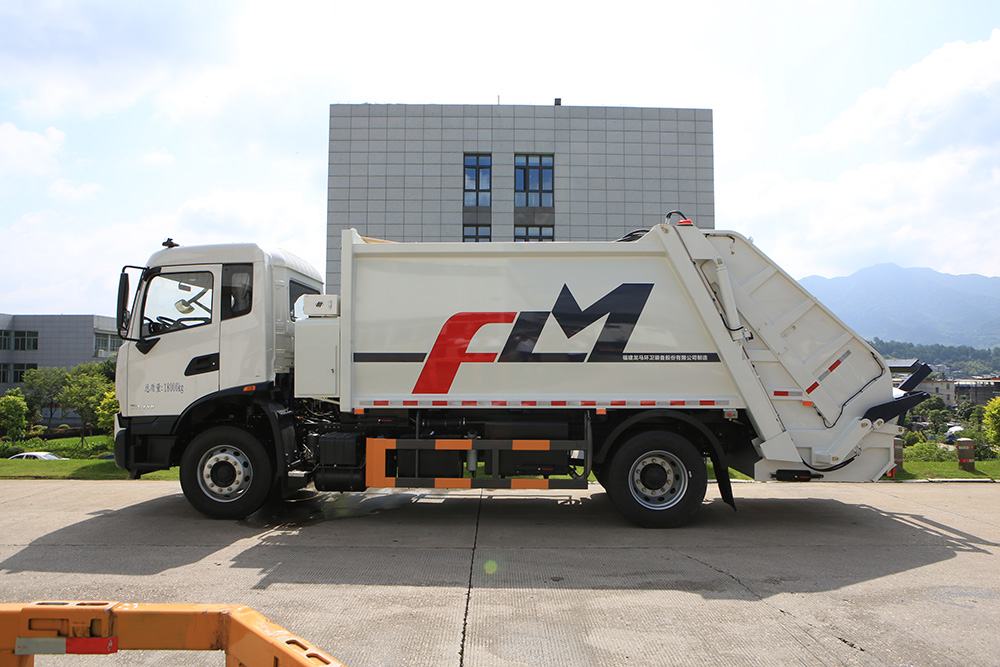

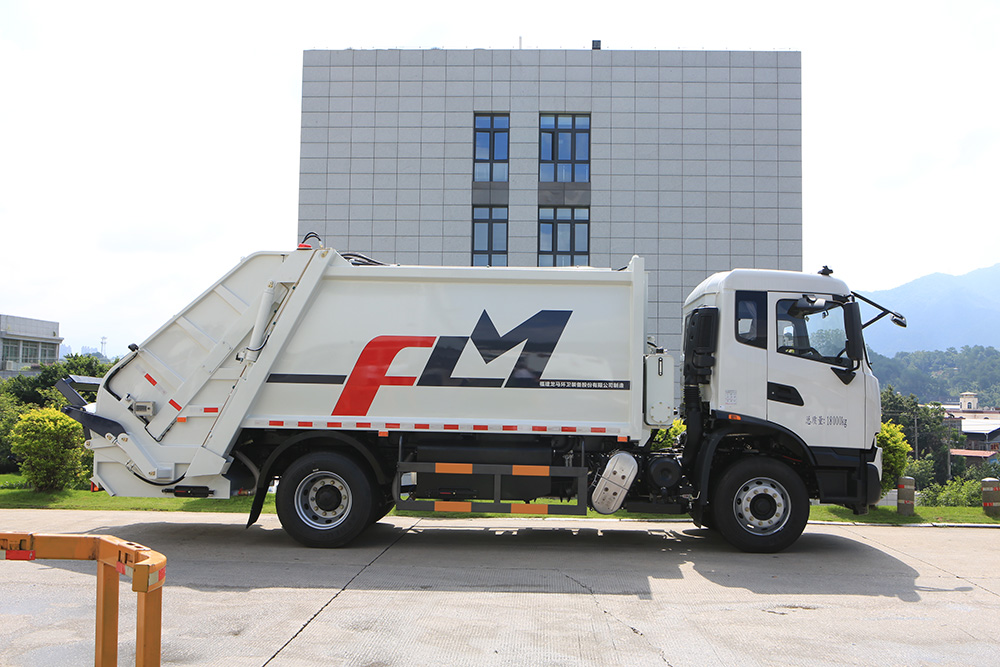

The main features of the FULONGMA rear load garbage truck are simple garbage collection methods, manual repeated compression, and peristaltic compression functions, high compression ratio, large loading capacity, good power and environmental protection, high vehicle utilization, and overall performance that can reach domestic advanced Level.
1. Chassis description

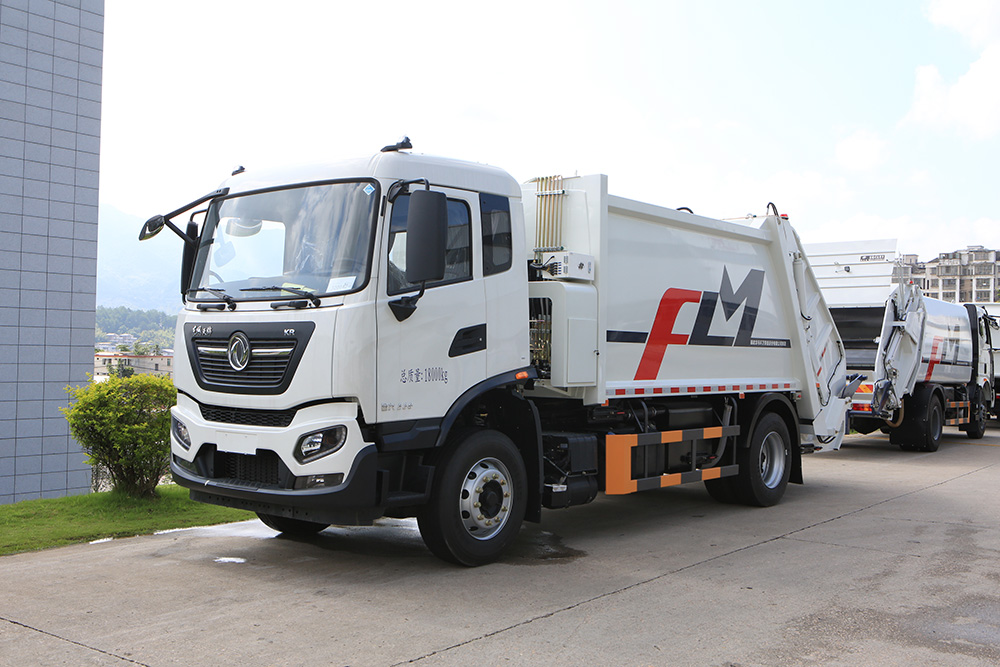

Dongfeng original chassis, wheelbase 3.95-4.5 meters, Dolica D9 widebody white cab, Cummins 210 horsepower or Yuchai 200 horsepower engine, Dongfeng 6-speed gearbox, power windows, original air conditioning, power steering, air cut Brake, steel wire tire with spare tire, ABS, central lock.
2. Modification instructions
The compression volume is 10-12 cubic meters, and it is made of a T420 special steel plate integrally bent. It is equipped with Xiamen Yinhua hydraulic cylinder leakage replacement, Changyuan 63 hydraulic pump, Zhongmei multi-way valve, Siemens PLC control, electro-optical switch, 2 Sewage collection tank, 3 operation control boxes, with night lights, equipped with two-way compression function, two-way hydraulic lock, drip-proof. Optional dual pump confluence + dual valve control, optional hanging bucket rack, triangle bucket, fully sealed bucket, swing arm device.
3. Diversified functions
(1) Chassis configuration: Dongfeng original chassis, wheelbase 3950mm-4500mm, Dolica D9 widebody white cab, Cummins 210 horsepower or Yuchai 200 horsepower engine, Dongfeng 6-speed gearbox, electric windows, original air conditioning, Power steering, air brake, steel wire tire with spare tire, ABS, central lock.

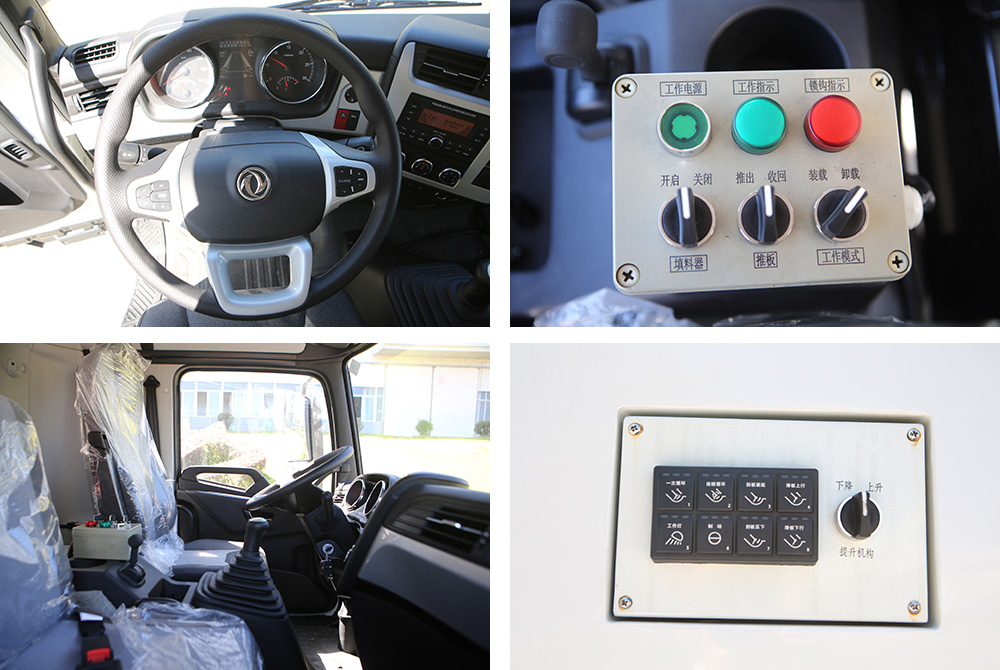

(2) Top-mounted configuration: 10-12 cubic meters of compression volume is optional, made of T420 special steel plate integrally bent, equipped with Xiamen Yinhua hydraulic cylinder leakage replacement, Changyuan 63 hydraulic pump, Zhongmei multi-way valve, Siemens PLC control, Electro-optical switch, 2 sewage collection tanks, 3 operation control boxes, with night lights, equipped with two-way compression function, two-way hydraulic lock, drip-proof.
(3) Optional configuration: optional dual pump confluence + dual valve control, optional hanging bucket rack, triangle bucket, fully sealed bucket, swing arm device.
(4) Advantages of the whole vehicle: At present, the quality of this chassis is super good, the driving comfort is good, the engine power is strong, and the 10-12 square car is cost-effective.
(5) Strong compression force: The truck adopts dozer backpressure, two-way compression function, the compression ratio can reach more than 1:3, and the domestic garbage can reach more than 800Kg/m3 after compression.
4. Product advantages
(1) Scientific design: Use computer three-dimensional simulation software to design and scientifically analyze and calculate the force of garbage movement. The garbage bin with a rectangular structure is adopted. The bottom surface is flat, and the side and top surfaces are arc curved surfaces. The appearance is beautiful, the weight is light, and the force is good. , Doping blade and scraper structure with no deformation, good rigidity, high strength, and angle of force.
(2) Cutting: Use a plasma CNC cutting machine to cut the material to ensure the product size. All tank body welding adopts CO2 gas shielded automatic welding, and the welding quality is reliable, ensuring the strength and beauty of the box body welding, and the weld will not be welded off.
(3) Lightweight: The main components, dustbin, dozer, and filler are made of Q345A high-strength manganese steel, with firm structure, lightweight, and high strength.
(4) Environmental protection: Because of the large amount of sewage generated after the garbage is compressed, a highly sealed compartment and rear door are designed, and a large-capacity closed sewage tank is designed. Stainless steel ball valves are installed on both sides of the sewage tank to facilitate the discharge of sewage and avoid the Second pollution caused by the sewage floor drain.
(5) Reliability: The car body is made of a high-quality carbon steel plate and high-strength alloy steel plate, and the core components are all well-known brand accessories: multi-way reversing valve, high-pressure hose, an operation button, American Eaton pipe joint, Taiwan pneumatic combination valve, German Siemens electrical operating system, and electronic components, multi-stage dozer cylinders, to ensure the service life and reliability of the vehicle!
(6) The tank body and metal accessories of this type of car have been shot blasted, sprayed with polymer primer and high-quality topcoat, with strong adhesion, good corrosion resistance, uniform paint film, bright and long-lasting color, and can withstand humidity and dust. , Salt spray and other unfavorable environments.
(7) High-cost performance: FULONGMA rear load garbage truck products can reach the advanced level of similar products, with affordable prices and outstanding cost performance!
