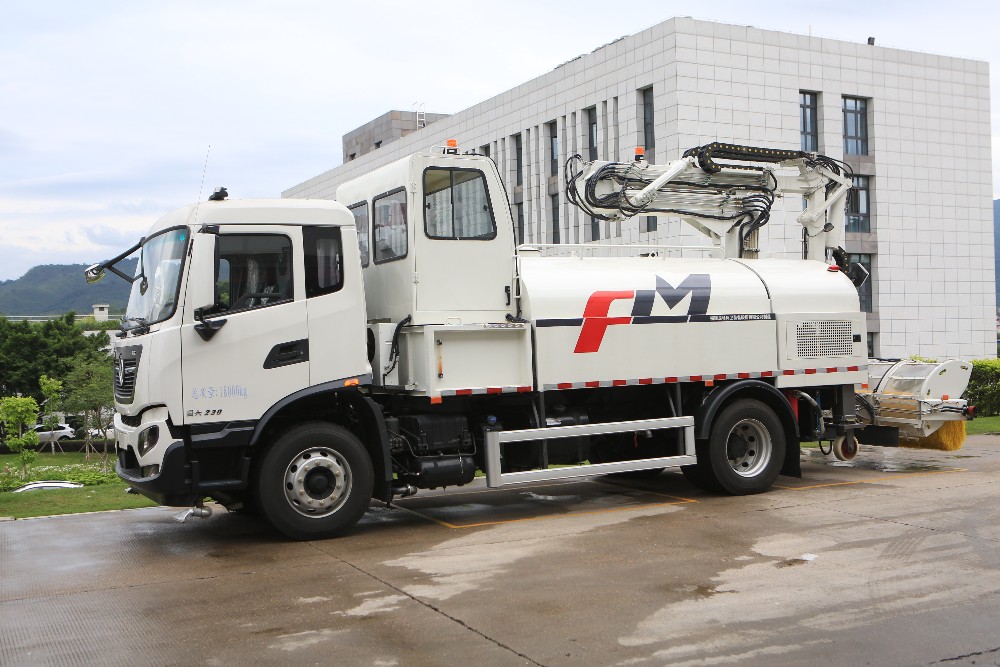

Fulongma has developed a high-tech, multi-functional wall cleaning vehicle in combination with the current phenomenon of the tunnel facing greasy road surface, mud accumulation and soot from the tunnel wall; the vehicle has the characteristics of wide cleaning range, good cleaning effect, wide manipulation field of view, high degree of automation and excellent cost performance.
The vehicle power system outputs power through the power take-off on the side of the chassis gearbox to drive low-pressure water pumps and gear pumps. The vehicle emissions meet the national VI emission standards.
It has independent three sets of the water system of rolling water spray, low-pressure water spray, and high-pressure car washing gun. The hydraulic motor drives the high-pressure water pump and the diaphragm pump, and the chassis engine drives the low-pressure water pump.

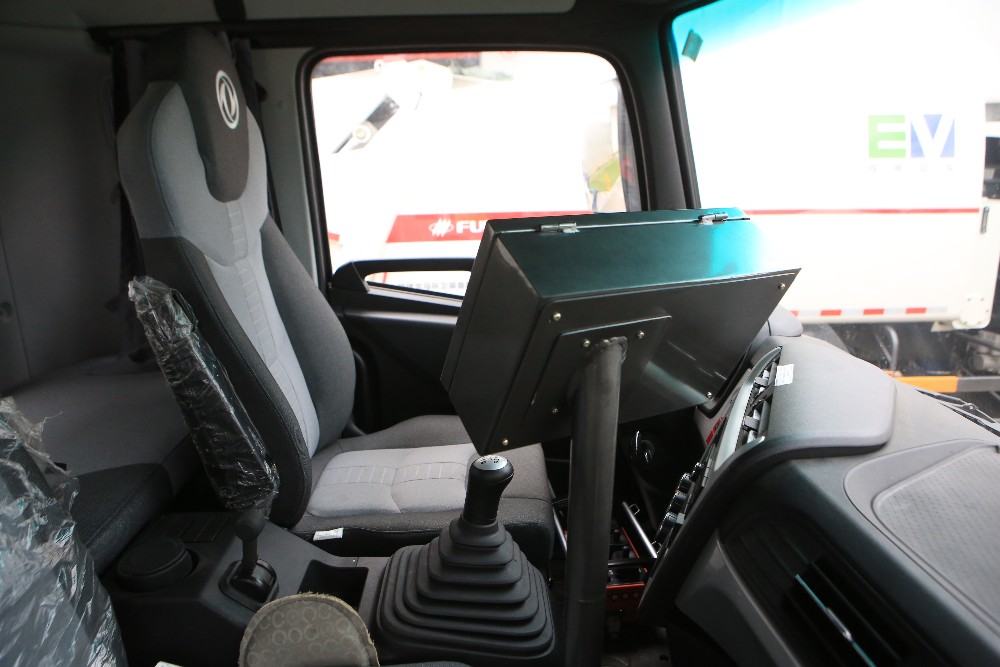

The central operating room with the independent operation is located between the cleaning brush arm and the chassis cab, which can clear obstacles in front of the cleaning brush, avoid obstacles in time, and avoid injury to the operator when the vehicle rear-ends. The operating room is equipped with air conditioning, Comfortable and safe, at the same time equipped with an operation box placement platform inside, reducing the labor intensity of the operator.

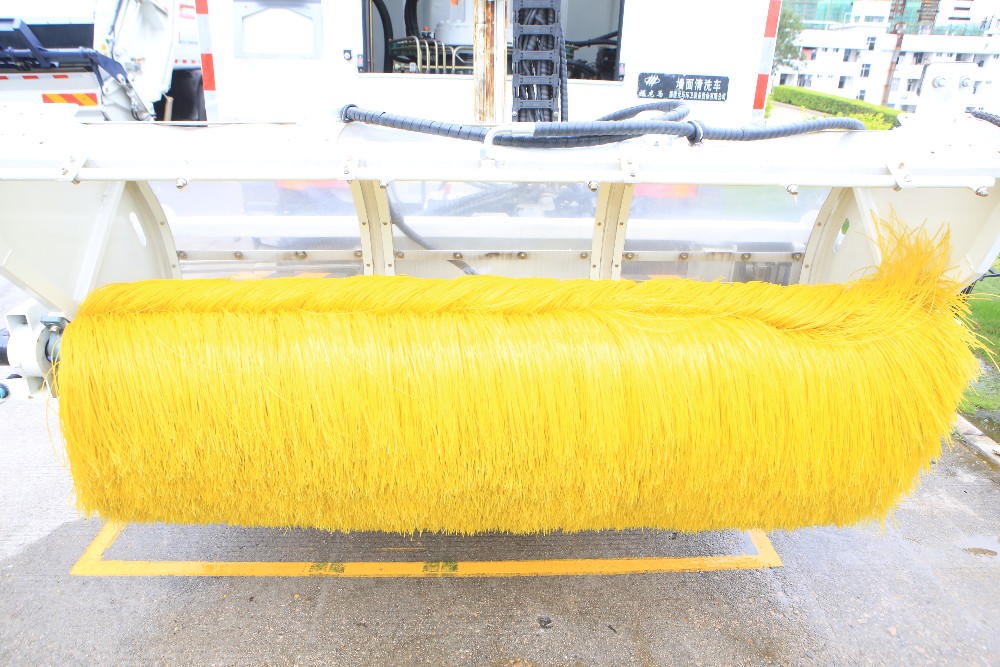

The roller brush holder has a fixed-distance cleaning function. The distance between the roller brush holder and the wall is sensed by ultrasonic, and the upload control system is fed back. The distance between the roller brush holder and the wall is automatically adjusted through the hydraulic cylinder to reduce the driver Work intensity.
