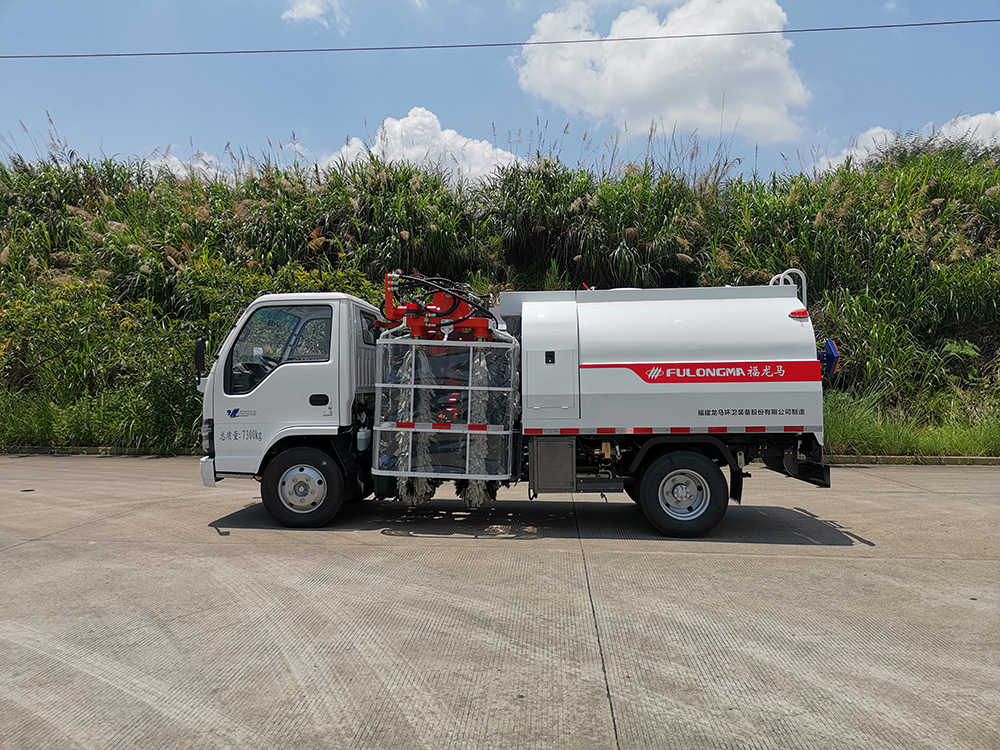

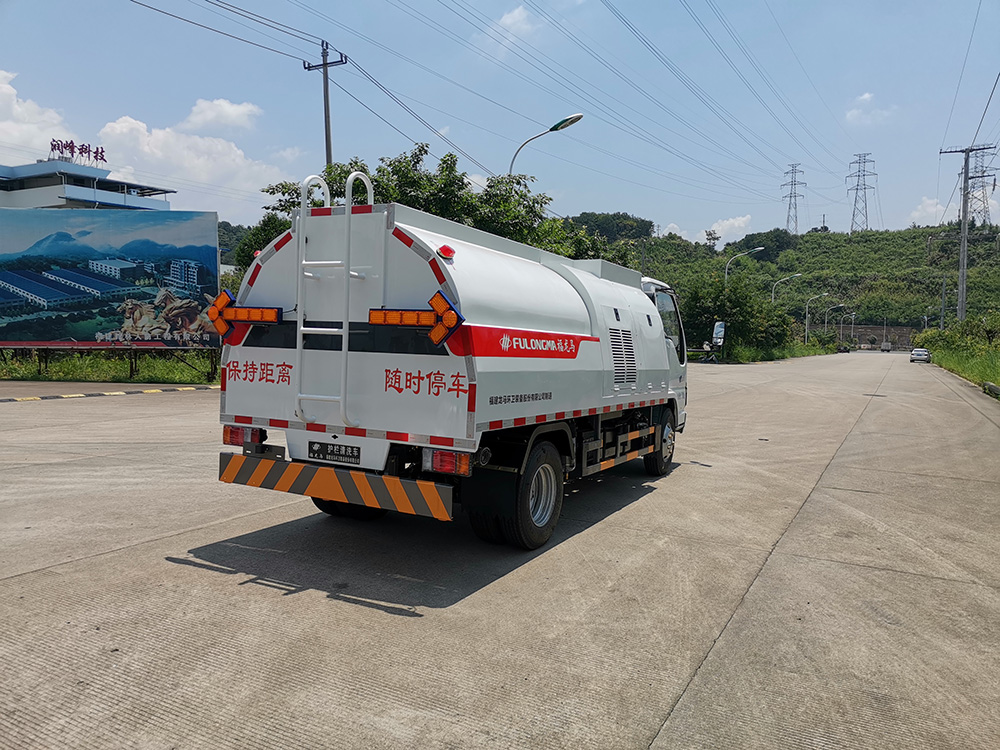

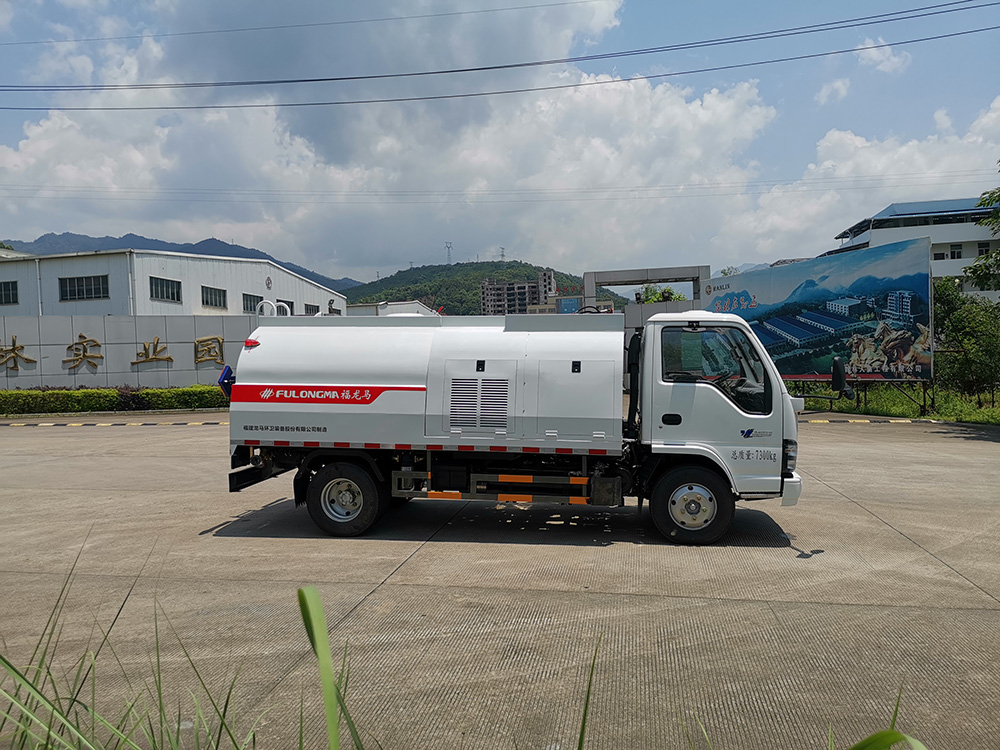

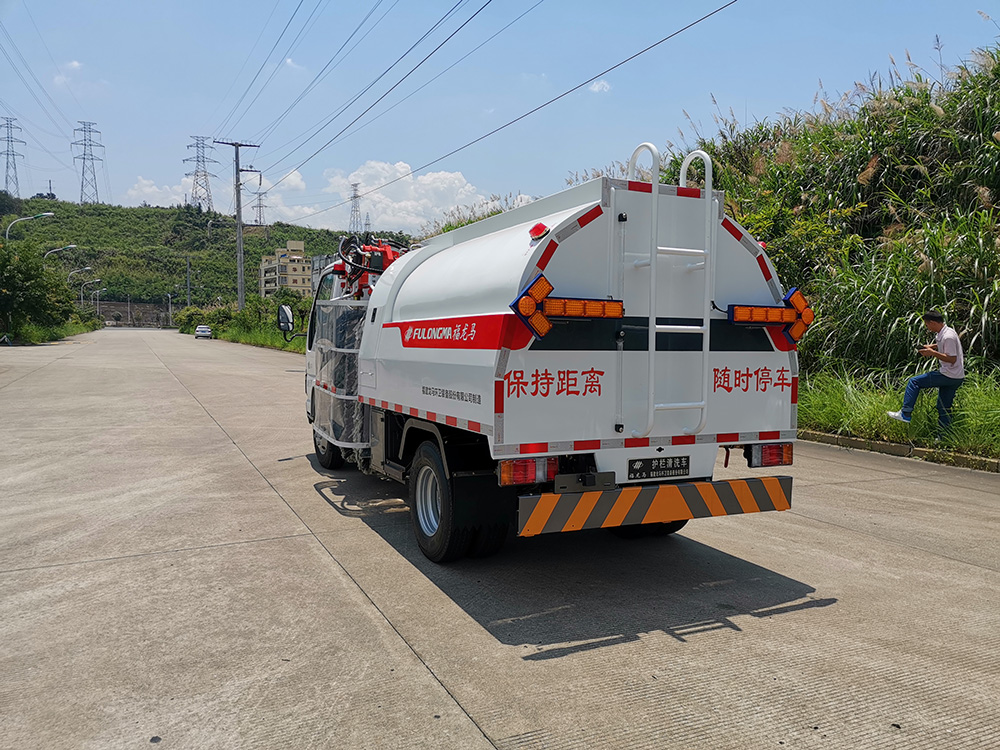

FULONGMA multi-functional road guardrail cleaning vehicle has strong cleaning and dust suppression functions. The vehicle has a classic appearance and strong power. It is ideal mobile cleaning equipment for municipal sanitation, industrial and mining enterprises, engineering projects, etc. It is a vehicle specially used for road guardrail cleaning or other emergency fire-fighting purposes.
01. Multifunctional road guardrail cleaning vehicle body configuration
Using hydraulic transmission, the hydraulic cleaning arm can complete the cleaning of the roadside and the guardrail of the dividing belt. There is no need for retrograde turning, the hydraulic lifting platform can perform high-altitude operations, and can complete the cleaning of signs. The cleaning arm can be rotated 170°, the hydraulic system pressure is 12MPa, the diameter of the cleaning brush is 650mm, the speed is 800-1200r/min, the driving speed is ≤90km/h, and the lifting height is 6m.
02. Chassis configuration of multifunctional road guardrail cleaning vehicle
Restructured from Dongfeng Dolica series chassis. Equipped with Dongfeng Chaochai engine, 7.00 steel tire, original air conditioner, electric glass, and remote key central lock. With ABS, steering assist, air brake. Wheelbase 3308mm, 3.5T rear axle.
03. Cleaning principle of multifunctional road guardrail cleaning vehicle
The cleaning process of two flushes and four brushes is adopted, and both sides are cleaned at the same time, which makes the cleaning more thorough. Cleaning process: First, the two rows of water spray pipes in front of the brush rollers spray water to fully pre-wet the guardrail. During the process of moving the car body forward, the two rows of brush rollers in the middle brush the guardrail in turn, and the two rows behind the brush rollers spray the guardrail. The water pipe sprays water to wash away the remaining dust.
04. The main purpose of the multifunctional road guardrail cleaning vehicle
The guardrail cleaning vehicle is a new type of sanitation cleaning vehicle launched by the company. It is mainly used for the cleaning of urban road isolation guardrails. In addition, it can perform synchronous washing of public facilities such as road surfaces, urban sculptures, billboards, and traffic signs. High cleanliness, high safety, good maneuverability, simple and convenient operation, and maintenance.
05. Other uses of multifunctional road guardrail cleaning vehicle
The guardrail cleaning truck can also be used as a spraying truck, a watering truck, and a dust removal truck. It can be professionally sprayed and anti-corrosion treatment according to the user’s requirements, and it can also be used for water transportation by enterprise units. It can be used as a fire truck in an emergency.
06. Product features of multifunctional road guardrail cleaning vehicle
1. Set up a special cleaning brush for the pier seat, which is used for all-round cleaning of the guardrail pier seat;
2. The height of the roller brush is high and the adjustment range is wide, which is suitable for the cleaning of urban guardrails of various specifications;
3. The water tank has a large volume, which can effectively improve the battery life of the product.
4. The power system has a simple structure and stable transmission.
5. Set the water retaining strip brush to prevent the water mist from blocking the driver’s vision during the cleaning process, and improve safety.
6. The control system takes PLC as the main body, assists with detection switches, sensors, cameras, and other detection components to collect signals, and cooperates with buttons and screen display to achieve multi-function control.
