As one of the sanitation equipment, the FULONGMA road sweeper is a new type of high-efficiency cleaning equipment that integrates road cleaning, garbage recycling, and transportation. It can be widely used in road cleaning operations such as main highways, municipal and airport pavements, coal mines and factories, urban residential areas, parks, and other road cleaning operations; the road sweeper can not only clean garbage but also dedust and evolve the air medium on the road, which not only guarantees It improves the beauty of the road and maintains the sanitation of the environment.
01. Small road sweeper

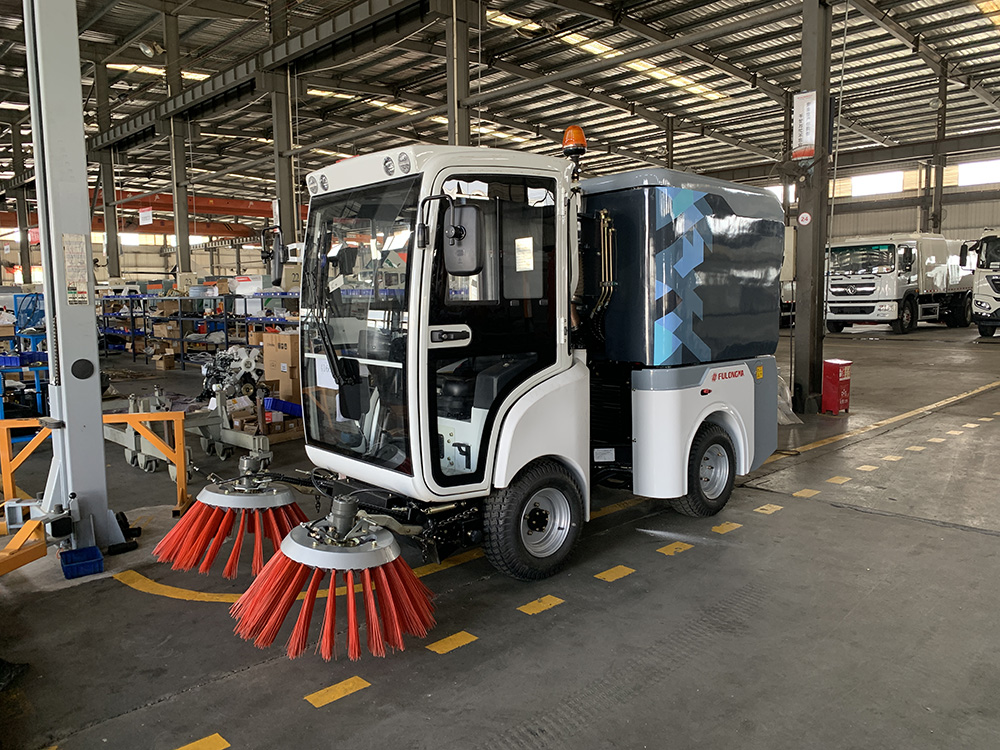

1. FLMSY18A small diesel road sweeper
It uses fuel as power and combines suction and sweep. It has the functions of road cleaning, high-pressure water cleaning, and sewage recycling. The whole machine has a beautiful appearance, flexible maneuverability, and strong cleaning ability. It is especially suitable for cleaning operations in areas where large-scale road sweepers cannot or are inconvenient to enter, such as urban auxiliary roads, narrow roads, non-motorized vehicle lanes, sidewalks, pedestrian streets, scenic belts, parks, schools, scenic spots, and residential areas. In particular, it is also suitable for supplementary cleaning operations on urban traffic-congested roads and streets during the day.
2. 3-ton small road sweeper
It adopts the arrangement of a four-disc sweep in the middle and narrow suction nozzle at the rear, which has strong suction, and the cleaning surface and suction nozzle overlap without leakage, which has an excellent cleaning effect. Omnidirectional adjustment by sweeping the disk is convenient and quick. The front sweeping disc adopts a single oil cylinder to control the ascending, descending, extending, and recycling. The front sweeping disc has the function of anti-collision and avoidance, which can ensure that the cleaning device is not damaged during operation. The opening size of the nozzle feeding port is intelligently controlled by the electro-hydraulic integration. It is convenient for large-volume material to be fed into the nozzle, and has the advantages of being sensitive, intuitive, and fast.
02. Medium road sweeper
1. 7-ton medium road truck
Type of cleaning device: two-disc sweep in the middle + wide suction nozzle, the sweeping plate can automatically avoid obstacles. Suction nozzle: equipped with crushing devices on both sides, which can crush and absorb litter, etc. The dustbin is made of SUS304 single-layer whole stainless steel material, with high structural strength and no rust.
2. 8-ton medium road sweeper
Type of cleaning device: central four-disc sweep + rear suction nozzle, sweeping discs can automatically avoid obstacles. Suction nozzle: It adopts the enhanced suction nozzle of rolling sweeping type, with built-in sweeping to prevent the omission of garbage; the three-point floating support of the rolling rubber wheel and the strong pavement profiling function can adapt to the cleaning requirements of different road surfaces.
03. Large road sweeper
1. 11-ton large road sweeper
Type of cleaning device: central four-disc sweep + rear suction nozzle, sweeping discs can automatically avoid obstacles. Suction Nozzle: It adopts a rolling-sweeping enhanced suction nozzle with a built-in rolling sweep to prevent the omission of garbage; three-point floating support for the rolling rubber wheel. The garbage bin is made of SUS304 double-layer whole stainless steel material, with high structural strength and no rust. The upper layer is a garbage can and the lower layer is a sewage tank.
2. 12 tons large high-speed road sweeper
The structural arrangement of the whole vehicle “four-disc brush + rear suction nozzle” adopts the combination of suction and sweep, wet dust removal, electro-hydraulic control, and hydraulic tipping and unloading to clean the road surface. The operation mode adopts the “full sweep” operation mode, and the left and right front sweep separately controlled operation mode can also be selected, which can perform powerful decontamination and fast cleaning. It can achieve faster and more efficient cleaning of conventional roads and has strong pollution when entering the “enhanced” mode. Decontamination of pavement.
3. 18-ton large road sweeper
It adopts the operation mode of combination of sweeping and suction, wet dust removal, electro-hydraulic gas control, and hydraulic tipping and discharging. The sweeper has at most 3 operation modes: full sweep, left sweep (optional), right sweep (optional), to achieve road cleaning and vacuuming. The garbage bin adopts an overall all-stainless steel single-layer structure, and the whole is not rusted. The garbage bin adopts an inclined plate structure, which is convenient for unloading without manual intervention.
